BPECLDL-4.5-0.4: DescriptionActive Delay Line, Programmable, 1-Func, 255-Tap, True Output, ECL, 0.375 INCH HEIGHT, DIP-34/15; Categorylogic logic; File Size1MB，3 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric Compare View All

BPECLDL-4.5-0.4 Overview

Active Delay Line, Programmable, 1-Func, 255-Tap, True Output, ECL, 0.375 INCH HEIGHT, DIP-34/15

BPECLDL-4.5-0.4 Parametric

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	QIP, DIP34,.6
Contacts	34/15
Reach Compliance Code	unknown
Other features	EBAR; BURNED-IN TO LEVEL B OF MIL-STD-883; MAX RISE TIME & TEMP. COEFF. CAPTURED
series	100K
JESD-30 code	R-XDIP-P15
length	44.45 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	255
Number of terminals	15
Maximum operating temperature	85 °C
Minimum operating temperature
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	QIP
Encapsulate equivalent code	DIP34,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-4.5 V
programmable delay line	YES
Prop。Delay @ Nom-Sup	106.5 ns
Certification status	Not Qualified
Maximum seat height	9.525 mm
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	106.5 ns
width	15.24 mm

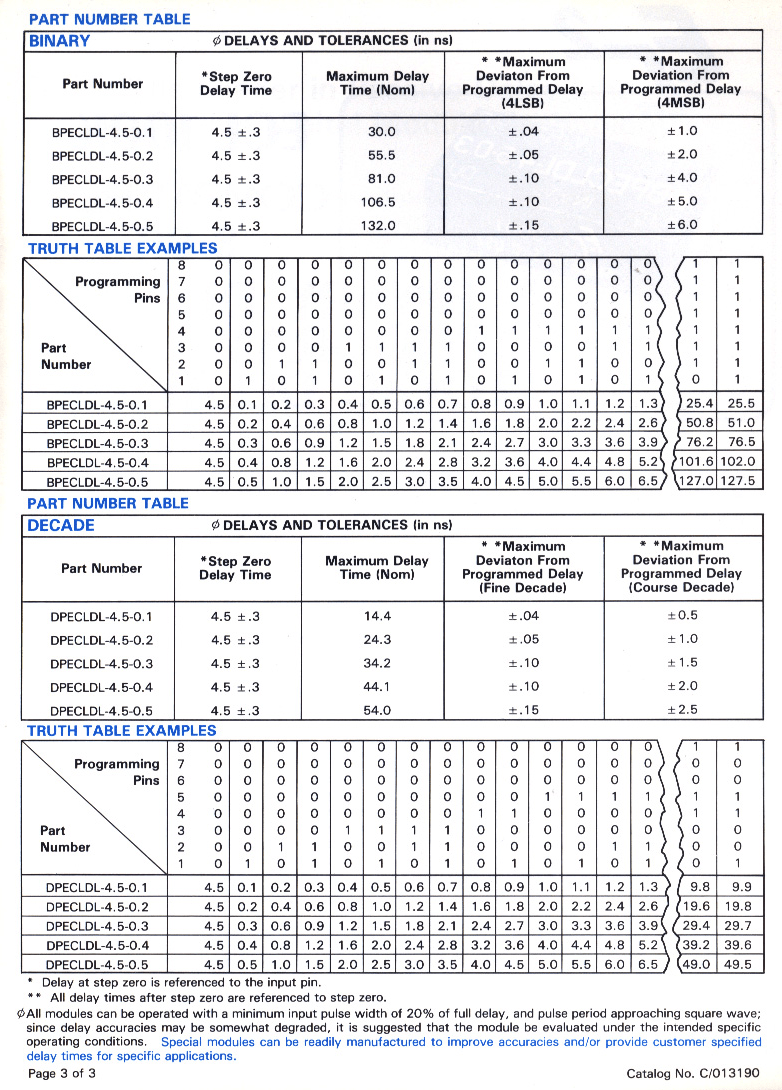

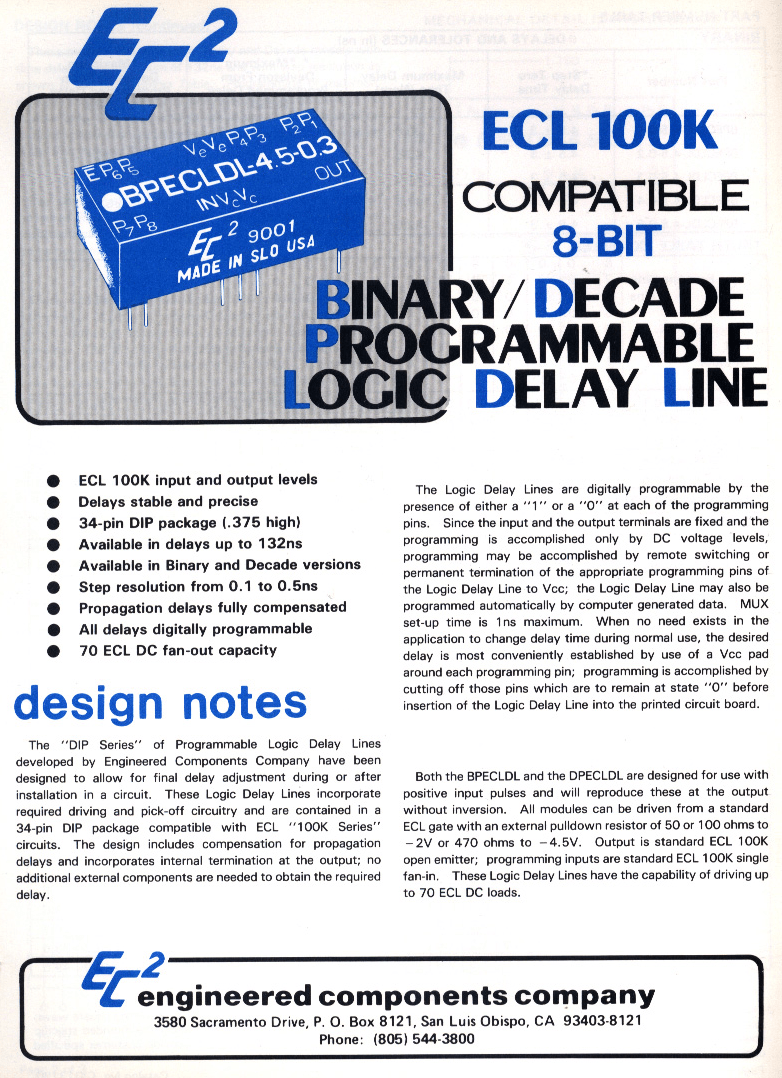

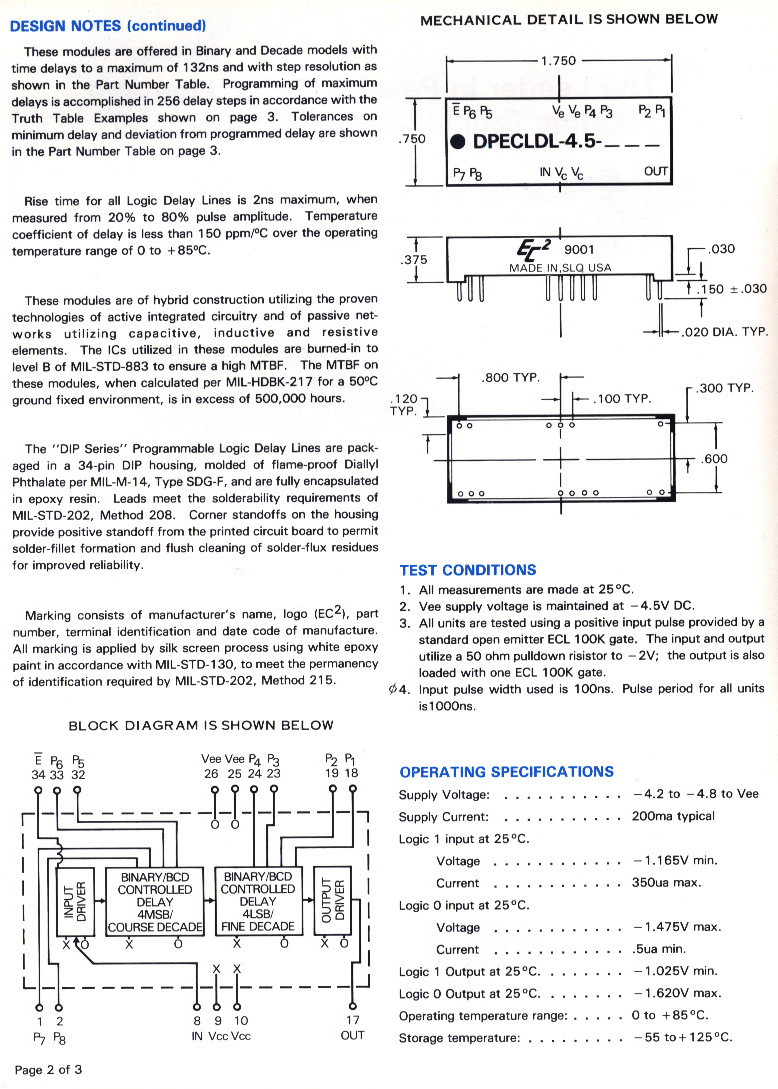

Preview

Download Datasheet

View All

BPECLDL-4.5-0.4 Related Products

	BPECLDL-4.5-0.4	0761453104	DPECLDL-4.5-0.4	BPECLDL-4.5-0.5	DPECLDL-4.5-0.1	DPECLDL-4.5-0.5	BPECLDL-4.5-0.3
Description	Active Delay Line, Programmable, 1-Func, 255-Tap, True Output, ECL, 0.375 INCH HEIGHT, DIP-34/15	Board Connector, 180 Contact(s), 18 Row(s), Male, Straight, Press Fit Terminal, LOW HALOGEN, ROHS AND REACH COMPLIANT	Active Delay Line, Programmable, 1-Func, 99-Tap, True Output, ECL, 0.375 INCH HEIGHT, DIP-34/15	Active Delay Line, Programmable, 1-Func, 255-Tap, True Output, ECL, 0.375 INCH HEIGHT, DIP-34/15	Active Delay Line, Programmable, 1-Func, 99-Tap, True Output, ECL, 0.375 INCH HEIGHT, DIP-34/15	Active Delay Line, Programmable, 1-Func, 99-Tap, True Output, ECL, 0.375 INCH HEIGHT, DIP-34/15	Active Delay Line, Programmable, 1-Func, 255-Tap, True Output, ECL, 0.375 INCH HEIGHT, DIP-34/15
package instruction	QIP, DIP34,.6	LOW HALOGEN, ROHS AND REACH COMPLIANT	QIP, DIP34,.6	QIP, DIP34,.6	QIP, DIP34,.6	QIP, DIP34,.6	QIP, DIP34,.6
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown
Other features	EBAR; BURNED-IN TO LEVEL B OF MIL-STD-883; MAX RISE TIME & TEMP. COEFF. CAPTURED	IMPACT, POLARIZED	EBAR; BURNED-IN TO LEVEL B OF MIL-STD-883; MAX RISE TIME & TEMP. COEFF. CAPTURED	EBAR; BURNED-IN TO LEVEL B OF MIL-STD-883; MAX RISE TIME & TEMP. COEFF. CAPTURED	EBAR; BURNED-IN TO LEVEL B OF MIL-STD-883; MAX RISE TIME & TEMP. COEFF. CAPTURED	EBAR; BURNED-IN TO LEVEL B OF MIL-STD-883; MAX RISE TIME & TEMP. COEFF. CAPTURED	EBAR; BURNED-IN TO LEVEL B OF MIL-STD-883; MAX RISE TIME & TEMP. COEFF. CAPTURED
Terminal pitch	2.54 mm	1.9 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Maker	Engineered Components Co.	-	Engineered Components Co.	Engineered Components Co.	Engineered Components Co.	Engineered Components Co.	Engineered Components Co.
Parts packaging code	DIP	-	DIP	DIP	DIP	DIP	DIP
Contacts	34/15	-	34/15	34/15	34/15	34/15	34/15
series	100K	-	100K	100K	100K	100K	100K
JESD-30 code	R-XDIP-P15	-	R-XDIP-P15	R-XDIP-P15	R-XDIP-P15	R-XDIP-P15	R-XDIP-P15
length	44.45 mm	-	44.45 mm	44.45 mm	44.45 mm	44.45 mm	44.45 mm
Logic integrated circuit type	ACTIVE DELAY LINE	-	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	-	1	1	1	1	1
Number of taps/steps	255	-	99	255	99	99	255
Number of terminals	15	-	15	15	15	15	15
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C
Output characteristics	OPEN-EMITTER	-	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Output polarity	TRUE	-	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	QIP	-	QIP	QIP	QIP	QIP	QIP
Encapsulate equivalent code	DIP34,.6	-	DIP34,.6	DIP34,.6	DIP34,.6	DIP34,.6	DIP34,.6
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	-4.5 V	-	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V
programmable delay line	YES	-	YES	YES	YES	YES	YES
Prop。Delay @ Nom-Sup	106.5 ns	-	44.1 ns	132 ns	14.4 ns	54 ns	81 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	9.525 mm	-	9.525 mm	9.525 mm	9.525 mm	9.525 mm	9.525 mm
surface mount	NO	-	NO	NO	NO	NO	NO
technology	ECL	-	ECL	ECL	ECL	ECL	ECL
Temperature level	OTHER	-	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	-	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
Total delay nominal (td)	106.5 ns	-	44.1 ns	132 ns	14.4 ns	54 ns	81 ns
width	15.24 mm	-	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
