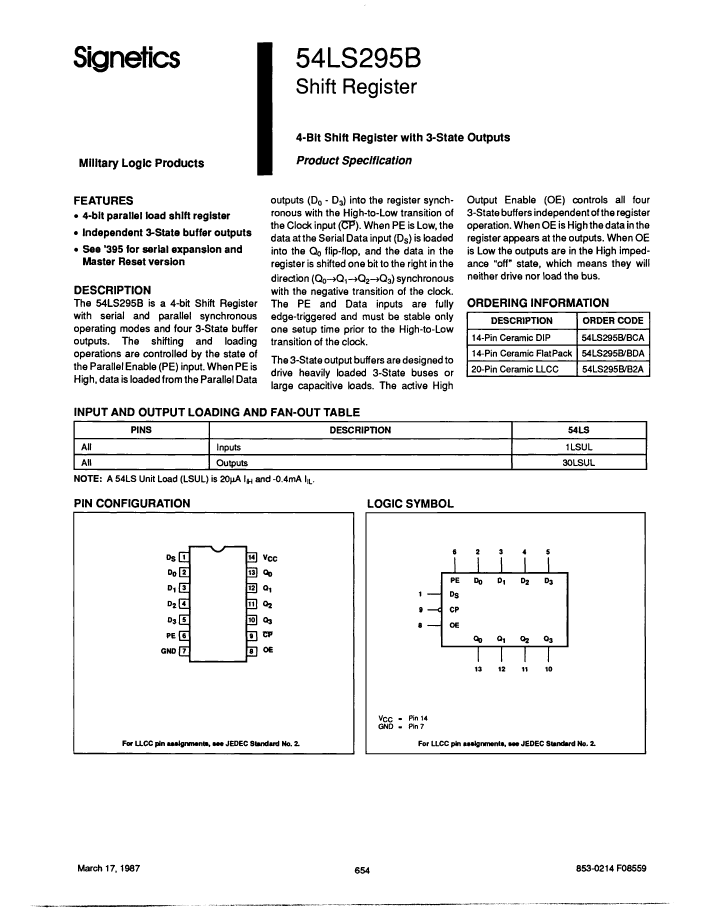

Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDFP14

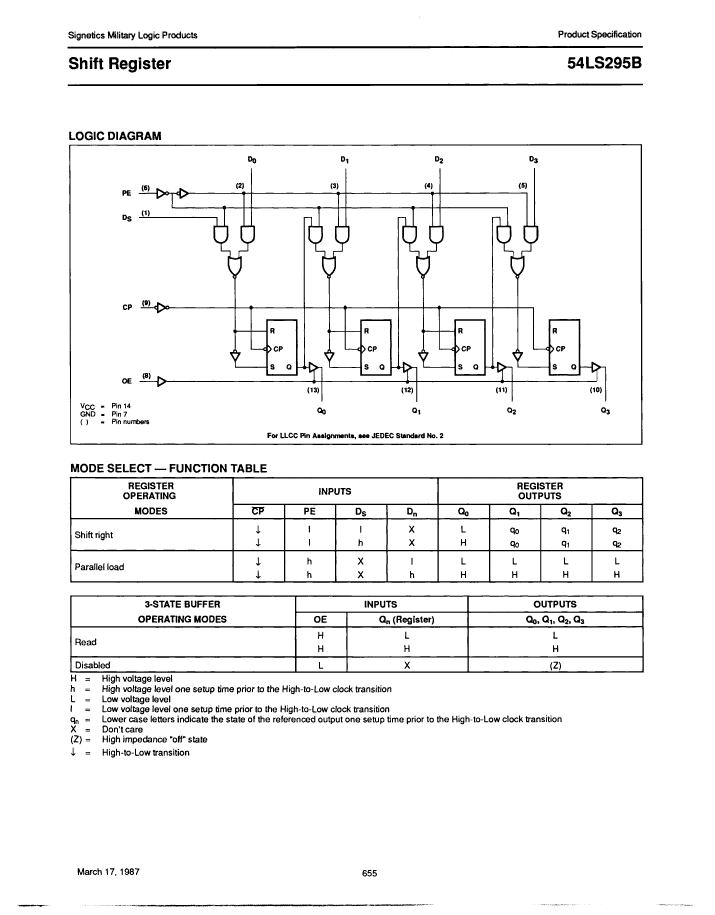

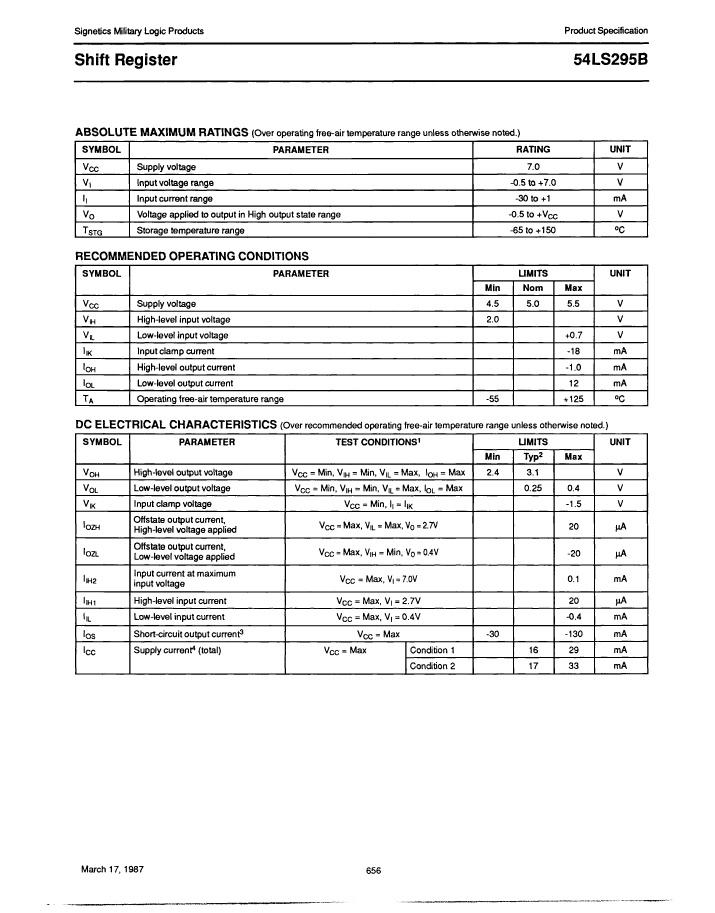

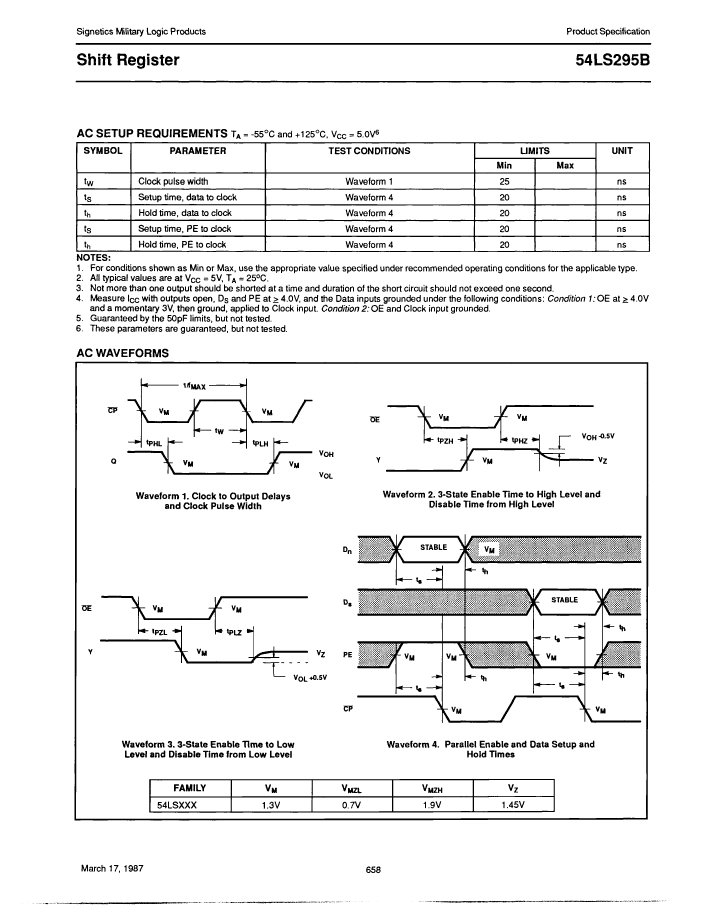

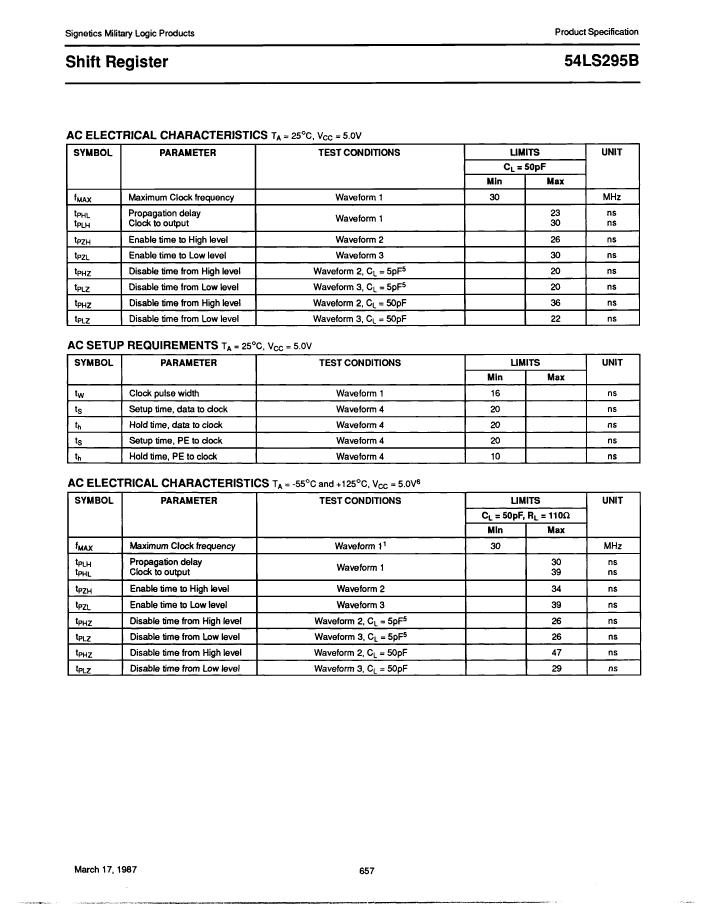

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| Counting direction | RIGHT |
| series | LS |
| JESD-30 code | R-CDFP-F14 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | PARALLEL IN PARALLEL OUT |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Maximum supply current (ICC) | 29 mA |
| propagation delay (tpd) | 39 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | FLAT |
| Terminal location | DUAL |
| Trigger type | NEGATIVE EDGE |
| minfmax | 30 MHz |
| 54LS295B/BDA | 54LS295B/B2A | 54LS295B/BCA | |
|---|---|---|---|
| Description | Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDFP14 | Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CQCC20 | Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDIP14 |
| Maker | YAGEO | YAGEO | YAGEO |
| Reach Compliance Code | unknown | unknown | unknown |
| Counting direction | RIGHT | RIGHT | RIGHT |
| series | LS | LS | LS |
| JESD-30 code | R-CDFP-F14 | S-CQCC-N20 | R-CDIP-T14 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | PARALLEL IN PARALLEL OUT | PARALLEL IN PARALLEL OUT | PARALLEL IN PARALLEL OUT |
| Number of digits | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 14 | 20 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | FLATPACK | CHIP CARRIER | IN-LINE |
| Maximum supply current (ICC) | 29 mA | 29 mA | 29 mA |
| propagation delay (tpd) | 39 ns | 39 ns | 39 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO |
| technology | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | NO LEAD | THROUGH-HOLE |
| Terminal location | DUAL | QUAD | DUAL |
| Trigger type | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE |
| minfmax | 30 MHz | 30 MHz | 30 MHz |
| Base Number Matches | - | 1 | 1 |
