M55302/128-DF1A

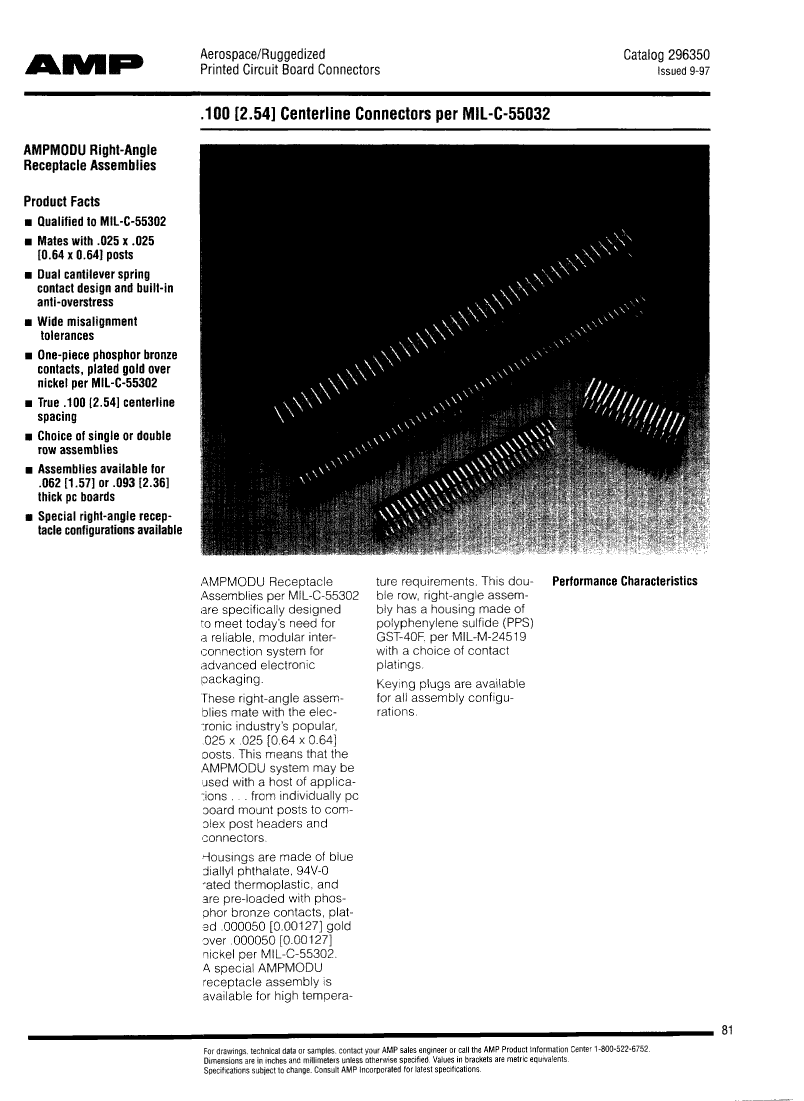

Description
110 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size460KB,10 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

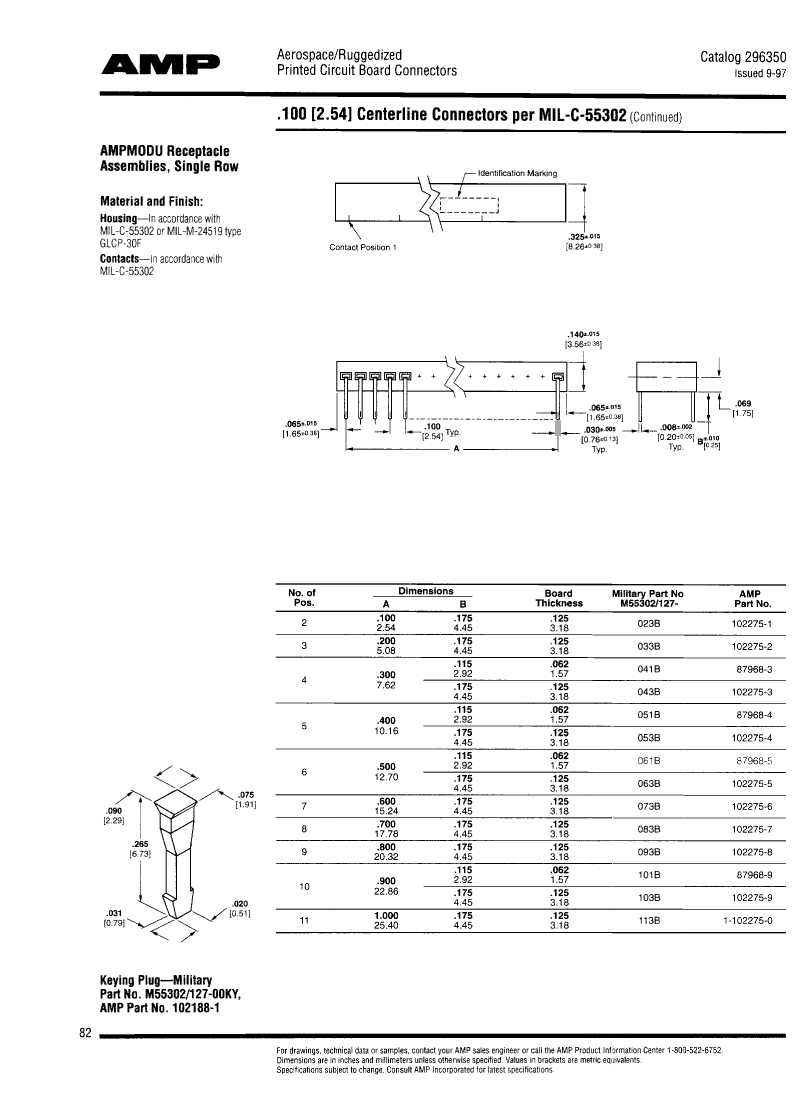

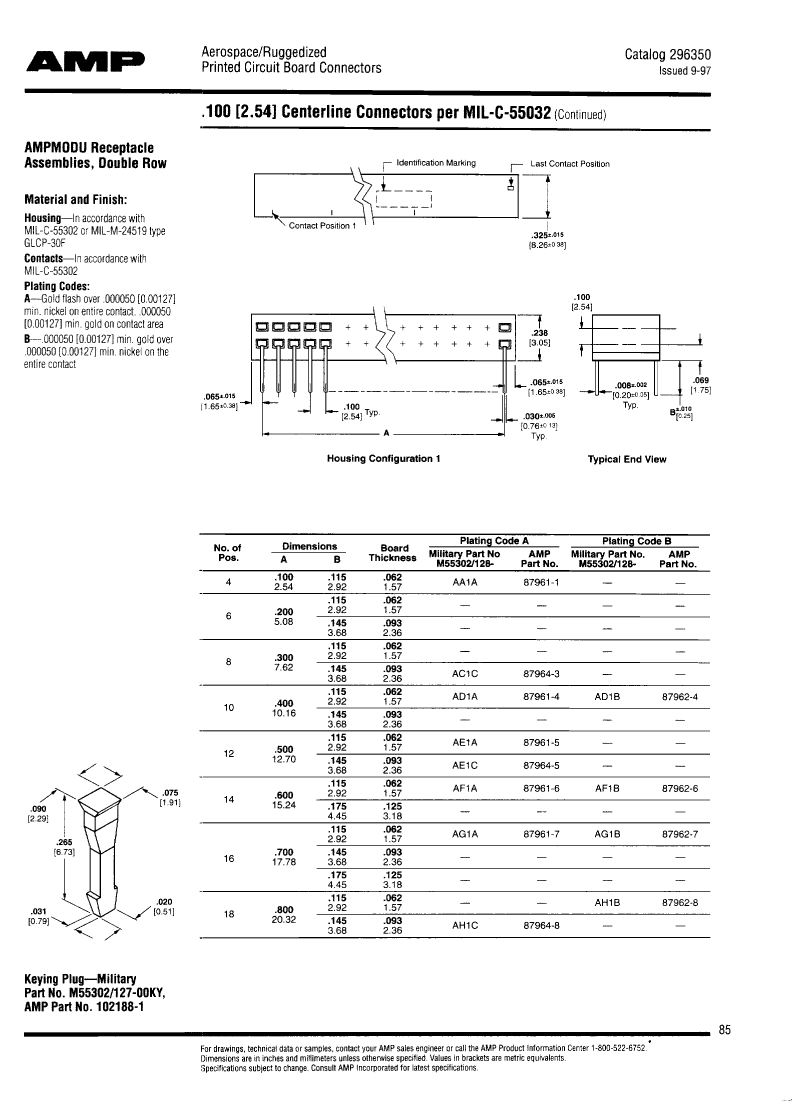

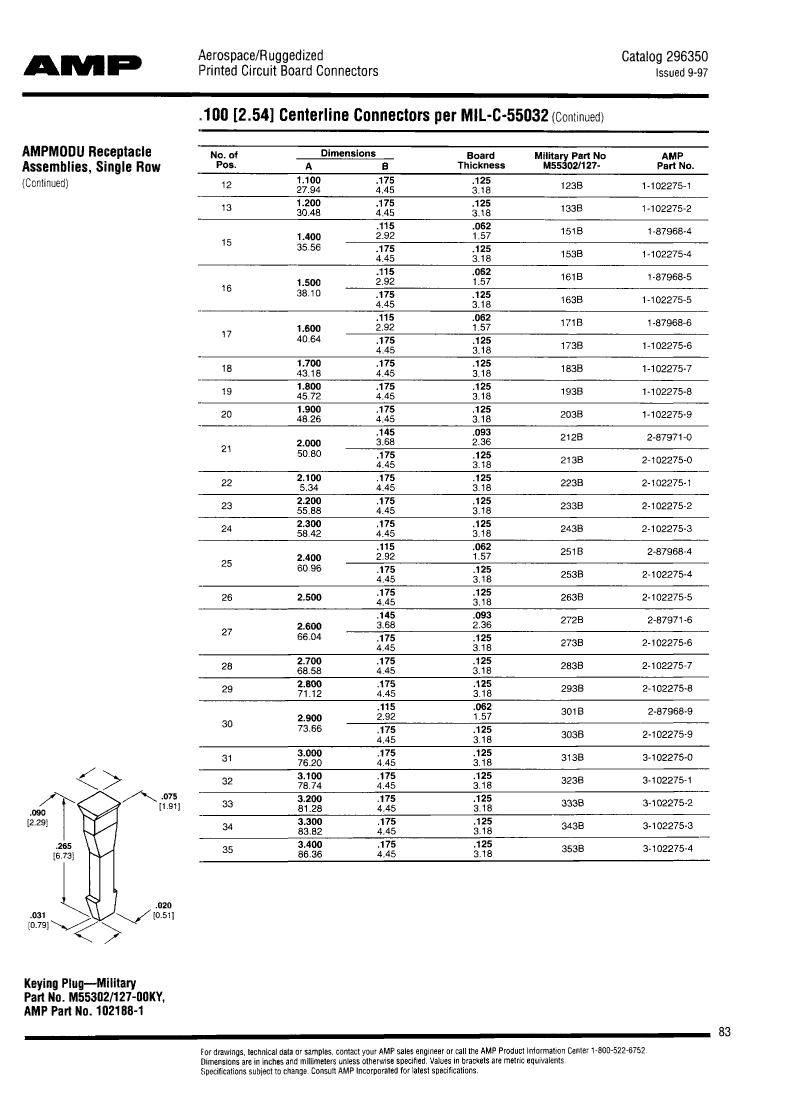

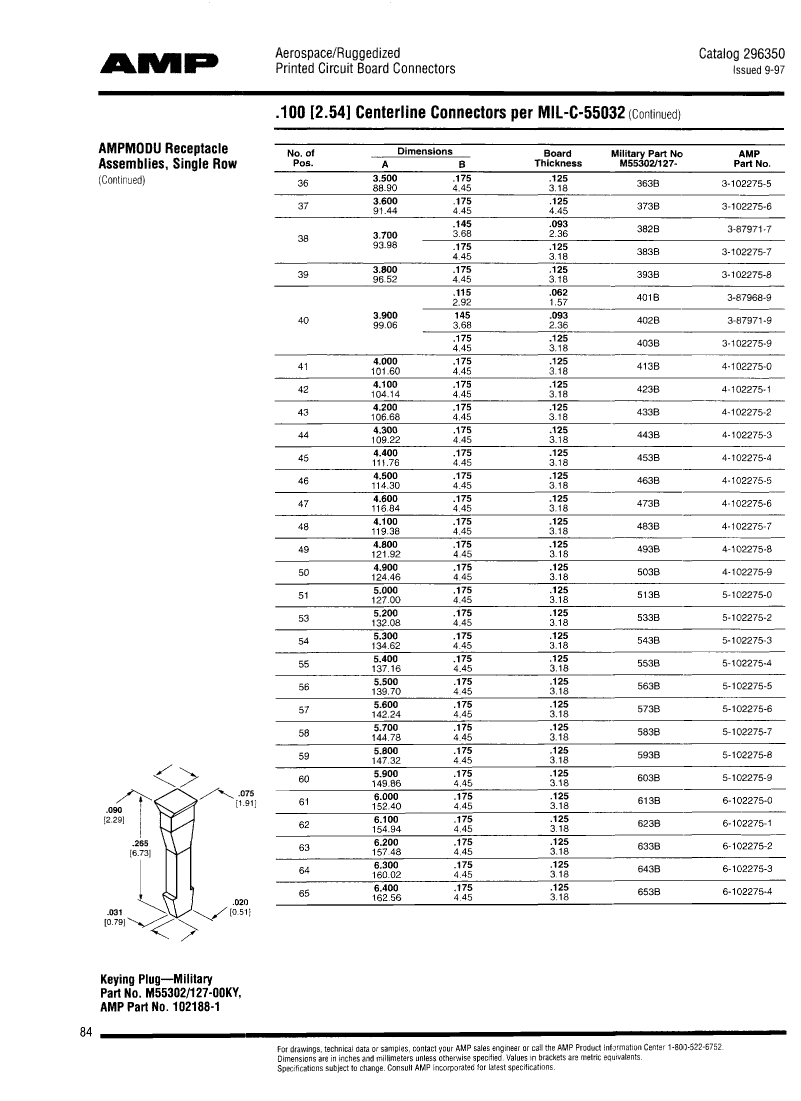

M55302/128-DF1A Overview

110 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

M55302/128-DF1A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1430664159
Reach Compliance Codecompliant
YTEOL9.1
Other featuresAMPMODU, RECEPTACLE
subject depth0.238 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Electromagnetic interference shieldingNO
empty shellYES
Filter functionNO
IEC complianceNO
Insulator colorNATURAL
insulator materialPOLYPHENYLENE SULFIDE
MIL complianceNO
Power Connector Ratings3A
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1GUIDE PIN
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of ports1
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingNO
Plating thickness50u inch
Rated current (signal)3 A
Terminal length0.115 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts110
UL Flammability Code94V-0
