3F3CSA22S58K40X datasheet, PDF

Datasheet> All Categories > The connector> The connector> 3F3CSA22S58K40X

3F3CSA22S58K40X: DescriptionD Subminiature Connector, 3 Contact(s), Female, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

3F3CSA22S58K40X Overview

D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, #4-40, Receptacle

3F3CSA22S58K40X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.509 inch
subject depth	0.575 inch
body length	1.156 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S0P3
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	RND PIN-SKT
Dielectric withstand voltage	707VDC V
Durability	50 Cycles
Filter function	YES
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	3F3C
Mixed contacts	YES
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.183 inch
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

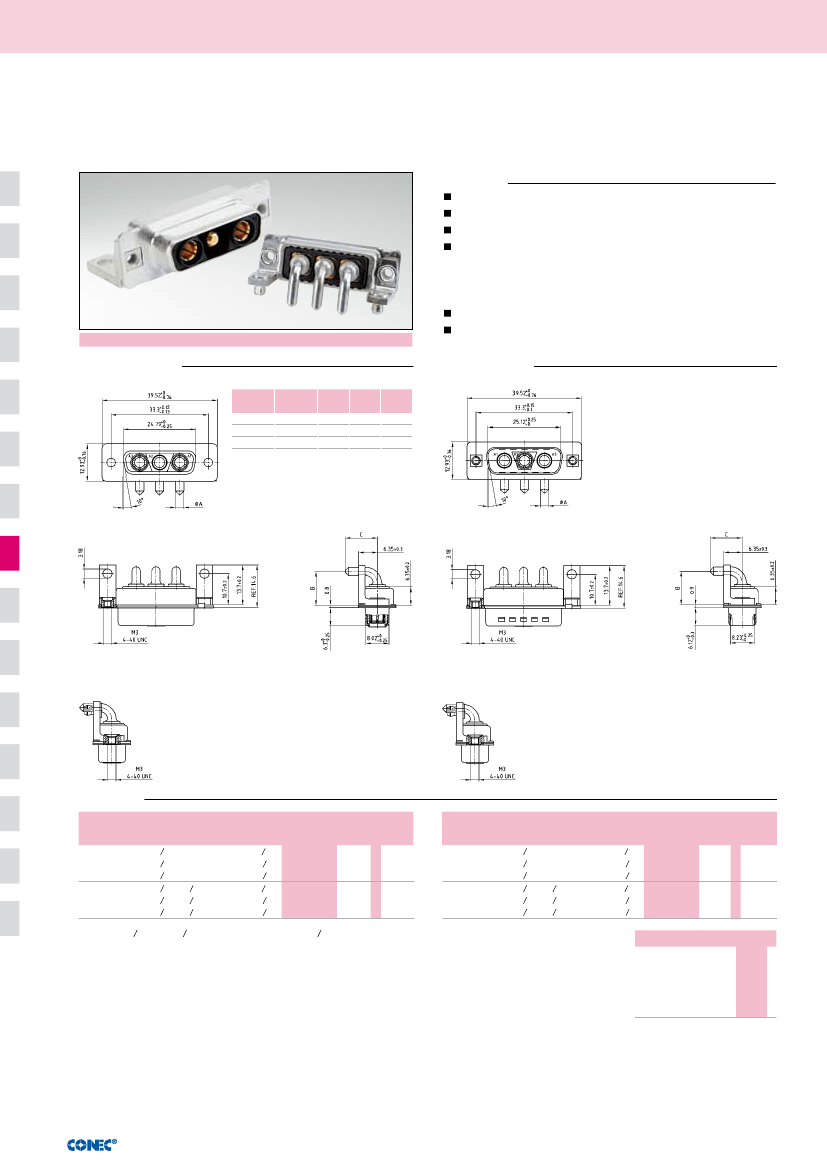

C -Fil t e r Co mb ina tion D -SUB C onn ectors

C-Filter Combination D-SUB

3W3C

Solder pin – Angled – Precision machined contacts – Metal bracket

Description

Coded socket connector = 1 plug and 2 socket contacts

Coded plug connector = 2 plugs and 1 socket contact

707 VDC (other DWV on request)

Mounting styles:

- with mounting bracket and 4-40 UNC or M3 threaded insert

- with mounting bracket, PCB clip and 4-40 UNC or

M3 threaded insert

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated, optionally brass tin plated

RoHS compliant – UL listed, File No.: E228329

Socket connector

Termination

code

Plug connector

Current

rating

20A

30A

40A

ØA

2.85

3.18

3.75

± 0.3

11.65

20.35

11.65

± 0.3

11.00

9.50

11.00

Mounting style: Mounting bracket, threaded insert

Mounting style:

Mounting bracket, PCB clip and threaded insert

Mounting style:

Mounting bracket, PCB clip and threaded insert

Order data

Socket connector

Type Mounting style

3W3C

Mounting bracket

Threaded insert

PCB clip Threaded insert

Plug connector

Ø A Capacitance Part Number

.110" 2.85

.126“ 3.20

.150“ 3.75

.110" 2.85

.126“ 3.20

.150“ 3.75

47 nF

3F3C SA 22 S56K20 X

3F3C SA 22 S57K20 X

3F3C SA 22 S58K20 X

3F3C SA 22 S56K40 X

3F3C SA 22 S57K40 X

3F3C SA 22 S58K40 X

Type Mounting style

3W3C Mounting bracket

Threaded insert

PCB clip Threaded insert

Ø A Capacitance Part Number

.110" 2.85

.126“ 3.20

.150“ 3.75

.110" 2.85

.126“ 3.20

.150“ 3.75

47 nF

3F3C PA 22 S56K20 X

3F3C PA 22 S57K20 X

3F3C PA 22 S58K20 X

3F3C PA 22 S56K40 X

3F3C PA 22 S57K40 X

3F3C PA 22 S58K40 X

PCB clip .122” 3.1 ± .004” 0.10 mm hole diameter and .063” 1.6 mm circuit board thickness.

For other capacitance values refer to the part number creator.

Capacitance value

100 nF

47 nF

12 nF

10 nF

5 nF

1.3 nF

Code

8| 24
