HV9109P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> HV9109P

HV9109P: DescriptionSwitching Regulator, Current-mode, 0.5A, 1000kHz Switching Freq-Max, BICMOS, PDIP14, PLASTIC, DIP-16/14; CategoryPower/power management The power supply circuit; File Size306KB，7 Pages; ManufacturerSupertex

Download Datasheet Parametric Compare View All

HV9109P Overview

Switching Regulator, Current-mode, 0.5A, 1000kHz Switching Freq-Max, BICMOS, PDIP14, PLASTIC, DIP-16/14

HV9109P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Supertex
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	450 V
Minimum input voltage	12 V
JESD-30 code	R-PDIP-T14
length	19.05 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	14
Maximum output current	0.5 A
Nominal output voltage	4 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	4.318 mm
Maximum supply current (Isup)	1 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	1000 kHz
technology	BICMOS
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

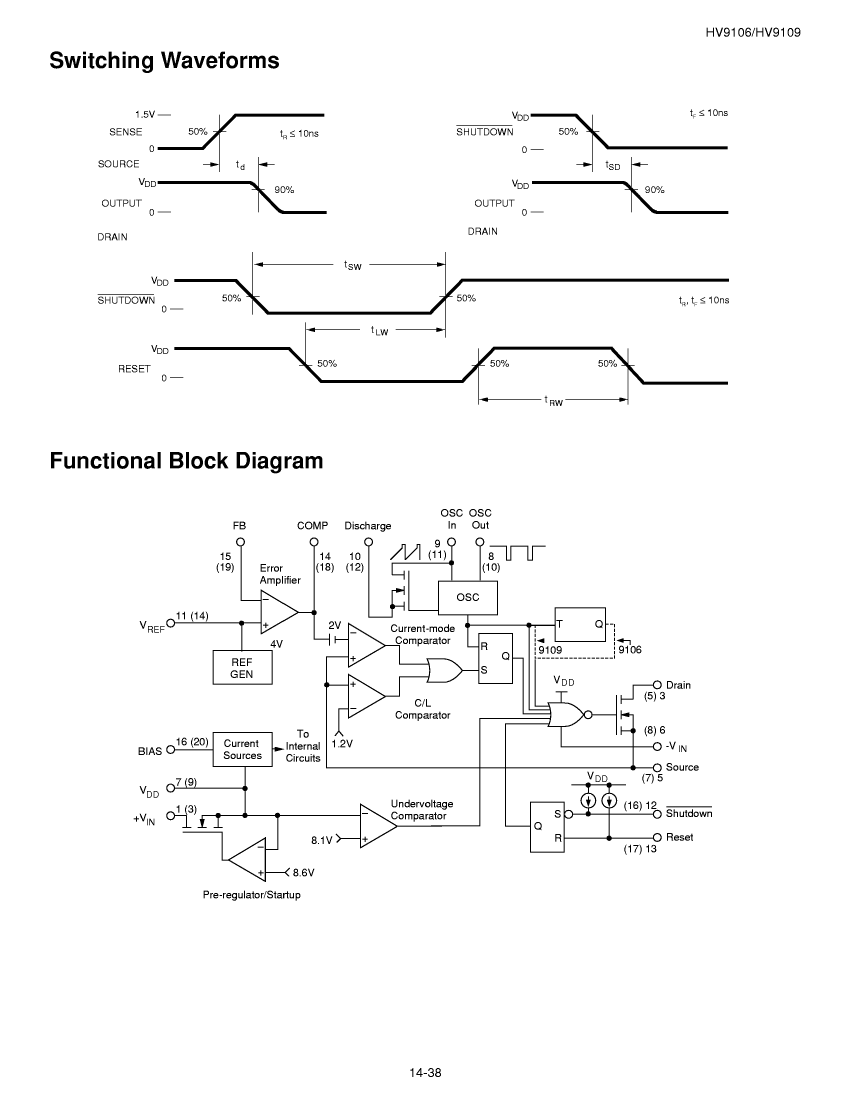

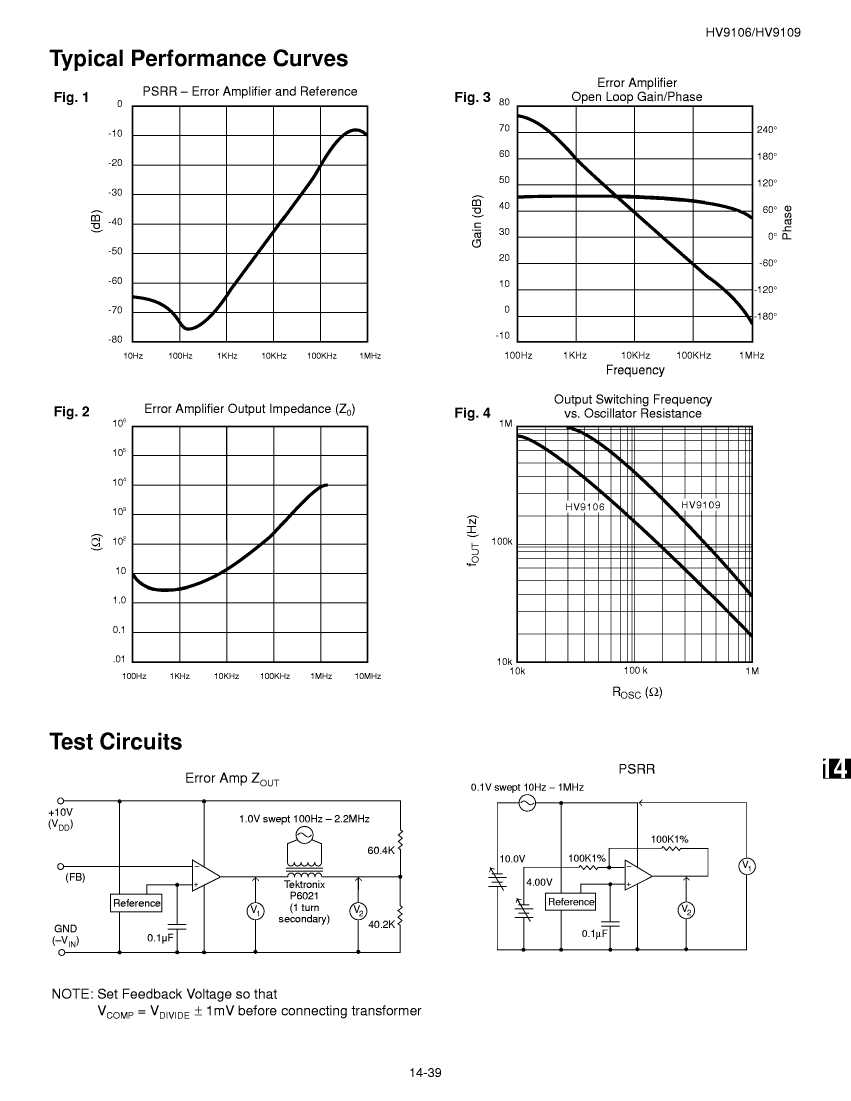

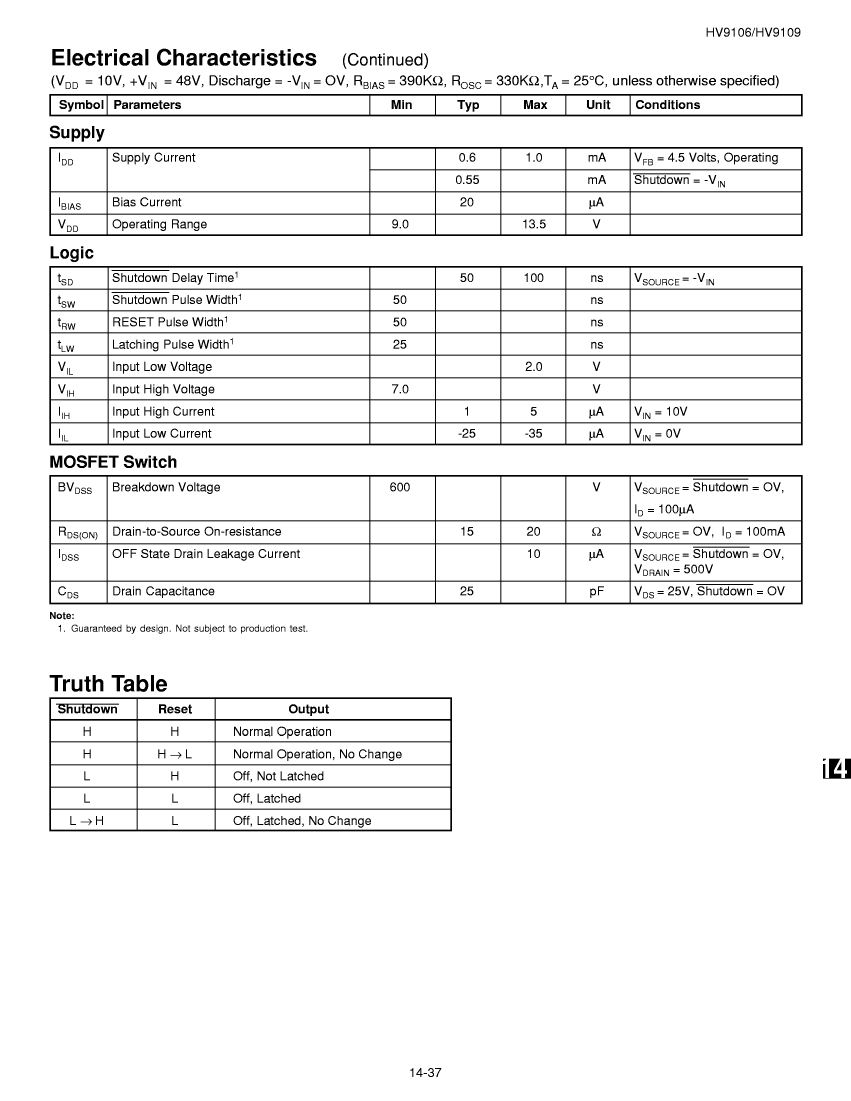

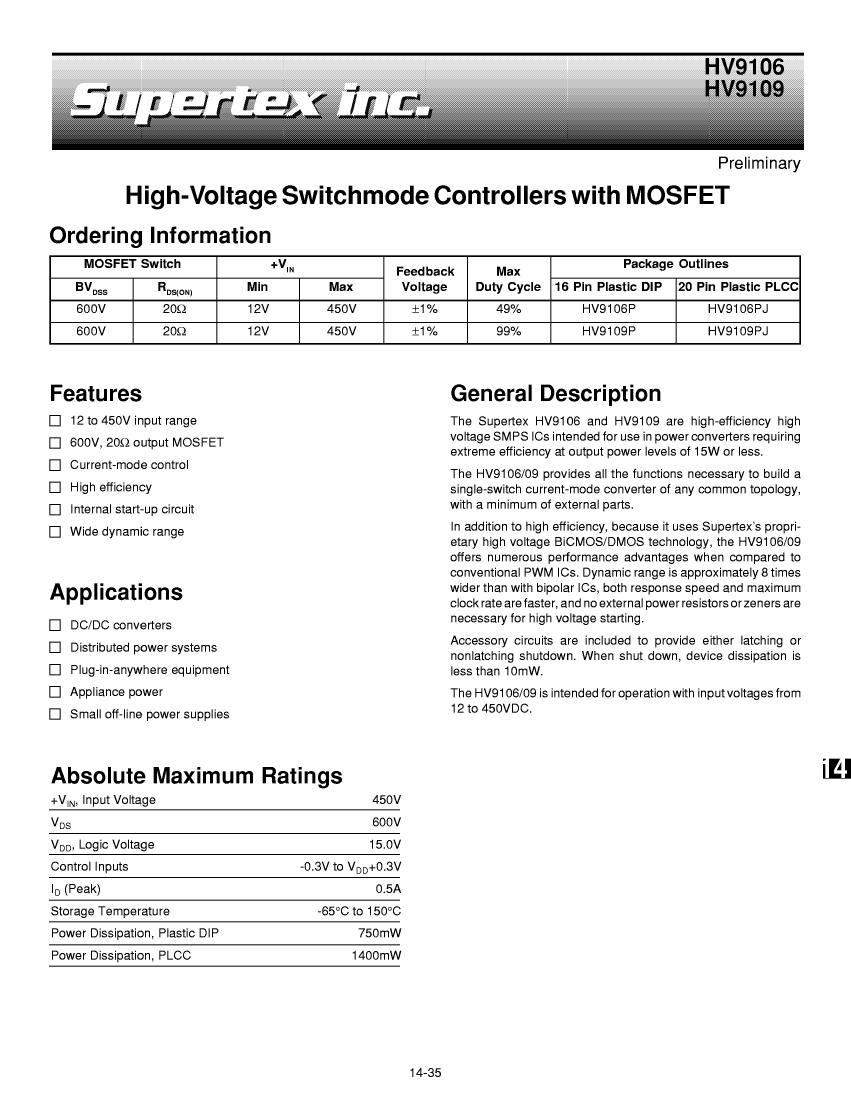

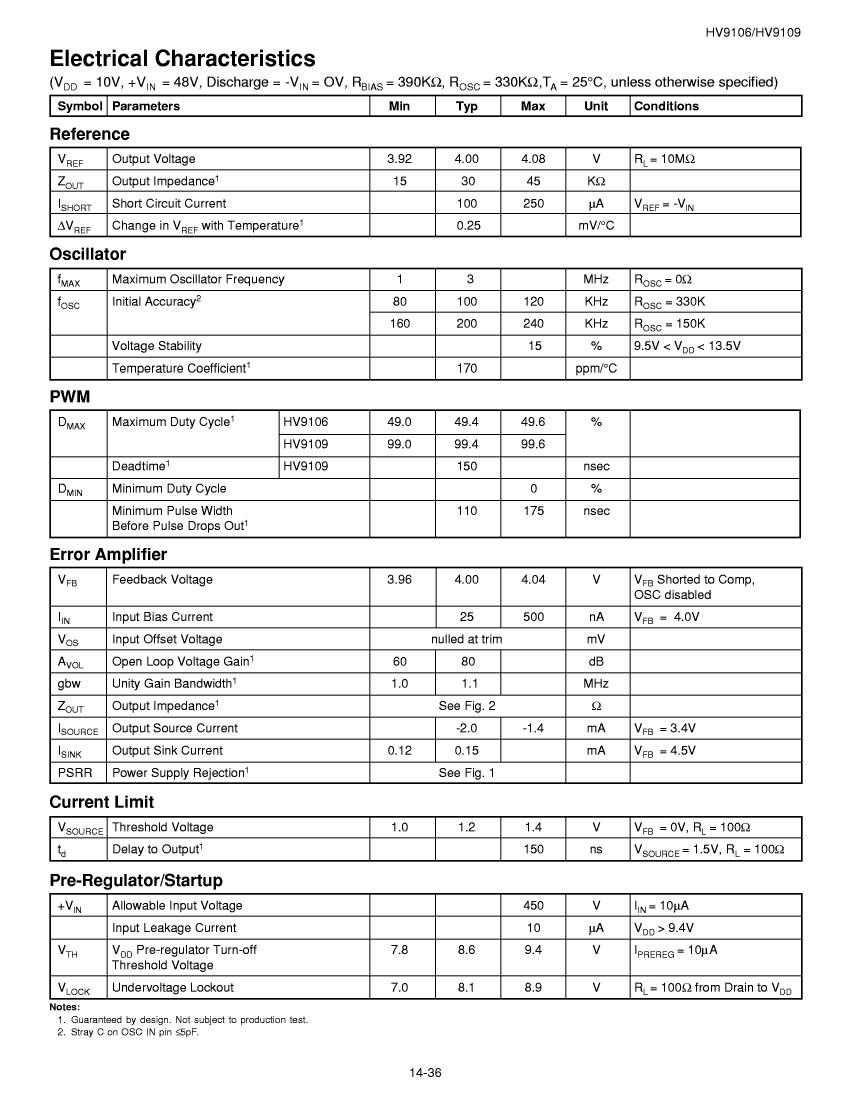

Preview

Download Datasheet

View All

HV9109P Related Products

	HV9109P	HV9106PJ	HV9109PJ	HV9106P
Description	Switching Regulator, Current-mode, 0.5A, 1000kHz Switching Freq-Max, BICMOS, PDIP14, PLASTIC, DIP-16/14	Switching Regulator, Current-mode, 0.5A, 1000kHz Switching Freq-Max, BICMOS, PQCC20, PLASTIC, LCC-20	Switching Regulator, Current-mode, 0.5A, 1000kHz Switching Freq-Max, BICMOS, PQCC20, PLASTIC, LCC-20	Switching Regulator, Current-mode, 0.5A, 1000kHz Switching Freq-Max, BICMOS, PDIP14, PLASTIC, DIP-16/14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Supertex	Supertex	Supertex	Supertex
Parts packaging code	DIP	QLCC	QLCC	DIP
package instruction	DIP,	QCCJ,	QCCJ,	DIP,
Contacts	16	20	20	16
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	450 V	450 V	450 V	450 V
Minimum input voltage	12 V	12 V	12 V	12 V
JESD-30 code	R-PDIP-T14	S-PQCC-J20	S-PQCC-J20	R-PDIP-T14
length	19.05 mm	8.9662 mm	8.9662 mm	19.05 mm
Humidity sensitivity level	1	1	1	1
Number of functions	1	1	1	1
Number of terminals	14	20	20	14
Maximum output current	0.5 A	0.5 A	0.5 A	0.5 A
Nominal output voltage	4 V	4 V	4 V	4 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	QCCJ	DIP
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	225	225	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.318 mm	4.57 mm	4.57 mm	4.318 mm
Maximum supply current (Isup)	1 mA	1 mA	1 mA	1 mA
surface mount	NO	YES	YES	NO
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum switching frequency	1000 kHz	1000 kHz	1000 kHz	1000 kHz
technology	BICMOS	BICMOS	BICMOS	BICMOS
Terminal form	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	8.9662 mm	8.9662 mm	7.62 mm
