M6 SERIES
P10TG-XXXXZ2:1H35M 3.5 KV ISOLATED 2 W REGULATED DUAL OUTPUT DIP24
Available Inputs:
12, 24 and 48 VDC Wide Input 2:1
Available Outputs:
(+/-)3.3, 12, 15 and 18 VDC
Other specifications please enquire.
Electrical Specifications
(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)
Input Specifications
Voltage range
Filter
Isolation Specifications
Rated voltage
Leakage current
Resistance
Capacitance
Output Specifications
Voltage accuracy
Ripple and noise (at 20 MHz BW)
Short circuit protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
General Specifications
Efficiency
Switching frequency
Environmental Specifications
Operating temperature (ambient)
Storage temperature
Derating
Humidity
Cooling
Physical Characteristics
Dimensions
Weight
Case material
9 - 18 VDC (12 VDC), 18 - 36 VDC (24 VDC)
36 - 72 VDC (48 VDC)
Pi Network
3500 Vdc
1 mA
10
9
Ohm
80 pF typ.
+/- 1 % typ. +/-2% max.
60 mV p-p, max.
Continuous , restart automatic
+/- 0,5 % max.
+/- 0,5 % max.
+/- 0,02 % / °C
70 % to 85 %
250 KHz, typ.
-40°C to +85°C
- 55 °C to + 125 °C
See graph
Up to 90 %, non condensing
Free air convection
31,75 x 20,32 x 10,16 mm
1,25 x 0,80 x 0,40 inches
16,3 g
Nickel Coated Copper
Examples of Partnumbers/Modelcode
PART
NO.
INPUT
VOLTAGE
(VDC)
Nominal
INPUT
CURRENT
NO LOAD
INPUT
CURRENT
FULL LOAD
OUTPUT
VOLTAGE
(VDC)
OUTPUT
CURRENT
(max. mA)
EFFICIENCY FULL
LOAD
(% TYP.)
P10TG-1205Z2:1H35M
P10TG-1212Z2:1H35M
P10TG-2405Z2:1H35M
P10TG-4805Z2:1H35M
P10TG-4812Z2:1H35M
9-18
9-18
18-36
36-72
36-72
17
17
17
15
15
225
213
109
56
53
+/- 5
+/- 12
+/- 5
+/- 5
+/- 12
+/- 200
+/- 83
+/- 200
+/- 200
+/- 83
74
78
76
75
79
M6 SERIES
P10TG-XXXXZ2:1H35M 3.5 KV ISOLATED 2 W REGULATED DUAL OUTPUT DIP24

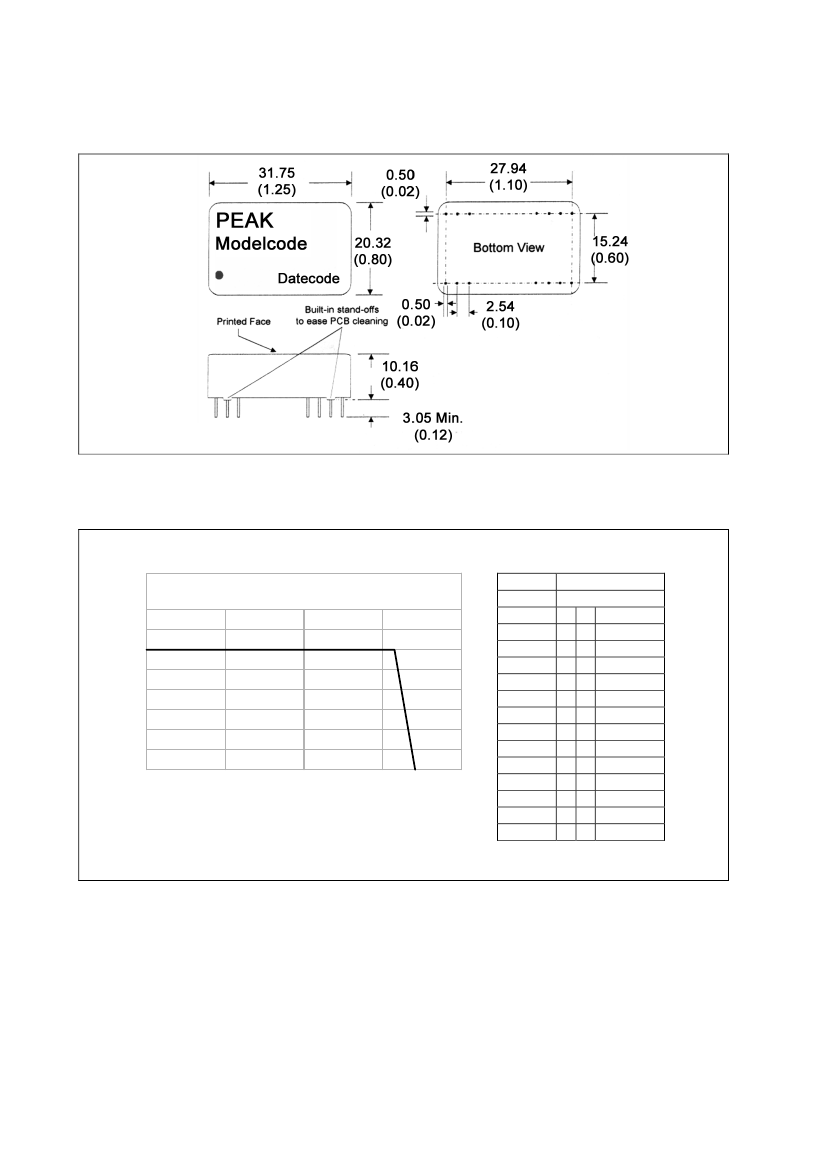

Dimensions
Derating Graph and Pinning
Output
Temperature Derating Graph
Ambient Temperature ° C
85
2.00 W
- 40
0
40
80
100
Pin
#
1
2
3
9
10
11
12
13
14
15
16
22
23
24
Connection
Dual
Omitted
- V Input
- V Input
Common
Omitted
- V Output
Omitted
Omitted
+ V Output
Omitted
Common
+ V Input
+ V Input
Omitted
Specification can be changed without notice.
REV:2 / 09.2001
Copyright PEAK electronics GmbH
