LM358AN datasheet, PDF - EEWORLD Datasheet

LM358AN: DescriptionOperational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDIP8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size210KB，7 Pages; ManufacturerSignetics; Related ProductsFound9parts with similar functions to LM358AN

Download Datasheet Parametric View All

LM358AN Online Shopping

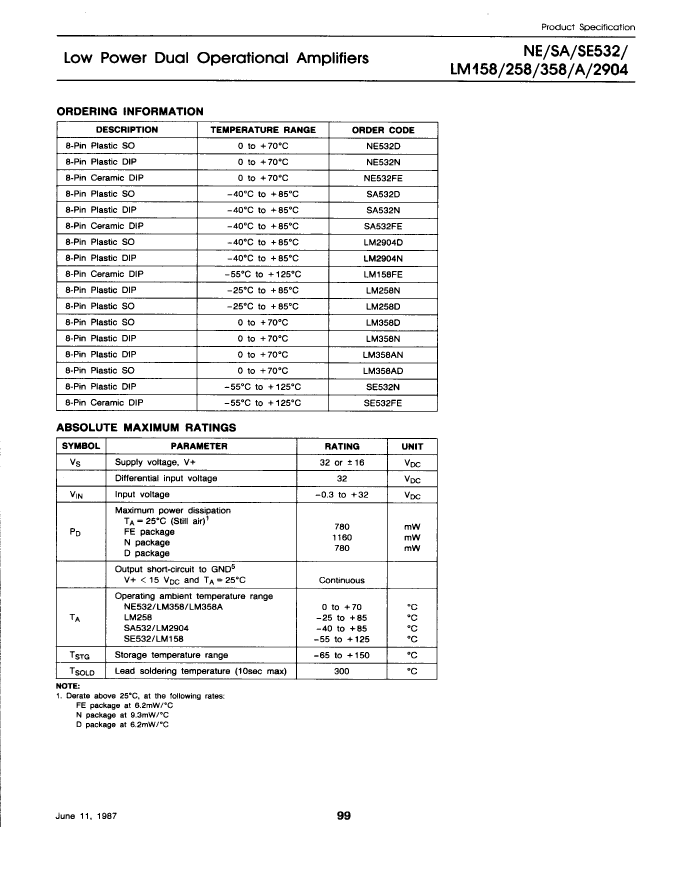

Suppliers	Part Number	Price	MOQ	In stock
	LM358AN	-	-	View	Buy Now

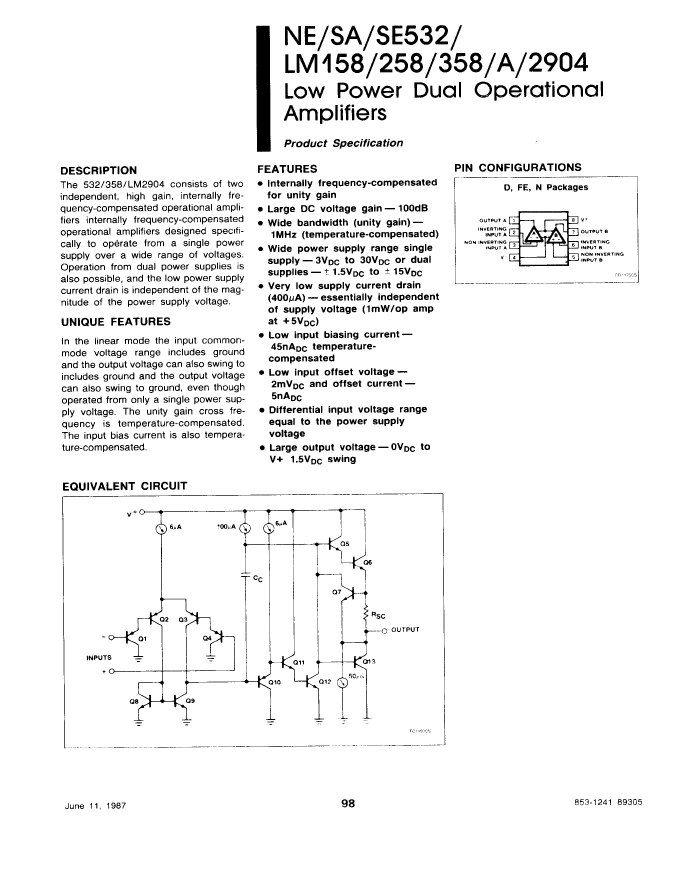

Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDIP8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK

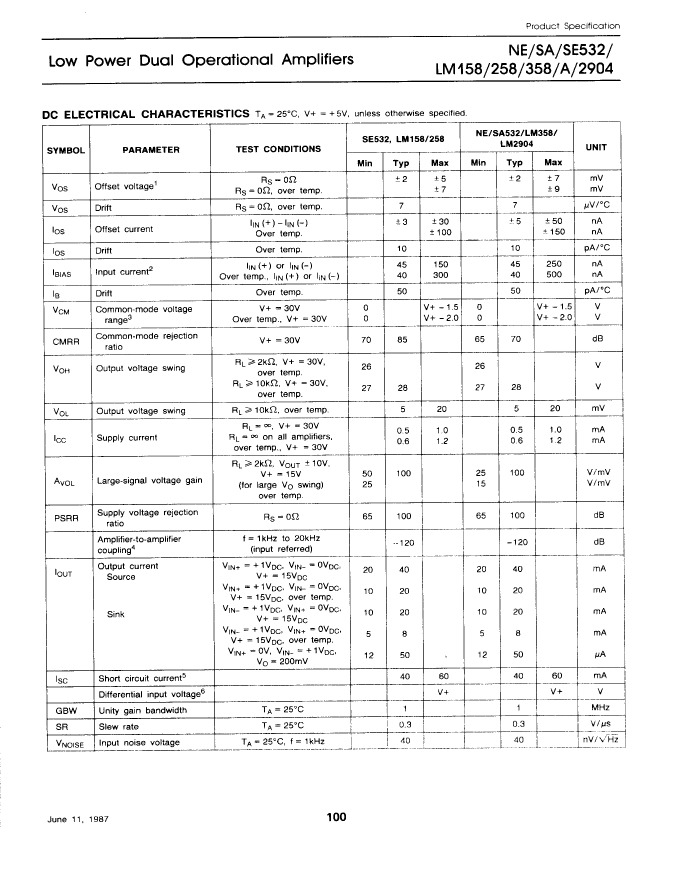

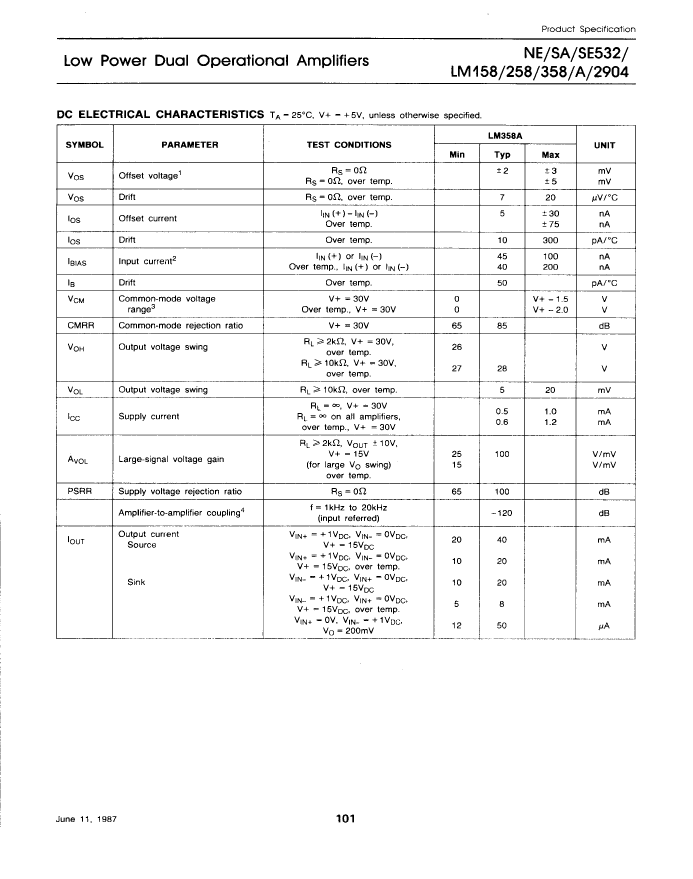

Maximum average bias current (IIB)	0.2 µA
Maximum bias current (IIB) at 25C	0.1 µA
Nominal Common Mode Rejection Ratio	85 dB
frequency compensation	YES
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-dissonance	NO
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
method of packing	TUBE
power supply	+-1.5/+-15/3/30 V
Certification status	Not Qualified

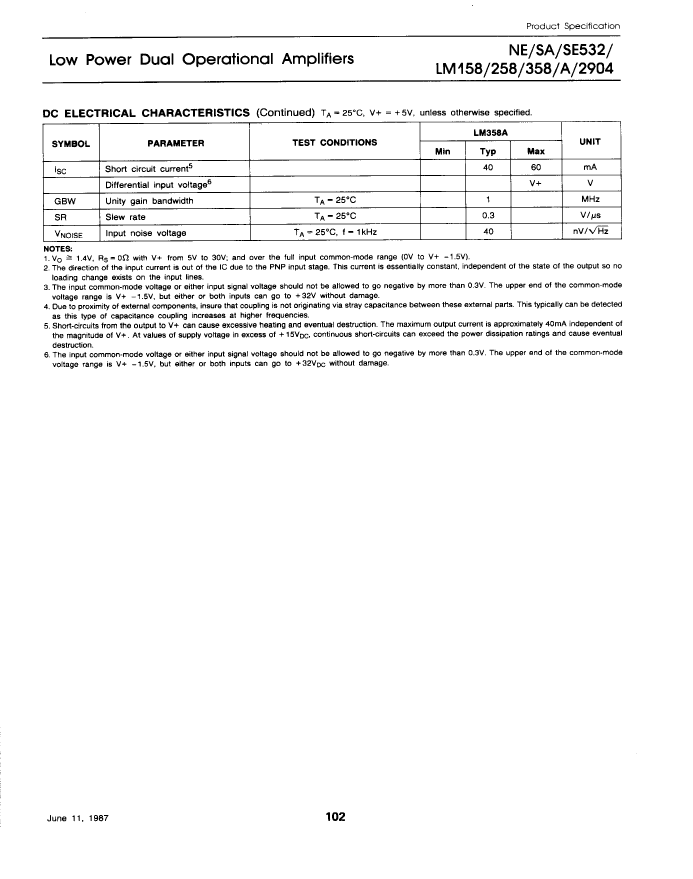

Nominal slew rate	0.3 V/us
Maximum slew rate	1.2 mA
Supply voltage upper limit	32 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	15000

This Material Copyrighted By Its Respective Manufacturer
