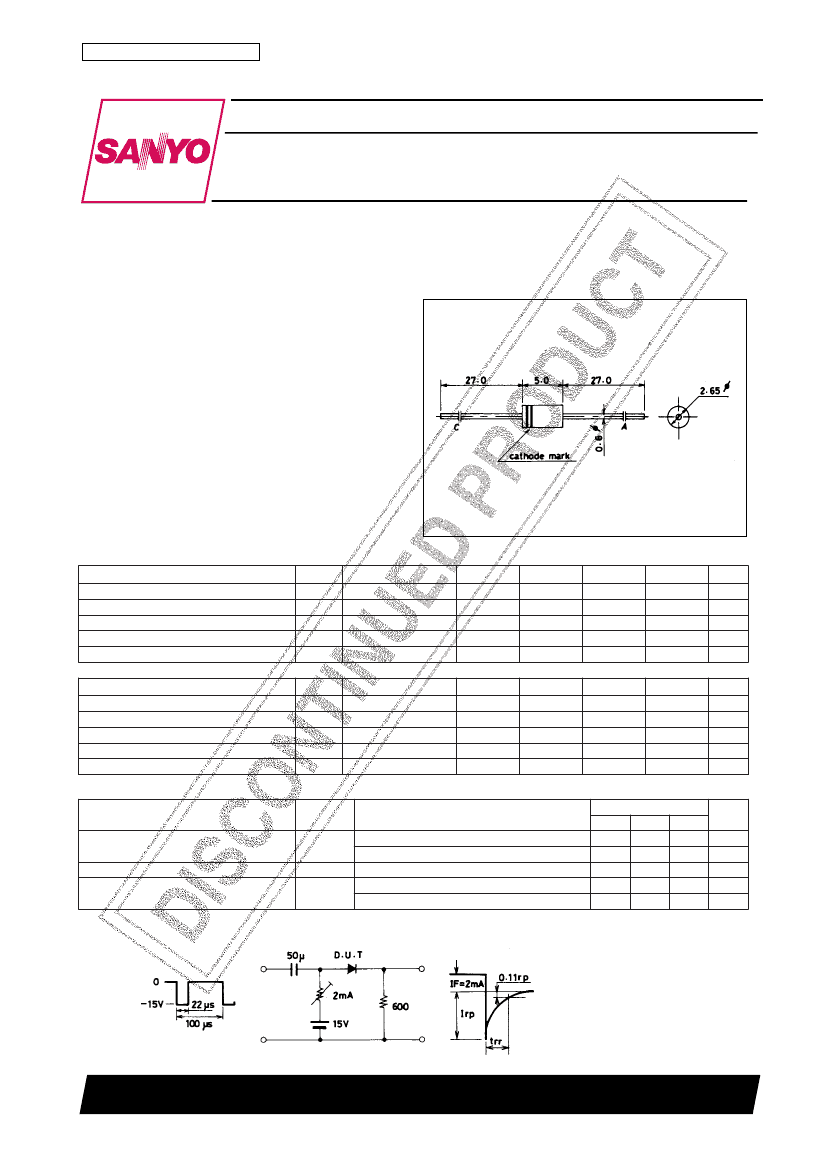

Ordering number:EN2405
DFD30T
Diffused Junction Type Silicon Diode
3.0A Power Rectifier
Features
· High-speed switching use.
· Reverse recovery time trr=0.15µs max (B, C, E, G).
trr=0.3µs max (J, L).
· Peak reverse voltage:V
RM
=100 to 1000V
· Average Rectified current I
O
=3.0A
Package Dimensions
unit:mm
1177
[DFD30T]
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Peak Reverse Voltage
Average Recitified Current
Surge Forward Current
Junction Temperature
Storage Temperature
Parameter
Peak Reverse Voltage
Averasge Rectified Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRM
IO
IFSM
Tj
Tstg
Symbol
VRM
IO
IFSM
Tj
Tstg
Conditions
Conditions
DFD30TB
100
→
→
→
→
DFD30TJ
800
→
→
→
DFD30TC
200
→
→
→
→
DFD30TL
1000
3.0
80
125
DFD30TE
400
→
→
→
C:Cathode
A:Anode
DFD30TG
600
3.0
140
150
Unit
V
A
A
Ta=25˚C
50Hz sine wave, 1 cycle
˚C
˚C
Unit
V
A
A
→
–40 to +150
Ta=25˚C
50Hz sine wave, 1 cycle
˚C
˚C
→
–40 to +150
Electrical Characteristics
at Ta = 25˚C
Parameter
Forward Voltage
Reverse Current
Reverse Recovery Time
Symbol
VF
IR
trr
IF=3.0A (B, C, E, G)
IF=3.0A (J, L)
VR:At each VRM
IF=2mA, VR=15V (B,C, E, G)
IF=2mA, VR=15V (J, L)
Conditions
Ratings
min
typ
max
1.2
1.5
20
0.15
0.3
Unit
V
V
µA
µs
µs
Reverse Recovery Time Test Circuit
Unit (resistance:Ω, capacitance:F)
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE, Tokyo Bldg., 1-10 , Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
52098HA (KT) 5138TA, TS No.2405-1/2

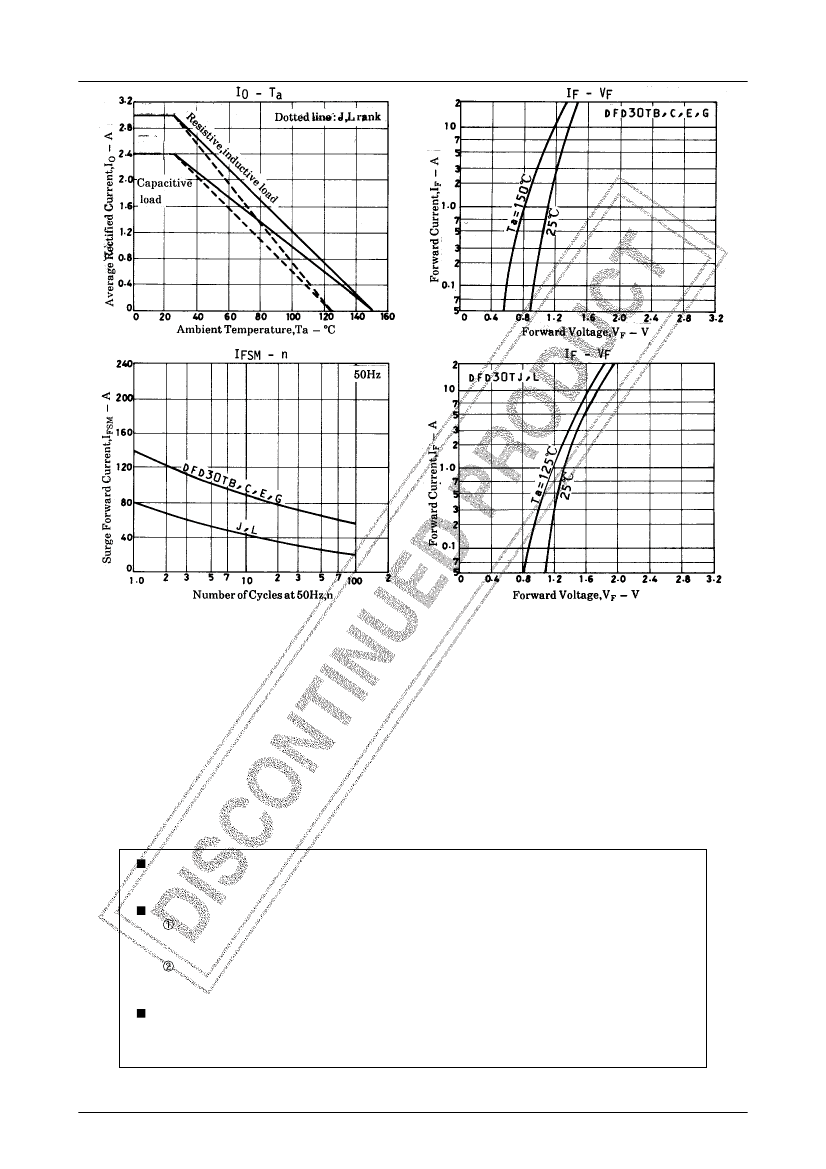

DFD30T
