2N3319 datasheet, PDF - EEWORLD Datasheet

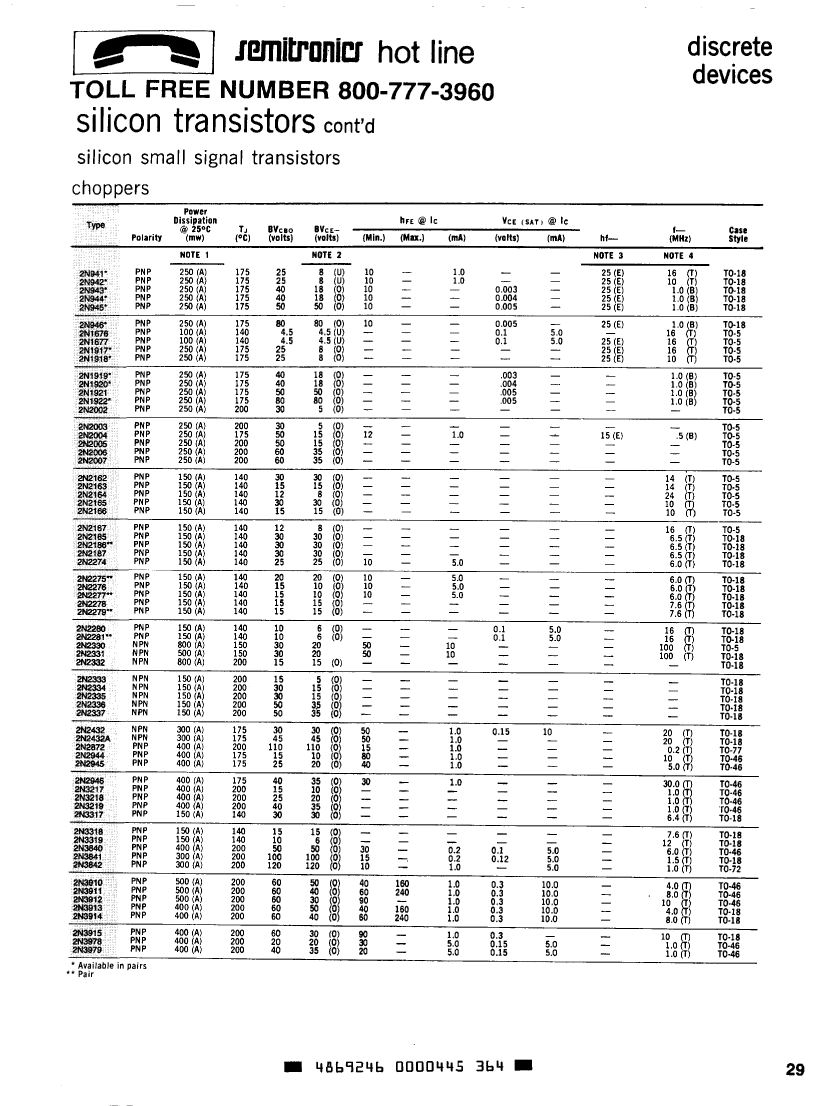

2N3319: DescriptionSmall Signal Bipolar Transistor, 0.05A I(C), 6V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, TO-18, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size119KB，1 Pages; ManufacturerSemitronics Corp.

Download Datasheet Parametric View All

2N3319 Overview

Small Signal Bipolar Transistor, 0.05A I(C), 6V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, TO-18, 3 PIN

Parameter Name	Attribute value
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	3
Reach Compliance Code	unknow
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	6 V
Configuration	SINGLE
JEDEC-95 code	TO-18
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	CHOPPER
Transistor component materials	SILICON
Nominal transition frequency (fT)	12 MHz
Base Number Matches	1
