LFSPXO056298BULK datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFSPXO056298BULK

LFSPXO056298BULK: DescriptionHCMOS Output Clock Oscillator, 27MHz Nom; CategoryPassive components oscillator; File Size331KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO056298BULK Overview

HCMOS Output Clock Oscillator, 27MHz Nom

LFSPXO056298BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	27 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 1.0mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

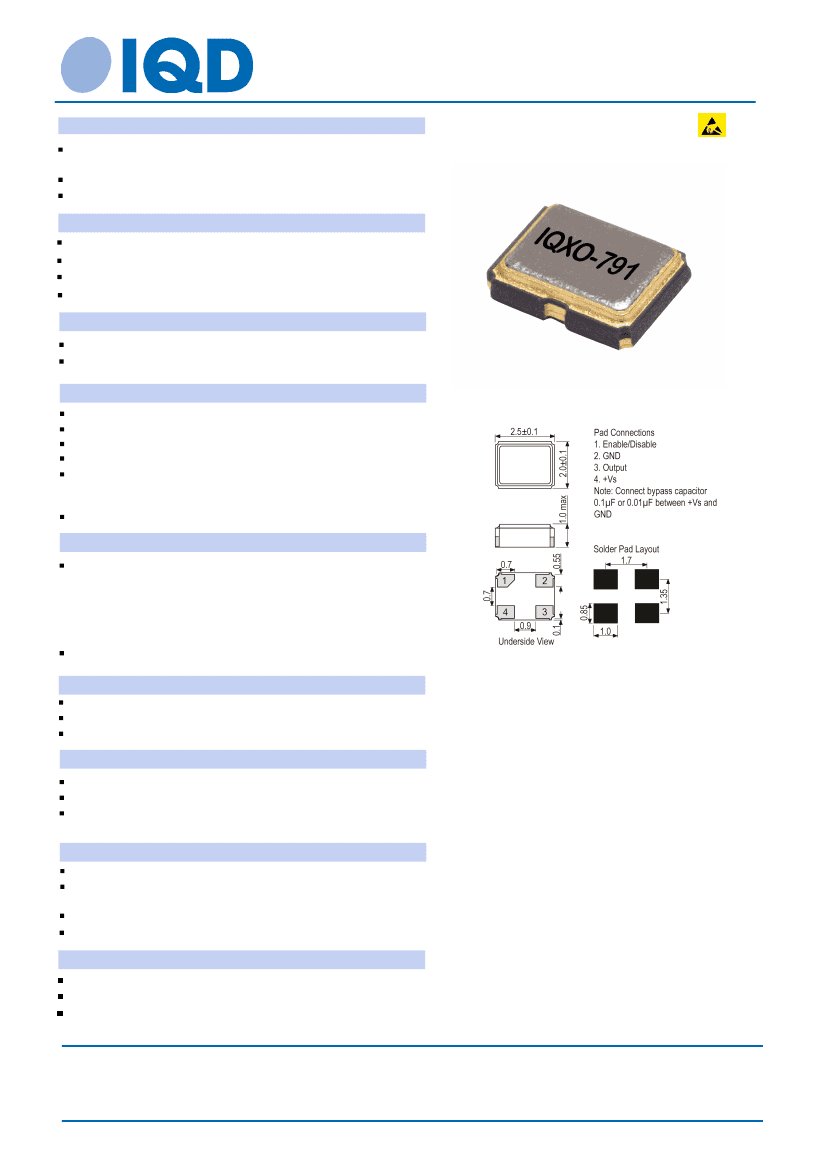

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO056298Bulk

Description

Standard 2.5 x 2.0 oscillator in a ceramic package with a

hermetically sealed metal lid.

Model

IQXO-791

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

27.0MHz

50.00ppm

-40.00 to 85.00°C

±3ppm max per year @ 25°C

Supply Voltage

Current Draw

Output Details

3.3V ±10%

10.000mA

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Voltage Levels:

Output Low (VoL): 10%Vs max

Output High (VoH): 90%Vs min

Start Up Time: 10ms max

Output Control

HCMOS

15pF

10.0ns max

40/60

Outline (mm)

Stand-by Operation:

Logic ‘1’ (≥70% Vs) to pad 1 enables oscillator output.

Logic ‘0’ (≤30% Vs) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance

state.

No connection to pad 1 enables oscillator output.

Stand-by Current: 10μA max

Noise Parameters

Period Jitter (pk-pk): ±80ps typ

Period Jitter (1σ): ±10ps typ

Phase Jitter (12kHz to 20MHz): 1ps rms max

Environmental Parameters

Storage Temperature Range: -55 to 125°C

Shock: MIL-STD-202, Method 213. Or comparable.

Vibration: MIL-STD-883, Method 2007, Condition A. Or

comparable.

Manufacturing Details

Maximum Process Temperature: 260°C (10secs max)

Note: Do not connect inductor or bead between pad 2 and

GND as it can make the output unstable.

RoHS Terminations

RoHS Reflow Temp

260°C max for 10secs max

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Compliant

Not Applicable

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 24 Apr 18 8:36 using Part Data Sheet V1.00015
