2SC2620-C datasheet, PDF - EEWORLD Datasheet

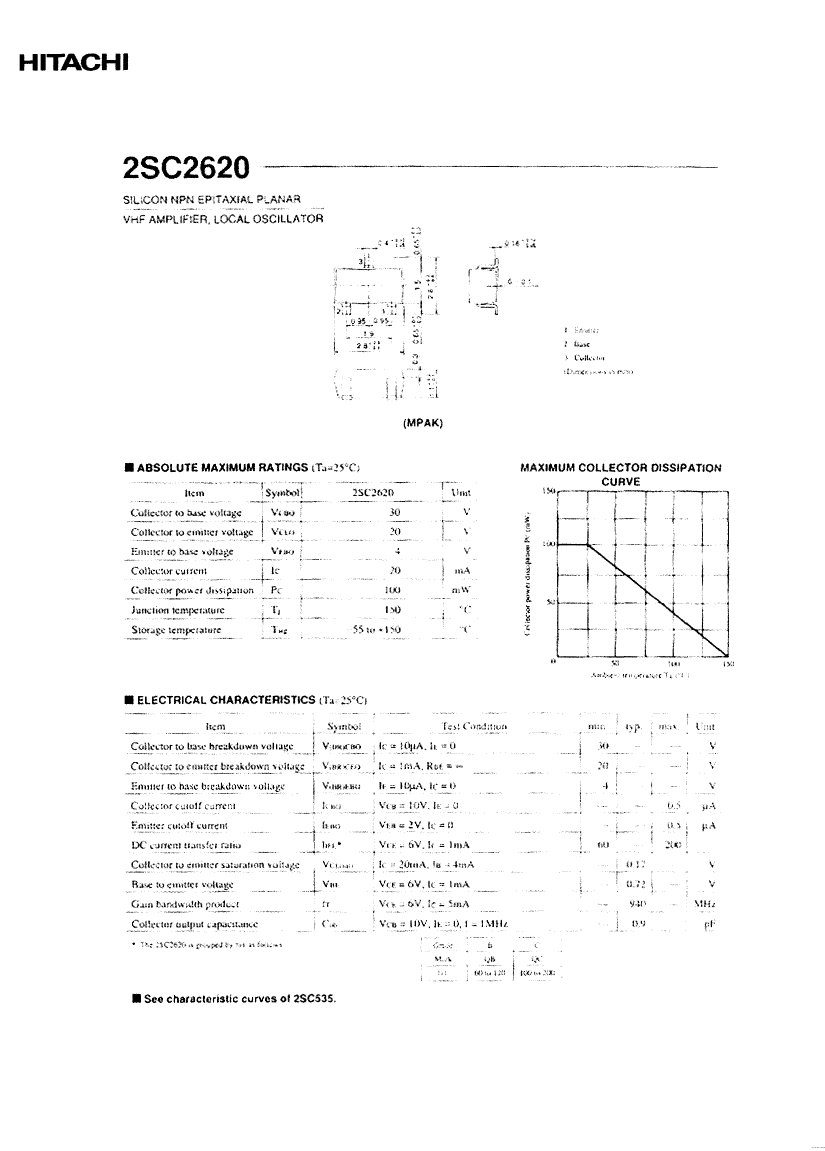

2SC2620-C: DescriptionVHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size59KB，1 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

2SC2620-C Overview

VHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	0.02 A
Collector-emitter maximum voltage	20 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
highest frequency band	VERY HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.1 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	940 MHz
Base Number Matches	1

	2SC2620-C	2SC2620-B
Description	VHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR	VHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compli	unknow
ECCN code	EAR99	EAR99
Maximum collector current (IC)	0.02 A	0.02 A
Collector-emitter maximum voltage	20 V	20 V
Configuration	SINGLE	SINGLE
highest frequency band	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	940 MHz	940 MHz
Base Number Matches	1	1
