2FI100A-060C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 2FI100A-060C

Preview

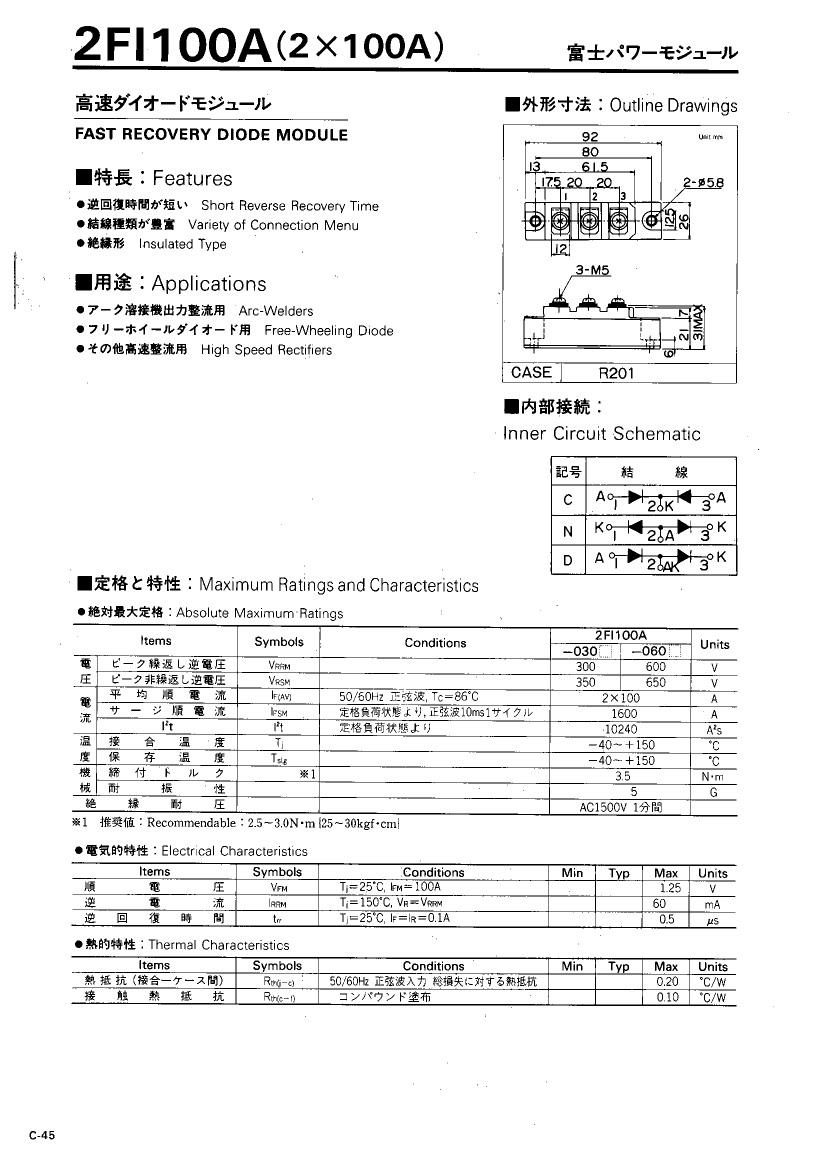

2FI100A-060C: DescriptionRectifier Diode, 1 Phase, 2 Element, 100A, 600V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size110KB，3 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric Compare View All

2FI100A-060C Overview

Rectifier Diode, 1 Phase, 2 Element, 100A, 600V V(RRM), Silicon,

2FI100A-060C Parametric

Parameter Name	Attribute value
package instruction	R-XUFM-X3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-XUFM-X3
Maximum non-repetitive peak forward current	1600 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	100 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	60000 µA
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

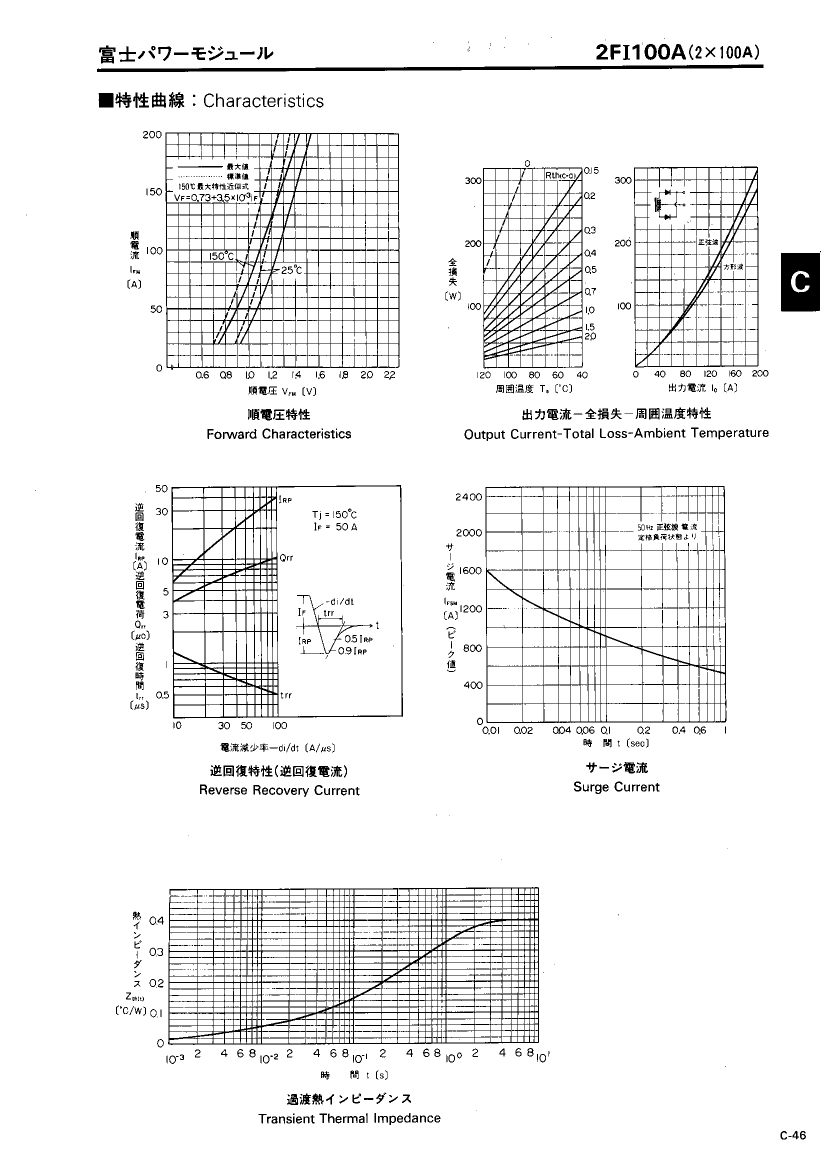

Preview

Download Datasheet

View All

2FI100A-060C Related Products

	2FI100A-060C	2FI100A-030C	2FI100A-060N	2FI100A-060D
Description	Rectifier Diode, 1 Phase, 2 Element, 100A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 100A, 300V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 100A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 100A, 600V V(RRM), Silicon,
package instruction	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	1.25 V
JESD-30 code	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3
Maximum non-repetitive peak forward current	1600 A	1600 A	1600 A	1600 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	100 A	100 A	100 A	100 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	300 V	600 V	600 V
Maximum reverse current	60000 µA	60000 µA	60000 µA	60000 µA
Maximum reverse recovery time	0.5 µs	0.5 µs	0.5 µs	0.5 µs
surface mount	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1
