BT-C53DRD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BT-C53DRD

BT-C53DRD: DescriptionSmart/Normal 7 Seg Numeric LED Display, Super Red, 13.208mm, TD-07, 30 PIN; CategoryLED optoelectronic/LED photoelectric; File Size102KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BT-C53DRD Overview

Smart/Normal 7 Seg Numeric LED Display, Super Red, 13.208mm, TD-07, 30 PIN

BT-C53DRD Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	TD-07, 30 PIN
Reach Compliance Code	unknown
color	SUPER RED
Configuration	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT
Display height	13.208 mm
Maximum forward current	0.03 A
Number of functions	3
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

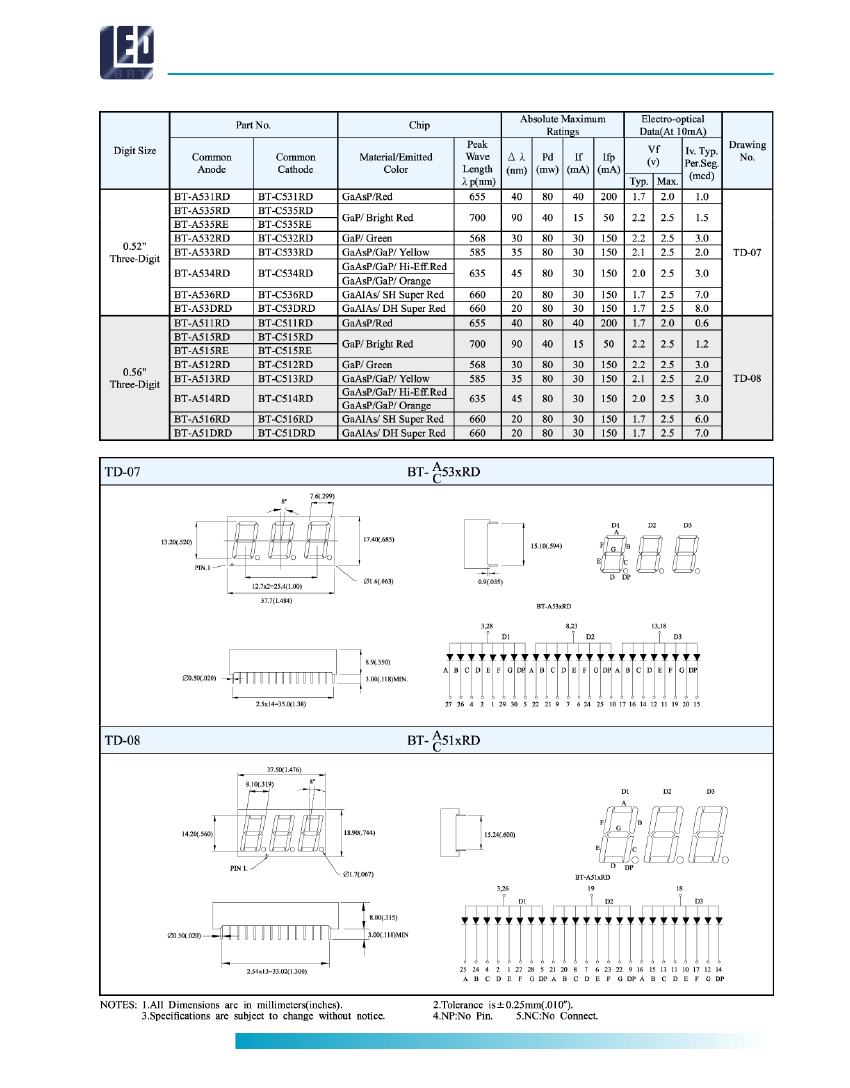

Three Digit LED Displays

B T-A/C Series

7-segment

AMERICAN BRIGHT

w w w. a m e r i c a n b r i g h t l e d . c o m

153

BT-C53DRD Related Products

	BT-C53DRD	BT-C514RD	BT-C513RD	BT-A516RD	BT-A531RD	BT-A533RD	BT-A511RD	BT-C532RD	BT-C515RD	BT-C515RE
Description	Smart/Normal 7 Seg Numeric LED Display, Super Red, 13.208mm, TD-07, 30 PIN	Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 14.224mm, TD-08, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 14.224mm, TD-08, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, TD-08, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 13.208mm, TD-07, 30 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 13.208mm, TD-07, 30 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 14.224mm, TD-08, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Green, 13.208mm, TD-07, 30 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 14.224mm, TD-08, 28 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 14.224mm, TD-08, 28 PIN
package instruction	TD-07, 30 PIN	TD-08, 28 PIN	TD-08, 28 PIN	TD-08, 28 PIN	TD-07, 30 PIN	TD-07, 30 PIN	TD-08, 28 PIN	TD-07, 30 PIN	TD-08, 28 PIN	TD-08, 28 PIN
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	SUPER RED	HIGH EFFICIENCY RED/ORANGE	YELLOW	SUPER RED	RED	YELLOW	RED	GREEN	BRIGHT RED	BRIGHT RED
Configuration	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT
Display height	13.208 mm	14.224 mm	14.224 mm	14.224 mm	13.208 mm	13.208 mm	14.224 mm	13.208 mm	14.224 mm	14.224 mm
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.04 A	0.03 A	0.04 A	0.03 A	0.015 A	0.015 A
Number of functions	3	3	3	3	3	3	3	3	3	3
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Maximum operating temperature	-	85 °C	85 °C	85 °C	-	-	85 °C	-	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-	-	-40 °C	-	-40 °C	-40 °C
