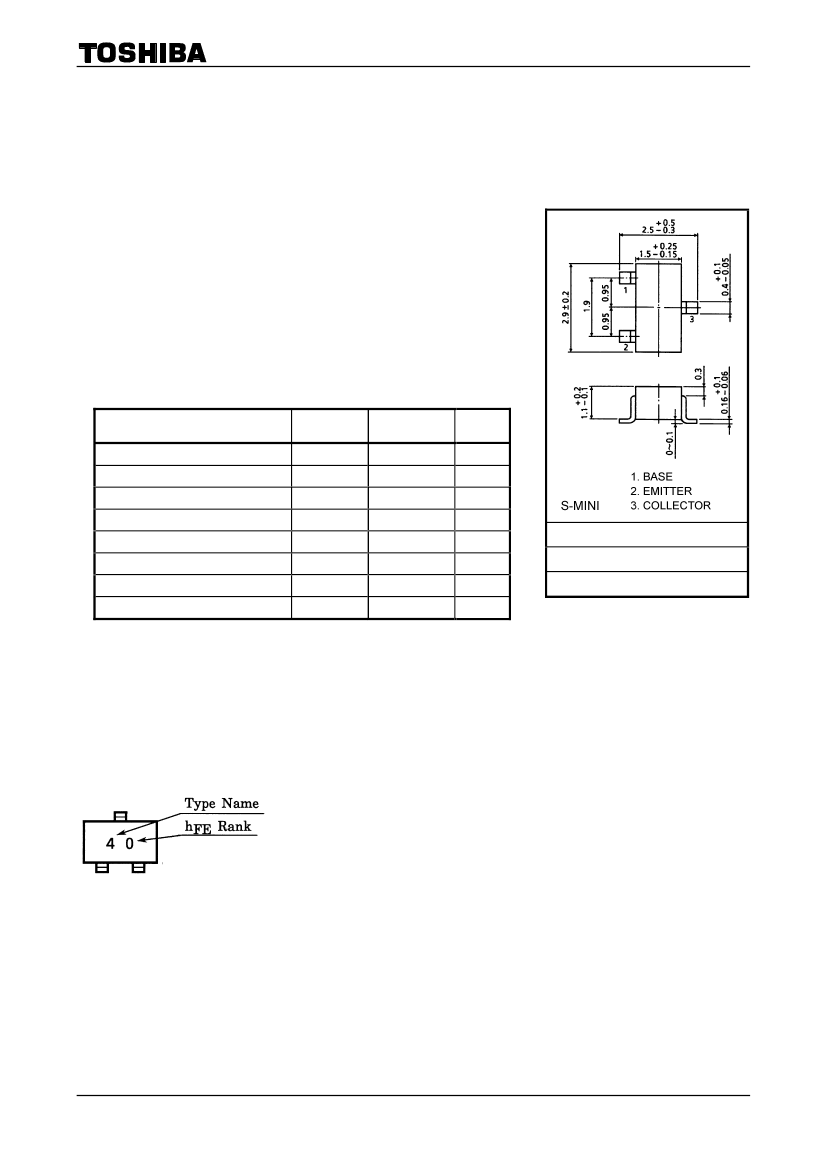

2SA1721
TOSHIBA Transistor
Silicon PNP Epitaxial Type (PCT process)
2SA1721
High Voltage Control Applications
Plasma Display, Nixie Tube Driver Applications
Cathode Ray Tube Brightness Control Applications
•
•
•
•
High voltage: V
CBO
=
−300
V, V
CEO
=
−300
V
Low saturation voltage: V
CE (sat)
=
−0.5
V (max)
Small collector output capacitance: C
ob
= 5.5 pF (typ.)
Complementary to 2SC4497
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
−300
−300
−5
−100
−20
150
150
−55
to 150
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
JEITA
TOSHIBA
TO-236MOD
SC-59
2-3F1A
Weight: 0.012 g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Marking
Start of commercial production
1988-09
1
2014-03-01

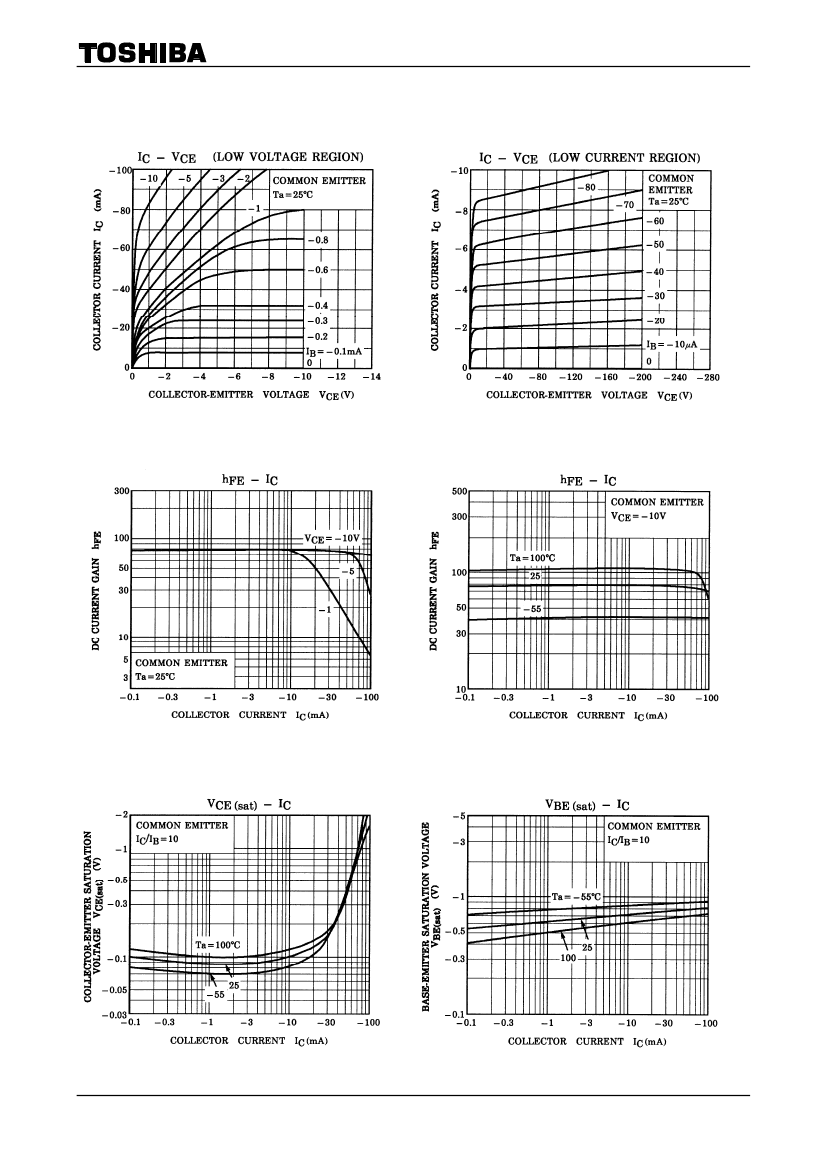

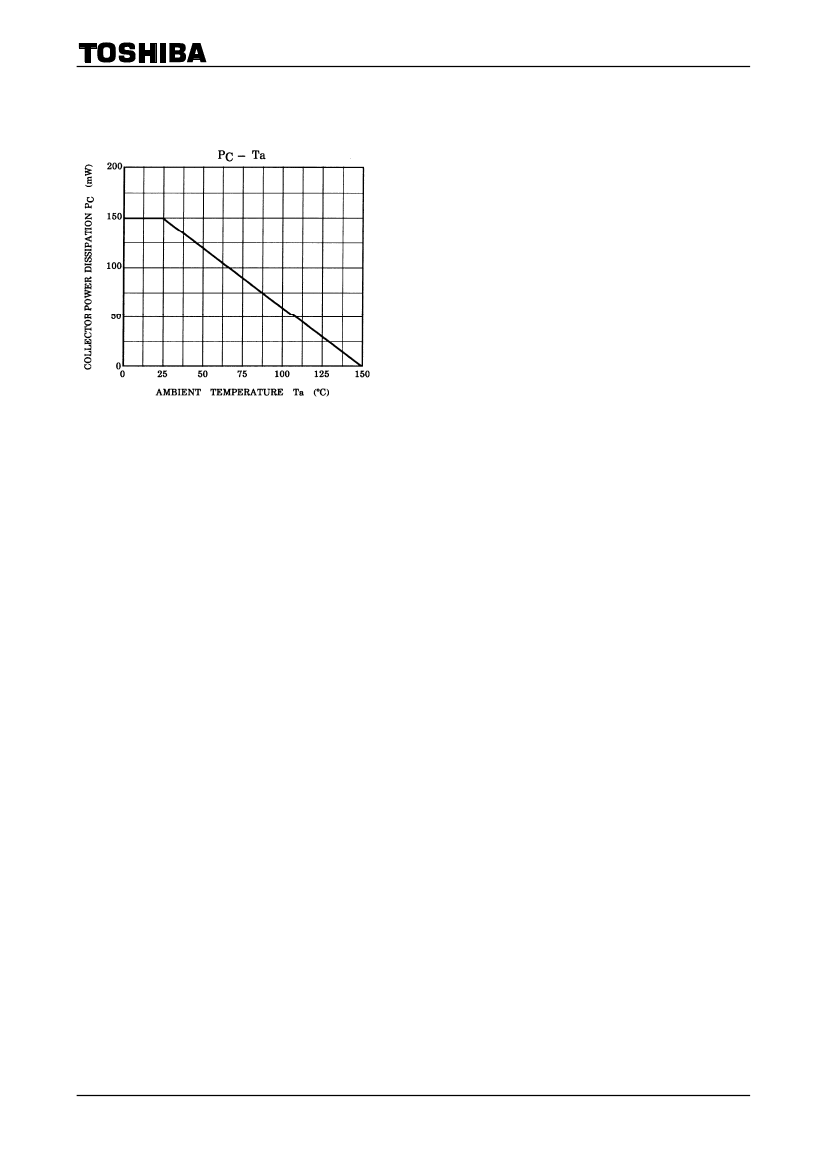

2SA1721
