MN4053BS datasheet, PDF - EEWORLD Datasheet

MN4053BS: DescriptionSingle-Ended Multiplexer, 3 Func, 2 Channel, CMOS, PDSO16, SOP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size98KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

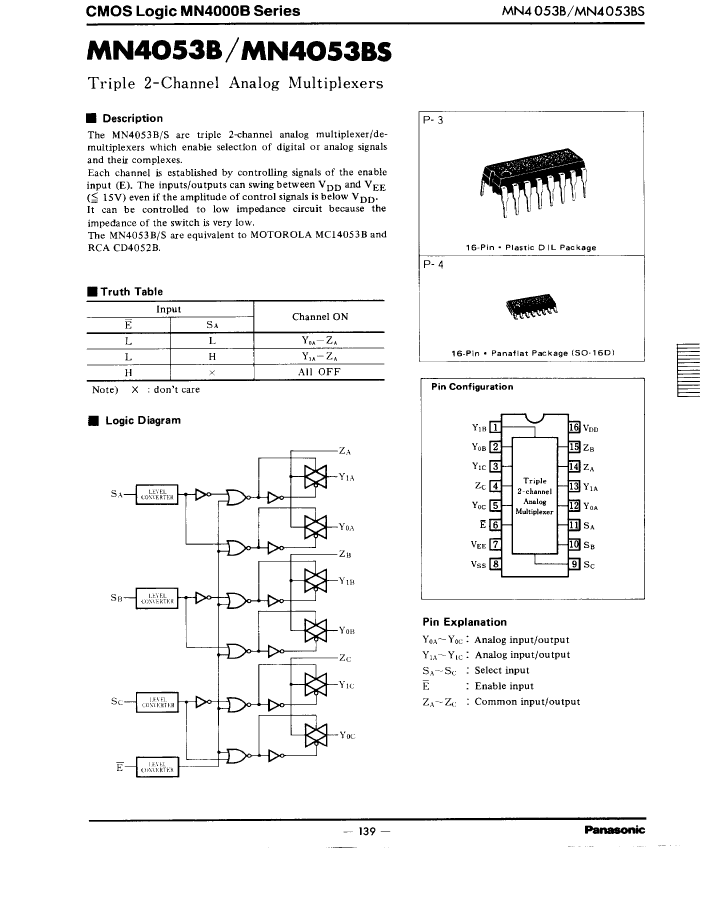

MN4053BS Overview

Single-Ended Multiplexer, 3 Func, 2 Channel, CMOS, PDSO16, SOP-16

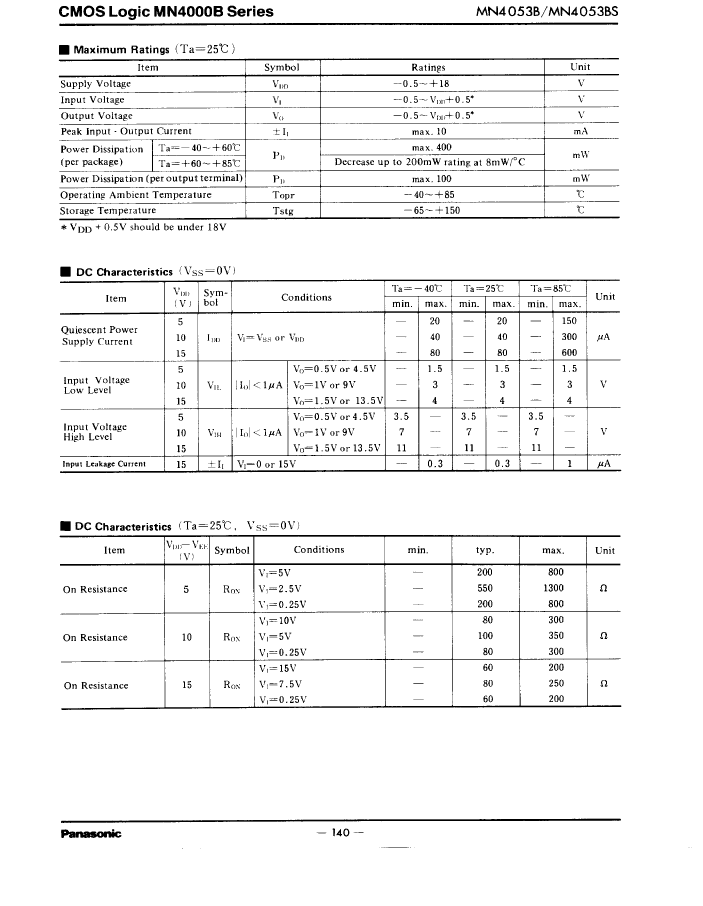

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Panasonic
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of channels	2
Number of functions	3
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
surface mount	YES
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

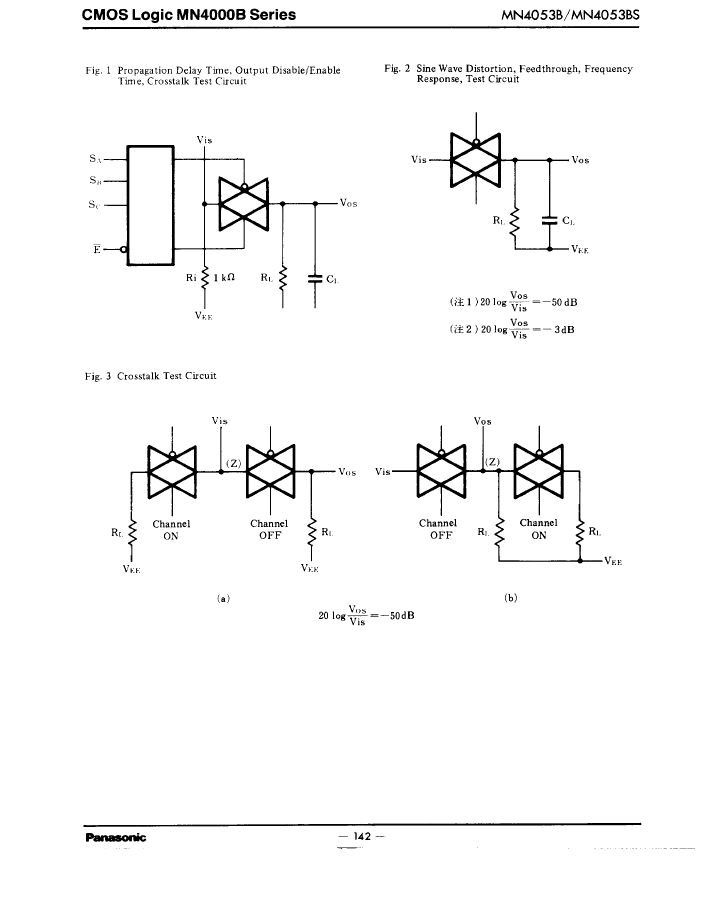

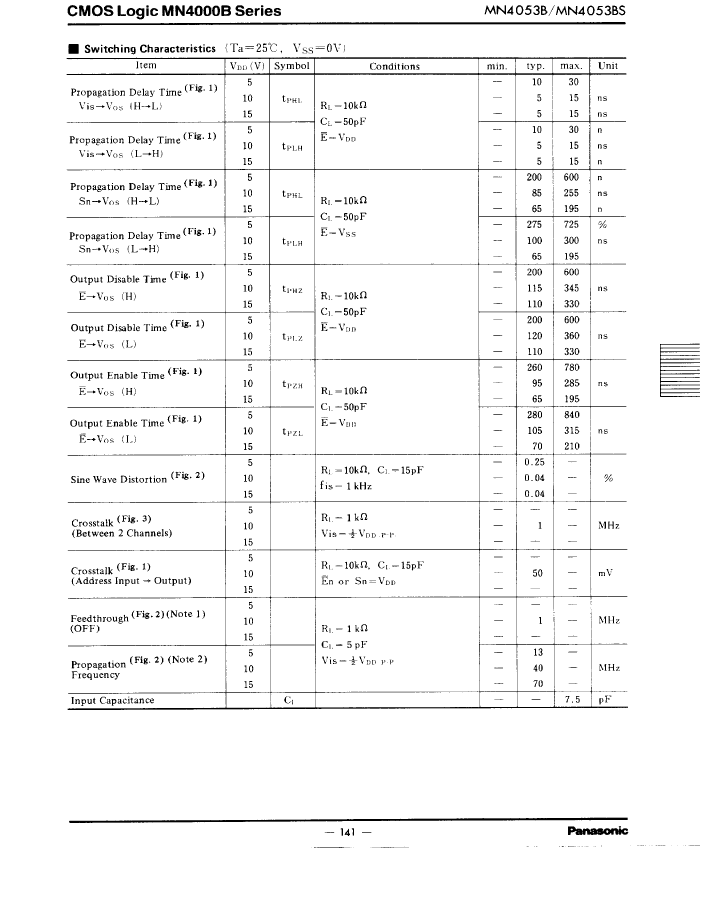

This Material Copyrighted By Its Respective Manufacturer
