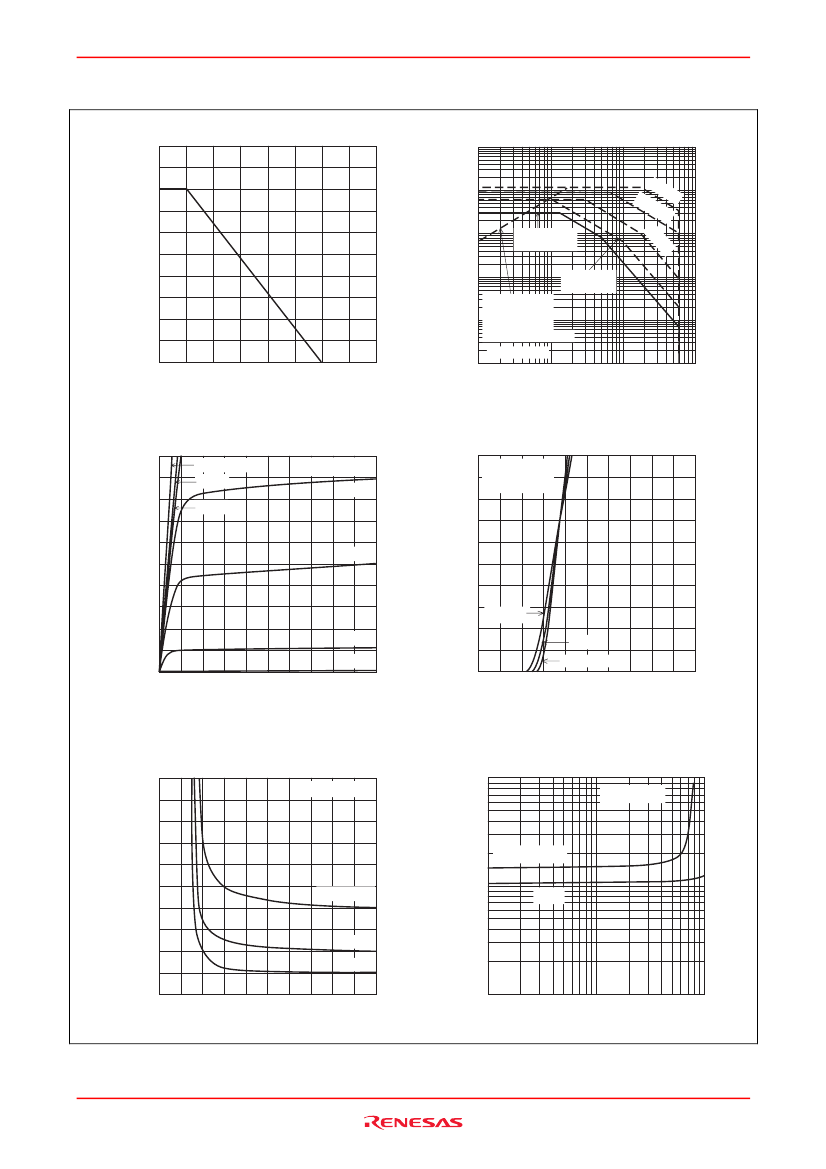

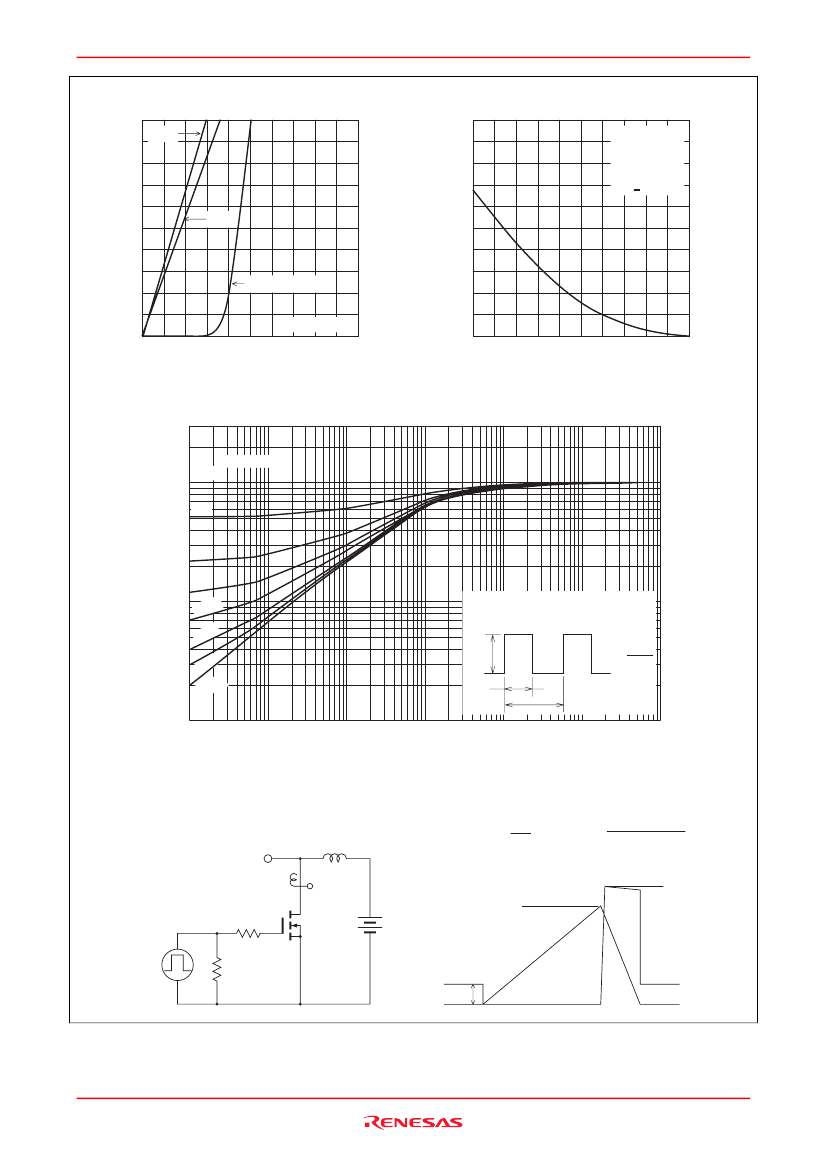

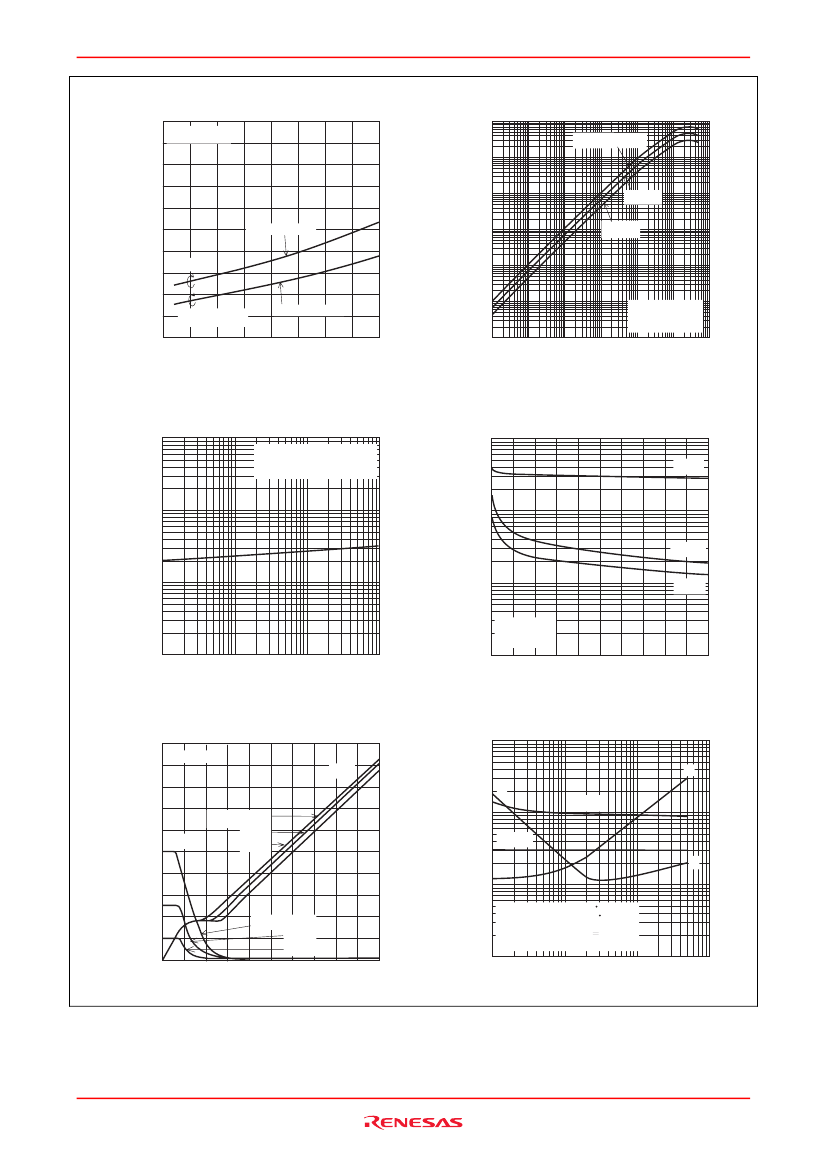

Silicon N Channel MOS FET High Speed Power Switching
| 2SK1400A_10 | H7N0603DL-E | H7N0603DSTL | H7N0603DL | H7N0603DS | H7N0603DSTL-E | 2SK1400A | PT7M6118NLEC4E | |
|---|---|---|---|---|---|---|---|---|
| Description | Silicon N Channel MOS FET High Speed Power Switching | Silicon N Channel MOS FET High Speed Power Switching | Silicon N Channel MOS FET High Speed Power Switching | Silicon N Channel MOS FET High Speed Power Switching | Silicon N Channel MOS FET High Speed Power Switching | Silicon N Channel MOS FET High Speed Power Switching | Silicon N Channel MOS FET High Speed Power Switching | Low Power Voltage Detector |
| Is it Rohs certified? | - | conform to | incompatible | incompatible | incompatible | conform to | incompatible | - |
| package instruction | - | IN-LINE, R-PSIP-T3 | SMALL OUTLINE, R-PSSO-G2 | IN-LINE, R-PSIP-T3 | SMALL OUTLINE, R-PSSO-G2 | SMALL OUTLINE, R-PSSO-G2 | TO-220AB, 3 PIN | - |
| Contacts | - | 4 | 3 | 3 | 3 | 3 | 3 | - |
| Reach Compliance Code | - | compli | compli | compli | compli | compli | compliant | - |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - | - |
| Shell connection | - | DRAIN | DRAIN | DRAIN | DRAIN | DRAIN | DRAIN | - |
| Configuration | - | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | - |
| Minimum drain-source breakdown voltage | - | 60 V | 60 V | 60 V | 60 V | 60 V | 350 V | - |
| Maximum drain current (Abs) (ID) | - | 30 A | 30 A | 30 A | - | 30 A | 7 A | - |
| Maximum drain current (ID) | - | 30 A | 30 A | 30 A | 30 A | 30 A | 7 A | - |
| Maximum drain-source on-resistance | - | 0.022 Ω | 0.022 Ω | 0.022 Ω | 0.022 Ω | 0.022 Ω | 0.8 Ω | - |
| FET technology | - | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | - |
| JESD-30 code | - | R-PSIP-T3 | R-PSSO-G2 | R-PSIP-T3 | R-PSSO-G2 | R-PSSO-G2 | R-PSFM-T3 | - |
| JESD-609 code | - | e6 | e0 | e0 | e0 | e6 | e0 | - |
| Number of components | - | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Number of terminals | - | 3 | 2 | 3 | 2 | 2 | 3 | - |
| Operating mode | - | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | - |
| Maximum operating temperature | - | 150 °C | 150 °C | 150 °C | - | 150 °C | 150 °C | - |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - |
| Package form | - | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | FLANGE MOUNT | - |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | 250 | NOT SPECIFIED | - |
| Polarity/channel type | - | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL | - |
| Maximum power dissipation(Abs) | - | 40 W | 40 W | 40 W | - | 40 W | 50 W | - |
| Maximum pulsed drain current (IDM) | - | 120 A | 120 A | 120 A | 120 A | 120 A | 28 A | - |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - |
| surface mount | - | NO | YES | NO | YES | YES | NO | - |
| Terminal surface | - | TIN BISMUTH | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | TIN LEAD | TIN BISMUTH | TIN LEAD | - |
| Terminal form | - | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | GULL WING | THROUGH-HOLE | - |
| Terminal location | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | - |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| transistor applications | - | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | - |
| Transistor component materials | - | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | - |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Is it lead-free? | - | - | Contains lead | Contains lead | Contains lead | Lead free | Contains lead | - |
