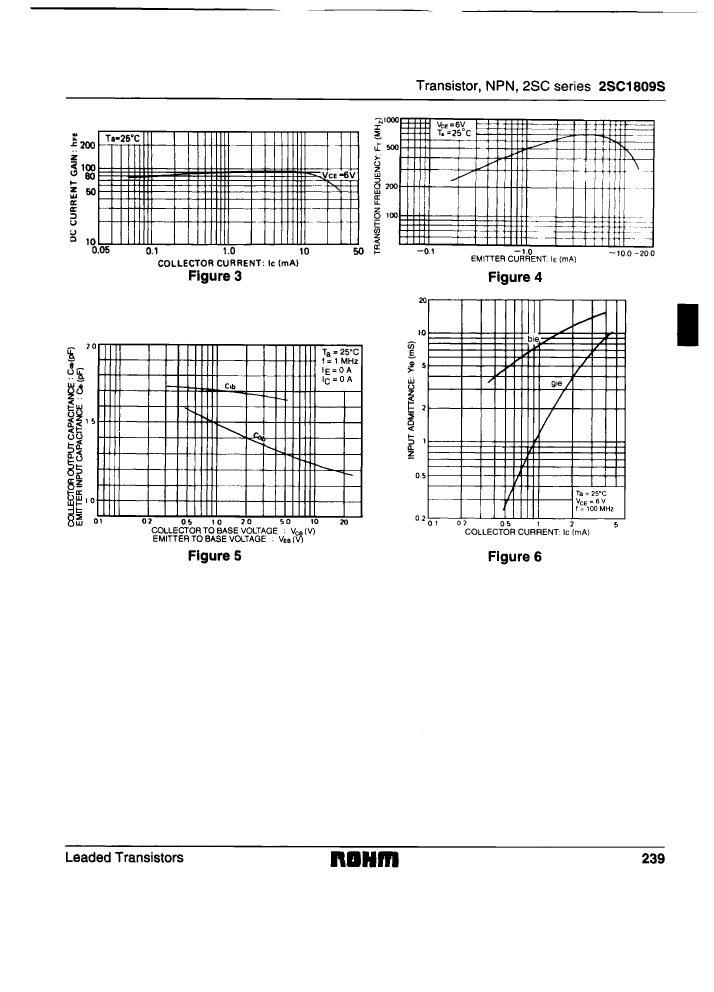

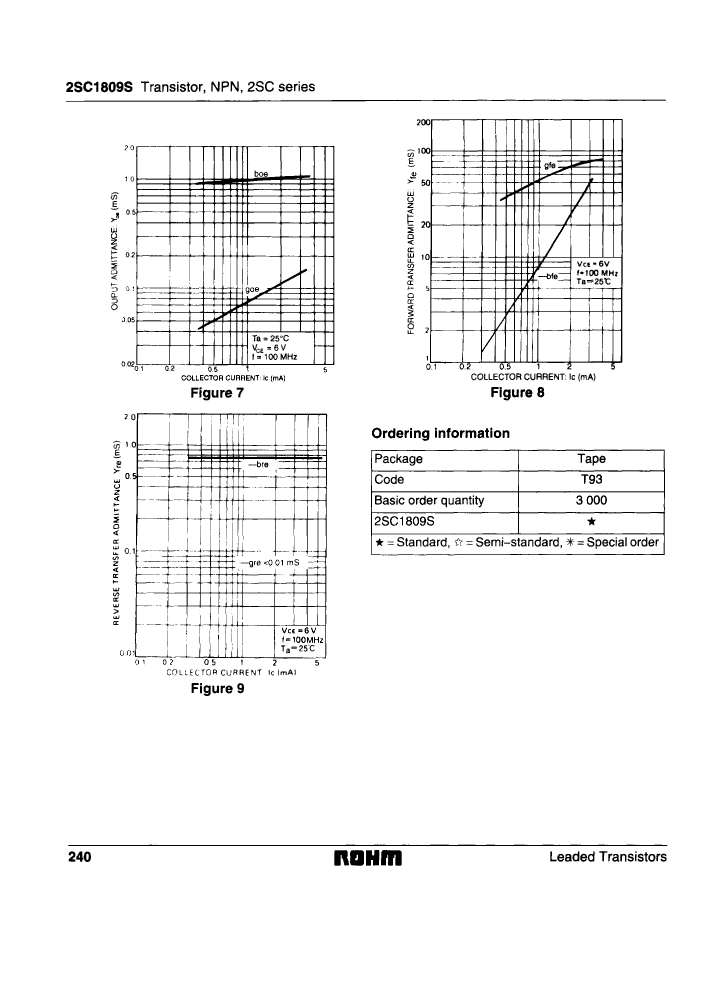

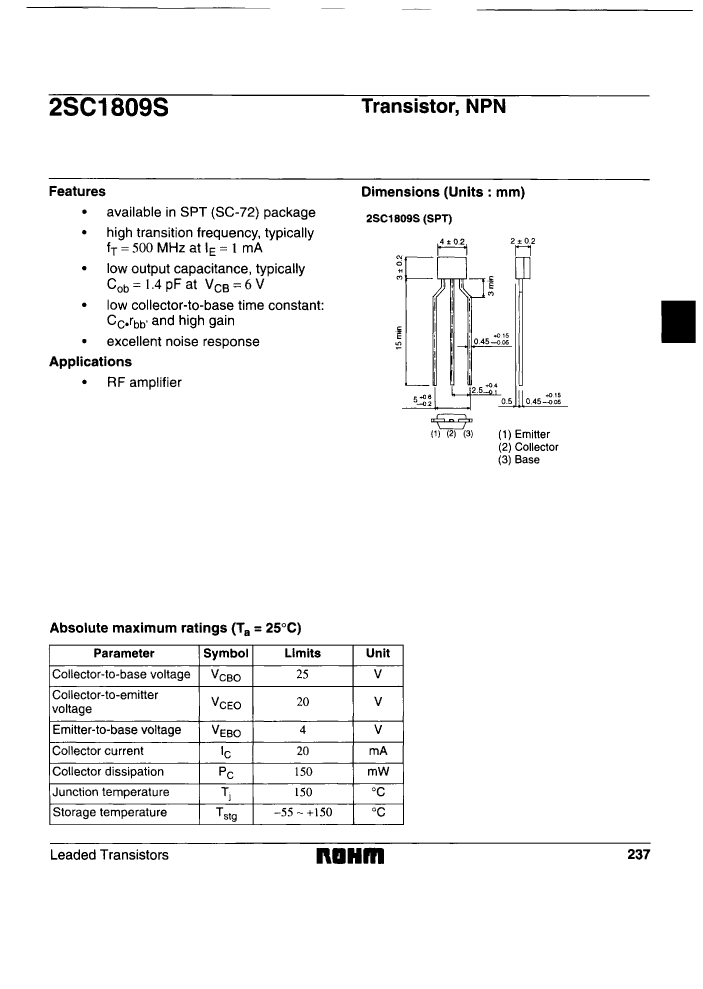

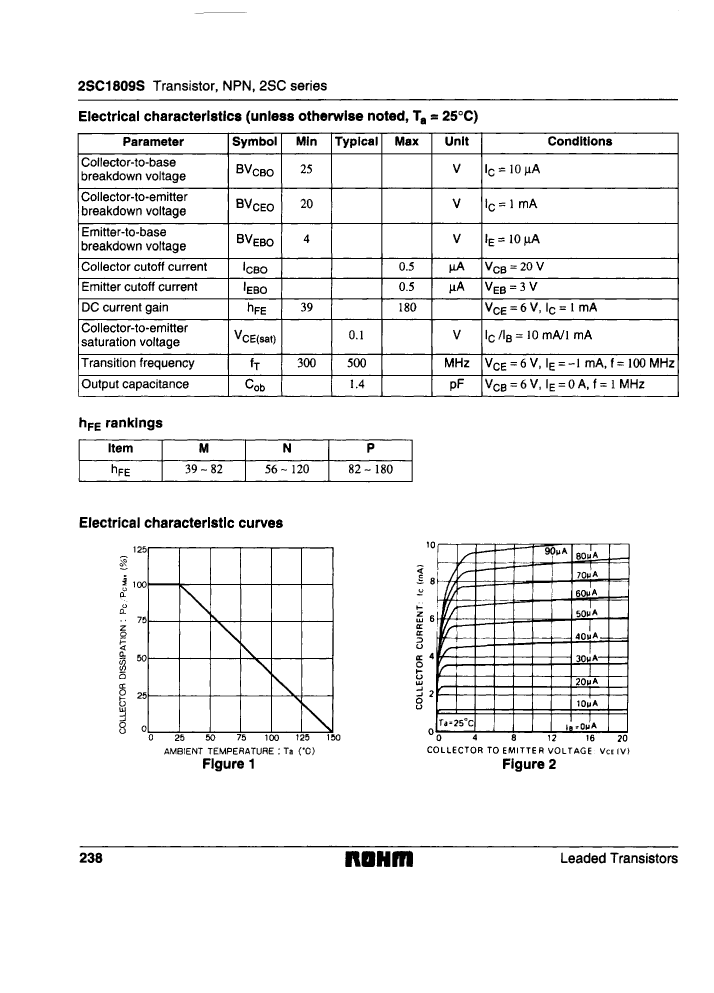

Small Signal Bipolar Transistor, 0.02A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon
| Parameter Name | Attribute value |
| package instruction | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 0.02 A |
| Collector-emitter maximum voltage | 20 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 39 |
| JESD-30 code | R-PSIP-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 500 MHz |
| Base Number Matches | 1 |
| 2SC1809STPM | 2SC1809STPP | 2SC1809STP/N | 2SC1809STP/P | 2SC1809STPN | 2SC1809STP | 2SC1809STP/M | |
|---|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.02A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 0.02A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon | 20mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR | 20mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR | Small Signal Bipolar Transistor, 0.02A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 0.02A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon | 20mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR |
| package instruction | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknow | unknow | unknow |
| Maximum collector current (IC) | 0.02 A | 0.02 A | 0.02 A | 0.02 A | 0.02 A | 0.02 A | 0.02 A |
| Collector-emitter maximum voltage | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 39 | 82 | 56 | 82 | 56 | 82 | 39 |
| JESD-30 code | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | - | - | EAR99 | EAR99 | - |
