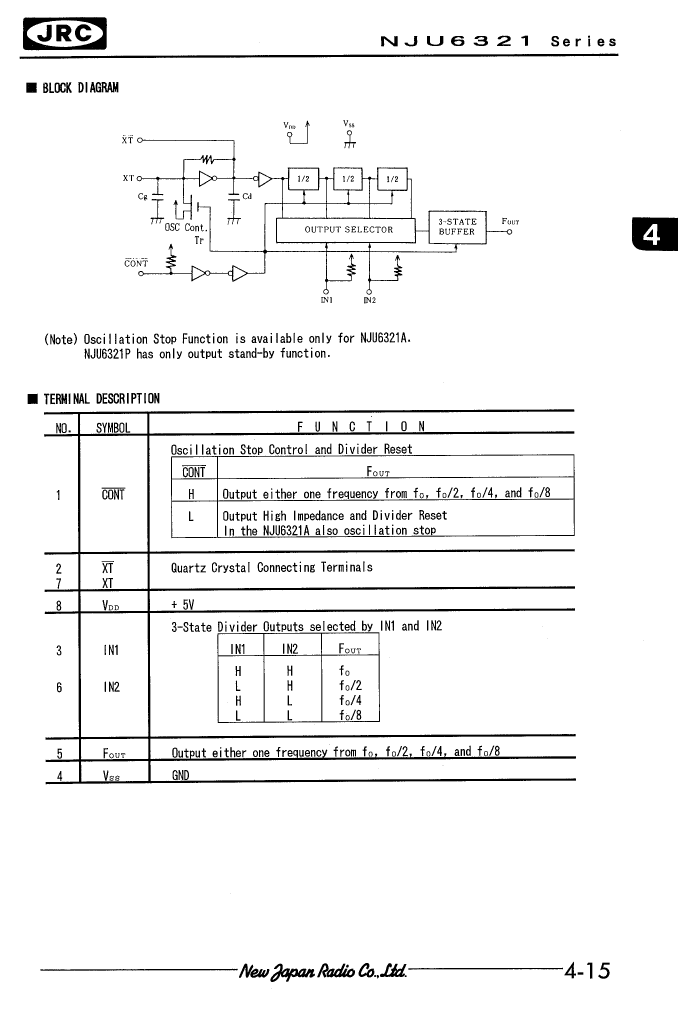

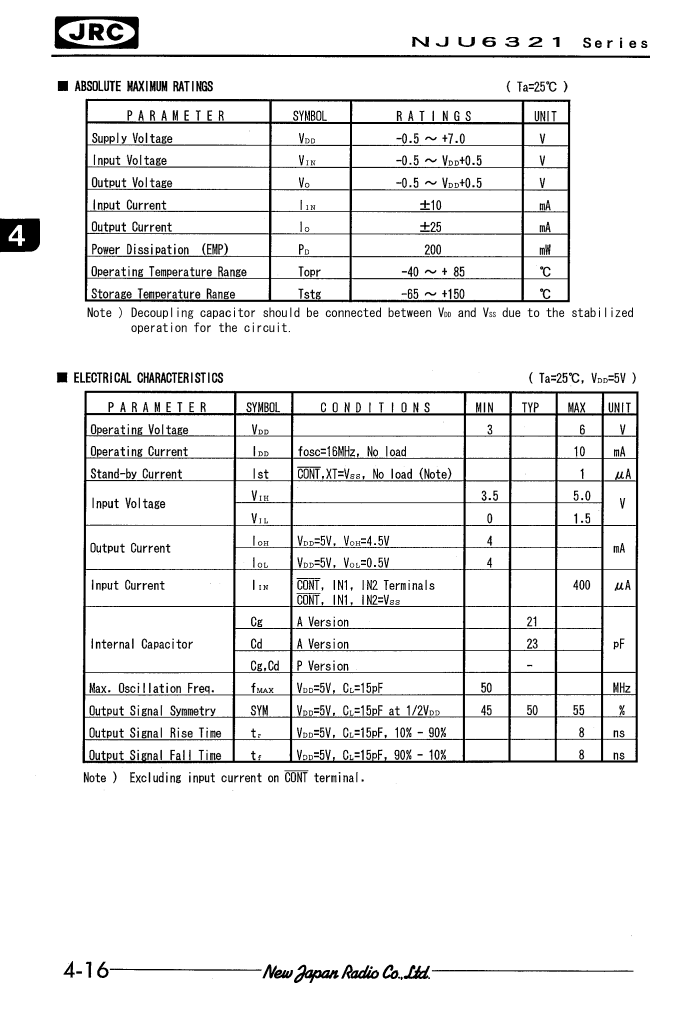

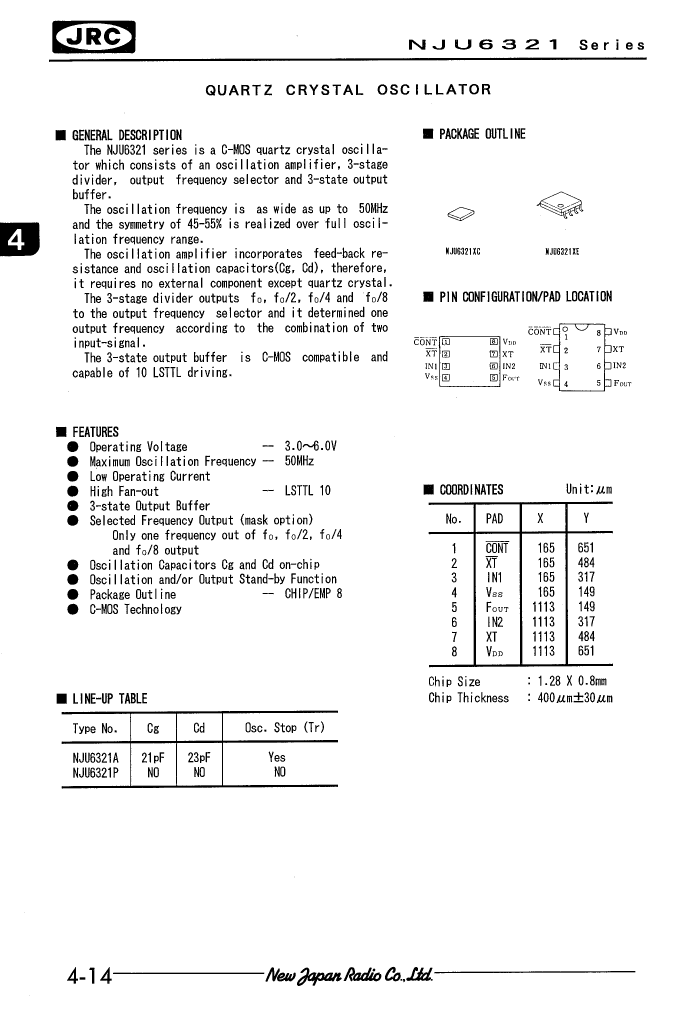

Preview

NJU6321PE: DescriptionClock Generator, 50MHz, CMOS, PDSO8, EMP-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size279KB，5 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU6321PE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NJU6321PE	-	-	View	Buy Now

NJU6321PE Overview

Clock Generator, 50MHz, CMOS, PDSO8, EMP-8

NJU6321PE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-PDSO-G8
JESD-609 code	e6
length	5 mm
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	50 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Master clock/crystal nominal frequency	50 MHz
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum slew rate	10 mA
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

Preview

Download Datasheet

View All

NJU6321PE Related Products

	NJU6321PE	NJU6321AE	NJU6321AC	NJU6321PC
Description	Clock Generator, 50MHz, CMOS, PDSO8, EMP-8	Clock Generator, 50MHz, CMOS, PDSO8, EMP-8	Clock Generator, 50MHz, CMOS, 1.28 X 0.80 MM, DIE-8	Clock Generator, 50MHz, CMOS, 1.28 X 0.80 MM, DIE-8
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	SOIC	DIE	DIE
package instruction	SOP,	SOP,	DIE,	DIE,
Contacts	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-XUUC-N8	R-XUUC-N8
JESD-609 code	e6	e6	e6	e6
Number of terminals	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output clock frequency	50 MHz	50 MHz	50 MHz	50 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED
encapsulated code	SOP	SOP	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	UNCASED CHIP	UNCASED CHIP
Peak Reflow Temperature (Celsius)	260	260	260	260
Master clock/crystal nominal frequency	50 MHz	50 MHz	50 MHz	50 MHz
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	10 mA	10 mA	10 mA	10 mA
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	GULL WING	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER
