2SA1785-E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA1785-E

2SA1785-E: Description1000mA, 400V, PNP, Si, SMALL SIGNAL TRANSISTOR, NMP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size40KB，5 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SA1785-E Overview

1000mA, 400V, PNP, Si, SMALL SIGNAL TRANSISTOR, NMP, 3 PIN

2SA1785-E Parametric

Parameter Name	Attribute value
Objectid	1426751355
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	400 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	50 MHz
VCEsat-Max	1 V

Preview

Download Datasheet

View All

Ordering number:ENN3511A

2SA1785 : PNP Epitaxial Planar Silicon Transistor

2SC4645 : NPN Triple Diffused Planar Silicon Transistor

2SA1785/2SC4645

High Voltage Driver Applications

Features

· Large current capacity (I

=1A).

· High breakdown voltage (V

CEO

≥400V).

Package Dimensions

unit:mm

2064A

[2SA1785/2SC4645]

2.5

1.45

6.9

1.0

4.5

1.0

0.6

1.0

0.9

0.5

0.45

( ) : 2SA1785

Specifications

Absolute Maximum Ratings

at Ta = 25˚C

Parameter

Collector-to-Base Voltage

Collector-to-Emitter Voltage

Emitter-to-Base Voltage

Collector Current

Colletor Current (Pulse)

Collector Dissipation

Junction Temperature

Storage Temperature

Symbol

VCBO

VCEO

VEBO

ICP

Tstg

Conditions

2.54

1 : Emitter

2 : Collector

3 : Base

SANYO : NMP

Ratings

(–)400

(–)5

(–)1

(–)2

150

–55 to +150

Unit

˚C

Electrical Characteristics

at Ta = 25˚C

Parameter

Collector Cutoff Current

Emitter Cutoff Current

DC Current Gain

Gain-Bandwidth Product

Output Capacitance

Collector-to-Emitter Saturation Voltage

Base-to-Emitter Saturation Voltage

Symbol

ICBO

IEBO

hFE

Cob

VCE(sat)

VBE(sat)

VCB=(–)300V, IE=0

VEB=(–)4V, IC=0

VCE=(–)10V, IC=(–)100mA

VCE=(–)10V, IC=(–)50mA

VCB=(–)30V, f=1MHz

IC=(–)200mA, IB=(–)20mA

40*

(50)70

(12)8

(–)1.0

Conditions

Ratings

min

typ

max

(–)1.0

200*

MHz

Unit

µA

* : The 2SA1785/2SC4465 are classified by 100mA h

as follows :

Rank

hFE

40 to 80

60 to 120

100 to 200

Continued on next page.

Any and all SANYO products described or contained herein do not have specifications that can handle

applications that require extremely high levels of reliability, such as life-support systems, aircraft’s

control systems, or other applications whose failure can be reasonably expected to result in serious

physical and/or material damage. Consult with your SANYO representative nearest you before using

any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that

exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other

parameters) listed in products specifications of any and all SANYO products described or contained

herein.

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

93003TN (KT)/83198HA (KT)/12894TH AX-8287/5170TA (KOTO) 8-6910 No.3511–1/5

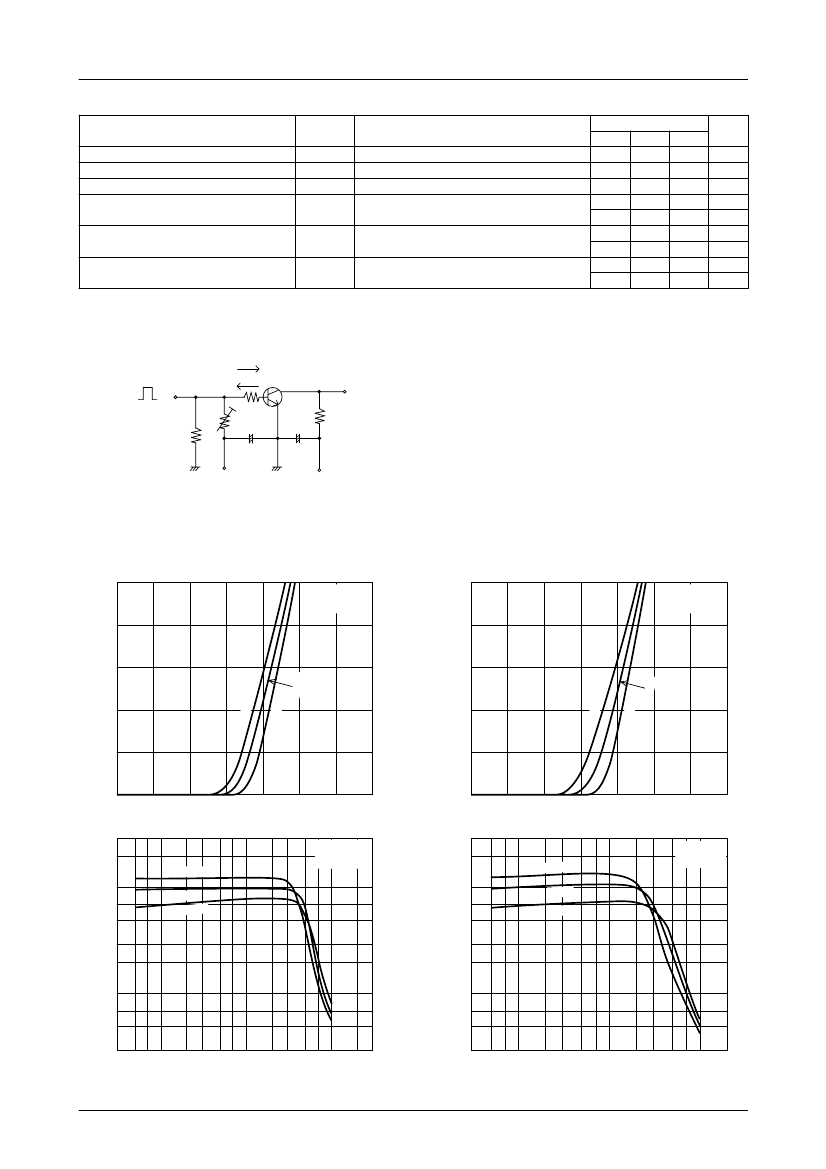

4.0

1.0

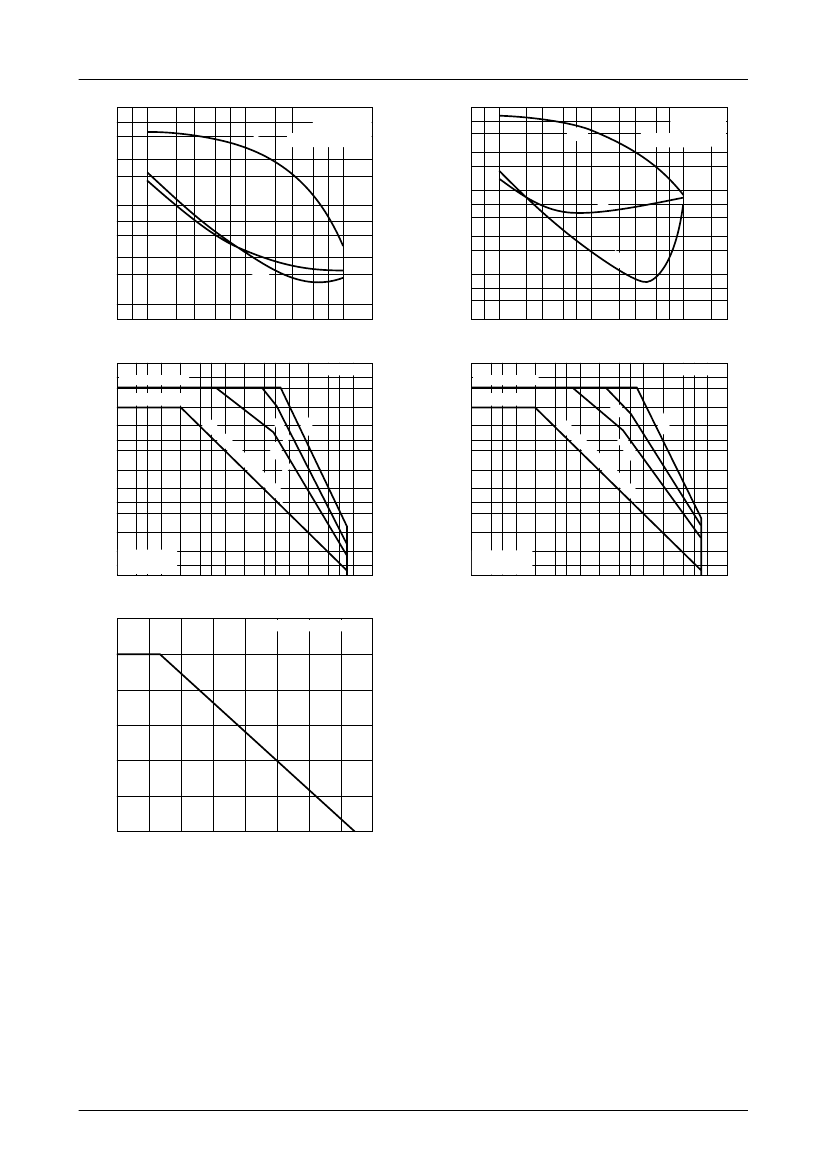

2SA1785/2SC4645

Specifications of any and all SANYO products described or contained herein stipulate the performance,

characteristics, and functions of the described products in the independent state, and are not guarantees

of the performance, characteristics, and functions of the described products as mounted in the customer's

products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,

the customer should always evaluate and test devices mounted in the customer's products or equipment.

SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all

semiconductor products fail with some probability. It is possible that these probabilistic failures could

give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,

or that could cause damage to other property. When designing equipment, adopt safety measures so

that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective

circuits and error prevention circuits for safe design, redundant design, and structural design.

In the event that any or all SANYO products(including technical data,services) described or

contained herein are controlled under any of applicable local export control laws and regulations,

such products must not be expor ted without obtaining the expor t license from the authorities

concerned in accordance with the above law.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying and recording, or any information storage or retrieval system,

or otherwise, without the prior written permission of SANYO Electric Co., Ltd.

Any and all information described or contained herein are subject to change without notice due to

product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"

for the SANYO product that you intend to use.

Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not

guaranteed for volume production. SANYO believes information herein is accurate and reliable, but

no guarantees are made or implied regarding its use or any infringements of intellectual property rights

or other rights of third parties.

This catalog provides information as of September, 2003. Specifications and information herein are

subject to change without notice.

PS No.3511–5/5

2SA1785-E Related Products

	2SA1785-E	2SA1785C	2SA1785-C	2SA1785D	2SA1785-D	2SA1785E	2SC4645-E	2SC4645-D	2SC4645-C	2SC4645D
Description	1000mA, 400V, PNP, Si, SMALL SIGNAL TRANSISTOR, NMP, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, NMP, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, NMP, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, NMP, 3 PIN	1000 mA, 400 V, PNP, Si, SMALL SIGNAL TRANSISTOR, NMP, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, NMP, 3 PIN	1000mA, 400V, NPN, Si, SMALL SIGNAL TRANSISTOR, NMP, 3 PIN	1000 mA, 400 V, NPN, Si, SMALL SIGNAL TRANSISTOR, NMP, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, NMP, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, NMP, 3 PIN
Objectid	1426751355	1484020451	1484020451	1484020454	1426751361	1484020457	1426751347	1426751353	1484020508	1484020511
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3
Contacts	3	3	3	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Collector-emitter maximum voltage	400 V	400 V	400 V	400 V	400 V	400 V	400 V	400 V	400 V	400 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	40	40	60	60	100	100	60	40	60
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	70 MHz	70 MHz	70 MHz	70 MHz
ECCN code	-	EAR99	EAR99	EAR99	-	EAR99	-	-	EAR99	EAR99
Maximum power dissipation(Abs)	-	1 W	1 W	1 W	-	1 W	-	-	1 W	1 W
