2SD1801S datasheet, PDF - EEWORLD Datasheet

2SD1801S: DescriptionTRANSISTOR,BJT,NPN,50V V(BR)CEO,2A I(C),TO-252AA; CategoryDiscrete semiconductor The transistor; File Size124KB，4 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

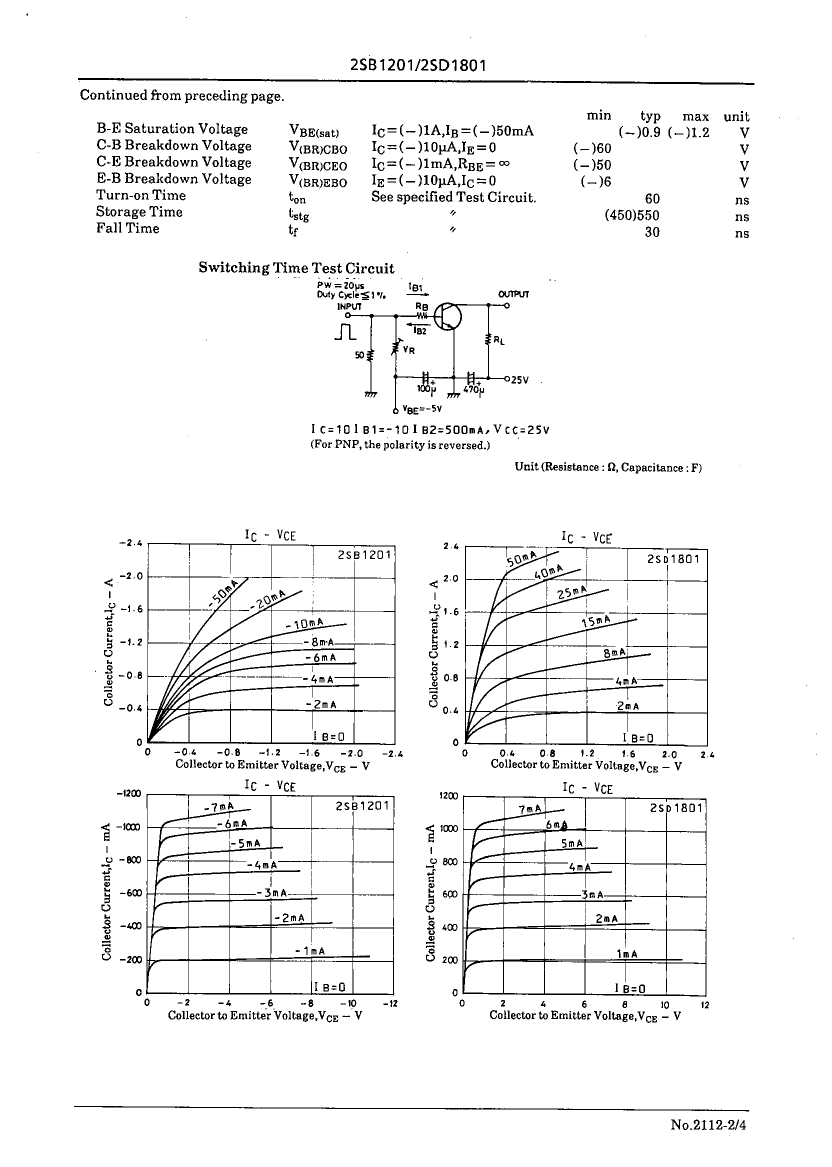

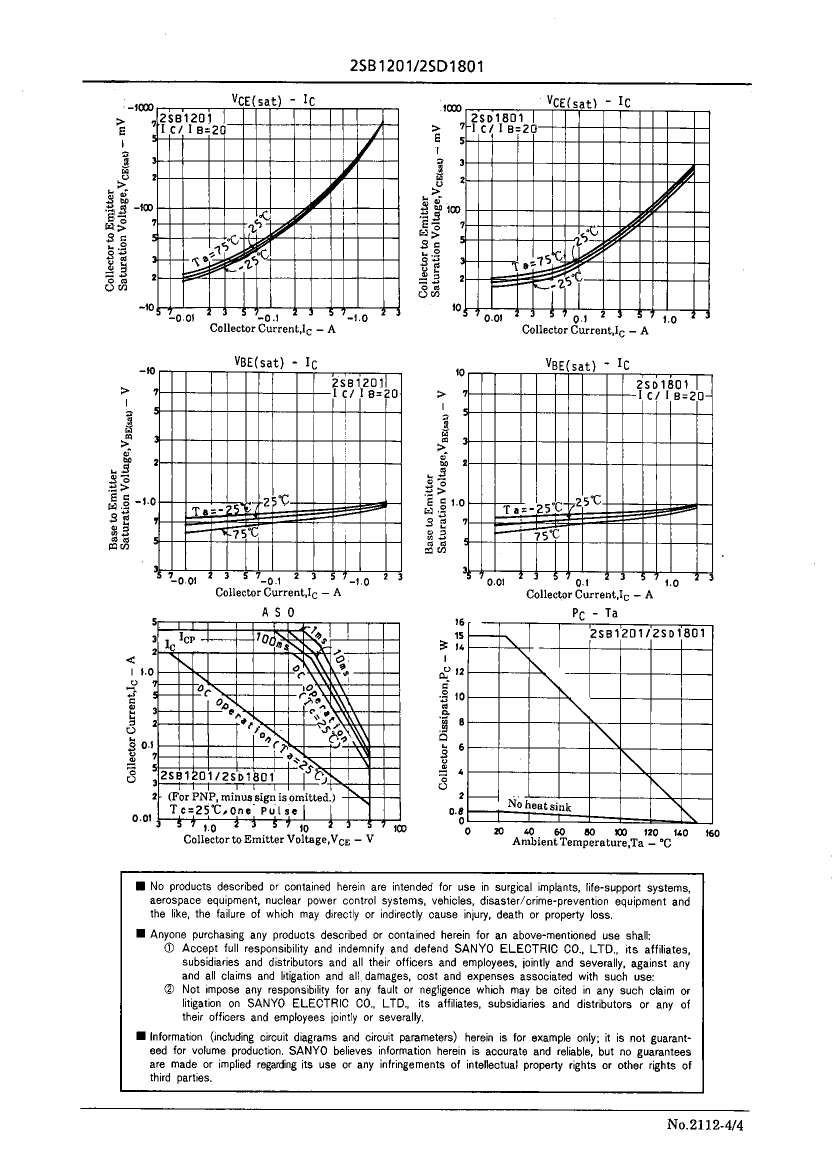

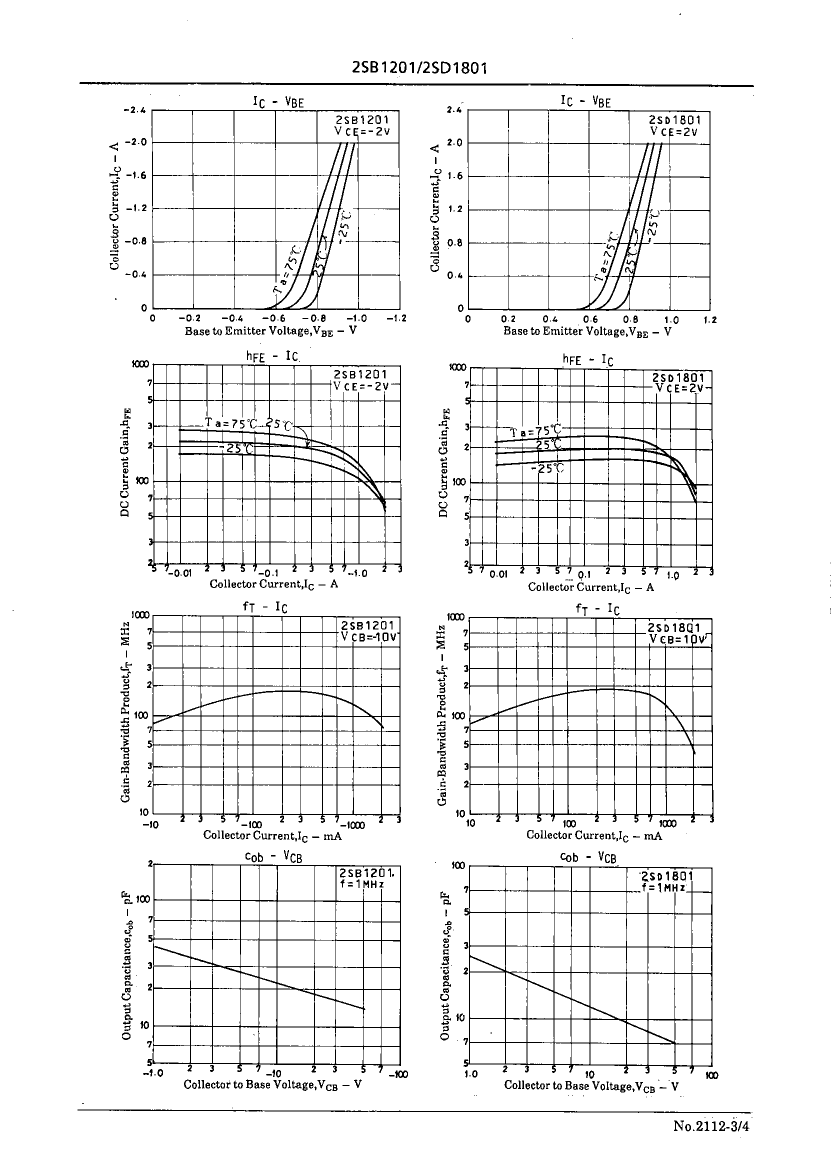

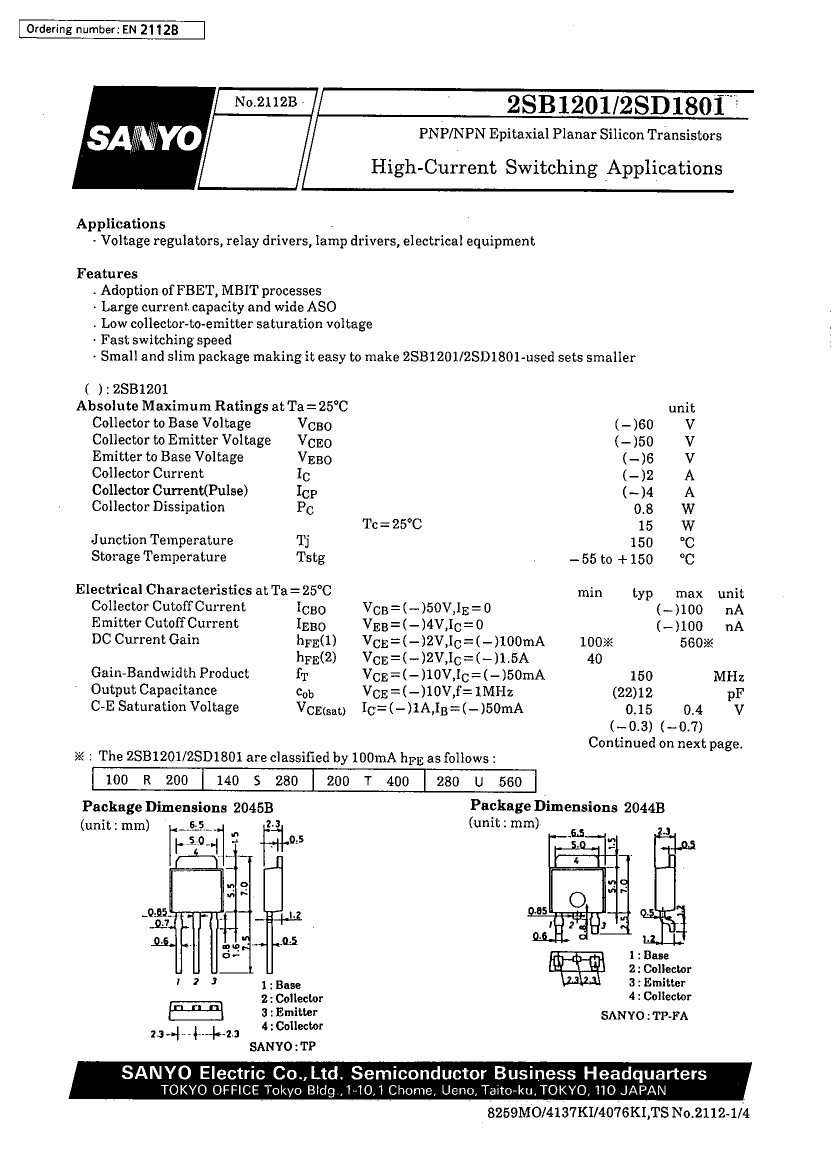

2SD1801S Overview

TRANSISTOR,BJT,NPN,50V V(BR)CEO,2A I(C),TO-252AA

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compli
Maximum collector current (IC)	2 A
Configuration	Single
Minimum DC current gain (hFE)	140
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.8 W
surface mount	YES
Base Number Matches	1

	2SD1801S	2SB1201U	2SD1801U	2SB1201S	2SB1201T
Description	TRANSISTOR,BJT,NPN,50V V(BR)CEO,2A I(C),TO-252AA	TRANSISTOR,BJT,PNP,50V V(BR)CEO,2A I(C),TO-252	TRANSISTOR,BJT,NPN,50V V(BR)CEO,2A I(C),TO-252AA	TRANSISTOR,BJT,PNP,50V V(BR)CEO,2A I(C),TO-252	TRANSISTOR,BJT,PNP,50V V(BR)CEO,2A I(C),TO-252
Reach Compliance Code	compli	compli	compli	compli	compliant
Maximum collector current (IC)	2 A	2 A	2 A	2 A	2 A
Configuration	Single	Single	Single	Single	Single
Minimum DC current gain (hFE)	140	280	280	140	200
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	NPN	PNP	NPN	PNP	PNP
Maximum power dissipation(Abs)	0.8 W	15 W	0.8 W	15 W	15 W
surface mount	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	1	1
