DCM-25P3S-1APN-A191-A197 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DCM-25P3S-1APN-A191-A197

Preview

DCM-25P3S-1APN-A191-A197: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DCM-25P3S-1APN-A191-A197 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal,

DCM-25P3S-1APN-A191-A197 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	DCM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

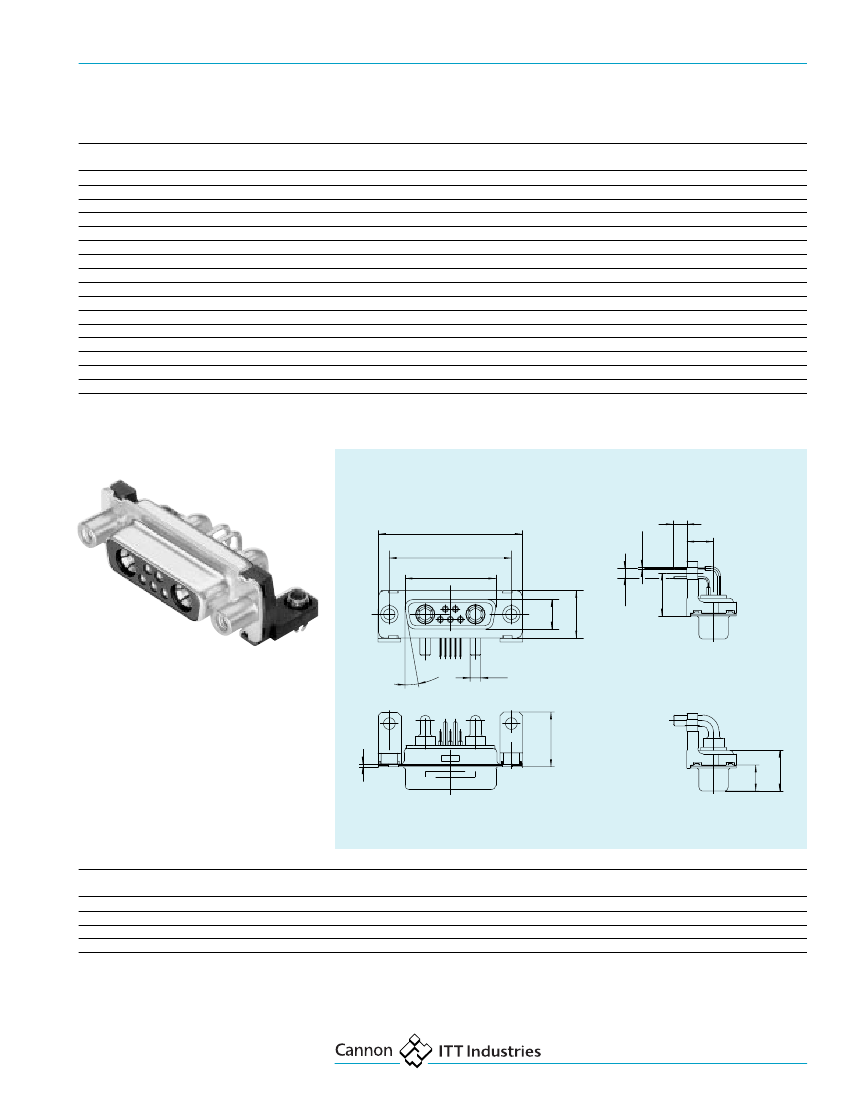

DCM-25P3S-1APN-A191-A197 Preview

D Subminiature

Part numbers with plastic bracket and

captive nut M3

Shell Layout

size

P/N without pushfit

P/N with pushfit

Combo D

®

/European Version

Part numbers with plastic bracket with

bushing diam. 3,05

P/N without pushfit

P/N with pushfit

40 A High power 90° – European footprint, sizes DE – DC, with plastic bracket

Part numbers with plastic bracket

with post M3

P/N without pushfit

P/N with pushfit

DE

DA

DB

DC

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

DEM-5P1S-1ATN-A191-A197

DAM-7P2S-1ATN-A191-A197

DAM-11P1S-1ATN-A191-A197

DAM-3P3S-1ATN-A191-A197

DAM-3PK3S-1ATN-A191-A197

DBM-5P5S-1ATN-A191-A197

DBM-9P4S-1ATN-A191-A197

DBM-13P3S-1ATN-A191-A197

DBM-17P2S-1ATN-A191-A197

DBM-21P1S-1ATN-A191-A197

DCM-8P8S-1ATN-A191-A197

DCM-13P6S-1ATN-A191-A197

DCM-17P5S-1ATN-A191-A197

DCM-21PA4S-1ATN-A191-A197

DCM-25P3S-1ATN-A191-A197

DCM-27P2S-1ATN-A191-A197

DEM-5P1S-1ATN-A191-A197-146

DAM-7P2S-1ATN-A191-A197-146

DAM-11P1S-1ATN-A191-A197-146

DAM-3P3S-1ATN-A191-A197-146

DAM-3PK3S-1ATN-A191-A197-146

DBM-5P5S-1ATN-A191-A197-146

DBM-9P4S-1ATN-A191-A197-146

DBM-13P3S-1ATN-A191-A197-146

DBM-17P2S-1ATN-A191-A197-146

DBM-21P1S-1ATN-A191-A197-146

DCM-8P8S-1ATN-A191-A197-146

DCM-13P6S-1ATN-A191-A197-146

DCM-17P5S-1ATN-A191-A197-146

DCM-21PA4S-1ATN-A191-A197-146

DCM-25P3S-1ATN-A191-A197-146

DCM-27P2S-1ATN-A191-A197-146

DEM-5P1S-1A5N-A191-A197

DAM-7P2S-1A5N-A191-A197

DAM-11P1S-1A5N-A191-A197

DAM-3P3S-1A5N-A191-A197

DAM-3PK3S-1A5N-A191-A197

DBM-5P5S-1A5N-A191-A197

DBM-9P4S-1A5N-A191-A197

DBM-13P3S-1A5N-A191-A197

DBM-17P2S-1A5N-A191-A197

DBM-21P1S-1A5N-A191-A197

DCM-8P8S-1A5N-A191-A197

DCM-13P6S-1A5N-A191-A197

DCM-17P5S-1A5N-A191-A197

DCM-21PA4S-1A5N-A191-A197

DCM-25P3S-1A5N-A191-A197

DCM-27P2S-1A5N-A191-A197

DEM-5P1S-1A5N-A191-A197-146

DAM-7P2S-1A5N-A191-A197-146

DAM-11P1S-1A5N-A191-A197-146

DAM-3P3S-1A5N-A191-A197-146

DAM-3PK3S-1A5N-A191-A197-146

DBM-5P5S-1A5N-A191-A197-146

DBM-9P4S-1A5N-A191-A197-146

DBM-13P3S-1A5N-A191-A197-146

DBM-17P2S-1A5N-A191-A197-146

DBM-21P1S-1A5N-A191-A197-146

DCM-8P8S-1A5N-A191-A197-146

DCM-13P6S-1A5N-A191-A197-146

DCM-17P5S-1A5N-A191-A197-146

DCM-21PA4S-1A5N-A191-A197-146

DCM-25P3S-1A5N-A191-A197-146

DCM-27P2S-1A5N-A191-A197-146

DEM-5P1S-1APN-A191-A197

DAM-7P2S-1APN-A191-A197

DAM-11P1S-1APN-A191-A197

DAM-3P3S-1APN-A191-A197

DAM-3PK3S-1APN-A191-A197

DBM-5P5S-1APN-A191-A197

DBM-9P4S-1APN-A191-A197

DBM-13P3S-1APN-A191-A197

DBM-17P2S-1APN-A191-A197

DBM-21P1S-1APN-A191-A197

DCM-8P8S-1APN-A191-A197

DCM-13P6S-1APN-A191-A197

DCM-17P5S-1APN-A191-A197

DCM-21PA4S-1APN-A191-A197

DCM-25P3S-1APN-A191-A197

DCM-27P2S-1APN-A191-A197

DEM-5P1S-1APN-A191-A197-146

DAM-7P2S-1APN-A191-A197-146

DAM-11P1S-1APN-A191-A197-146

DAM-3P3S-1APN-A191-A197-146

DAM-3PK3S-1APN-A191-A197-146

DBM-5P5S-1APN-A191-A197-146

DBM-9P4S-1APN-A191-A197-146

DBM-13P3S-1APN-A191-A197-146

DBM-17P2S-1APN-A191-A197-146

DBM-21P1S-1APN-A191-A197-146

DCM-8P8S-1APN-A191-A197-146

DCM-13P6S-1APN-A191-A197-146

DCM-17P5S-1APN-A191-A197-146

DCM-21PA4S-1APN-A191-A197-146

DCM-25P3S-1APN-A191-A197-146

DCM-27P2S-1APN-A191-A197-146

For performance class 1 replace A191 with A190.

For performance class 3 delete A191.

For pushfit 90° hole diameter 3,2 mm replace 146 with 162.

For captive nut 4-40 UNC replace 1ATN with 1AUN and

1APN with 1A6N.

Socket

3,7

±0,3

A

B

C

11,7

±0,2

2,54

Ø 0,6

7,3

±0,15

A2

2

1

7W2S

A1

ITT

5

4

3

CANNON

q

For contact cavity arrangements, see page 53.

For pcb hole pattern, see page 72 – 75.

For mounting methods, see page 86 – 87.

For panel cut-outs, see our D Subminiature

catalogue.

L

10

°

Ø 2,9

14,9

±0,2

D

E

Dimensions

Shell

size

A

±

0,38

B

±

0,13

C

±

0,13

D

±

0,13

E

±

0,13

F

±

0,25

10,9

L

+

0,2

W

±

0,4

DE

DA

DB

DC

30,8

39,15

53,05

69,3

16,35

24,65

38,4

54,85

25

33,3

47.05

63,5

7,9

12,55

0,8

6,95

W

F

19
