ED-EHD
D-Sub connectors - Screw-machined contacts
STANDARD AND HIGH DENSITY
WATERPROOF CONNECTORS
CHARACTERISTICS
Materials and Platings
Shells
Body
Contacts
Boardlock
Standoff
Steel 2.5µm(100µ”) min tin over 1.25µm(50µ”) min nickel
Glass-filled thermoplastic
Flame retardant to UL94 V-0 Color Black
Copper alloy(Brass for plug, Phospher bronze for socket)
gold over 1.25µm(50µ”) min nickel
Copper alloy, 100µ” min. sn over 50µ” min. nickel.
Copper alloy, 100µ” min. sn over 50µ” min. nickel.

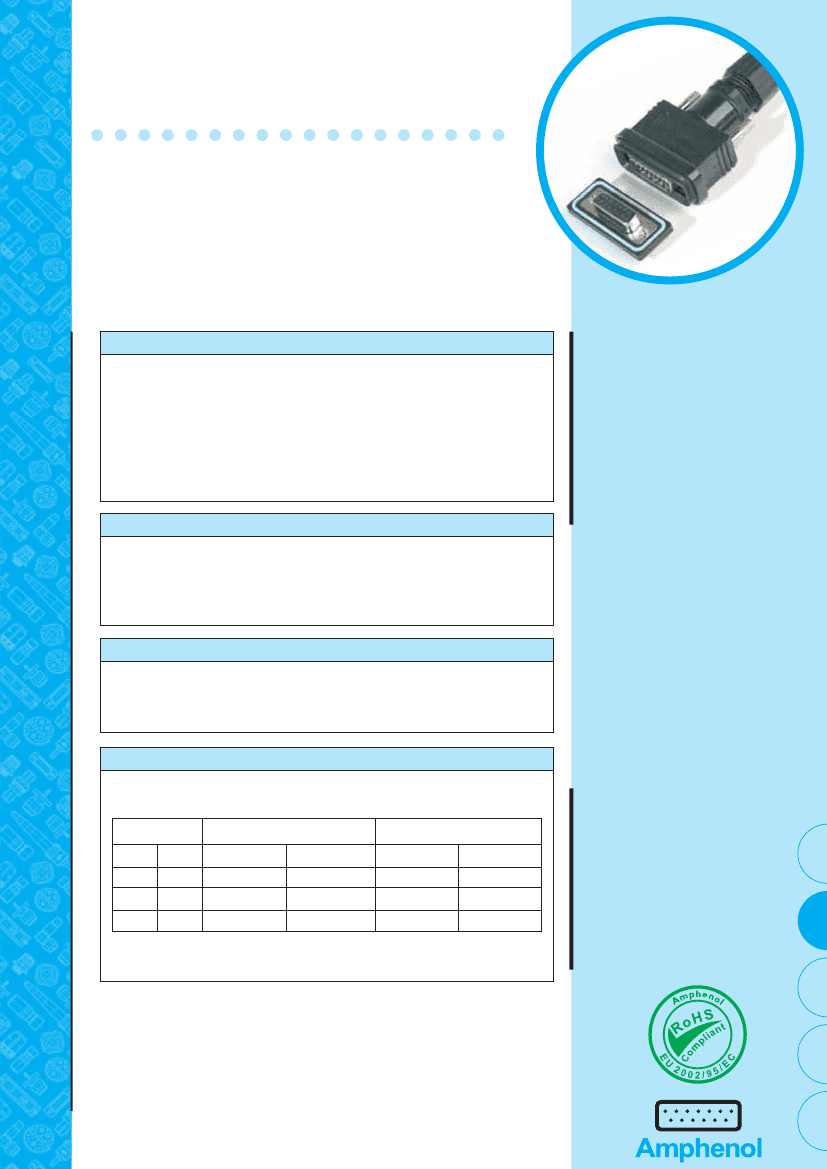

DESCRIPTION
APPLICATIONS
The 17ED and 17EHD series are
suitable for waterproof applications.
The machined contacts provide
robustness and reliability.
This series offers:
- Panel mount connectors with
solder cup, straight and right
angle PCB terminations.
Connectors are waterproof unmated.
Electrical Data
Current rating
Voltage rating
Insulation resistance
Contact resistance
5.0A
300V rms at 50Hz
>5000MΩ
20mΩ Max.
Climatic Data
Operating temperature
-55°C to +85°C
Salt spray
Waterproof rating
48 hours
IP 67 minimum
Harsh environment
connectors
Mechanical Data
Mating and unmating force
Unit: kg (lb)
No. of Cts
ED
9
15
25
EHD
15
26
44
ED
Mate (max)
3.05 (6.74)
5.09 (11.24)
8.44 (18.66)
EHD
• Marine electronic devices
• Industrial electrical
• Security Monitoring
• Robotics
• Lighting systems
Unmate (min) Mate (max) Unmate (min)
0.36 (0.79)
0.46 (1.01)
0.81 (1.80)
3.81 (8.42)
5.95 (13.16)
9.26 (20.46)
0.52 (1.14)
1.05 (2.32)
1.37 (3.02)
Mating cycles
Gold flash
0.76µm (30µ”)
: 100 cycles
: 500 cycles
ED-EHD

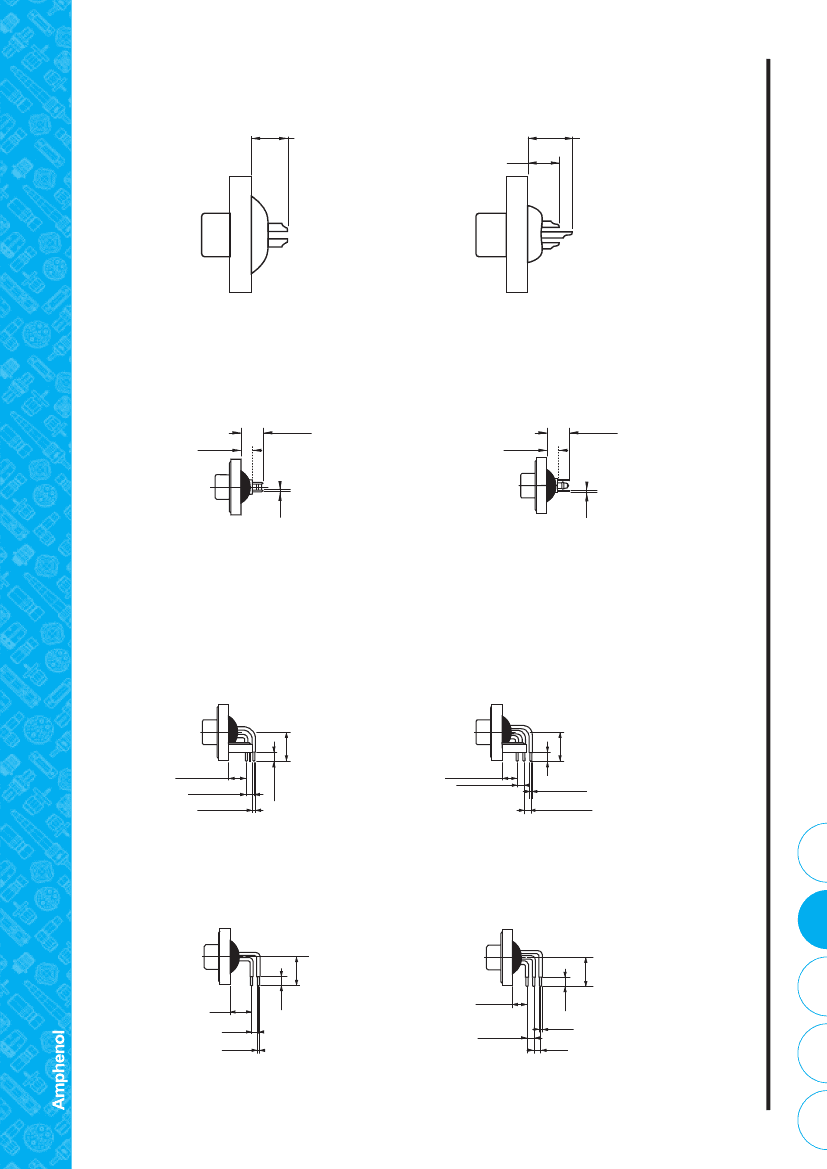

Solder cup (blank) :
6.5 (0.256)
5.8 (0.228)
8.2 (0.323)
Standard density
High density
Straight PCB with standoff and boardlocks:
8.2 (.323)
4.0 (.157)
4.0 (.157)
7.9 (.311)
Standard density
ø0.6(.024)
High density
Right angle PCB with brackets and boardlocks:
10.9 (0.429)
3.5 (0.138)
6.7 (0.263)
2.84 (0.112)
ø0.6(.024)
5.58 (0.219)
2.54 (0.100)
10.9 (0.429)
3.5 (0.138)
ø0.6(.024)
2.54 (0.100)
Standard density
High density
ø0.6(.024)
Right angle PCB without brackets and boardlocks:
10.9 (0.429)
3.5 (0.138)
6.7 (0.263)
2.84 (0.112)
ø0.6(.024)
5.58 (0.219)
2.54 (0.100)
10.9 (0.429)
3.5 (0.138)
ø0.6(.024)
2.54 (0.100)
Standard density
High density
ED-EHD
TECHNICAL DATA
Termination
NOTES

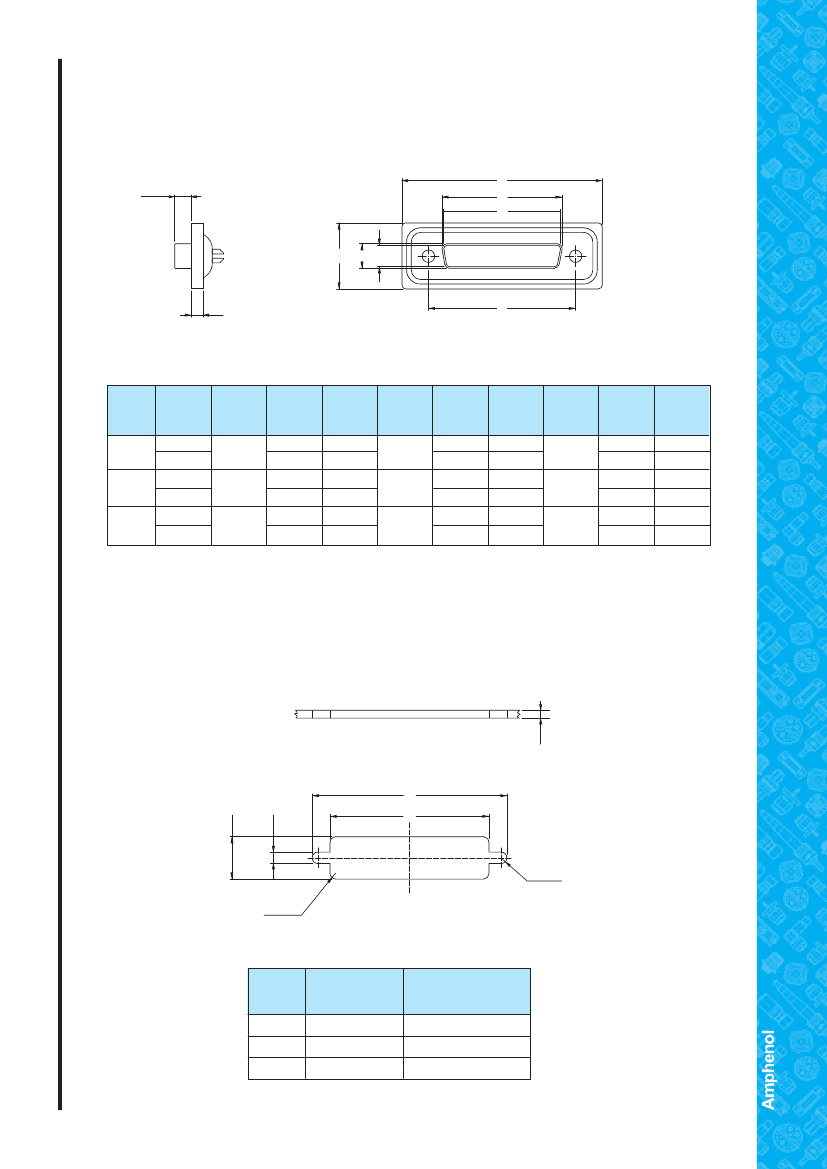

Connector Dimensions
2
5mm
4
3
6mm
1
5
NO
2
1
3
4
5

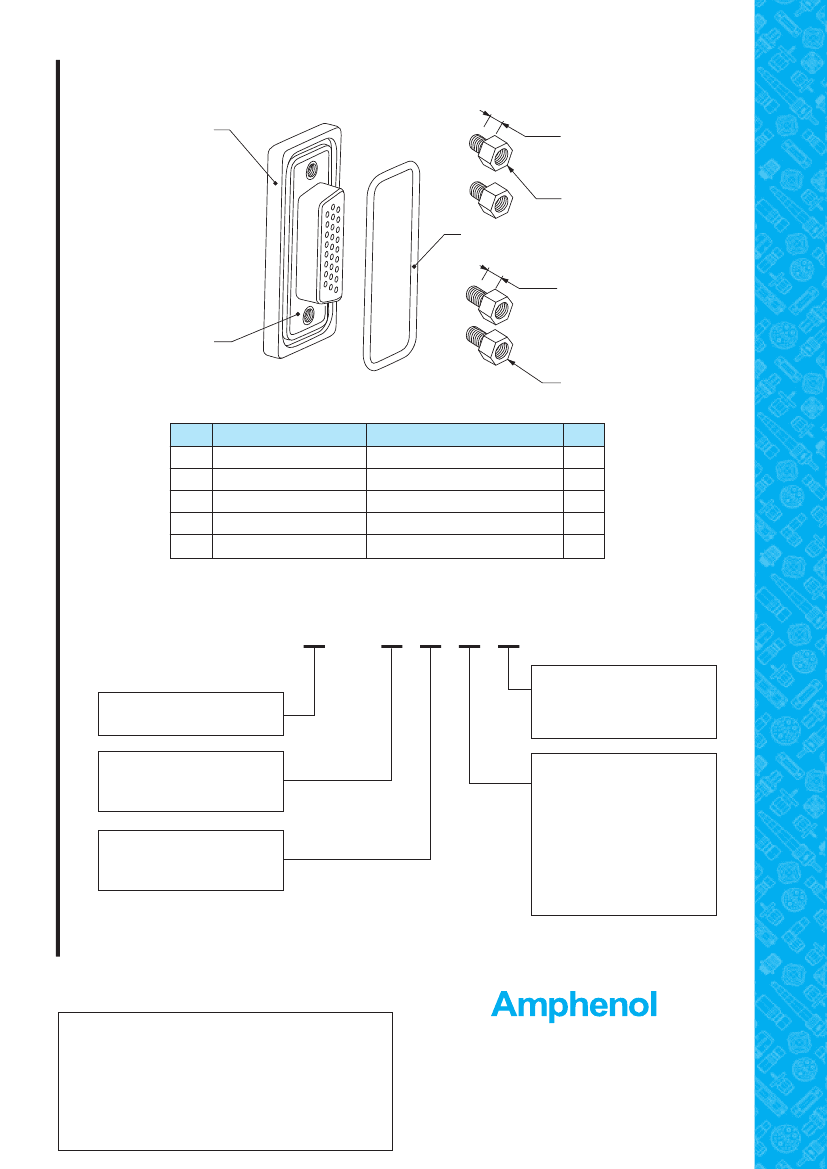

Description
Housing
Front
shell
Ring
#4-40 Front screw lock
#4-40 Front screw lock
Material
Black thermoplastic UL 94-VO
Steel tin plated
Silicone
Brass tin plated
Brass tin plated
Qty
1
1
2
2
ED-EHD/E /B information given in this document are as a guideline only. We reserve the right to modify our products in any way we deem necessary. Any duplication is prohibited, unless approved in writing.
e
1
How to order
L17 ED
... ... ... ...
contact plating:
0
: gold flash
1
: 0.38µm gold (15µ”)
2 : 0.76µm gold (30µ”)
L17ED:
standard density series
L17EHD:
high densty series
Number of contacts
Standard density: 9, 15, 25
High density:
15, 26, 44
Contact type:
P : Pin
S : Socket
Termination:
0
: Solder cup
1
: Straight PCB without
stand-off or boarlocks
2
: Straight PCB with stand-off
and boarlocks
3
: Right angle PCB without
brackets or boarlocks
4
: Right angle PCB with
brackets and boarlocks
For special request, please consult factory
Do not hesitate to contact us for further information
Amphenol IT & Communication Products
Block A3/A4, The 4th Industrial District of
Industrial Headquarters, Dong Keng Road
Gong Ming Town, Shen Zhen China
Fax:+86(0)755 2754 9955
Technical Support
Tel:+86(0)755 2717 7945
Info-dsub@amphenol.com.cn
http://www.dsubconnector.com
