S-4520BACA datasheet, PDF - EEWORLD Datasheet

S-4520BACA: DescriptionLIQUID CRYSTAL DISPLAY DRIVER, UUC100, DIE-100; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size664KB，23 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

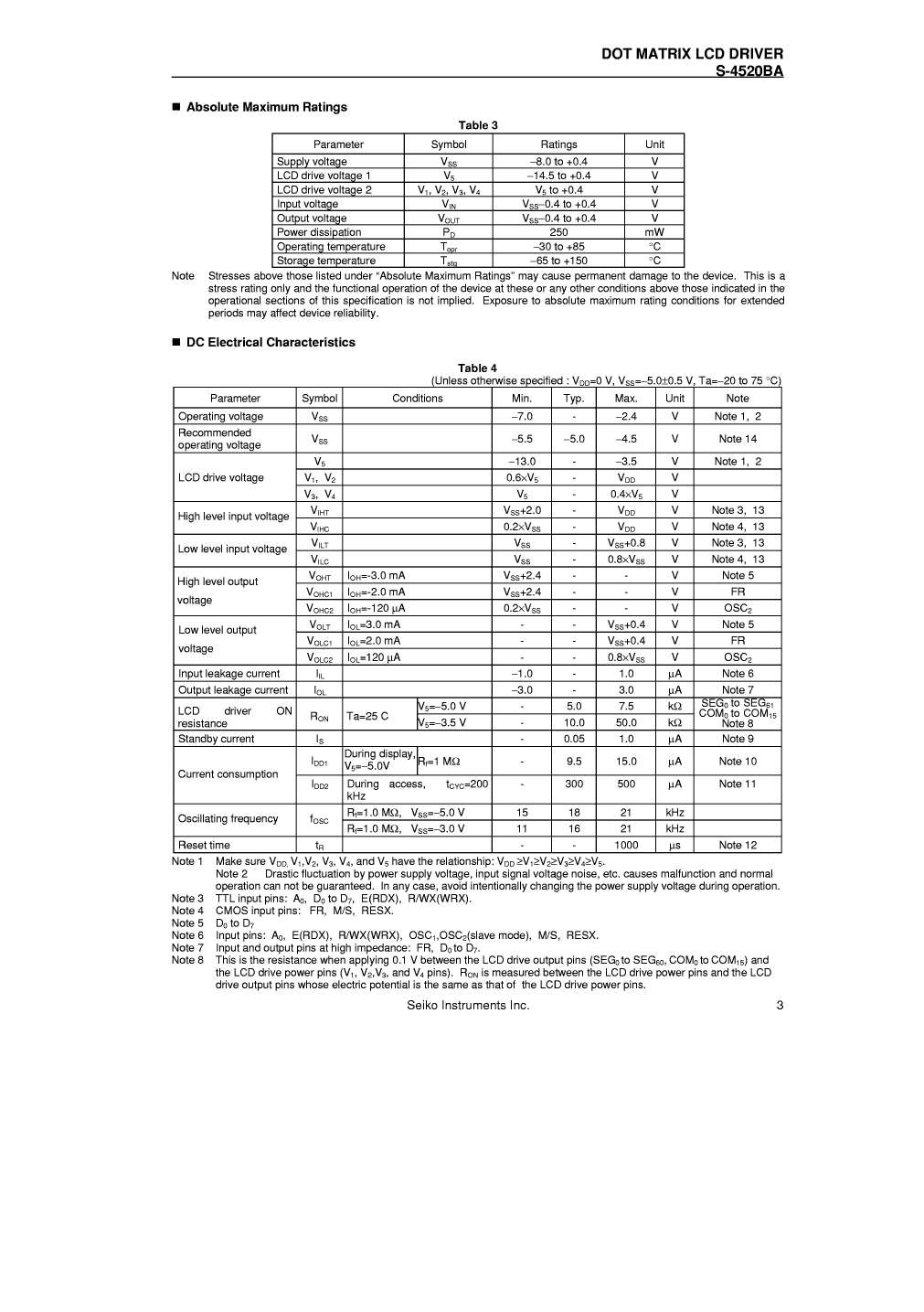

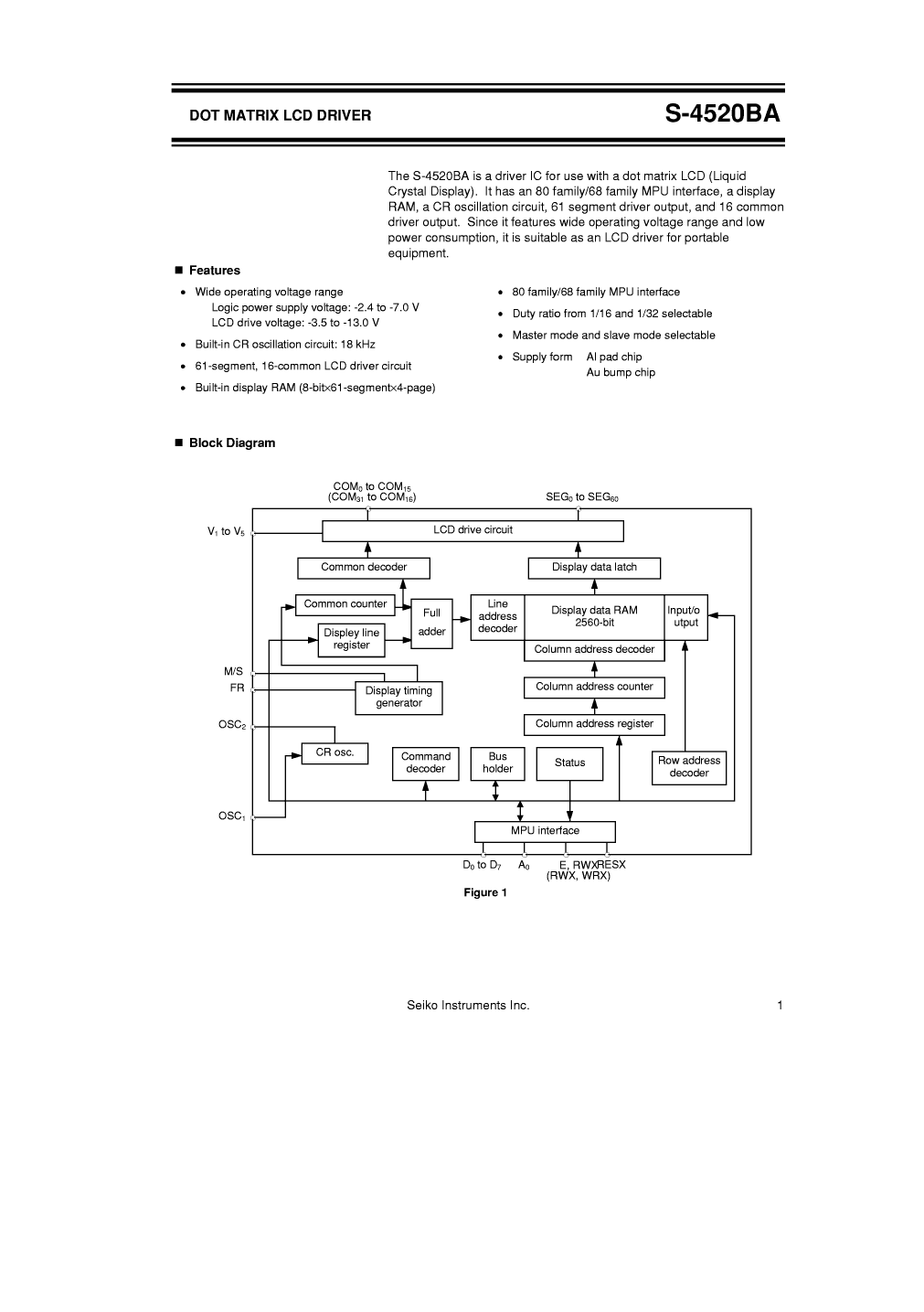

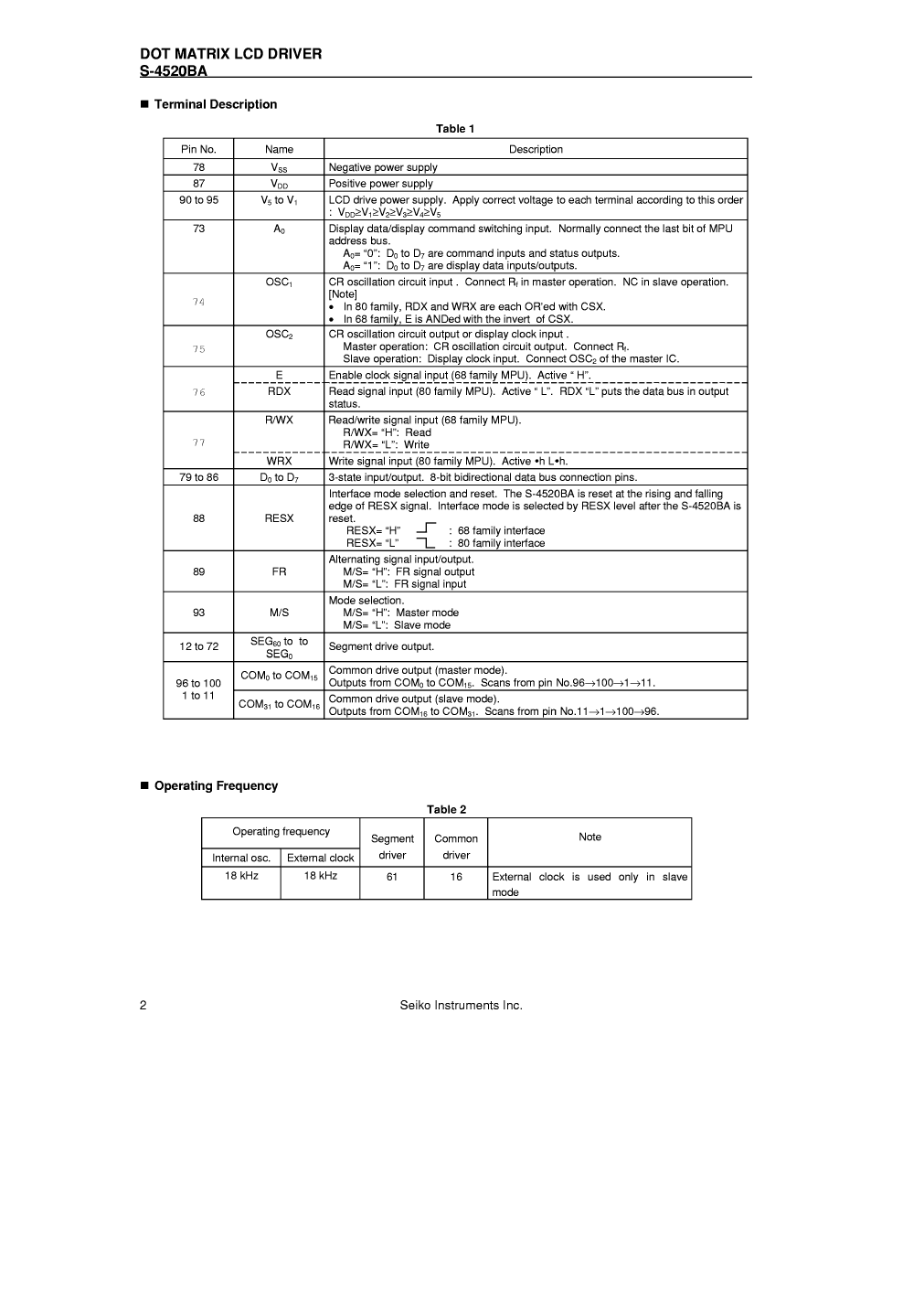

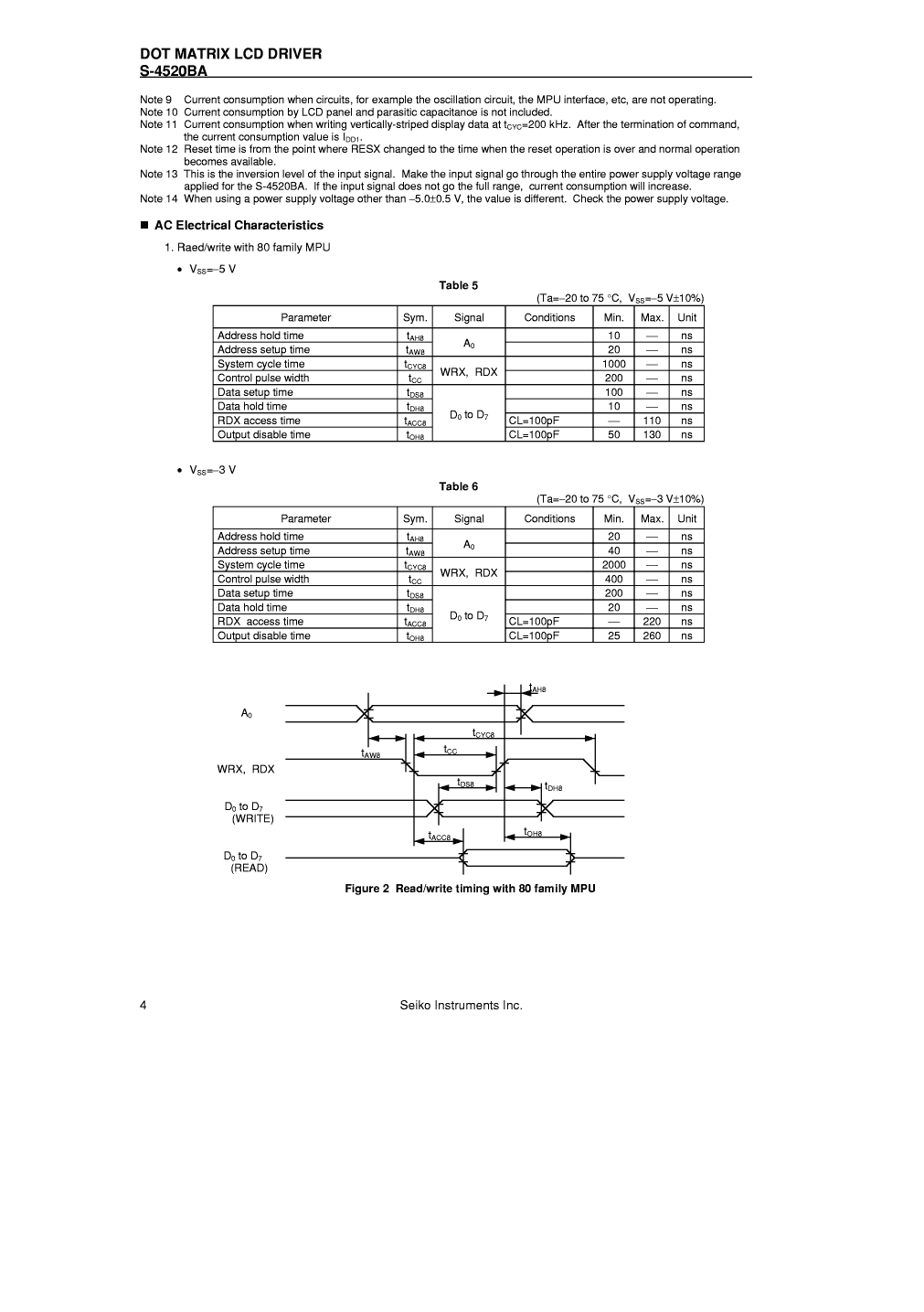

S-4520BACA Overview

LIQUID CRYSTAL DISPLAY DRIVER, UUC100, DIE-100

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
Parts packaging code	DIE
package instruction	DIE,
Contacts	100
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	IT CAN ALSO OPERATE AT 4.5V TO 5.5V
data entry mode	PARALLEL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	X-XUUC-N100
Multiplex display function	NO
Number of functions	1
Number of segments	77
Number of terminals	100
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13 V
Mains voltage 1-minute	3.5 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal form	NO LEAD
Terminal location	UPPER
minfmax	0.021 MHz

	S-4520BACA	S-4520BACG
Description	LIQUID CRYSTAL DISPLAY DRIVER, UUC100, DIE-100	LIQUID CRYSTAL DISPLAY DRIVER, UUC100, DIE-100
Maker	Seiko Epson Corporation	Seiko Epson Corporation
Parts packaging code	DIE	DIE
package instruction	DIE,	DIE,
Contacts	100	100
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	IT CAN ALSO OPERATE AT 4.5V TO 5.5V	IT CAN ALSO OPERATE AT 4.5V TO 5.5V
data entry mode	PARALLEL	PARALLEL
display mode	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	X-XUUC-N100	X-XUUC-N100
Multiplex display function	NO	NO
Number of functions	1	1
Number of segments	77	77
Number of terminals	100	100
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE
Package shape	UNSPECIFIED	UNSPECIFIED
Package form	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
Supply voltage 1-max	13 V	13 V
Mains voltage 1-minute	3.5 V	3.5 V
surface mount	YES	YES
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
minfmax	0.021 MHz	0.021 MHz
