IBM11S1320LNB-70 datasheet, PDF

Datasheet> All Categories > storage> storage> IBM11S1320LNB-70

IBM11S1320LNB-70: DescriptionFast Page DRAM Module, 1MX32, 70ns, CMOS; Categorystorage storage; File Size559KB，21 Pages; ManufacturerIBM; Websitehttp://www.ibm.com

Download Datasheet Parametric Compare View All

IBM11S1320LNB-70 Overview

Fast Page DRAM Module, 1MX32, 70ns, CMOS

IBM11S1320LNB-70 Parametric

Parameter Name	Attribute value
Maker	IBM
package instruction	DIMM, DIMM72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
Spare memory width	16
I/O type	COMMON
JESD-30 code	R-XDMA-N72
memory density	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	25.4 mm
self refresh	YES
Maximum standby current	0.0004 A
Maximum slew rate	0.36 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

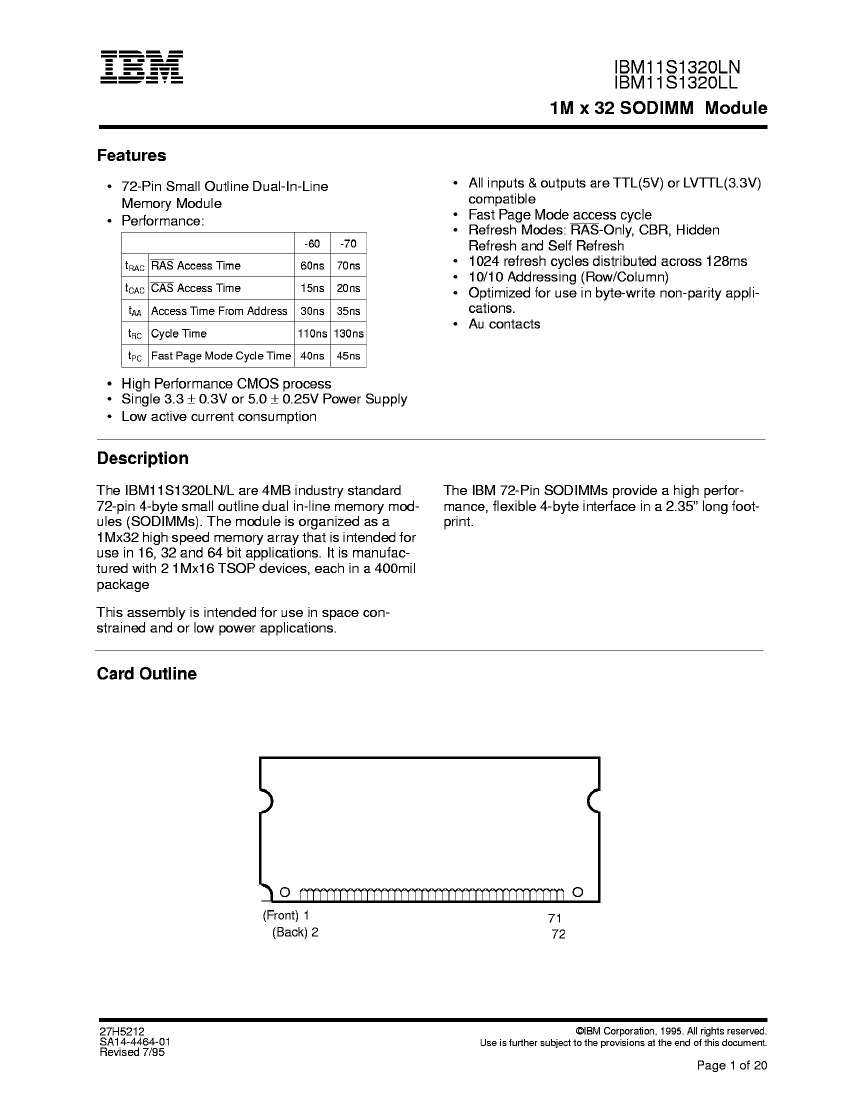

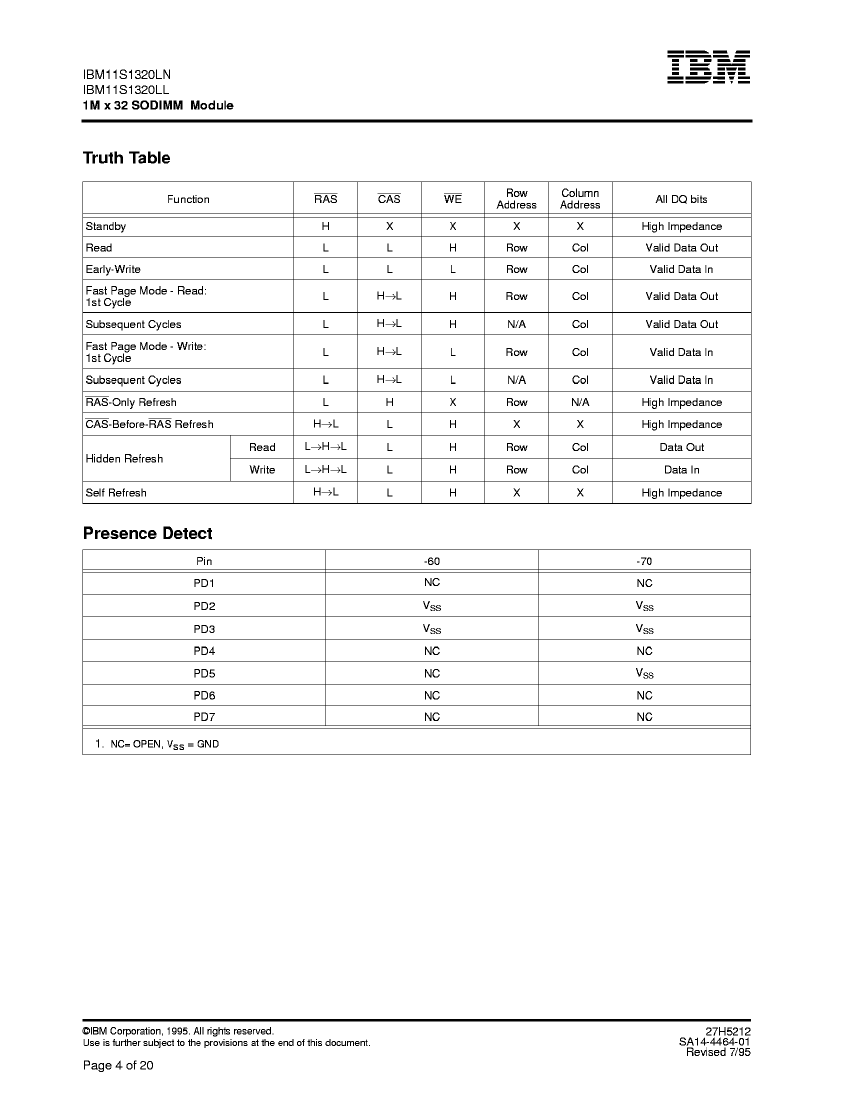

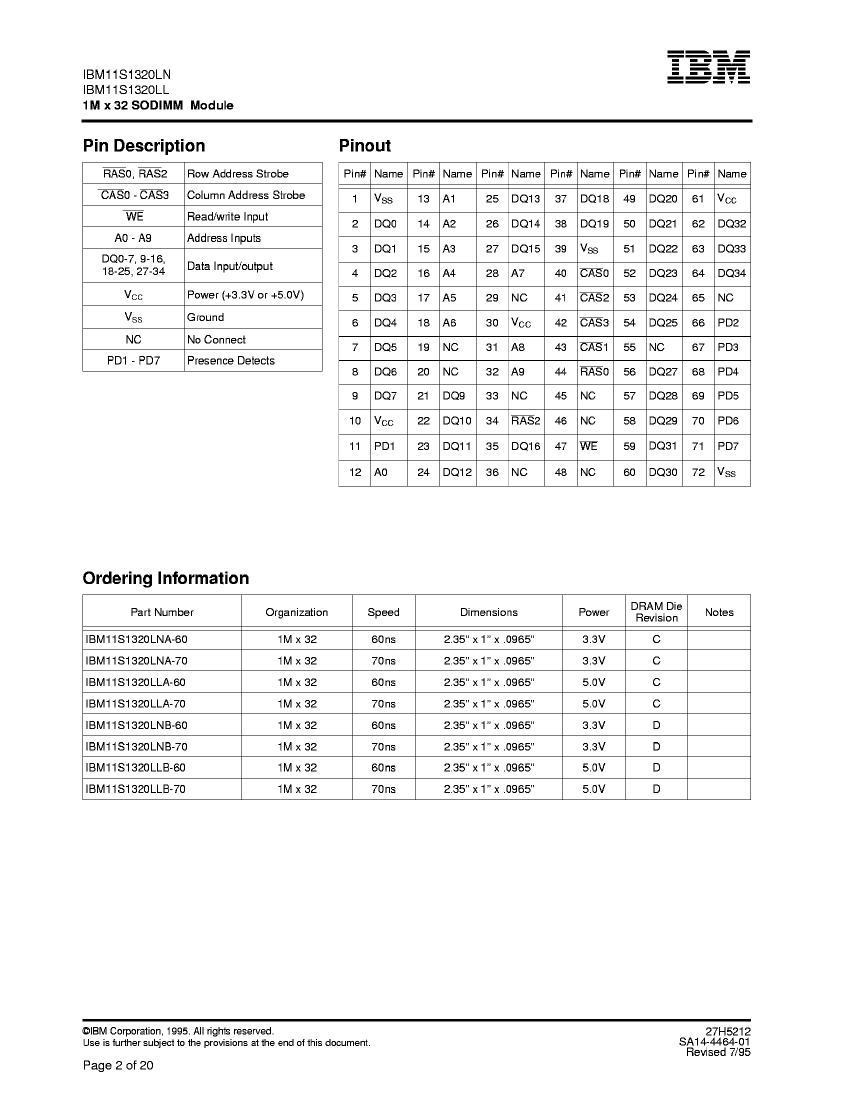

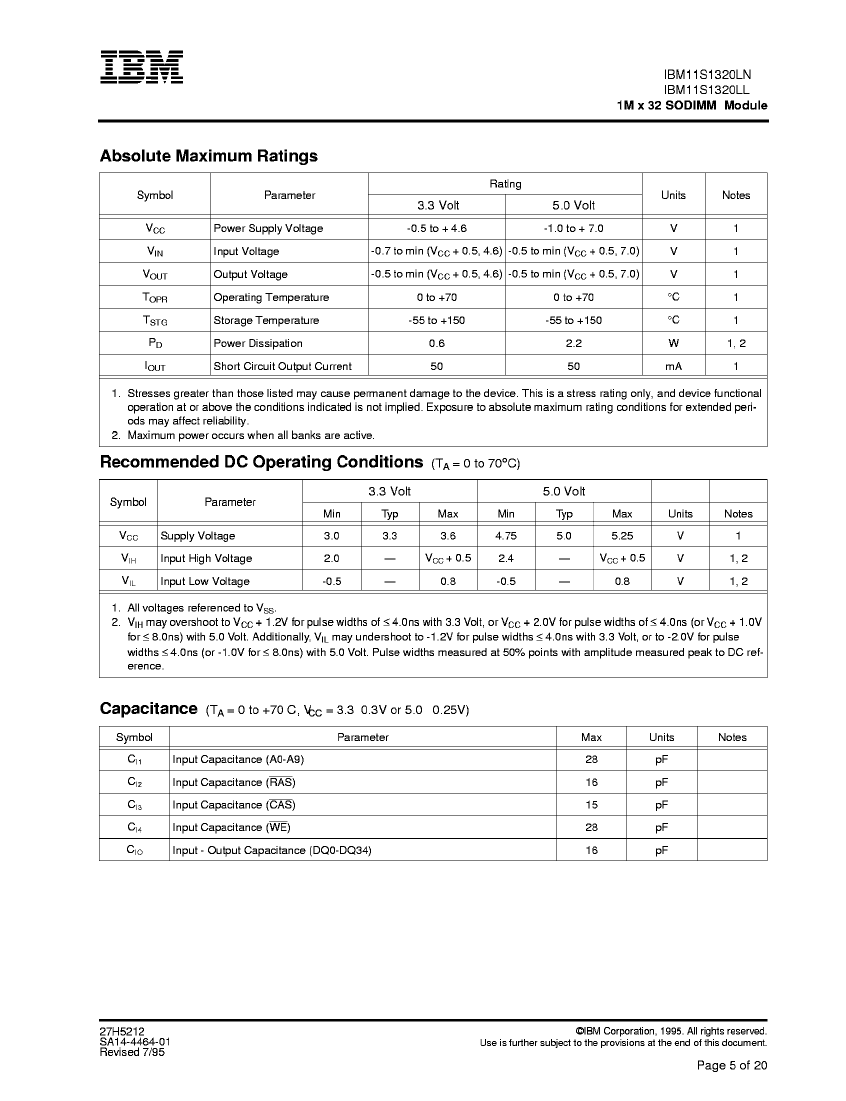

Preview

Download Datasheet

View All

IBM11S1320LNB-70 Related Products

	IBM11S1320LNB-70	IBM11S1320LLA-60	IBM11S1320LLA-70	IBM11S1320LLB-60	IBM11S1320LLB-70	IBM11S1320LNA-60	IBM11S1320LNA-70	IBM11S1320LNB-60
Description	Fast Page DRAM Module, 1MX32, 70ns, CMOS	Fast Page DRAM Module, 1MX32, 60ns, CMOS	Fast Page DRAM Module, 1MX32, 70ns, CMOS	Fast Page DRAM Module, 1MX32, 60ns, CMOS	Fast Page DRAM Module, 1MX32, 70ns, CMOS	Fast Page DRAM Module, 1MX32, 60ns, CMOS	Fast Page DRAM Module, 1MX32, 70ns, CMOS	Fast Page DRAM Module, 1MX32, 60ns, CMOS
Maker	IBM	IBM	IBM	IBM	IBM	IBM	IBM	IBM
package instruction	DIMM, DIMM72	DIMM, DIMM72	DIMM, DIMM72	DIMM, DIMM72	DIMM, DIMM72	DIMM, DIMM72	DIMM, DIMM72	DIMM, DIMM72
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	60 ns	70 ns	60 ns	70 ns	60 ns	70 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
Spare memory width	16	16	16	16	16	16	16	16
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72
memory density	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72	72	72
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX32	1MX32	1MX32	1MX32	1MX32	1MX32	1MX32	1MX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM72	DIMM72	DIMM72	DIMM72	DIMM72	DIMM72	DIMM72	DIMM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	5 V	5 V	5 V	5 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024	1024
Maximum seat height	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
self refresh	YES	YES	YES	YES	YES	YES	YES	YES
Maximum standby current	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A
Maximum slew rate	0.36 mA	0.41 mA	0.36 mA	0.41 mA	0.36 mA	0.41 mA	0.36 mA	0.41 mA
Maximum supply voltage (Vsup)	3.6 V	5.25 V	5.25 V	5.25 V	5.25 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	4.75 V	4.75 V	4.75 V	4.75 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	5 V	5 V	5 V	5 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
