1/4
STRUCTURE
NAME OF PRODUCT
TYPE
FUNCTION
Silicon Monolithic Integrated Circuit
DC-AC Inverter Control IC
ＢＤ９８８３ＡＦ, ＢＤ９８８３ＦＶ
・36V High voltage process
・1ch control with Half-bridge
・Lamp current and voltage sense feed back control
・Sequencing easily achieved with Soft Start Control
・Short circuit protection with Timer Latch
・Under Voltage Lock Out
・Mode-selectable the operating or stand-by mode by stand-by pin
○Absolute Maximum Ratings（Ta = 25℃）
Parameter
Supply Voltage
BST
BST-ST Voltage Difference
Operating Temperature Range
Storage Temperature Range
Power Dissipation
Maximum Junction Temperature
*1
*2
Symbol
V
CC
BST
BST-SW
Topr
Tstg
Pd
Tjmax
Limits
30
40
15
-40½+85
-55½+150
550
*1
(BD9883AF)
650
*2
(BD9883FV)
+150
Unit
V
V
V
℃
℃
mW
℃
Pd derated at 4.4mW/℃ for temperature above Ta = 25℃ (When mounted on a PCB 70.0mm×70.0mm×1.6mm)
Pd derated at 5.2mW/℃ for temperature above Ta = 25℃ (When mounted on a PCB 70.0mm×70.0mm×1.6mm)
〇Recommended operating condition
Parameter
Supply voltage
CT oscillation frequency
BST voltage
BST-SW voltage difference
Symbol
Vcc
f
CT
BST
BST-SW
f
BCT
Limits
6.0½22.0
20½150
4.0½34.0
4.0½12.0
0.10½0.50
Unit
V
kHz
V
V
kHz
BCT oscillation frequency
REV. E
2/4
○Electric Characteristics（Ta=25℃，VCC=12V）
Limits
Parameter
（
（WHOLE DEVICE）
）
Operating current
Stand-by current
（
（STAND BY CONTROL）
）
Stand-by voltage H
Stand-by voltage L
Stand-by hysteresis
（
（UVLO BLOCK）
）
Operating voltage
Shut down voltage
（
（REG BLOCK）
）
REG output voltage
REG source current
（
（OSC BLOCK）
）
Active edge current
Negative edge current
OSC Max voltage
OSC Min voltage①
OSC Min voltage②
Soft start current
SRT ON resistance
（
（BOSC BLOCK）
）
BOSC Max voltage
BOSC Min Voltage
BOSC constant current
（
（TIMER LATCH）
）
Timer Latch voltage
Timer Latch current
（
（FEED BACK BLOCK）
）
IS threshold voltage
VS threshold voltage
IS source current 1
IS source current 2
VS source current
FB over voltage detect voltage
IS COMP detect Voltage
（
（OUTPUT BLOCK）
）
LN output sink current
LN output source current
HN output sink current
HN output source current
RsinkLN
RsourceLN
RsinkHN
RsourceHN
－
－
－
－
15
30
15
30
30
60
30
60
Ω
Ω
Ω
Ω
VBST-VSW=5.0V
VBST-VSW=5.0V
Vis
Vvs
Iis1
Iis2
Ivs
Vovf
Visc
1.220
1.220
－
12.0
－
2.2
0.3
1.250
1.250
－
20.0
－
2.5
0.4
1.280
1.280
0.9
28.0
0.9
2.8
0.5
V
V
μA
μA
μA
V
V
DUTY=2.0V
DUTY=0V、IS=0.5V
Vscp
Iscp
1.8
0.25
2.0
0.50
2.2
0.75
V
μA
VBCTH
VBCTL
IBCT
1.920
0.400
1.35/BRT
2.000
0.500
1.5/BRT
2.080
0.600
1.65/BRT
V
V
A
fBCT=0.3kHz
fBCT=0.3kHz
VBCT=0.2V
Iact
Ineg
VoscH
VoscL1
VoscL2
Iss
RSRT
1.35/RT
Iact×10
1.8
0.2
0.05
0.50
－
1.5/RT
Iact×13
2.0
0.4
0.15
1.00
150
1.65/RT
Iact×16
2.2
0.6
0.25
1.50
300
A
A
V
V
V
μA
Ω
fCT=50kHz, fCT=120kHz
fCT=50kHz
fCT=120kHz
VREG
IREG
5.30
20.0
5.50
－
5.70
－
V
mA
Vcc＞6.0V
VuvloH
VuvloL
5.15
4.90
5.40
5.15
5.65
5.40
V
V
VstH
VstL
⊿Vst
1.7
-0.3
0.05
－
－
0.20
VCC
0.7
0.35
V
V
V
System ＯＮ
System ＯＦＦ
Icc1
Icc2
－
－
9.0
5.0
17.0
10.0
mA
μA
fCT=100kHz
Symbol
MIN.
TYP.
MAX.
Unit
Conditions
（This product is not designed for normal operation with in a radio active environment.
）
REV. E
3/4

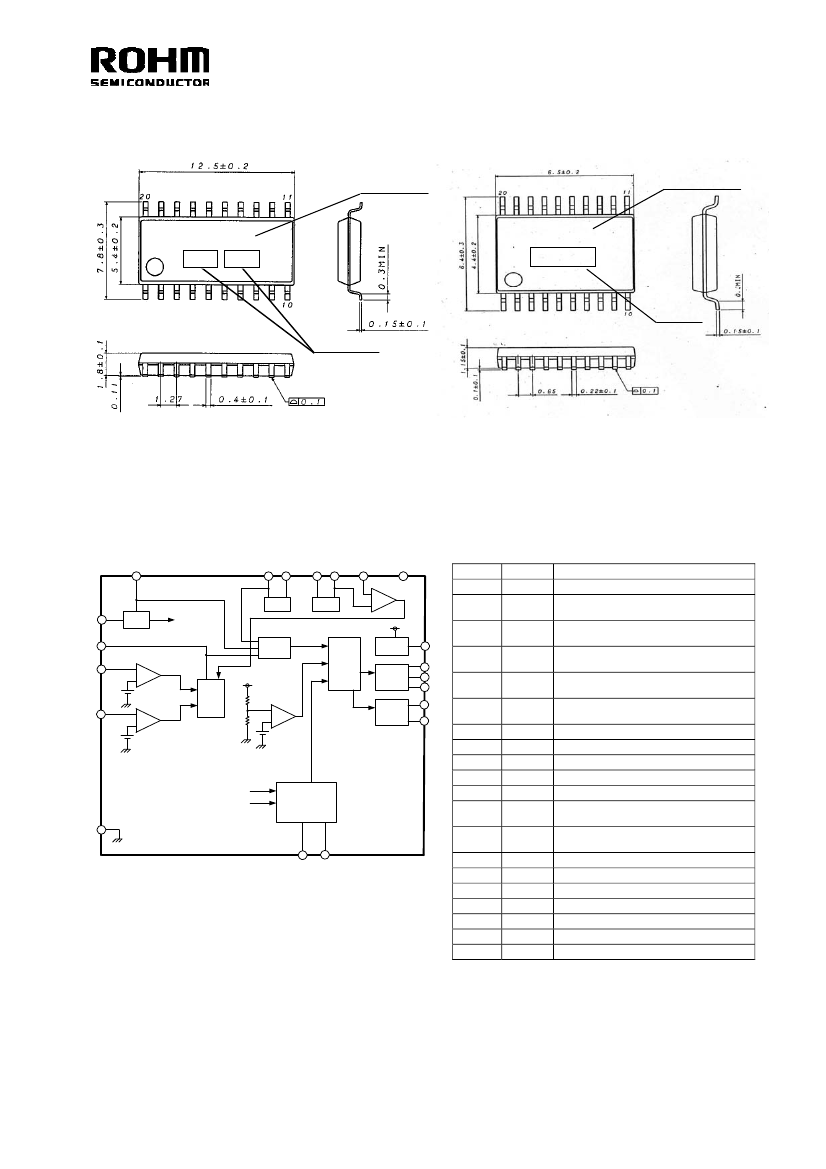

〇Package Dimensions
(Include BURR
12.85)
Device Mark
Device Mark
BD9883AF
BD9883
１
１
Lot No.
Lot No.
SOP20 (Unit:mm)
SSOP-B20 (Unit:mm)
〇Block Diagram
SS
CT
RT
BRT BCT
DUTY
VCC
〇Pin Description
Pin No.
1
2
VCC
PWM
BLOCK
REG
BLOCK
LOGIC
BLOCK
VCC
HN
OUTPUT
BLOCK
LN
OUTPUT
BLOCK
REG
BST
HN
SW
LN
PGND
Pin Name
DUTY
BCT
BRT
CT
RT
SRT
GND
FB
IS
VS
STB
SCP
SS
PGND
LN
HN
SW
BST
REG
VCC
Function
Control PWM mode and BURST mode
External capacitor from BCT to GND for
adjusting the BURST triangle oscillator
External resistor from BRT to GND for
adjusting the BURST triangle oscillator
External capacitor from CT to GND for
adjusting the triangle oscillator
External resistor from RT to GND for
adjusting the triangle oscillator
External resistor from SRT to RT for
adjusting the triangle oscillator
GROUND
Error amplifier output
Error amplifier input①
Error amplifier input②
Stand-by switch
External capacitor from SCP to GND for
Timer Latch
External capacitor from SS to GND for Soft
Start Control
Ground for FET drivers
NMOS FET driver
NMOS FET driver
Low voltage for HN output
Boot-Strap input for HN output
Internal regulator output
Supply voltage input
+
OSC
STB
STB
BLOCK
BOSC
-
SYSTEM ON/OFF
3
4
5
6
7
8
9
10
FB
IS
-
+
F/B
BLOCK
VS
-
+
-
+
UVLO
VS
IS
PROTECT
BLOCK
11
12
13
GND
SCP
SRT
14
15
16
17
18
19
20
REV. E
4/4
〇
NOTE FOR USE
１． When designing the external circuit, including adequate margins for variation between external devices and the IC.Use
adequate margins for steady state and transient characteristics.
２． Recommended Operating Range
The circuit functionality is guaranteed within of ambient temperature operation range as long as it is within recommended
operating range. The standard electrical characteristic values cannot be guaranteed at other voltages in the operating
ranges, however, the variation will be small.
３． Mounting Failures
Mounting failures, such as misdirection or miscounts, may harm the device.
４． Electromagnetic Fields
A strong electromagnetic field may cause the IC to malfunction.
５.
The GND pin should be the location within
±0.3V compared with the PGND pin
６． BD9883AF, BD9883FV has the short circuit protection with Thermal Shut Down System. When STB or Vcc pin re-supplied,
They enables to cancel the latch. If It rise the temperature of the chip more than 170℃(TYP), It make the external
FET OFF
７． Absolute maximum ratings are those values that, if exceeded, may cause the life of a device to become significantly
shortened. Moreover, the exact failure mode caused by short or open is not defined. Physical countermeasures, such
as a fuse, need to be considered when using a device beyond its maximum ratings.
８． About the external FET, the parasitic Capacitor may cause the gate voltage to change, when the drain voltage is switching.
Make sure to leave adequate margin for this IC variation.
９． On operating Slow Start Control (SS is less than 2.2V), It does not operate Timer Latch.
１０． By STB voltage, BD9883AF,BD9883FV is changed to 2 states. Therefore, do not input STB pin voltage between one state
and the other state (0.7½1.7V).
１１．The pin connected a connector need to connect to the resistor for electrical surge destruction.
１２．This IC is a monolithic IC which (as shown is Fig-1)has P
+
substrate and between the various pins. A P-N junction
is formed from this P layer of each pin. For example, the relation between each potential is as follows,
○(When GND > PinB and GND > PinA, the P-N junction operates as a parasitic diode.)
○(When PinB > GND > PinA, the P-N junction operates as a parasitic transistor.)
Parasitic diodes can occur inevitably in the structure of the IC. The operation of parasitic diodes can result in mutual
interference among circuits as well as operation faults and physical damage. Accordingly you must not use methods by
which parasitic diodes operate, such as applying a voltage that is lower than the GND(P substrate)voltage to an input
pin.
(PinA)
Resistance
(PinB)
Transistor (NPN)
B
E
C
Ｃ
GND
P
＋
P
N
P substrate
GND
Parasitic diode
N
P
＋
P substrate
GND
Parasitic diode
(PinB)
(PinA)
B
Parasitic diode
GND
Other adjacent components
Parasitic diode
Ｎ
Ｎ
N
N
Ｂ
C
Ｃ
E
Ｅ
GND
図-1 Simplified structure of a Bipolar IC
REV. E
