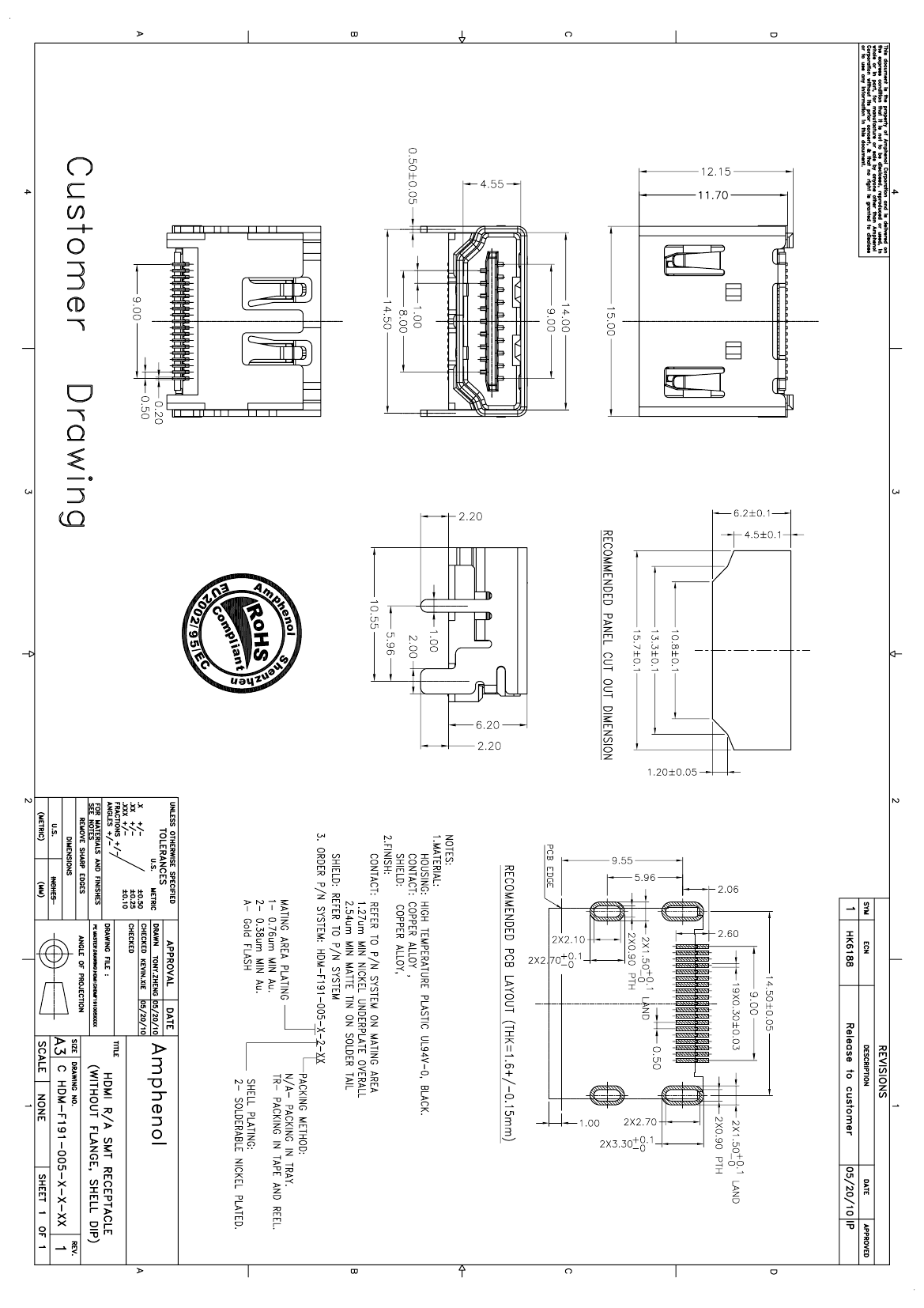

Preview

HBM-F191-005-2-2-TR: DescriptionTelecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size166KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HBM-F191-005-2-2-TR Overview

Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT

HBM-F191-005-2-2-TR Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	PLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HDM-F191-005
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	COPPER ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	19
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

HBM-F191-005-2-2-TR Related Products

	HBM-F191-005-2-2-TR	HBM-F191-005-1-2-TR	HBM-F191-005-1-2	HBM-F191-005-2-2	HBM-F191-005-A-2-TR	HBM-F191-005-A-2
Description	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (15) OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HDM-F191-005	HDM-F191-005	HDM-F191-005	HDM-F191-005	HDM-F191-005	HDM-F191-005
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	19	19	19	19	19	19
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
