designates RoHS Compliant. See ordering information)
Planar Die construction
Zener Voltages from 2.7V-39V and 200mW Power Dissipation
Halogen
free available upon request by adding suffix "-HF"
Ideally Suited for Automated Assembly Processes
Mechanical Data
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Approx. Weight: 0.008 gram
Mounting Position: Any
Storage & Operating Junction Temperature: -55 C to +150 C
o
o
SOD-323
A
B
C
E
Maximum Ratings @ 25
o
C Unless Otherwise Specified
10
mA
Forward Current
I
F
Maximum Forward
V
F
0.9
V
Voltage(Notes
1)
Power Dissipation
P
D
200
mWatt
(No te s
2)
o
Thermal Resistance,
R
thja
625
C/W
Junction to Ambient Air
NOTES:
1. Tested with pulses, Tp<1.0ms
2. Device mounted on ceramic PCBS; 7.6 mm x 9.4 mm x 0.87 mm
with pad areas 25 mm
2
.
H
D
G
J
DIM
A
B
C
D
E
G
H
J
DIMENSIONS
INCHES
MM
MIN
MAX
MIN
MAX
.090
.107
2.30
2.70
.063
.071
1.60
1.80
.045
.053
1.15
1.35
.031
.045
0.80
1.15
.010
.016
0.25
0.40
.004
.018
0.10
0.45
.004
.010
0.10
0.25
-----
.006
-----
0.15
SUGGESTED SOLDER
PAD LAYOUT
0.074"
NOTE
0.027”
0.022”
Revision:
C
www.mccsemi.com
1 of 5
2013/01/01
MCC
MMXZ5223B thru MMXZ5259B
Electrical Characteristics @ 25
o
C Unless Otherwise Specified
MCC PART
NUMBER
NORMAL
ZENER
VOLTAGE
Vz@ Izt
TEST
CURRENT Izt
MAXIMUM ZENER
IMPEDANCE
‘B’ SUFFIX ONLY
Zzt @ Izt Zzk @ Izk=0.25mA
MAXIMUM REVERSE
LEAKAGE CURRENT
Ir @ Vr
MAXIMUM ZENER
VOLTAGE TEMP
COEFFICIENT ‘B’
SUFFIX ONLY
Marking
TM
Micro Commercial Components
VOLTS
mA
OHMS
OHMS
uA
VOLTS
%/
o
C
MMXZ5223B
MMXZ5225B
MMXZ5226B
MMXZ5227B
MMXZ5228B
MMXZ5229B
MMXZ5230B
MMXZ5231B
MMXZ5232B
MMXZ5234B
MMXZ5235B
MMXZ5236B
MMXZ5237B
MMXZ5239B
MMXZ5240B
MMXZ5241B
MMXZ5242B
MMXZ5243B
MMXZ5245B
MMXZ5246B
MMXZ5248B
MMXZ5250B
MMXZ5251B
MMXZ5252B
MMXZ5254B
MMXZ5255B
MMXZ5256B
MMXZ5257B
MMXZ5258B
MMXZ5259B
C3
C5
G1
G2
G3
G4
G5
E1
E2
E4
E5
F1
F2
F4
F5
H1
H2
H3
H5
J1
J3
J5
K1
K2
K4
K5
M1
M2
M3
M4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
28
30
33
36
39
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
9.5
8.5
7.8
7.0
6.2
5.6
5.2
4.6
4.5
4.2
3.8
3.4
3.2
30
29
28
24
23
22
19
17
11
7.0
5.0
6.0
8.0
10
17
22
30
13
16
17
21
25
29
33
41
44
49
58
70
80
1300
1600
1600
1700
1900
2000
1900
1600
1600
1000
750
500
500
600
600
600
600
600
600
600
600
600
600
600
600
600
600
700
700
800
75
50
25
15
10
5.0
5.0
5.0
5.0
5.0
3.0
3.0
3.0
3.0
3.0
2.0
1.0
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
3.0
4.0
5.0
6.0
6.5
7.0
8.0
8.4
9.1
9.9
11
12
14
15
17
18
21
21
23
25
27
30
-0.080
-0.075
-0.070
-0.065
-0.060
±0.055
±0.030
±0.030
+0.038
+0.045
+0.050
+0.058
+0.062
+0.068
+0.075
+0.076
+0.077
+0.079
+0.082
+0.083
+0.085
+0.086
+0.087
+0.088
+0.090
+0.091
+0.091
+0.092
+0.093
+0.094
NOTE:
1. Tolerance and Type Number Designation. The type numbers listed have a standard tolerance on the nominal zener voltage of ±5%.
2. Specials Available Include:
A. Nominal zener voltages between the voltages shown and tighter voltage tolerances.
B. Matched sets.
3. Zener Voltage (V
Z
) Measurement. Guarantees the zener voltage when measured at 90 seconds while maintaining the lead temperature (T
L
) at 30
O
C, from the diode body.
4. Zener Impedance (Z
Z
) Derivation. The zener impedance is derived from the 60 cycle ac voltage, which results when an AC current having an rms value equal to 10% of the dc zener
current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK
.
5. Surge Current (I
R
) Non-Repetitive. The rating listed in the electrical characteristics table is maximum peak, non-repetitive, reverse surge current of 1/2 square wave or equivalent sine
wave pulse of 1/120 second duration superimposed on the test current, I
ZT
, per JEDEC registration; however, actual device capability is as described in Figure 5.
Revision:
C
www.mccsemi.com
2
of
5
2013/01/01

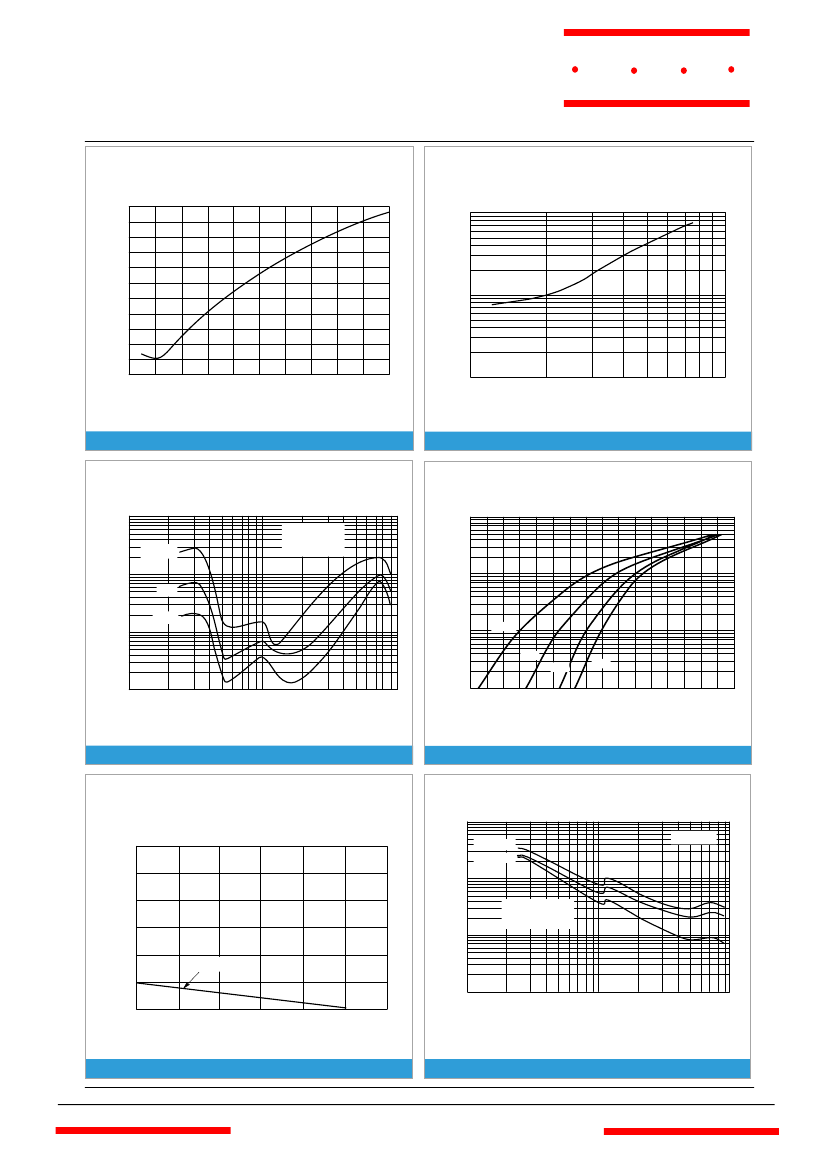

MMXZ5223B thru MMXZ5259B
MCC
TM
Micro Commercial Components
8
7
100
TEMPERATURE COEFFICIENT,mV /
o
C)
6
5
4
TEMPERATURE COEFFICIENT,mV /
o
C)
T
A
=25 C
o
ZENER CURRENT, mA
3
2
1
10
0
-1
-2
-3
2
3
4
5
6
7
8
9
10
11
12
1
10
100
NOMINAL ZENER VOLTAGE, Volts
NOMINAL ZENER VOLTAGE, Volts
TYPICAL REVERSE CURRENT
ZENER VOLTAGE, Volts
STEADY STATE POWER DERATING
ZENER VOLTAGE V.S. ZENER CURRENT
1000
DYNAMIC IMPEDANCE,
W
1000
IZ = 1 mA
100
5 mA
FORWARD CURRENT, mA
T
J
=25 C
I
Z(AC)=0.1
I
Z(DC)
F=1 kHZ
O
100
20 mA
10
10
150 C
O
75
O
C
25 C
O
5C
O
1
1
10
NORMAL ZENER VOLTAGE, Volts
100
1
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
FORWARD VOLTAGE, Volts
EFFECT OF ZENER VOLTAGE ON ZENER IMPEDANCE
TYPICAL FORWARD VOLTAGE
1000
1.2
1.0
0.8
0.6
POWER DISSIPATION, Watts
CAPACITANCE, pF
0 V BIAS
1 V BIAS
T
A
=25
o
C
100
BIAS AT
50% OF VZ NOM
10
0.4
P
D V
.
S
. T
A
0.2
1
0
25
50
75
100
o
1
10
100
125
150
155
TEMPERATURE ( C)
NOMINAL ZENER VOLTAGE, Volts
STEADY STATE POWER DERATING
TYPICAL CAPACITANCE
Revision: C
www.mccsemi.com
3
of 5
2013/01/01
MMXZ5223B thru MMXZ5259B
MCC
Micro Commercial Components
TM
100
T
A
=25 C
ZENER CURRENT, mA
ZENER CURRENT, mA
o
100
T
A
=25 C
o
10
10
1
1
0.1
0.1
0.01
0
2
4
6
8
10
12
0.01
10
30
50
70
90
ZENER VOLTAGE, Volts
ZENER VOLTAGE, Volts
ZENER VOLTAGE V.S. ZENER CURRENT
ZENER VOLTAGE V.S. ZENER CURRENT
1000
LEAKAGE CURRENT (
m
A)
100
10
1
0.1
0.01
0.001
0.0001
0.00001
0
10
20
30
40
50
60
70
+150
O
C
+25 C
-55 C
80
90
O
O
NOMINAL ZENER VOLTAGE, Vlots
TYPICAL LEAKGE CURRENT
Revision: C
www.mccsemi.com
4 of 5
2013/01/01
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
3Kpcs/Reel
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp .
does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp .
and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited
below.
Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
