CD3A30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CD3A30

CD3A30: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DIE-2; CategoryDiscrete semiconductor diode; File Size37KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

CD3A30 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD3A30	-	-	View	Buy Now

CD3A30 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DIE-2

CD3A30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	DIE
package instruction	DIE-2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	S-XUUC-N2
JESD-609 code	e0
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	3 A
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

• 1N5822 AVAILABLE IN

JANHC AND JANKC

PER MIL-PRF-19500/620

• 3 AMP SCHOTTKY BARRIER RECTIFIER CHIPS

• SILICON DIOXIDE PASSIVATED

• COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES,

WITH THE EXCEPTION OF SOLDER REFLOW

CD5820

thru

CD5822

and

CD3A20

thru

CD3A40

MAXIMUM RATINGS

Operating Temperature: -65°C to +125°C

Storage Temperature: -65°C to +150°C

Average Recti½ed Forward Current: 3.0 AMP @ +55°C

Derating: 43 mA / °C above +55°C

64 MILS

BACKSIDE IS CATHODE

FIGURE 1

CDI

TYPE

NUMBER

WORKING PEAK

REVERSE

VOLTAGE

MAXIMUM FORWARD VOLTAGE

MAXIMUM REVERSE

LEAKAGE CURRENT

AT RATED VOLTAGE

VRWM

VF@1.0A

VF@3.0A

I R@25°C

I R@100°C

DESIGN DATA

METALLIZATION:

Top: (Anode) .......................Al

Back:(Cathode) ..................Au

AL THICKNESS.......

.........25,000

Min

GOLD THICKNESS...

.........4,000

Min

CHIP THICKNESS.............

.........10 Mils

TOLERANCES:

ALL

Dimensions + 2 mils

VOLTS

CD5820

CD5821

CD5822

JHC, JKC

5822

CD3A20

CD3A30

CD3A40

VOLTS

0.45

0.40

VOLTS

0.55

0.50

0.10

12.5

0.45

0.55

0.10

12.5

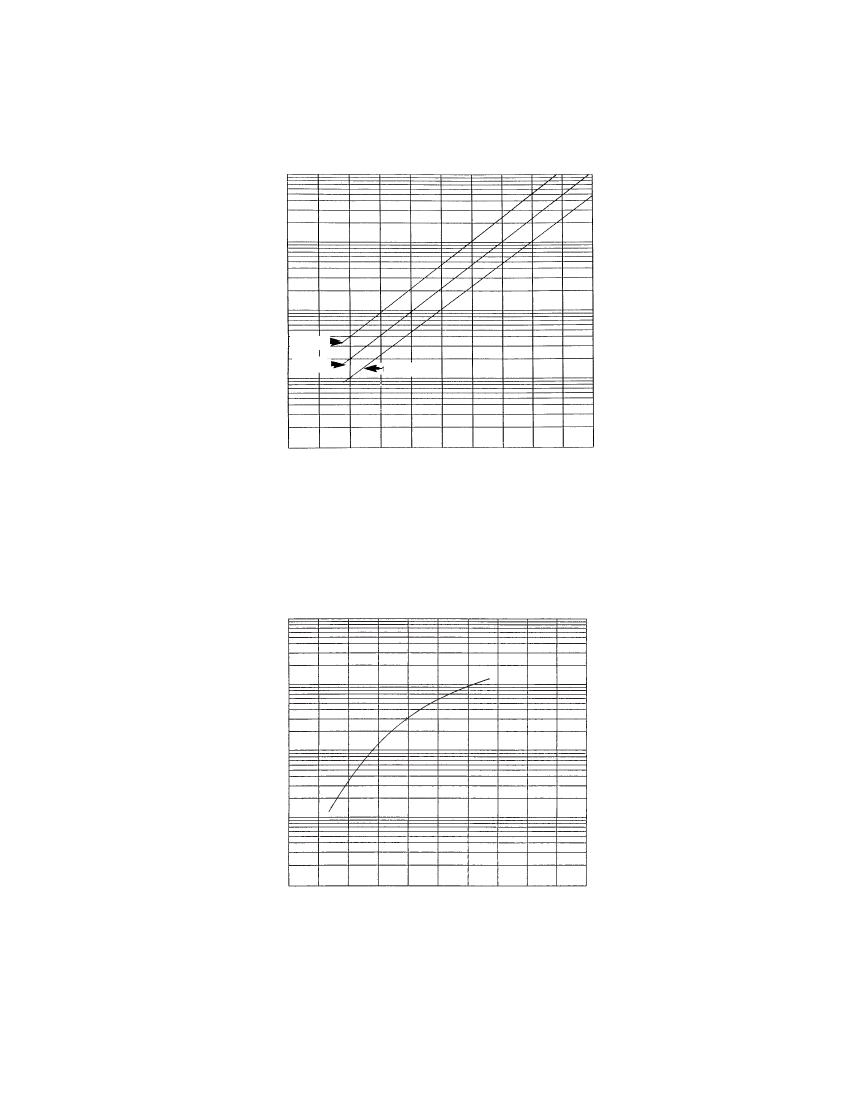

6 LAKE STREET, LAWRENCE, MASSACHUSETTS 01841

PHONE (978) 620-2600

FAX (978) 689-0803

WEBSITE: http://www.microsemi.com

215

53 MILS

CD3A30 Related Products

	CD3A30	CD3A40	CD5821	CD5822	CD3A20	CD5820
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DIE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DIE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DIE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DIE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 20V V(RRM), Silicon, DIE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 20V V(RRM), Silicon, DIE-2
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIE	DIE	DIE	DIE	DIE	DIE
package instruction	DIE-2	DIE-2	S-XUUC-N2	S-XUUC-N2	DIE-2	DIE-2
Contacts	2	2	2	2	2	2
Reach Compliance Code	unknown	compliant	compliant	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	S-XUUC-N2	S-XUUC-N2	S-XUUC-N2	S-XUUC-N2	S-XUUC-N2	S-XUUC-N2
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum output current	3 A	3 A	3 A	3 A	3 A	3 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	30 V	40 V	30 V	40 V	20 V	20 V
surface mount	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Microsemi	Microsemi	-	-	Microsemi	Microsemi
