F2H-60DST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> F2H-60DST

F2H-60DST: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

F2H-60DST Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Receptacle

F2H-60DST Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LATCHED
body width	0.326 inch
subject depth	0.325 inch
body length	2.453 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	F2H
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	150u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	60
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

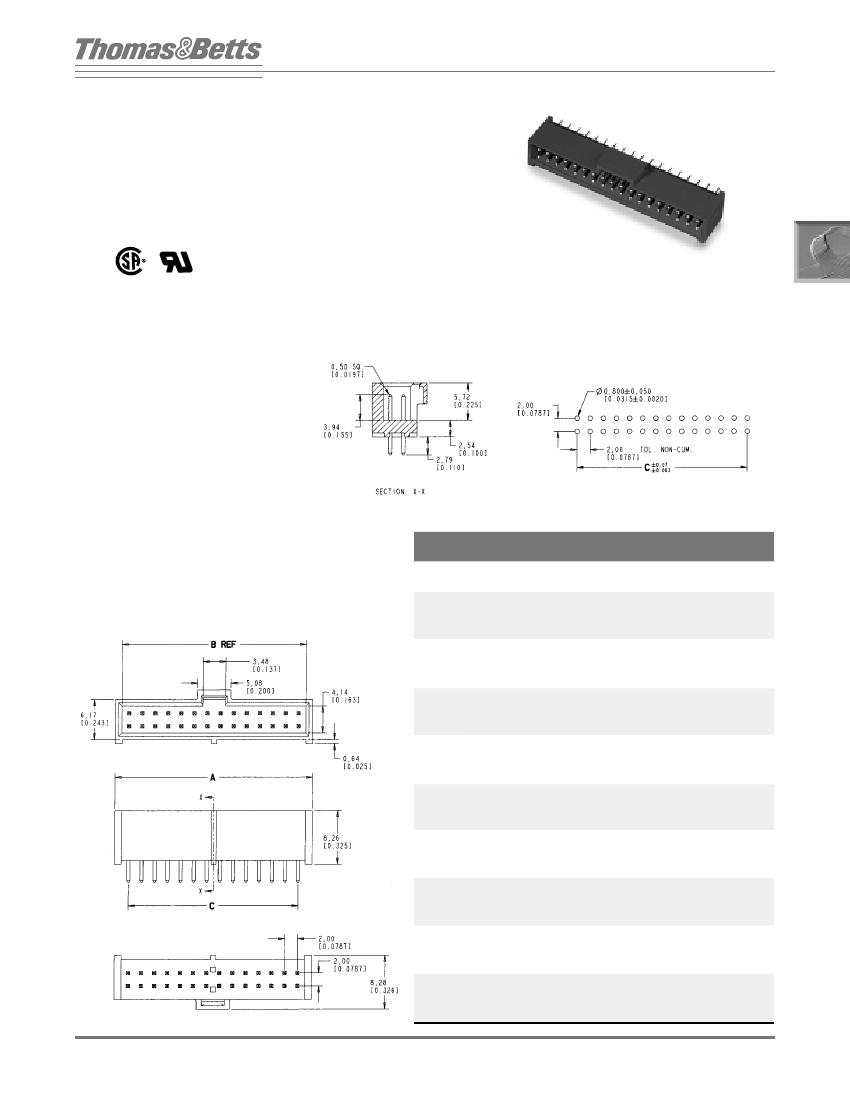

Flexible Interconnections

Flexpac

FLEXPAC

LOCKING HEADER

DOUBLE ROW

STRAIGHT CONTACTS

(.079") x 2

(.079")

CENTER SPACING

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass reinforced

thermoplastic rated 94V-0

OLOR

Black

ONTACT

ATERIAL

Copper alloy

ONTACT

LATING

.000150 tin/lead alloy over

.000050 nickel all over

LECTRICAL

ROPERTIES

URRENT

ATING

2.5 amps

NSULATION

ESISTANCE

>1 x 10

0hms @ 500 VDC

DWV:

> 500 VRMS at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

Processing: 2 min. @ 250˚ C max.

Operating: -55˚ to 105˚ C

ATING

ONNECTOR

See page 186

Ordering Information

GOLD CONTACT

PLATING

TIN CONTACT

PLATING

NO. OF

POS.

*10

*12

*14

10.31 (.406)

12.32 (.485)

14.33 (.564)

16.31 (.642)

18.31 (.721)

20.32 (.800)

22.30 (.878)

24.30 (.957)

26.31 (1.036)

28.32 (1.115)

30.33 (1.194)

32.33 (1.273)

34.34 (1.352)

36.32 (1.430)

38.33 (1.509)

40.34 (1.588)

42.32 (1.666)

44.32 (1.745)

46.33 (1.824)

48.31 (1.902)

50.32 (1.981)

52.30 (2.059)

54.33 (2.139)

56.31 (2.217)

58.32 (2.296)

60.33 (2.375)

62.31 (2.453)

64.31 (2.532)

66.32 (2.611)

DIMENSIONS

8.19 (.322)

10.19 (.401)

12.19 (.480)

14.19 (.558)

16.19 (.637)

18.19 (.716)

20.19 (.795)

22.19 (.873)

24.19 (.952)

26.19 (1.031)

28.19 (1.110)

30.19 (1.189)

32.19 (1.268)

34.19 (1.346)

36.19 (1.425)

38.19 (1.504)

40.19 (1.582)

42.19 (1.661)

44.19 (1.740)

46.19 (1.818)

48.19 (1.897)

50.19 (1.975)

52.19 (2.055)

54.19 (2.133)

56.19 (2.212)

58.19 (2.291)

60.19 (2.369)

62.19 (2.448)

64.19 (2.527)

6.00 (.236)

8.00 (.315)

10.00 (.394)

12.00 (.472)

14.00 (.551)

16.00 (.630)

18.00 (.709)

20.00 (.787)

22.00 (.866)

24.00 (.945)

26.00 (1.024)

28.00 (1.102)

30.00 (1.181)

32.00 (1.260)

34.00 (1.339)

36.00 (1.417)

38.00 (1.496)

40.00 (1.575)

42.00 (1.654)

44.00 (1.732)

46.00 (1.811)

48.00 (1.890)

50.00 (1.969)

52.00 (2.047)

54.00 (2.126)

56.00 (2.205)

58.00 (2.283)

60.00 (2.362)

62.00 (2.441)

F2H-08DSG F2H-08DST

F2H-10DSG F2H-10DST

F2H-12DSG F2H-12DST

F2H-14DSG F2H-14DST

F2H-16DSG F2H-16DST

F2H-18DSG F2H-18DST

F2H-20DSG F2H-20DST

F2H-22DSG F2H-22DST

F2H-24DSG F2H-24DST

F2H-26DSG F2H-26DST

F2H-28DSG F2H-28DST

F2H-30DSG F2H-30DST

F2H-32DSG F2H-32DST

F2H-34DSG F2H-34DST

F2H-36DSG F2H-36DST

F2H-38DSG F2H-38DST

F2H-40DSG F2H-40DST

F2H-42DSG F2H-42DST

F2H-44DSG F2H-44DST

F2H-46DSG F2H-46DST

F2H-48DSG F2H-48DST

F2H-50DSG F2H-50DST

F2H-52DSG F2H-52DST

F2H-54DSG F2H-54DST

F2H-56DSG F2H-56DST

F2H-58DSG F2H-58DST

F2H-60DSG F2H-60DST

F2H-62DSG F2H-62DST

F2H-64DSG F2H-64DST

*NOTE: Latches not available on 8– 14 positions;

positions 16 – 64 are with latches.

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
