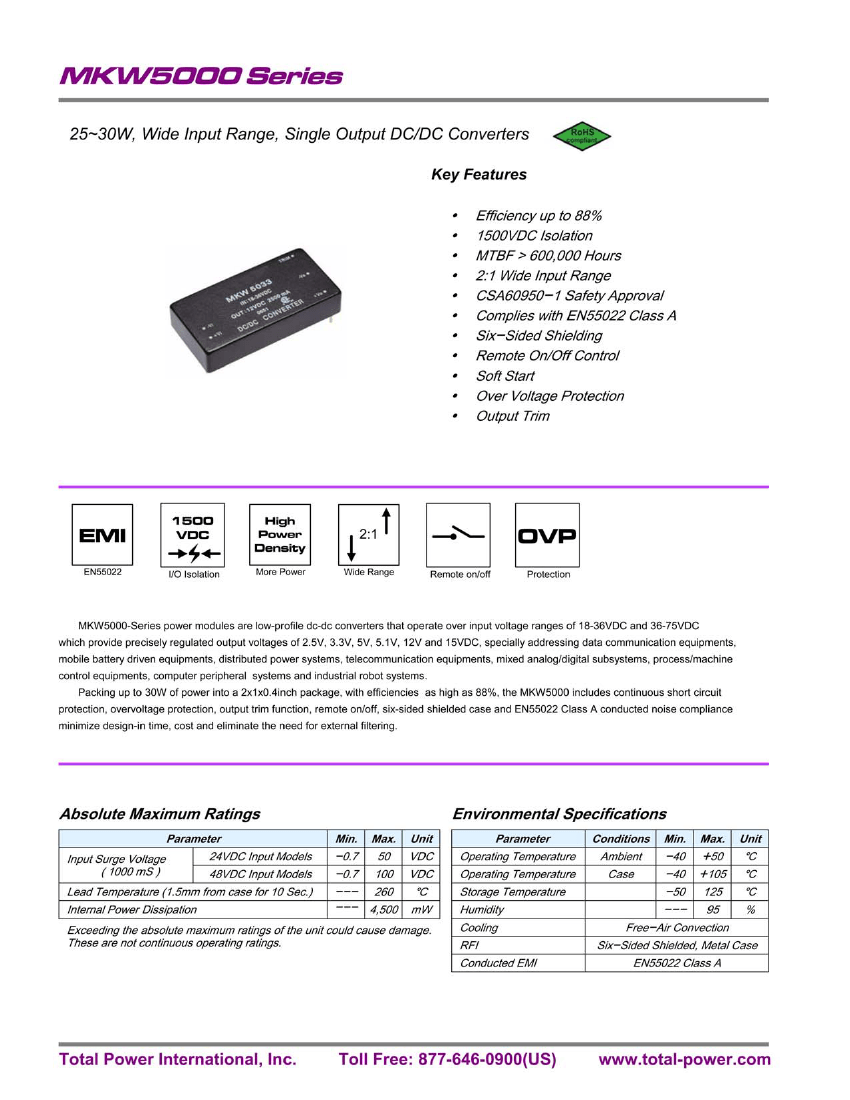

MKW5000 Series
Model Selection Guide
Model
Number
Input
Voltage
Output
Voltage
Output Current
Input Current
Reflected
Ripple
Current
mA (Typ.)
Over
Voltage
Protection
VDC
3
3.9
6.8
15
18
6.8
3
3.9
6.8
15
18
6.8
Efficiency
VDC
MKW5030
MKW5031
MKW5032
MKW5033
MKW5034
MKW5039
MKW5040
MKW5041
MKW5042
MKW5043
MKW5044
MKW5049
24
( 18 ~ 36 )
48
( 36 ~ 75 )
VDC
2.5
3.3
5
12
15
5.1
2.5
3.3
5
12
15
5.1
Max.
mA
6000
6000
5000
2500
2000
5000
6000
6000
5000
2500
2000
5000
Min.
mA
0
0
0
166
133
0
0
0
0
166
133
0
@Max. Load
mA (Typ.)
744
959
1185
1420
1420
1207
372
480
604
710
710
604
@No Load
mA (Typ.)
70
100
50
50
@Max. Load
% (Typ.)
84
86
88
88
88
88
84
86
88
88
88
88
Capacitive Load
Models by Vout
Maximum Capacitive Load
2.5V
6800
3.3V
6800
5V
6800
5.1V
6800
12V
680
15V
680
Unit
uF
Input Fuse Selection Guide
24V Input Models
3000mA Slow - Blow Type
48V Input Models
1500mA Slow - Blow Type
Input Specifications
Parameter
Start Voltage
Under Voltage Shutdown
Over Voltage Shutdown
Reverse Polarity Input Current
Short Circuit Input Power
Input Filter
All Models
Model
24V Input Models
48V Input Models
24V Input Models
48V Input Models
24V Input Models
48V Input Models
Min.
17
34
16
32
40
80
---
---
Typ.
17.5
35
16.5
33
42
82
---
---
Pi Filter
Max.
18
36
17
34
44
84
2
4500
A
mW
VDC
Unit
Total Power International, Inc.
Toll Free: 877-646-0900(US)
www.total-power.com
MKW5000 Series
Output Specifications
Parameter
Output Voltage Accuracy
Line Regulation
Load Regulation (2.5/3.3/5/5.1Vout)
Load Regulation
(12/15Vout)
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Over Power Protection
Transient Recovery Time
Transient Response Deviation
Temperature Coefficient
Output Short Circuit
25% Load Step Change
Over Line, Load & Temp.
Vin=Min. to Max.
Io=0% to 100%
Io=10% to 100%
Conditions
Min.
---
---
---
---
---
---
---
110
---
---
---
Continuous
Typ.
{0.5
{0.1
{0.5
{0.5
75
---
---
---
200
{2
{0.01
Max.
{1.0
{0.3
{1.0
{1.0
100
120
10
160
500
{5
{0.02
Unit
%
%
%
%
mV P-P
mV P-P
mV rms
%
uS
%
%/]
General Specifications
Parameter
Isolation Voltage Rated
Isolation Voltage Test
Isolation Resistance
Isolation Capacitance
Switching Frequency
MTBF
MIL-HDBK-217F @ 25], Ground Benign
Conditions
60 Seconds
Flash Tested for 1 Second
500VDC
100KHz,1V
Min.
1500
1650
1000
---
280
600
Typ.
---
---
---
1200
350
---
Max.
---
---
---
1500
400
---
Unit
VDC
VDC
M[
pF
KHz
K Hours
Remote On/Off Control
Parameter
Supply On
Supply Off
Device Standby Input Current
Control Input Current ( on )
Control Input Current ( off )
Control Common
Vin-RC=5.0V
Vin-RC=0V
Conditions
Min.
-1
---
---
---
Typ.
---
2
---
---
Max.
1
5
5
-100
Unit
VDC
mA
uA
uA
2.5 to 100VDC or Open Circuit
Referenced to Negative Input
Notes :
1. Specifications typical at Ta=+25], resistive load, nominal input voltage, rated output current unless otherwise noted.
2. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%.
3. Ripple & Noise measurement bandwidth is 0-20 MHz.
4. These power converters require a minimum output loading to maintain specified regulation.
5. Operation under no-load conditions will not damage these modules; however, they may not meet all specifications listed.
6. All DC/DC converters should be externally fused at the front end for protection.
7. Other input and output voltage may be available, please contact factory.
8. To order the converter with Remote On/Off function, please add a suffix -RC (e.g. MKW5030-RC).
9.To order the converter with EN55022 Class A function, please add a suffix A (e.g. MKW5030A).
10. To order the converter with heatsink, please add a suffix H (e.g. MKW5030H).
11. Specifications subject to change without notice.
Total Power International, Inc.
Toll Free: 877-646-0900(US)
www.total-power.com
MKW5000 Series
Block Diagram
+Vin
UVLO
COMPARATORS
LC
Filter
LC
Filter
A
+Vo
-Vo
OVP
-Vin
On/Off
PWM
Isolation
Ref.Amp
Trim
A: 2.5V, 3.3V, 5V and 5.1V-output models use the synchronous-rectifier configuration shown as above.
12V and 15V-output models employ a standard, diode-rectification architecture.
Input Voltage Transient Rating
150
140
130
120
110
100
Vin ( VDC )
90
80
70
60
50
40
30
20
10
0
10uS
100uS
1mS
10mS
100mS
24VDC Input Models
48VDC Input Models
Total Power International, Inc.
Toll Free: 877-646-0900(US)
www.total-power.com
MKW5000 Series
100
90
Efficiency (%)
100
90
80
Efficiency (%)
Low
Nom
Input Voltage (V)
High
80
70
60
50
70
60
50
40
30
20
10
20
40
60
Load Current (%)
80
100
Efficiency vs Input Voltage
Efficiency vs Output Load
100
400LFM
80
Output Power (%)
100
400LFM
80
Output Power (%)
Natural
convection
200LFM
Natural
convection
100LFM
200LFM
60
60
100LFM
40
40
20
0
-40
20
½
50
60
70
80
]
90
100
110
0
-40
Ambient Temperature
~
50
60
70
80
]
90
100
110
Ambient Temperature
Derating Curve without Heatsink
Derating Curve with Heatsink
Total Power International, Inc.
Toll Free: 877-646-0900(US)
www.total-power.com
