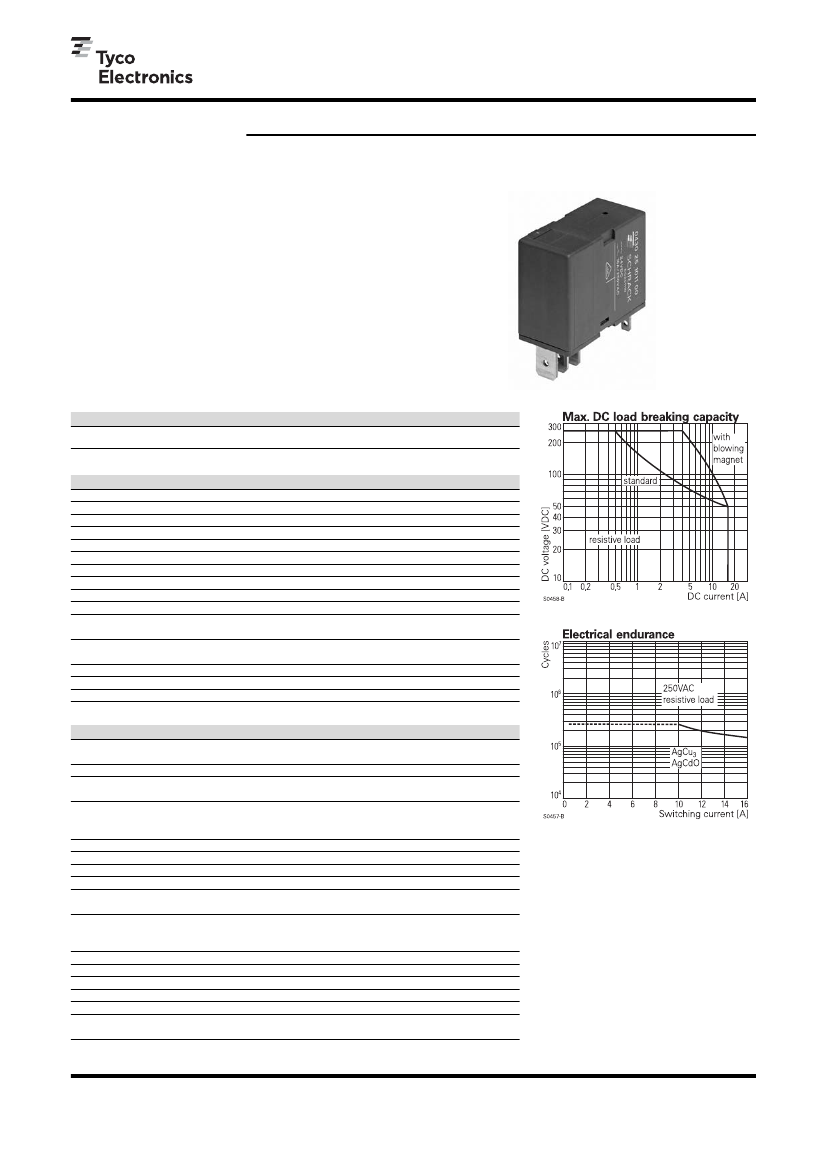

General Purpose Relays
SCHRACK
Power Relay 430 3 mm
n
n
n
n
n
n
n
n
n
1 pole 16 A, 1 NO contact
Safety mains isolation
Contact gap > 3 mm
DC- and AC-coil
4 kV / 8 mm coil-contact, reinforced insulation (VDE 0700)
PCB mounting or quick connect terminals
Mounting brackets or snap mounting
Version with arc blow magnet for high DC-loads
Product in accordance to IEC60335-1
F0256-B
Applications
Domestic appliances, industrial appliances, industrial controls
Approvals
V
REG.-Nr. C820,
Z
E214024
Technical data of approved types on request
Contact data
Contact configuration
Contact set
Type of interruption
Rated voltage / max. switching voltage AC
Rated current
Maximum breaking capacity AC
Limiting making capacity, max 4 s, duty factor 10%
Contact material
Contact gap
Rated frequency of operation with / without load
Contact ratings
Type
Contact
IEC 61810
0430 .4 .. 0
0430 .4 .. 1
NO
NO
Load
16 A, 250 VAC, cosϕ=1
16 A, 250 VAC, cosϕ=1
1NO
bifurcated contact
full disconnection
250 / 400 VAC
16 A
4000 VA
25 A
AgCu3, AgCdO
> 3 mm
15 / 300 min
-1
Ambient
temp. [°C]
70°C
70°C
Cycles
50x10
3
50x10
3
Coil data
Rated coil voltage range DC coil
AC coil
Operative range to IEC 61810
Coil versions, DC-coil
Coil
Rated
code
voltage
VDC
09
12
10
24
11
48
13
110
Operate
voltage
VDC
7.8
15.6
31.2
71.5
Release
voltage
VDC
0.6
1.2
2.4
5.5
6...110 VDC
6...240 VAC
2
Coil
resistance
Ohm
145+10%
580+10%
2200+10%
13000+10%
Rated coil
power
mW
993
993
1047
931
Coil versions, AC-coil 50Hz
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
VAC
VAC
VAC
Ohm
VA
23
24
18
3.6
145+10%
1.8
25
60
45
9.0
950+10%
1.8
26
110
83
16.0
3100+10%
1.8
27
230
175
35.0
11400+10%
1.8
28
240
185
36.0
13000+10%
1.8
All figures are given for coil without preenergization, at ambient temperature +23°C
Other coil voltages on request
1
Datasheet Rev. IJ1
Issued 2009/10
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information only
to be used together with the
'Definitions' section in the cat-
alogue or at schrackrelays.com
in the ‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
SCHRACK
Power Relay 430 3 mm
(Continued)
Insulation
Dielectric strength coil-contact circuit
open contact circuit
Clearance / creepage coil-contact circuit
Material group of insulation parts
Tracking index of relay base
Insulation to IEC 61810-1
Type of insulation coil-contact circuit
open contact circuit
Rated insulation voltage
Pollution degree
Rated voltage system
Overvoltage category
4000 V
rms
2000 V
rms
W
8 / 8 mm
IIIa
PTI 250
reinforced
full disconnection 3 mm
250 V
3
230 / 400 V
III
PCB layout / terminal assignment
Bottom view on solder pins
Other data
Mechanical endurance
> 2.5x10
5
cycles
Material
RoHS - Directive 2002/95/EC
compliant as per product date code 0349
Environment
Ambient temperature range
-20...+70°C
Shock resistance (destruction)
100 g
Category of protection
RT I - dust protected
Processing
Mounting
pcb, mounting brackets, snap mounting, DIN rail
Resistance to soldering heat
270°C / 10 s
Relay weight
32 g
Packaging unit
50 pcs
S0448-AE
S0448-AF

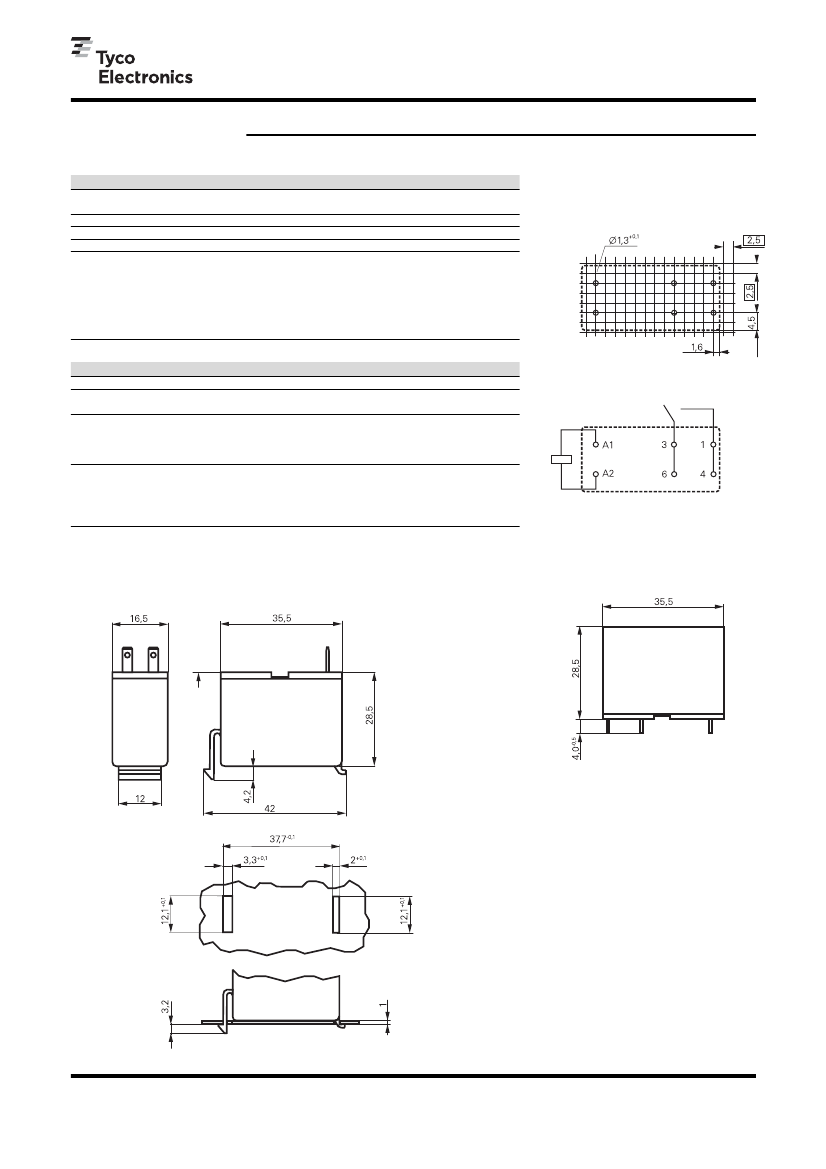

Dimensions
Snap mounting
S0449-CB
S0449-CH
2
Datasheet Rev. IJ1
Issued 2009/10
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information only
to be used together with the
'Definitions' section in the cat-
alogue or at schrackrelays.com
in the ‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
SCHRACK
Power Relay 430 3 mm
(Continued)
Dimensions
Mounting brackets
DIN-rail mount
S0449-CK
S0449-AD
Product key
Type
0430
Power relay 430 3 mm
Mounting
0
PCB version
1
mounting brackets
Contact design
4
arc blowing magnet
5
standard
Coil
Coil code: please refer to coil versions table
Contact material
0
AgCu 3
Version
100
standard
Other types on request
Typical product key
0430
2
5
09
1
100
2
5
snap mounting
DIN-rail mounting
1
AgCdO
Product key
0430 25 0911 00
0430 25 1011 00
0430 25 2811 00
Version
snap mounting
1.0mm plate
Cont-material
AgCdO
Cont.configuration
1 NO contact
Coil
DC-coil
AC-coil
Coil
12 VDC
24 VDC
240 VAC
Part number
1-1415404-1
1-1415404-3
1-1415404-6
3
Datasheet Rev. IJ1
Issued 2009/10
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information only
to be used together with the
'Definitions' section in the cat-
alogue or at schrackrelays.com
in the ‘Schrack’ section.
Specifications subject to
change.
