BUS-65505 datasheet, PDF - EEWORLD Datasheet

BUS-65505: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS; CategoryThe embedded processor and controller Microcontrollers and processors; File Size90KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

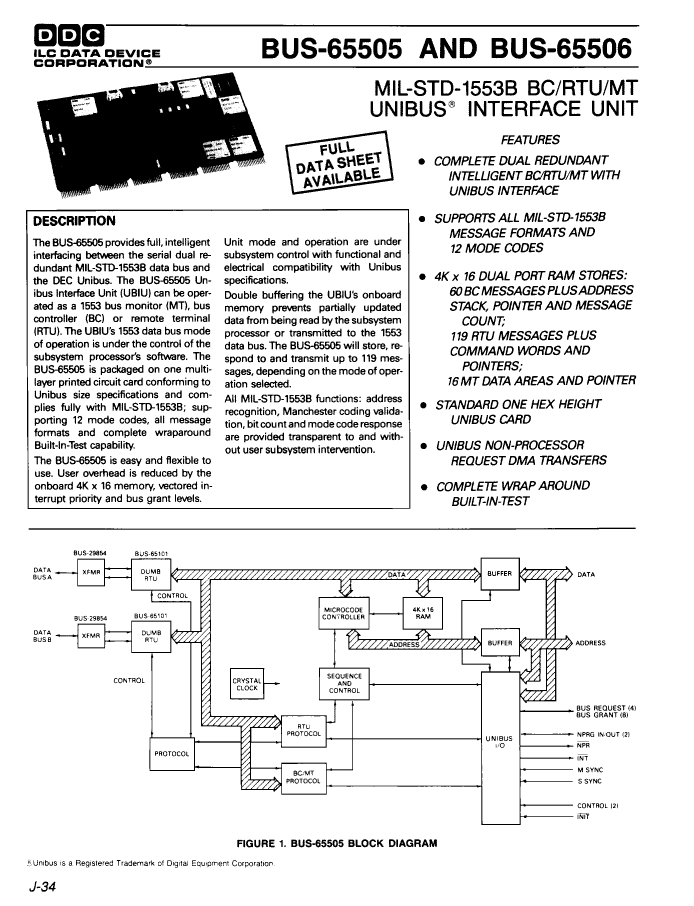

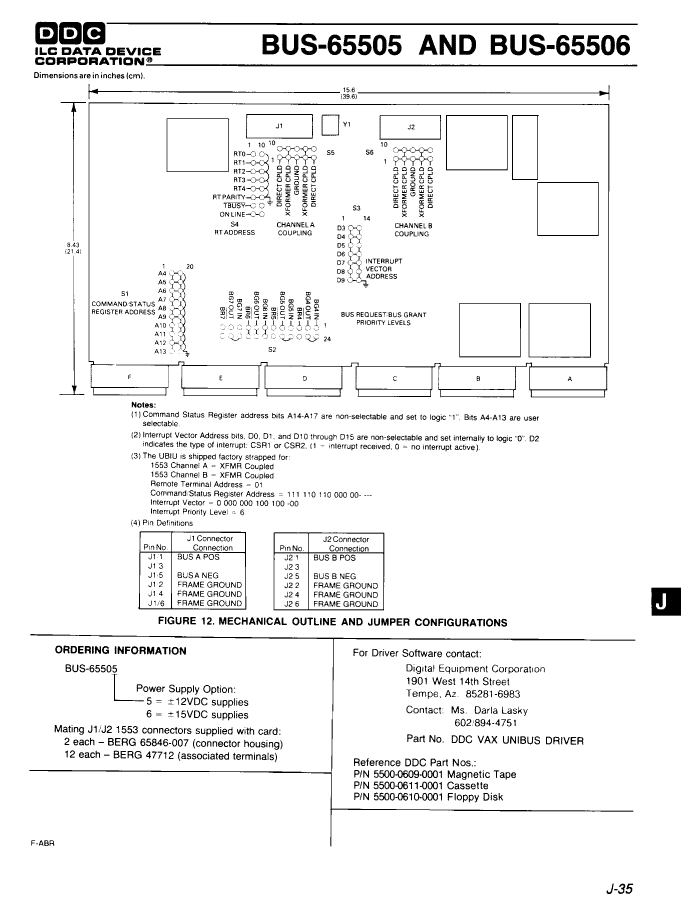

BUS-65505 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS

Parameter Name	Attribute value
Maker	Data Device Corporation
Reach Compliance Code	unknown
Other features	ADDITIONAL POWER SUPPLY +/-12V
Address bus width	18
boundary scan	NO
letter of agreement	MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	X-XXMA-X
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
On-chip data RAM width	16
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
RAM (number of words)	2048
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553

	BUS-65505	BUS-65506
Description	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS
Maker	Data Device Corporation	Data Device Corporation
Reach Compliance Code	unknown	unknown
Other features	ADDITIONAL POWER SUPPLY +/-12V	ADDITIONAL POWER SUPPLY +/-15V
Address bus width	18	18
boundary scan	NO	NO
letter of agreement	MIL-STD-1553B	MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps	0.125 MBps
External data bus width	16	16
JESD-30 code	X-XXMA-X	X-XXMA-X
Number of serial I/Os	2	2
On-chip data RAM width	16	16
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	UNSPECIFIED	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified
RAM (number of words)	2048	2048
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
