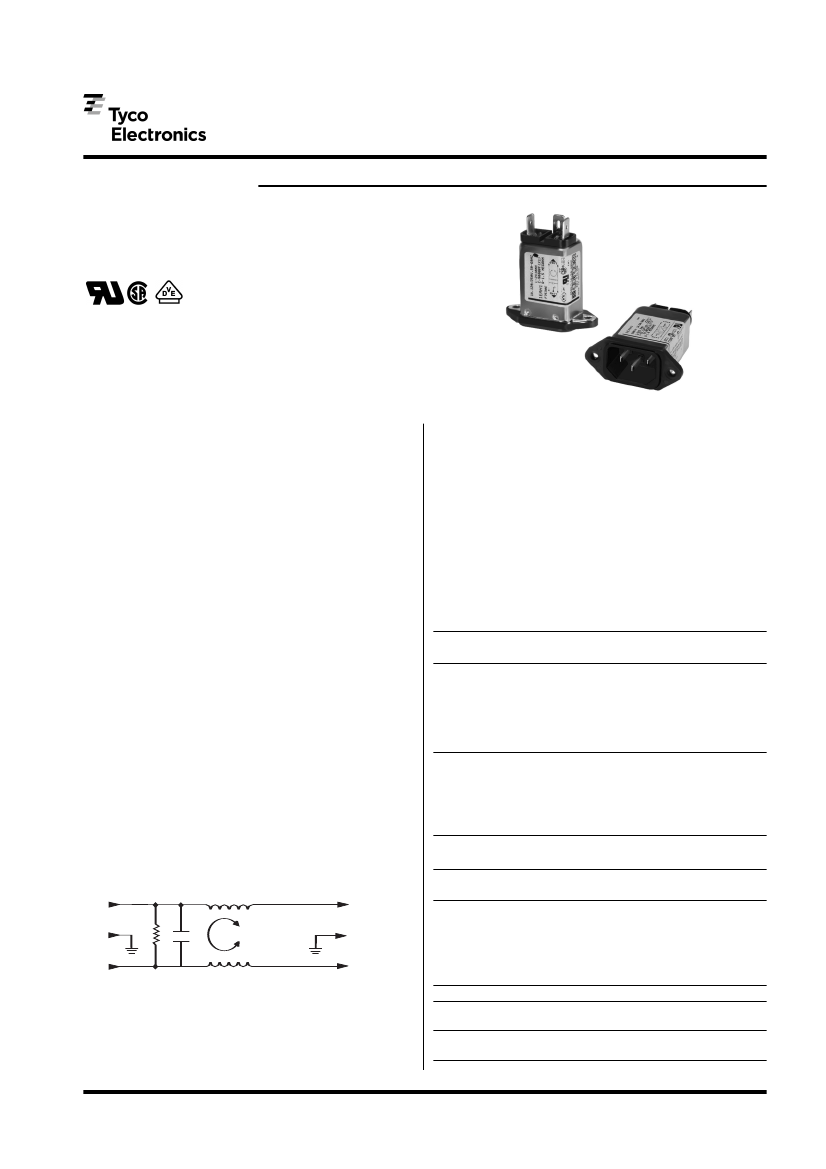

CORCOM Product Guide
For UL544 Health Care Equipment
EAH, EBH Series
UL Recognized
CSA Certified
VDE Approved
EAH1/EBH1
EAH Series
This is a new generation of compact medical RFI filters with
an IEC socket. A new design in internal structure and
manufacturing process makes this series cost effective.
This health care series supersedes the H series by
providing superior differential mode performance while still
maintaining a maximum leakage current of 2 micro amps.
Specifications
Maximum leakage current,each line-to-ground
@ 120 VAC 60 Hz:
@ 250 VAC 50 Hz:
Hipot rating (one minute):
line-to-ground
line-to-line
Operating frequency:
Rated voltage (max.):
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Frequency-MHz
Rating
.01 .05 .1 .15 .5
1
5
EAH Models
01A
8
03A
-
06A
-
10A
-
EBH Models
01A
8
03A
-
06A
-
10A
-
21
5
-
-
21
5
-
-
29
10
5
1
29
10
5
-
32
15
6
5
32
15
8
3
42
25
19
9
42
25
17
8
45
27
21
12
45
27
20
12
32
30
24
12
32
30
24
12
2
µA
5
µA
1500 VAC
1450 VDC
50/60 Hz
250 VAC
EBH Series
Also a compact medical RFI filter with IEC socket, the EBH
series is a cost effective alternative to the H series.
Electrically the EBH provides enhanced differential mode
performance compared to both the EAH and the H series.
These filters provide RFI common and differential mode
performance while still allowing medical equipment to
meet UL leakage current specifications for medical and
dental equipment.
Additional information on UL544 specification is listed
in Appendix C.
Note: When using the models with an IEC connector,
remember that the leakage current of the companion line
cord, GA400, is more significant than that of the filter -
which may disqualify this line cord from use in patient
care applications.
10
30
27
20
12
25
27
23
12
30
19
22
15
12
19
22
18
12
Line-to-line in 50 ohm circuit
Electrical Schematic
LINE
LOAD
Resistor location for reference only.
Current
Rating
EAH Models
01A
3A
06A
10A
Current
Rating
EBH Models
All Ratings
1
5
4
2
1
Frequency-MHz
10
5
1.5
13
6
5
5
28
20
19
15
32
27
25
22
30
25
28
27
27
.15
1
.5
10
Frequency-MHz
1
5
10
18
30
31
30
31
24
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
For UL544 Health Care Equipment
(Continued)
EAH, EBH Series
RFI Power Line Filters
Case Style
EAH1/EBH1
Case Dimensions
Part No.
A
(max)
2.15
54.61
2.15
54.61
B
(max)
1.12
28.45
1.12
28.45
C
(max)
.90
22.86
.90
22.86
D
±.010
±.25
E
(max)
1.98
50.29
1.98
50.29
EAH1
B
EBH1
A
1.575
40.01
1.575
40.01
C
Part Numbers
01EAH1
03EAH1
06EAH1
10EAH1
Line Cord No.
Insulating Boot No.
01EBH1
03EBH1
06EBH1
10EBH1
GA400
FA601
D
E
Typical dimensions:
Terminals: .250 [6.35] (5)
Slot: .07 x .16 [1.8
x 4.1]
Holes: .07 [1.8] Dia.(2)
Mounting Holes: .132 [3.35] Dia. (2) with .236 Dia.
x 90˚ countersunk for #4 Flathead Screw
Recommended Panel Cutouts
.820
20.8
.140 Dia. (2)
3.56
.900
22.9
.140 Dia. (2)
3.56
1.14
29.96
1.575
40.01
Panel Cutout (Front mount)
Panel cutout for front mounting
Tolerance ±.005 [
0.13
]
1.200
30.48
1.575
40.01
.12
R
3.0
.234
R
5.94
Panel cutout for back mounting
.820
20.8
.140 Dia. (2)
3.56
.900
22.9
.140 Dia. (2)
3.56
.14
9.96
1.200
30.48
1.575
40.01
Panel Cutout (Back mount)
Panel cutout for back mounting
Tolerance ±.005 [0.13]
575
0.01
.12
R
3.0
.234
R
5.94
r front mounting
25
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
