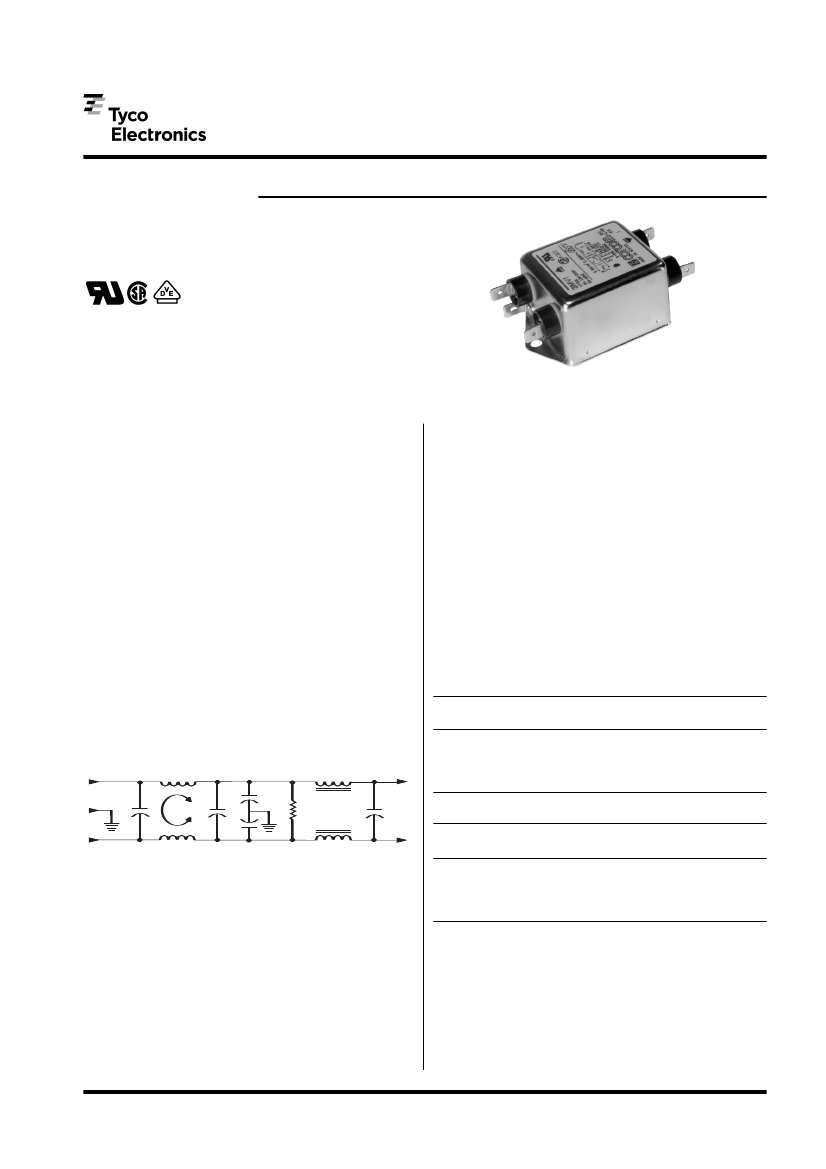

CORCOM Product Guide
Multi-purpose Medical Filter for Power Line Noise Protection
with Limited Leakage Current
MV Series
UL Recognized
CSA Certified
VDE Approved
3A, 6A, 10A
MV Series
The MV series answers the need for a medical filter to help
equipment comply with increasing noise sources in
medical applications while still meeting leakage current
requirements of UL2601.
Less strict than previous UL medical standards, UL2601
limits leakage current for patient care equipment. Due to
the increased need for higher performance filtering, UL has
allowed more leakage current than in previous standards.
The MV takes advantage of this to offer improved line-to-
ground performance in a moderately priced filter. Higher
line-to-line performance is achieved through its additional
differential mode rod inductors. Overall, the filter provides
a good solution to emission and immunity problems, at a
moderate cost, in a reasonable package size.
Specifications
Maximum leakage current,each line-to-ground
@ 120 VAC 60 Hz:
@ 250 VAC 50 Hz:
Hipot rating (one minute):
line-to-ground
line-to-line
Operating frequency:
Rated voltage (max.):
Rated current:
3MV
6MV
10MV
20MV
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Frequency-MHz
Rating
.15 .5
1
2
5
10
3A
14 19 20
30 46
40
38 50
40
19 27 30
6A
10A
15 25 26
34 46
50
20A
18 30 34
34 46
40
Line-to-line in 50 ohm circuit
Current
Rating
3A
6A
10A
20A
.15
33
40
33
25
.5
65
65
65
65
Frequency-MHz
1
2
5
10
65
65
65 60
65
65
65 60
65
65
65 65
65
65
65 60
20
53
57
55
57
30
50
55
55
45
.07 mA
.13 mA
2250 VDC
1450 VDC
50/60 Hz
250 VAC
3A
6A
10A
20A
Electrical Schematic
LINE
LOAD
20
34
35
44
36
30
31
35
42
20
Resistor location for reference only.
78
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
Multi-purpose Medical Filter for Power Line Noise Protection
with Limited Leakage Current
(Continued)
MV Series
RFI Power Line Filters
Case Styles
3/6/10 MV1
Case Dimensions
Part No.
3MV1
A
(max)
3.36
85.3
3.86
98.0
3.86
98.0
5.23
132.8
B
(max)
1.82
46.2
2.08
52.8
2.08
52.8
3.38
85.9
C
(max)
1.28
32.5
1.53
38.9
1.53
38.9
1.53
38.9
D
± .015
± .38
E
(max)
2.78
70.6
3.34
84.8
3.34
84.8
4.20
106.7
B
6MV1
10MV1
C
D
E
A
20MV1
2.375
60.33
2.938
74.63
2.938
74.63
3.75
95.25
Typical dimensions:
Terminals: .250 [6.35] (5)
Slot: .07 x .16 [1.8
x 4.1]
Holes: .07 [1.8] Dia.(4)
Mounting holes: .188 [4.78] Dia. (2)
Part Numbers
20A
Slots:
.250 x .156 (4)
6.35 x 3.96
03MV1
06MV1
10MV1
20MV1
E
D B
2.00
50.8
A
C
Typical dimensions:
Terminals: .250 [6.35] (5)
Slot: .07 x .16 [1.8
x 4.1]
Holes: .07 [1.8] Dia.(4)
79
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
