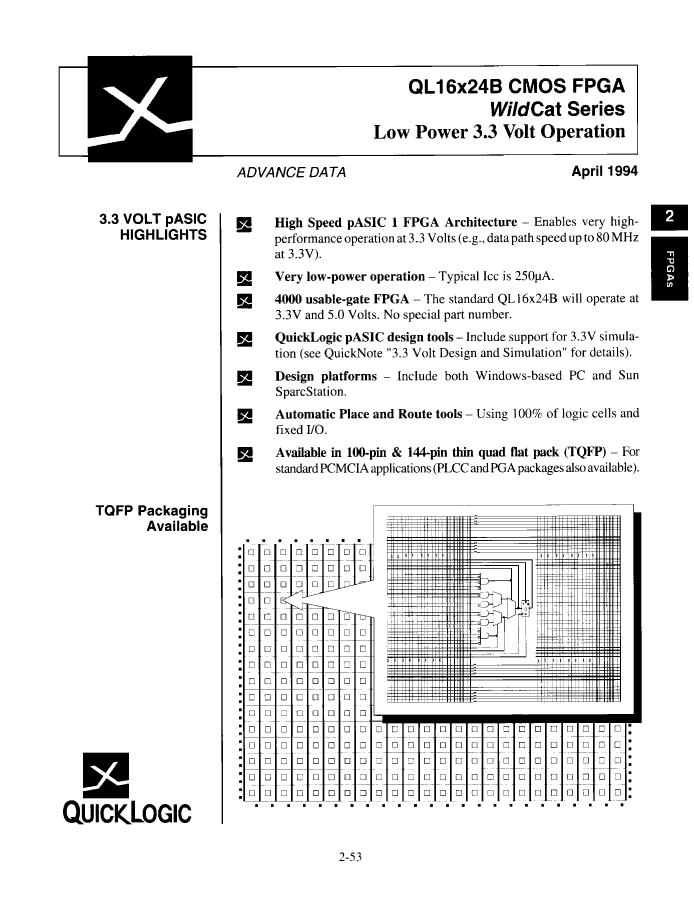

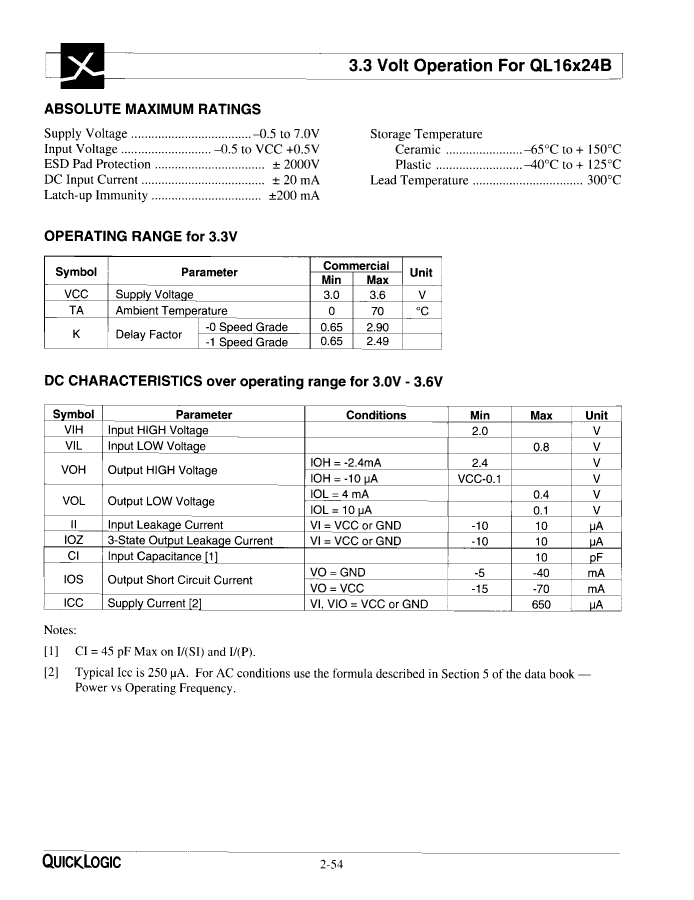

QLL16X24B-0PL84C: DescriptionField Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, PQCC84, PLASTIC, LCC-84; CategoryProgrammable logic devices Programmable logic; File Size74KB，2 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric Compare View All

QLL16X24B-0PL84C Overview

Field Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, PQCC84, PLASTIC, LCC-84

QLL16X24B-0PL84C Parametric

Parameter Name	Attribute value
Maker	QuickLogic Corporation
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	84
Reach Compliance Code	unknown
Other features	MAX 114 I/OS; 12000 EPLD GATES
maximum clock frequency	80 MHz
JESD-30 code	S-PQCC-J84
length	29.31 mm
Configurable number of logic blocks	384
Equivalent number of gates	4000
Number of terminals	84
Maximum operating temperature	70 °C
Minimum operating temperature
organize	384 CLBS, 4000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.31 mm

Preview

Download Datasheet

View All

QLL16X24B-0PL84C Related Products

	QLL16X24B-0PL84C	QLL16X24B-0CG144C	QLL16X24B-0PF100C	QLL16X24B-0PF144C	QLL16X24B-1CG144C	QLL16X24B-1PF100C	QLL16X24B-1PF144C	QLL16X24B-1PL84C
Description	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, PQCC84, PLASTIC, LCC-84	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, CPGA144, CERAMIC, PGA-144	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, PQFP100, PLASTIC, TQFP-100	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, PQFP144, PLASTIC, TQFP-144	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, CPGA144, CERAMIC, PGA-144	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, PQFP100, PLASTIC, TQFP-100	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, PQFP144, PLASTIC, TQFP-144	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 80MHz, CMOS, PQCC84, PLASTIC, LCC-84
Maker	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation
Parts packaging code	LCC	PGA	QFP	QFP	PGA	QFP	QFP	LCC
package instruction	QCCJ,	PGA,	LFQFP,	LFQFP,	PGA,	LFQFP,	LFQFP,	QCCJ,
Contacts	84	144	100	144	144	100	144	84
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	MAX 114 I/OS; 12000 EPLD GATES	MAX 114 I/OS; 12000 EPLD GATES	MAX 114 I/OS; 12000 EPLD GATES	MAX 114 I/OS; 12000 EPLD GATES	MAX 114 I/OS; 12000 EPLD GATES	MAX 114 I/OS; 12000 EPLD GATES	MAX 114 I/OS; 12000 EPLD GATES	MAX 114 I/OS; 12000 EPLD GATES
maximum clock frequency	80 MHz	80 MHz	80 MHz	80 MHz	80 MHz	80 MHz	80 MHz	80 MHz
JESD-30 code	S-PQCC-J84	S-CPGA-P144	S-PQFP-G100	S-PQFP-G144	S-CPGA-P144	S-PQFP-G100	S-PQFP-G144	S-PQCC-J84
length	29.31 mm	39.9923 mm	14 mm	20 mm	39.9923 mm	14 mm	20 mm	29.31 mm
Configurable number of logic blocks	384	384	384	384	384	384	384	384
Equivalent number of gates	4000	4000	4000	4000	4000	4000	4000	4000
Number of terminals	84	144	100	144	144	100	144	84
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	PGA	LFQFP	LFQFP	PGA	LFQFP	LFQFP	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	GRID ARRAY	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	GRID ARRAY	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	CHIP CARRIER
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	4.699 mm	1.6 mm	1.6 mm	4.699 mm	1.6 mm	1.6 mm	5.08 mm
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	NO	YES	YES	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	PIN/PEG	GULL WING	GULL WING	PIN/PEG	GULL WING	GULL WING	J BEND
Terminal pitch	1.27 mm	2.54 mm	0.5 mm	0.5 mm	2.54 mm	0.5 mm	0.5 mm	1.27 mm
Terminal location	QUAD	PERPENDICULAR	QUAD	QUAD	PERPENDICULAR	QUAD	QUAD	QUAD
width	29.31 mm	39.9923 mm	14 mm	20 mm	39.9923 mm	14 mm	20 mm	29.31 mm
