Product EOL Announcement
The Product EOL Announcement signifies that a product series has entered the final phase of the
Ecliptek Product Life Cycle, and serves as advance notice of product termination per the Ecliptek
End of Life (EOL) policy.
Ecliptek Corporation announces End of Life initiation for the following product series with the intent of
discontinuing its availability.
EOL Series
EH13 (8 Pin Dip)
Description
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 8 Pin
DIP Metal Thru-Hole
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 14 Pin
DIP Metal Thru-Hole
EH13 (14 Pin Dip)
EOL Timeline
The last date Ecliptek will accept orders (Stage 2) and the last date orders may be scheduled for
shipment (Stage 3) are listed in the table below.
Stage 1
EOL Announce Date
1-July-2012
Stage 2
Last Date to Order
31-December-2012
Stage 3
Last Date to Ship
31-January-2013
Alternative Products
In order to fulfill your requirements beyond this product’s discontinuation, we invite you to evaluate
the recommended alternative Ecliptek product series referenced below. Please click on the link to
view the data sheet.
Alternative Series
EHH13
Description
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 8 Pin
DIP Metal Thru-Hole
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 14 Pin
DIP Metal Thru-Hole
EHF13
Automated EOL Notification
Ecliptek offers automated notification of Product EOL Announcements. Place part numbers for which
you’d like to receive EOL Notifications into your personalized
Parts List
on our website and we’ll email
you when EOL is announced.
Please do not hesitate to contact us if you have any questions or need further assistance.
Ecliptek Global Customer Support Team
(800) 433-1280 x300
customersupport@ecliptek.com
All product warranties for discontinued products will be honored in full according to Ecliptek
Terms and Conditions of Sale.

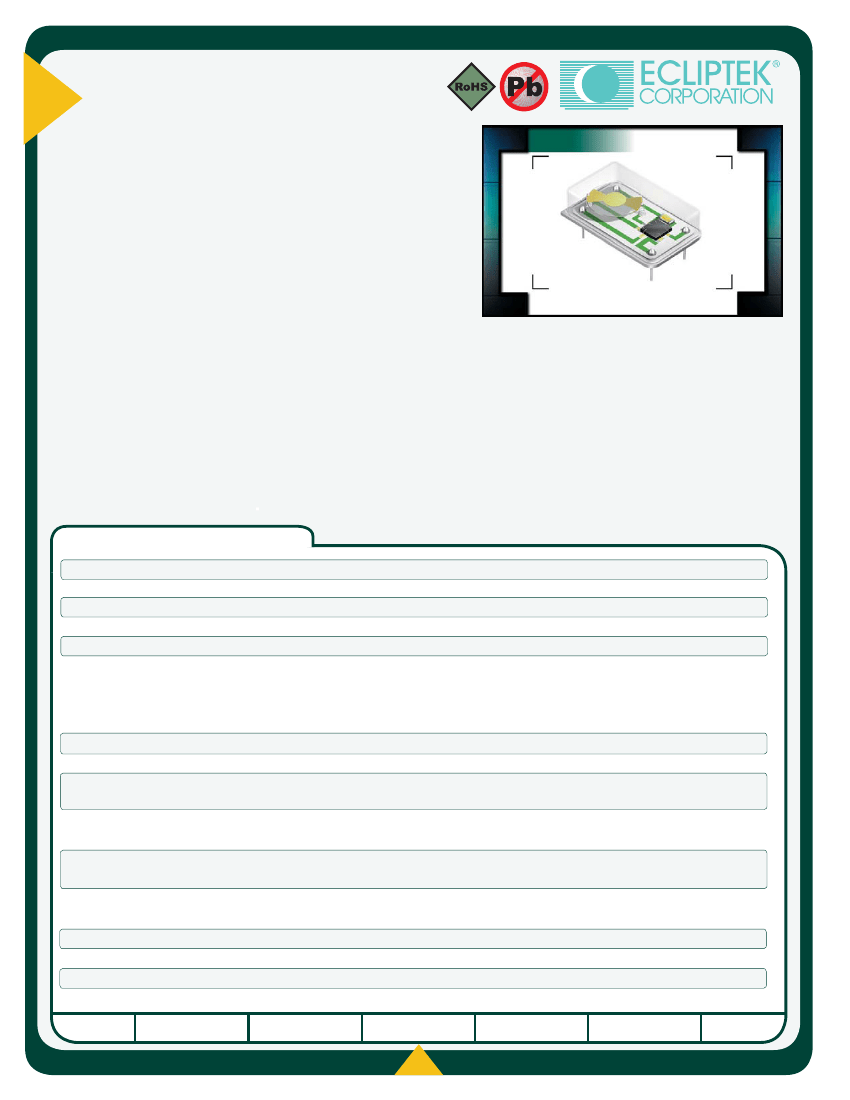

EH13
Series
• Crystal Clock Oscillators
• LVCMOS Output
• +3.3V Supply Voltage
• Tri-State Output Function
• Custom Lead Length & Gull Wing Options
• 14 pin DIP Metal Package
• RoHS Compliant (Pb-free)
EH13
OSCILLATOR
NOTES
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
DD
)
Input Current
Frequency Tolerance / Stability
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year Aging
at 25°C, Shock, and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time
Load Drive Capability
Duty Cycle (at V
DD
=3.3V
DC
)
Tri-State Input Voltage
Aging (at 25°C)
Start Up Time
Period Jitter: Absolute
Period Jitter: One Sigma
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
1.000MHz to 155.520MHz
0°C to 70°C or -40°C to 85°C
-55°C to 125°C
3.3V
DC
±0.3V
DC
35mA Maximum (Unloaded)
±100ppm, ±50ppm, ±25ppm, or
±20ppm Maximum
2.7V
DC
Minimum
0.5V
DC
Maximum
≤70.000MHz
20% to 80% of Waveform
>70.000MHz 20% to 80% of Waveform
≤70.000MHz
>70.000MHz
at 50% of Waveform
V
IH
:No Connection or
≥2.2V
DC
V
IL
:≤0.8V
DC
I
OH
=-8mA
I
OL
=+8mA
6 nSeconds Maximum
4 nSeconds Maximum
30pF Maximum
15pF Maximum
50 ±10(%) (Standard) or
50 ±5(%) (Optional)
Enables Output
Disables Output: High Impedance
±5ppm / year Maximum
10mSeconds Maximum
±250pSec Maximum, ±100pSec Typical
±50pSec Maximum, ±40pSec Typical
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EH13
14 pin DIP
3.3V
OS44
12/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EH13 00 ET T TS - 70.000M - G
FREQUENCY TOLERANCE / STABILITY
00=±100ppm Maximum
45=±50ppm Maximum, 25=±25ppm Maximum
20=±20ppm Maximum
OPERATING TEMP. RANGE
Blank=0°C to 70°C, ET=-40°C to 85°C
DUTY CYCLE
Blank=50 ±10(%), T=50 ±5(%)
AVAILABLE OPTIONS
Blank=None
CLXXX=Custom Lead Length
G=Full Size Gull Wing
FREQUENCY
OUTPUT CONTROL FUNCTION
TS=Tri-State Enable High
NOTES
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

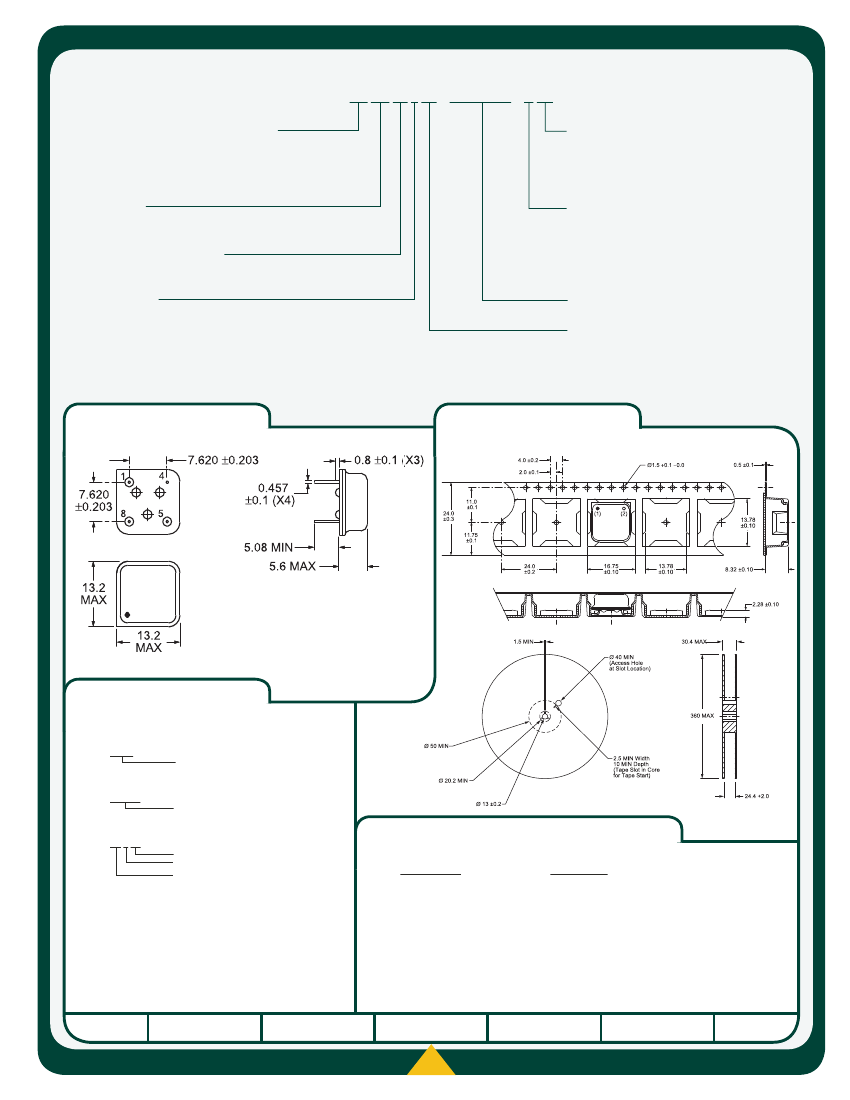

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
MARKING SPECIFICATIONS
Pin 1: Tri-State
Pin 7: Case Ground
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Pin 8: Output
Pin 14: Supply Voltage
Line 1: ECLIPTEK
Line 2: EH13 TS
Series Designator
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Lead Integrity
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2004
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-883, Method 210
MIL-STD-883, Method 215
Line 3: XX.XXX M
Frequency in MHz
(5 Digits Maximum + Decimal)
Line 4: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
Note: Pin 1 shall be designated with a dot
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EH13
14 pin DIP
3.3V
OS44
12/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
EH13
Series
• Crystal Clock Oscillators
• LVCMOS Output
• +3.3V Supply Voltage
• Tri-State Output Function
• Custom Lead Length & Gull Wing Options
• 8 pin DIP Metal Package
• RoHS Compliant (Pb-free)
EH13
OSCILLATOR
NOTES
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
DD
)
Input Current
Frequency Tolerance / Stability
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year Aging
at 25°C, Shock, and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time
Load Drive Capability
Duty Cycle (at V
DD
=3.3V
DC
)
Tri-State Input Voltage
Aging (at 25°C)
Start Up Time
Period Jitter: Absolute
Period Jitter: One Sigma
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
1.000MHz to 155.520MHz
0°C to 70°C or -40°C to 85°C
-55°C to 125°C
3.3V
DC
±0.3V
DC
35mA Maximum (Unloaded)
±100ppm, ±50ppm, ±25ppm, or
±20ppm Maximum
2.7V
DC
Minimum
0.5V
DC
Maximum
≤70.000MHz
20% to 80% of Waveform
>70.000MHz 20% to 80% of Waveform
≤70.000MHz
>70.000MHz
at 50% of Waveform
V
IH
:No Connection or
≥2.2V
DC
V
IL
:≤0.8V
DC
I
OH
=-8mA
I
OL
=+8mA
6 nSeconds Maximum
4 nSeconds Maximum
30pF Maximum
15pF Maximum
50 ±10(%) (Standard) or
50 ±5(%) (Optional)
Enables Output
Disables Output: High Impedance
±5ppm / year Maximum
10mSeconds Maximum
±250pSec Maximum, ±100pSec Typical
±50pSec Maximum, ±40pSec Typical
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EH13
8 pin DIP
3.3V
OS45
08/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EH13 00 HS ET T TS - 70.000M - G TR
FRE0NCY TOLERANCE / STABILITY
00=±100ppm Maximum
45=±50ppm Maximum, 25=±25ppm Maximum
20=±20ppm Maximum
PACKAGE
HS=Half Size 8 Pin DIP
OPERATING TEMP. RANGE
Blank=0°C to 70°C, ET=-40°C to 85°C
DUTY CYCLE
Blank=50 ±10(%), T=50 ±5(%)
PACKAGING OPTIONS
Blank=Bulk
TR=Tape & Reel (only offered with
Half Size G and Half Size G2 Options)
AVAILABLE OPTIONS
Blank=None
CLXXX=Custom Lead Length
G=Half Size Gull Wing
G2=Half Size Gull Wing
FREQUENCY
OUTPUT CONTROL FUNCTION
TS=Tri-State Enable High
MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1 Locator for Gull Wing
(1) For “G” Option
(2) For “G2” Option
Ø
Pin 1: No Connect or Tri-State
Pin 4: Case Ground
Pin 5: Output
Pin 8: Supply Voltage
Pin 1: Tri-State
Pin 4: Case Ground
MARKING SPECIFICATIONS
Pin 5: Output
Pin 8: Supply Voltage
Line 1: ECLIPTEK
Line 2: EH13 TS
Series Designator
Line 3: XX.XXX M
Frequency in MHz
(5 Digits Maximum + Decimal)
Line 4: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
Note: Pin 1 shall be designated with a dot
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Lead Integrity
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
250 Pieces Per Reel
Compliant to EIA-481A
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2004
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-883, Method 210
MIL-STD-883, Method 215
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EH13
8 pin DIP
3.3V
OS45
08/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
