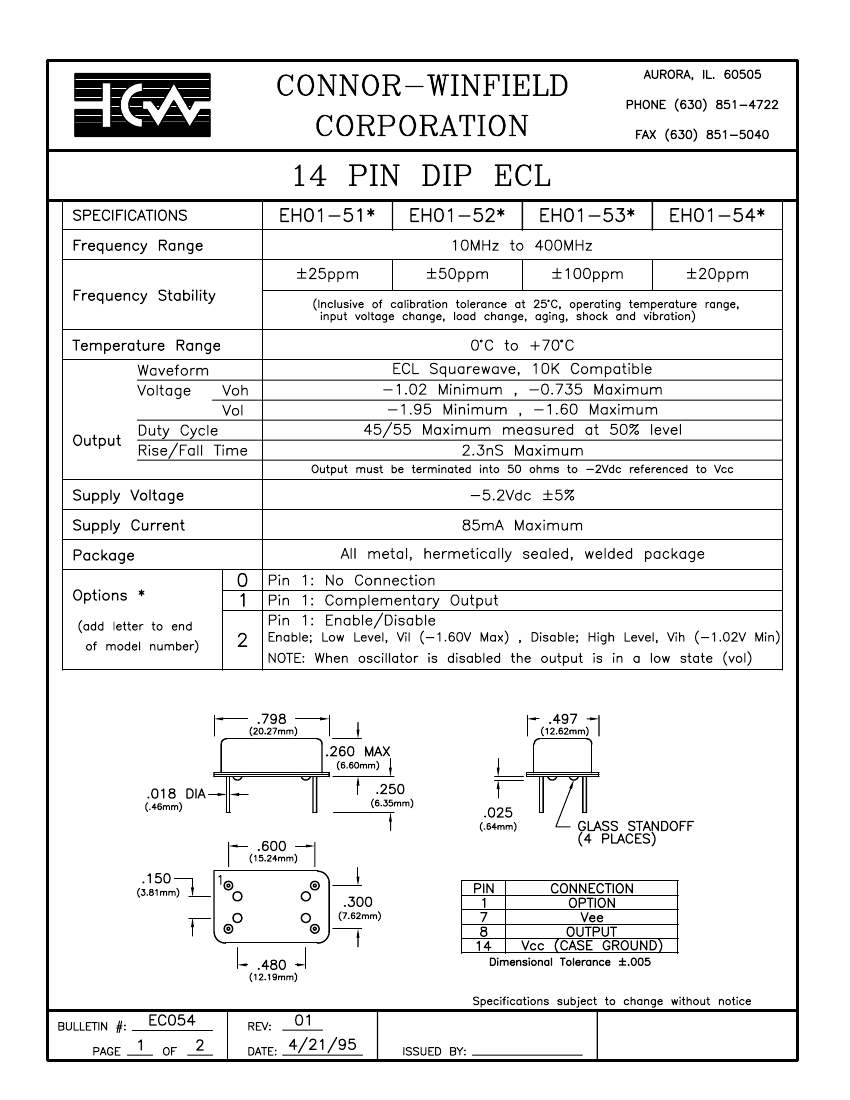

EH01-531-400MHZ datasheet, PDF

EH01-531-400MHZ: DescriptionECL 10K Output Clock Oscillator, 400MHz Nom, HERMETIC SEALED, METAL, WELDED, DIP-14/4; CategoryPassive components oscillator; File Size82KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric View All

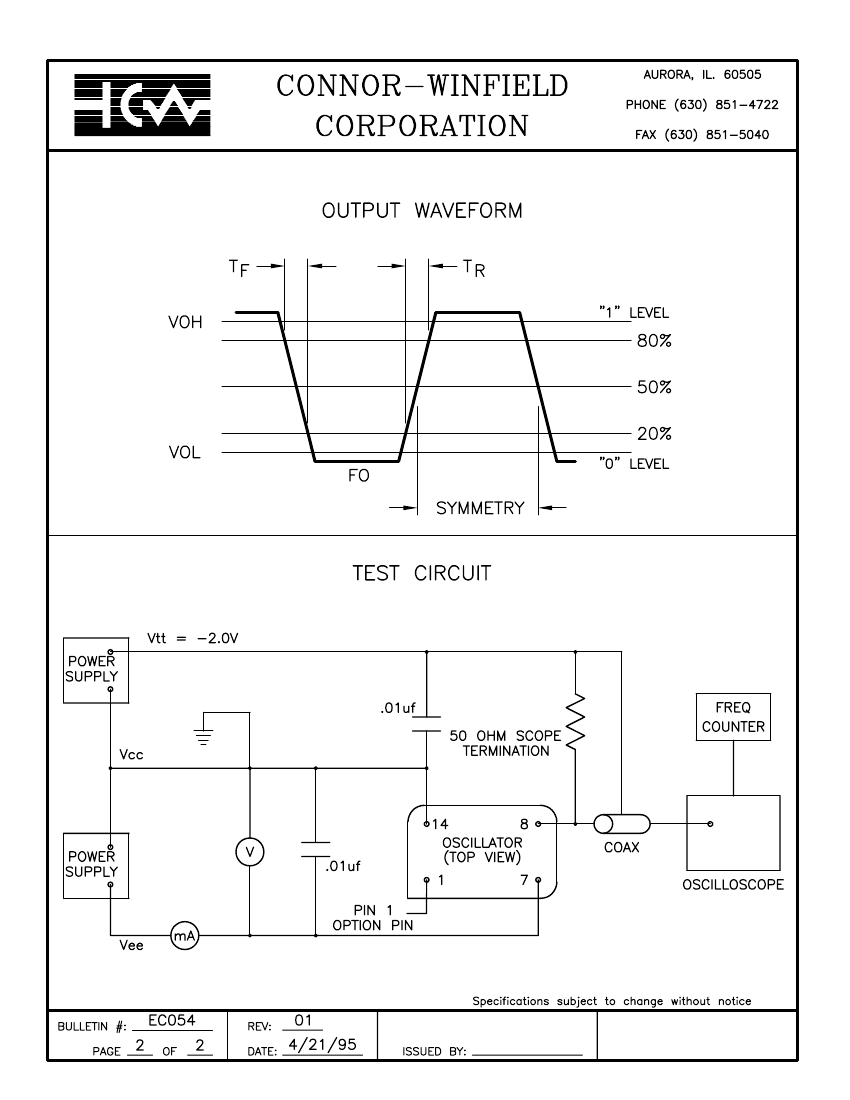

EH01-531-400MHZ Overview

ECL 10K Output Clock Oscillator, 400MHz Nom, HERMETIC SEALED, METAL, WELDED, DIP-14/4

Parameter Name	Attribute value
Maker	Connor-Winfield
package instruction	HERMETIC SEALED, METAL, WELDED, DIP-14/4
Reach Compliance Code	unknown
Other features	COMPLEMENTARY OUTPUT
maximum descent time	2.3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	EH01-53
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	400 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	ECL 10K
Output load	50 OHM
physical size	20.27mm x 12.62mm x 6.6mm
longest rise time	2.3 ns
Maximum supply voltage	-5.46 V
Minimum supply voltage	-4.94 V
Nominal supply voltage	-5.2 V
surface mount	NO
maximum symmetry	45/55 %
