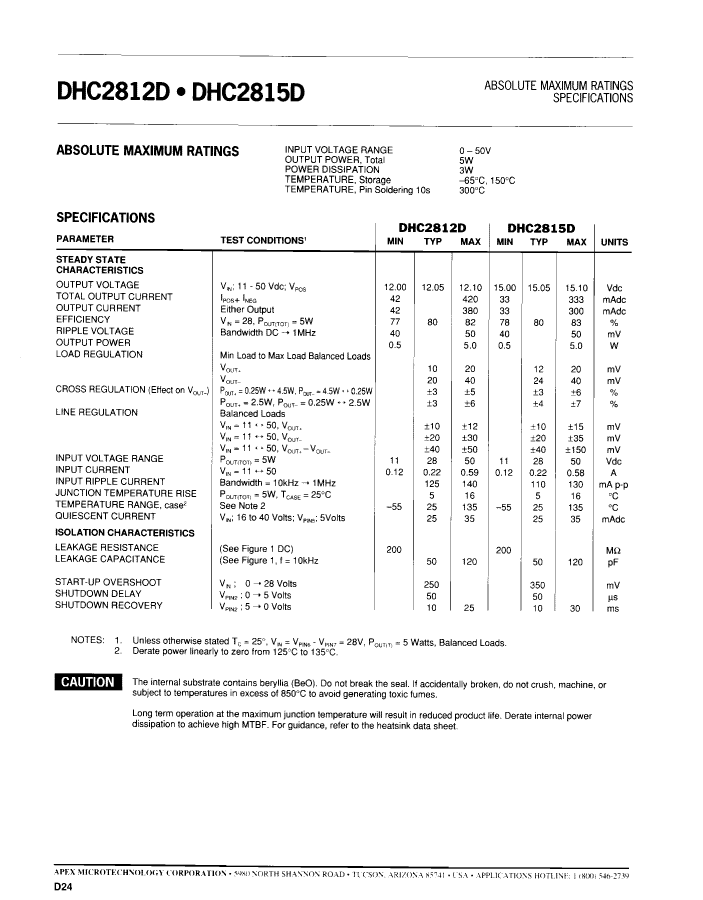

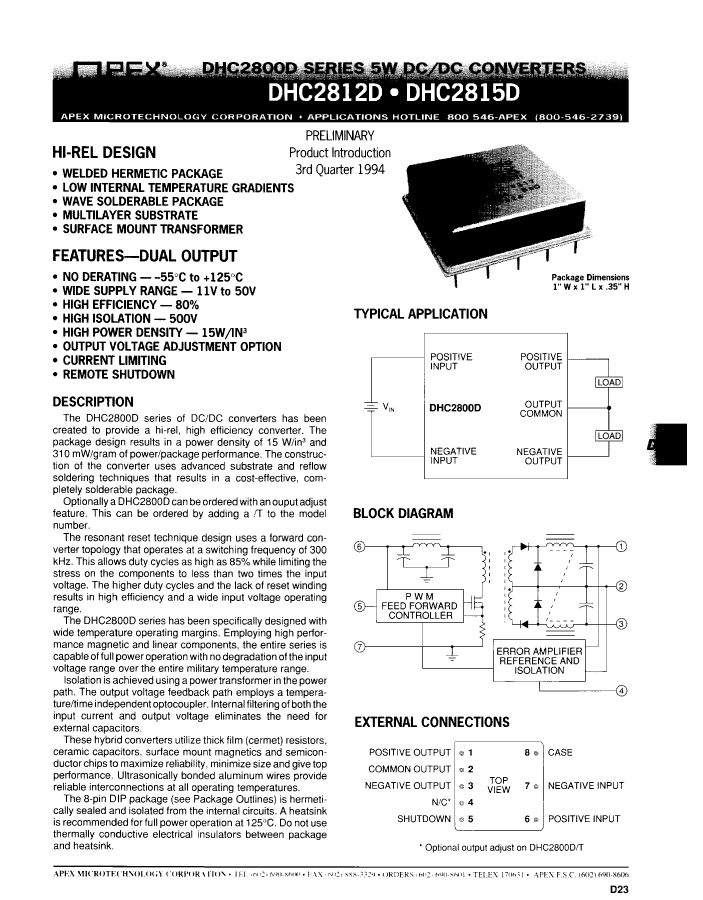

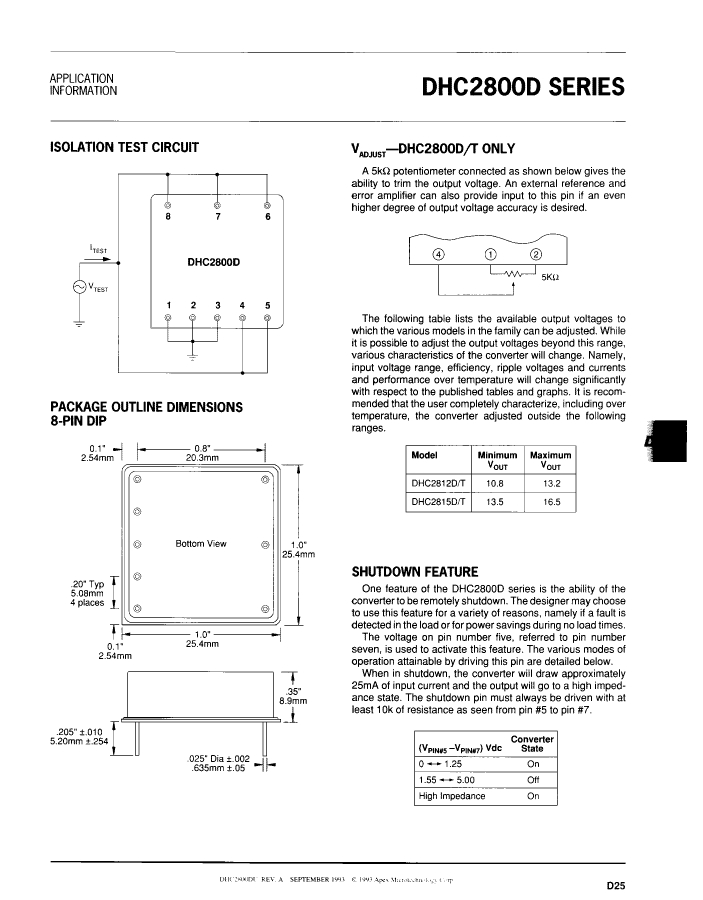

DHC2815D/T: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8; CategoryPower/power management The power supply circuit; File Size162KB，4 Pages; ManufacturerM.S. Kennedy Corporation ( Anaren ); Websitehttps://www.anaren.com/capabilities/multi-chip-modules

Download Datasheet Parametric Compare View All

DHC2815D/T Overview

DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8

DHC2815D/T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	M.S. Kennedy Corporation ( Anaren )
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	50 V
Minimum input voltage	11 V
Nominal input voltage	28 V
JESD-30 code	S-MDIP-P8
length	25.4 mm
Maximum load regulation	0.133%
Number of functions	1
Output times	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	16.5 V
Minimum output voltage	13.5 V
Nominal output voltage	15.05 V
Package body material	METAL
encapsulated code	DIP
Package shape	SQUARE
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	5.08 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	5 W
Fine-tuning/adjustable output	YES
width	20.32 mm

Preview

Download Datasheet

View All

DHC2815D/T Related Products

	DHC2815D/T	DHC2812D/T
Description	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	M.S. Kennedy Corporation ( Anaren )	M.S. Kennedy Corporation ( Anaren )
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	50 V	50 V
Minimum input voltage	11 V	11 V
Nominal input voltage	28 V	28 V
JESD-30 code	S-MDIP-P8	S-MDIP-P8
length	25.4 mm	25.4 mm
Maximum load regulation	0.133%	0.166%
Number of functions	1	1
Output times	2	2
Number of terminals	8	8
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output voltage	16.5 V	13.2 V
Minimum output voltage	13.5 V	10.8 V
Nominal output voltage	15.05 V	12.05 V
Package body material	METAL	METAL
encapsulated code	DIP	DIP
Package shape	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG
Terminal pitch	5.08 mm	5.08 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	5 W	5 W
Fine-tuning/adjustable output	YES	YES
width	20.32 mm	20.32 mm
