5-1423157-0: DescriptionON-DELAY RELAY, DPDT, MOMENTARY, 1-300s, PANEL MOUNT; CategoryMechanical and electronic products relay; File Size111KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

5-1423157-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1423157-0	-	-	View	Buy Now

5-1423157-0 Overview

ON-DELAY RELAY, DPDT, MOMENTARY, 1-300s, PANEL MOUNT

5-1423157-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Maximum adjustable time delay	300 s
Minimum adjustable time delay	1 s
body width	65.3 mm
body height	71.9 mm
Body length or diameter	114.8 mm
Maximum coil voltage (AC)	240 V
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	240 V
Contact/Output Power Type	AC
Manufacturer's serial number	1423157
Installation features	PANEL MOUNT
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
physical size	114.8mm x 65.3mm x 71.9mm
Guideline	CE; CSA; FM; UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	ON-DELAY RELAY
surface mount	NO
Termination type	SCREW

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se a rch by Ke yword or Pa rt #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Relays

Product Feature Selector

> Product Details

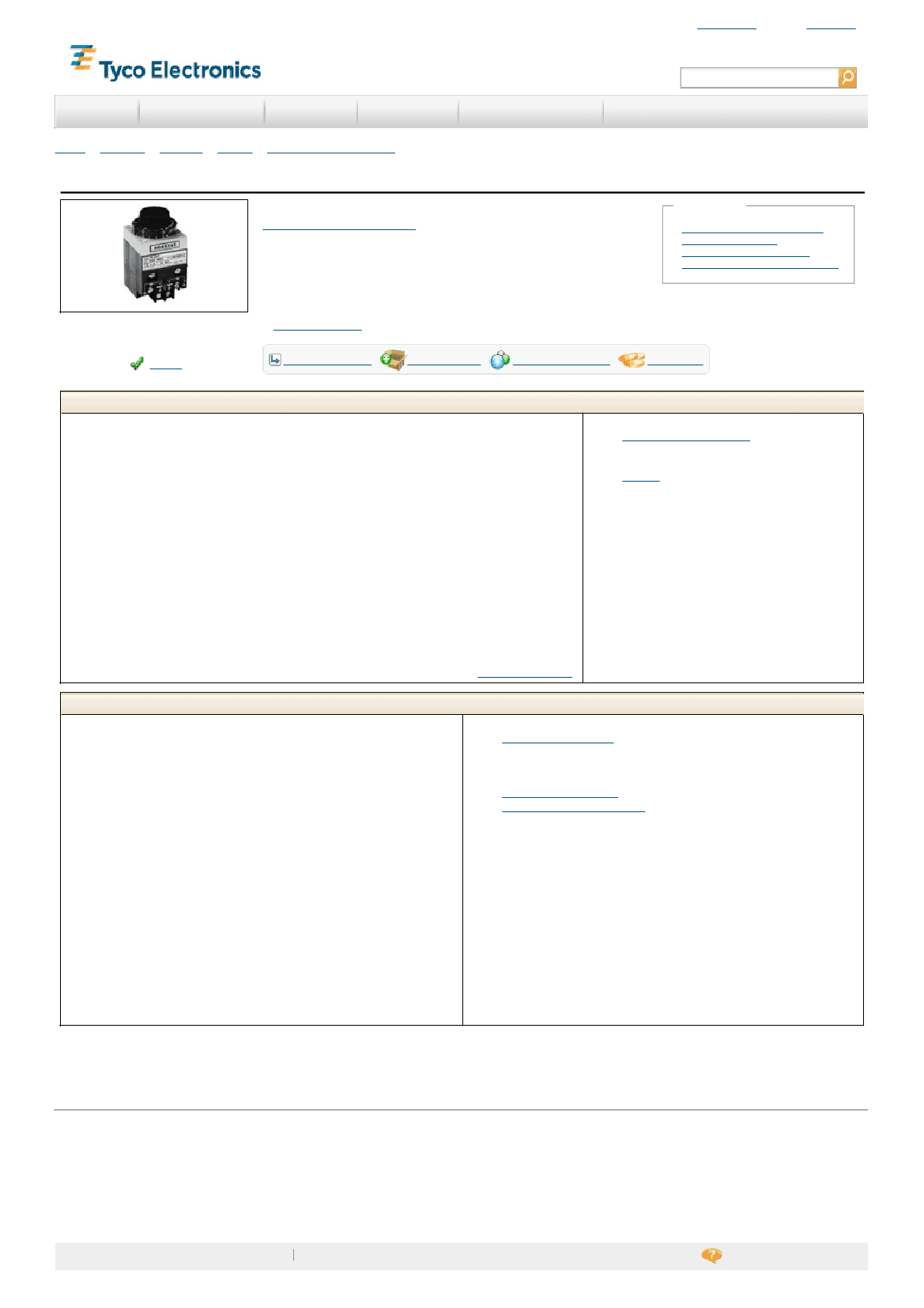

7012BKX Product Details

Time Delay Relays

Not EU R oHS or ELV C om plia nt

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

7012BKX

(5-1423157-0)

T E I nternal N umber: 5 - 1 4 2 3 1 5 7 - 0

Product Highlights:

7000 Electropneumatic Timing - Industrial Series

Input Voltage = 220 VAC , 240 VAC

C ontact Arrangement = 2 Form C , DPDT, 2 C /O

C ontact Rating = 10A @ 240 VAC

Mounting Options = Panel Mount

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Active

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Termination Type = Screw Terminal

Electrical Characteristics:

Input Voltage (VAC ) = 220, 240

C ontact Rating = 10A @ 240 VAC

Body Related Features:

Series = 7000 Electropneumatic Timing - Industrial

Contact Related Features:

Mounting Options = Panel Mount

Mode of Operation = On-Delay

Delay Time = 1 second to 300 seconds

Type of C ontrol = Knob

Repeatability, Max. = ± 10%

Approved Standards = C E Approved, C SA C ertified, FM Approved,

UL Listed

Option = Hardware and Adjustment for Horizontal Operation

Approx. Dimensions (L x W x H) (mm [in]) = 114.80 x 65.30 x 71.90

[4.523 x 2.572 x 2.832]

Configuration Related Features:

C ontact Arrangement

= 2 Form C , DPDT, 2 C /O

Multiple Timing Ranges = Without

Industry Standards:

RoHS/ELV C ompliance

= Not ELV/RoHS compliant

Lead Free Solder Processes

= Not relevant for lead free process

Conditions for Usage:

Temperature Range (?C ) = -30 – +75

Other:

Brand = Agastat

Additional Information:

Product Line Information

Recommended Resources
