SM51524L: DescriptionDatacom Transformer, 10/100 BASE-TX; ETHERNET Application(s), 1CT:1; 1CT:1CT, ROHS COMPLIANT; CategoryPower management transformer; File Size142KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

SM51524L Overview

Datacom Transformer, 10/100 BASE-TX; ETHERNET Application(s), 1CT:1; 1CT:1CT, ROHS COMPLIANT

SM51524L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
application	10/100 BASE-TX; ETHERNET
high	5.3 mm
Insulation voltage	1500 V
JESD-609 code	e3
length	28 mm
Manufacturer's serial number	SM51524
Installation features	SURFACE MOUNT
Number of functions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TUBE
physical size	L28.0XB12.19XH5.3 (mm)
Primary inductance	350 µH
surface mount	YES
Terminal surface	Tin (Sn)
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1; 1CT:1CT
width	12.19 mm

Preview

Download Datasheet

View All

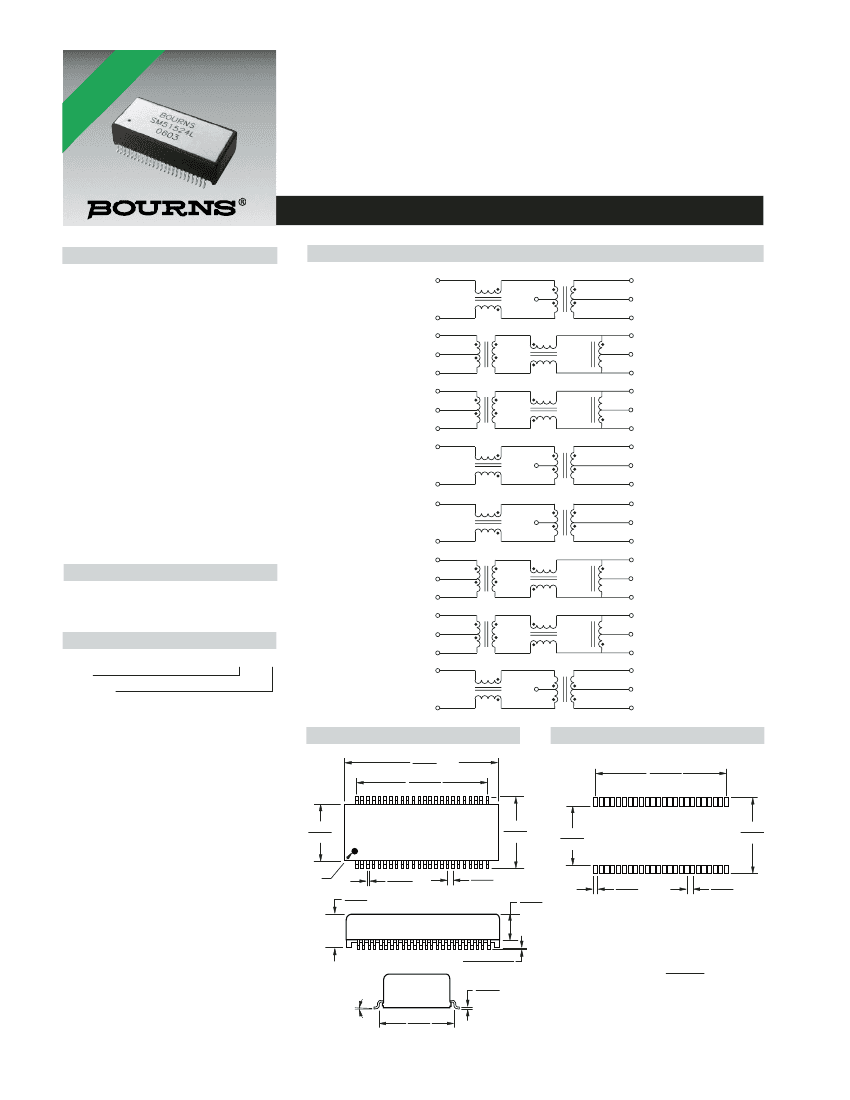

IA

NT

Features

■

IEEE802 3af/ANSI X3.263

■

RoHS compliant*

Applications

■

VolP

■

PoE

*R

oH

S

CO

M

PL

SM51524L 10/100 Base Tx VolP Modules (Power over Ethernet - PoE)

Electrical Speciﬁcations

Inductance - Open Circuit .. 350 µH min.

(100 KHz, 0.1 V with 8 mA DC bias)

Turns Ratio .... TX 1CT : 1; RX 1CT : 1CT

Insertion Loss

................... 1-100 MHz, -1.2 dB max.

Return Loss (@ 100 ohms)

1-30 MHz ......................... -16 dB min.

40 MHz ............................. -14 dB min.

50 MHz ............................. -13 dB min.

60-80 MHz ....................... -12 dB min.

Cross Talk

60 MHz ............................. -40 dB min.

100 MHz ........................... -35 dB min.

DCMRR

30 MHz ............................ -43 dB min.

60 MHz ............................. -37 dB min.

100 MHz ........................... -33 dB min.

Isolation .................................. 1500 VAC

Operating Temperature

................................. -40 °C to +85 °C

Packaging Speciﬁcations

Tube ....................................18 pcs./tube

Electrical Schematic

RD1+ 1

RCT1 3

RD1- 2

TD1+ 5

TCT1 4

TD1- 6

TD2- 7

TCT2 9

TD2+ 8

RD2- 11

RCT2 10

RD2+ 12

RD3+ 13

RCT3 15

RD3- 14

TD3+ 17

TCT3 16

TD3- 18

TD4- 19

1CT : 1

1CT : 1CT

1CT : 1

1CT : 1CT

48 RX1+

46 CMR1

47 RX1-

44 TX1+

45 CMT1

43 TX1-

42 TX2-

40 CMT2

41 TX2+

38 RX2-

39 CMR2

37 RX2+

36 RX3+

34 CMR3

35 RX3-

32 TX3+

33 CMT3

31 TX3-

30 TX4-

28 CMT4

29 TX4+

1CT : 1CT

RCT4 22

RD4+ 24

26 RX4-

27 CMR4

25 RX4+

How To Order

TCT4 21

SM51524 L

Model

Termination

L = Tin only (lead free)

TD4+ 20

RD4- 23

Product Dimensions

28.00

MAX.

(1.102)

23.46

(0.924)

Recommended Layout

23.46

(0.924)

12.19

(0.480)

Bourns

SM51524L

YYWW

15.24

(0.600)

12.50

(0.492)

15.90

(0.626)

PIN 1

7.3 MAX.

(0.287)

0.38

(0.015)

1.02

(0.040)

5.30

(0.209)

0.64

(0.025)

1.02

(0.040)

0.26 ± 0.13

(0.010 ± 0.005)

0°~8°

0.30

(0.012)

13.20

(0.520)

DIMENSIONS:

MM

(INCHES)

REV. 09/08

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications
