MX7520KCWE-T: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDSO16, 0.300 INCH, SOP-16; CategoryAnalog mixed-signal IC converter; File Size3MB，8 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

MX7520KCWE-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MX7520KCWE-T	-	-	View	Buy Now

D/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDSO16, 0.300 INCH, SOP-16

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	SOP,
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-PDSO-G16
length	10.3 mm
Maximum linear error (EL)	0.1%
Number of digits	10
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum seat height	2.65 mm
Nominal settling time (tstl)	0.5 µs
Nominal supply voltage	15 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

___________________________________________________________________________

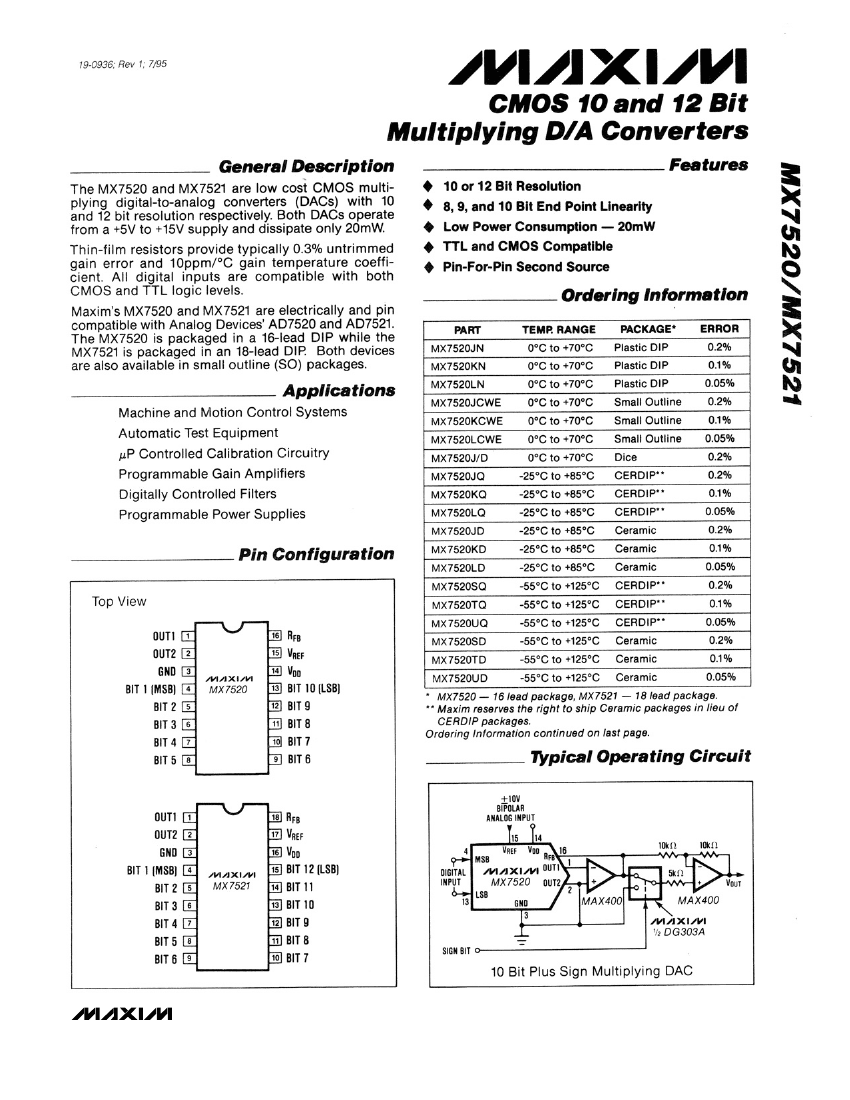

Maxim

Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

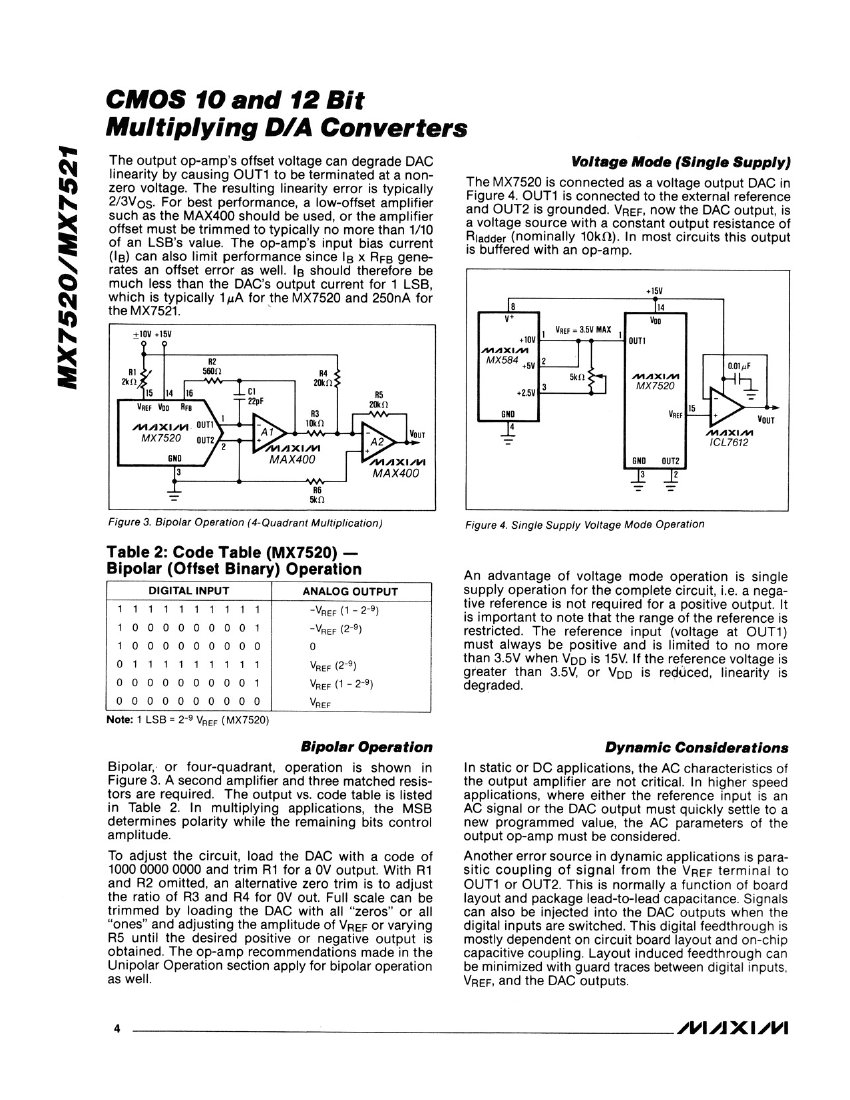

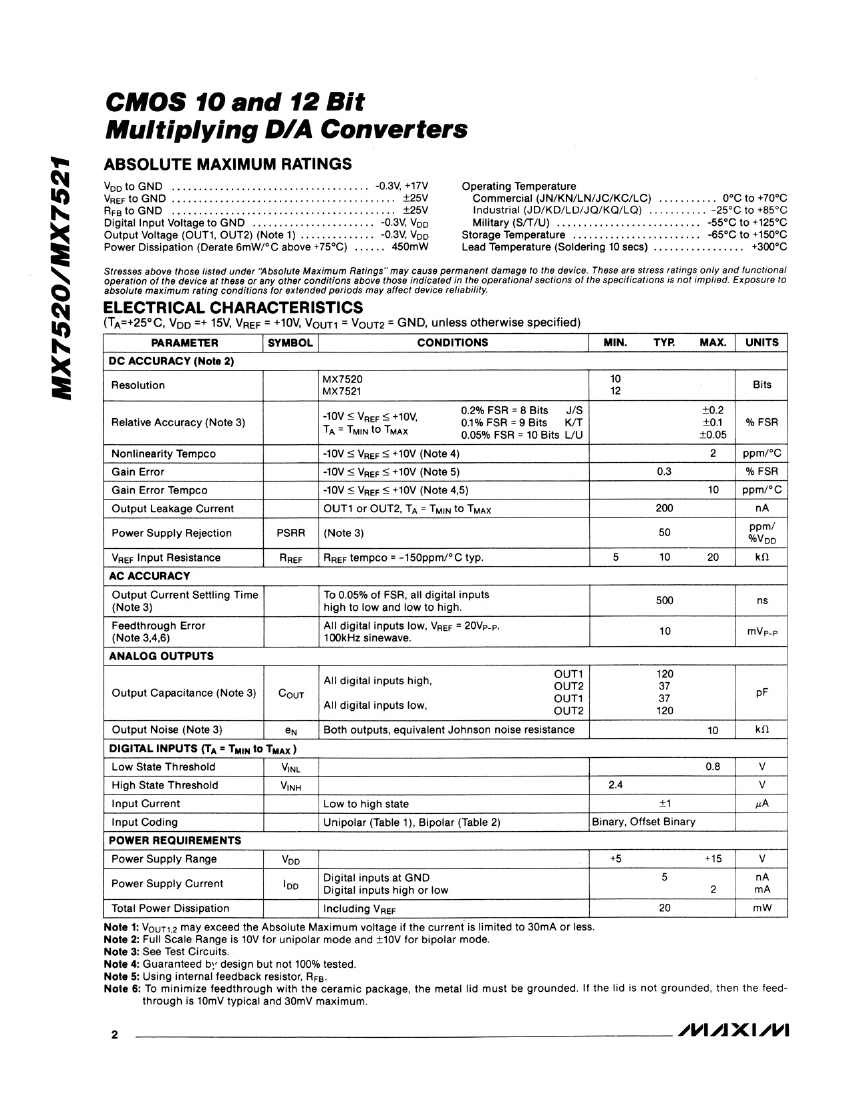

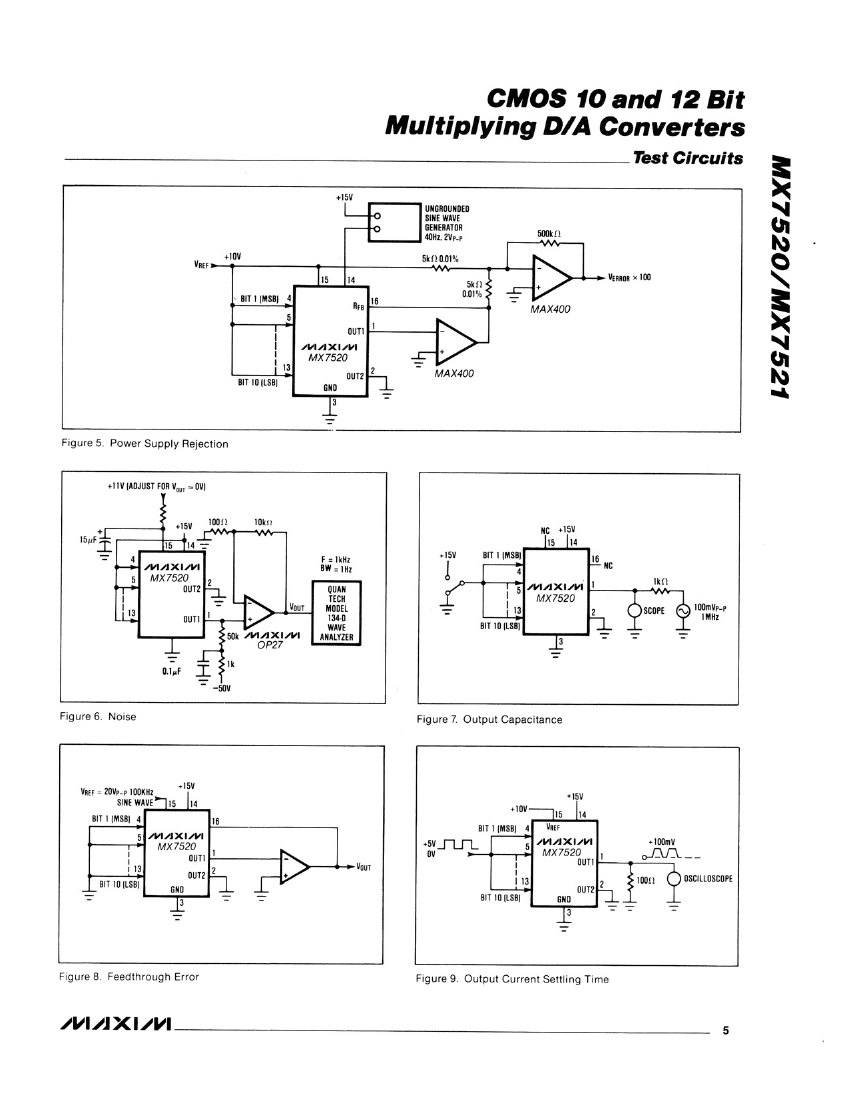

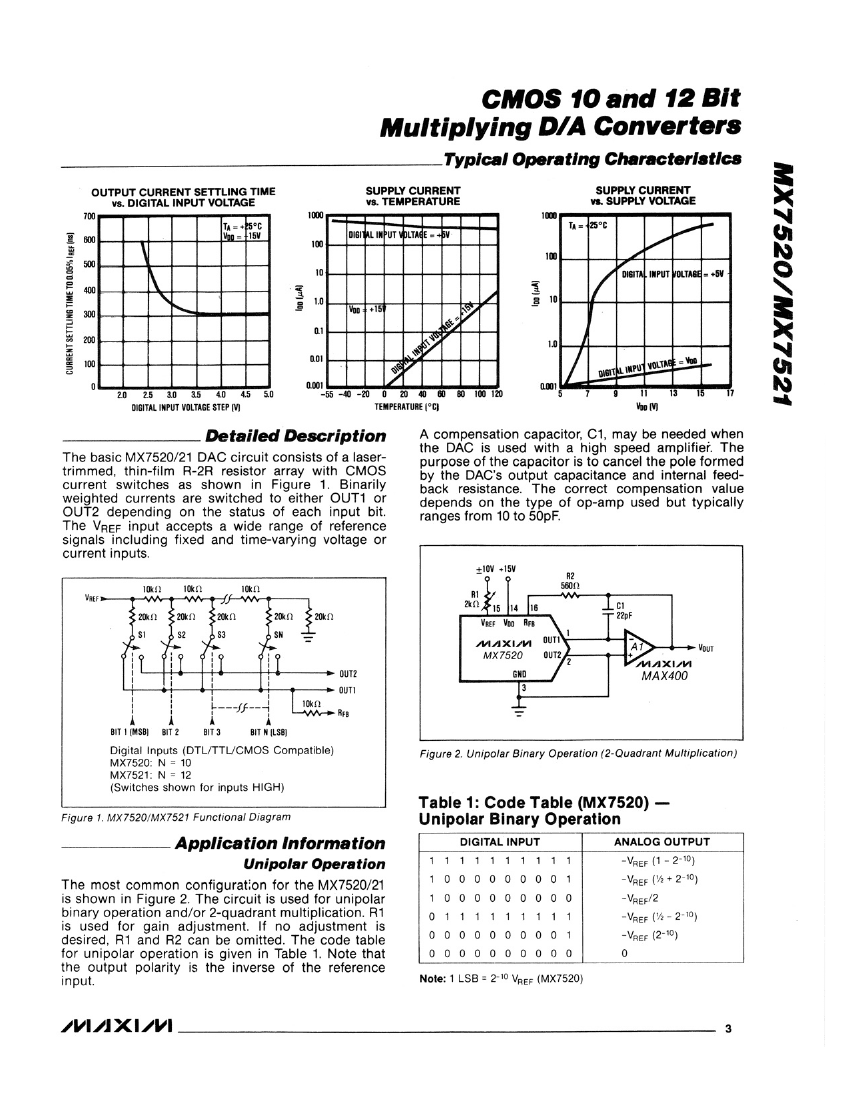

	MX7520KCWE-T	MX7520KCWE
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDSO16, 0.300 INCH, SOP-16	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.5us Settling Time, PDSO16, 0.300 INCH, SOP-16
Maker	Rochester Electronics	Rochester Electronics
package instruction	SOP,	SOP,
Reach Compliance Code	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-PDSO-G16	R-PDSO-G16
length	10.3 mm	10.3 mm
Maximum linear error (EL)	0.1%	0.1%
Number of digits	10	10
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum seat height	2.65 mm	2.65 mm
Nominal settling time (tstl)	0.5 µs	0.5 µs
Nominal supply voltage	15 V	15 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.5 mm	7.5 mm
