MODEL BMC SERIES
Surface Mount
Multilayer
High Frequency
Ceramic Chip Inductors
FEATURES AND BENEFITS
•
•
•
•
•
Tight dimensional tolerances and a small package make this chip ideal for high density installation
Monolithic glass ceramic material for high frequency UHF band applications
Compatible with vapor phase and infrared reflow soldering
High self-resonant frequency
Industry standard sizes: 0402, 0603, 0805
APPLICATIONS
•
•
•
•
•
•
RF and wireless communication
Radar Detectors
PDAs
Keyless remote systems
Video audio equipment
Cellular phones and pagers
6
1.5nH to 180nH
±10%
-40°C to +125°C
-40°C to +85°C
-40°C to +85°C, 75% R.H., Max.
80°C
260°C for 10 sec.
ELECTRICAL / ENVIRONMENTAL
Inductance Range
Standard Tolerance
Operating Temperature Range
Storage Temperature Range
Humidity Range
Ambient Temperature, Maximum
Resistance to Solder Heat
Specifications subject to change without notice.
6-31
Model BMC Series
SPECIFICATIONS
Part
Number
BMC0805HF-1N5S
BMC0805HF-1N8S
BMC0805HF-2N2S
BMC0805HF-2N7S
BMC0805HF-3N3K
BMC0805HF-3N9K
BMC0805HF-4N7K
BMC0805HF-5N6K
BMC0805HF-6N8K
BMC0805HF-8N2K
BMC0805HF-10NK
BMC0805HF-12NK
BMC0805HF-15NK
BMC0805HF-18NK
BMC0805HF-22NK
BMC0805HF-27NK
BMC0805HF-33NK
BMC0805HF-39NK
BMC0805HF-47NK
BMC0805HF-56NK
BMC0805HF-68NK
BMC0805HF-82NK
BMC0805HF-R10K
BMC0805HF-R12K
BMC0805HF-R15K
BMC0805HF-R18K
Thickness
Inch/mm
Tol: ±.002/.05
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
0.04/1.0
Inductance
nH
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0

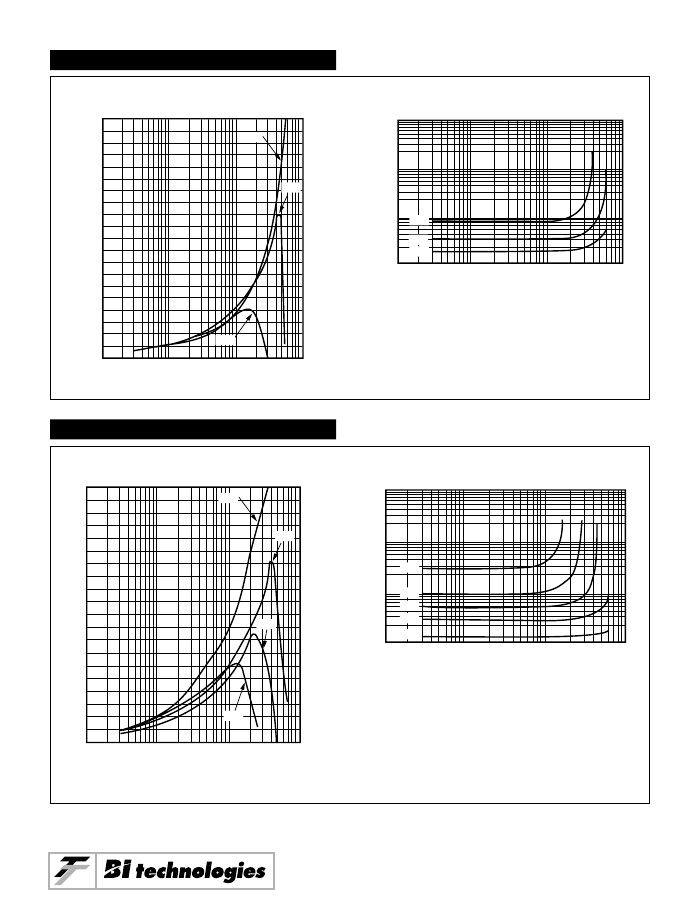

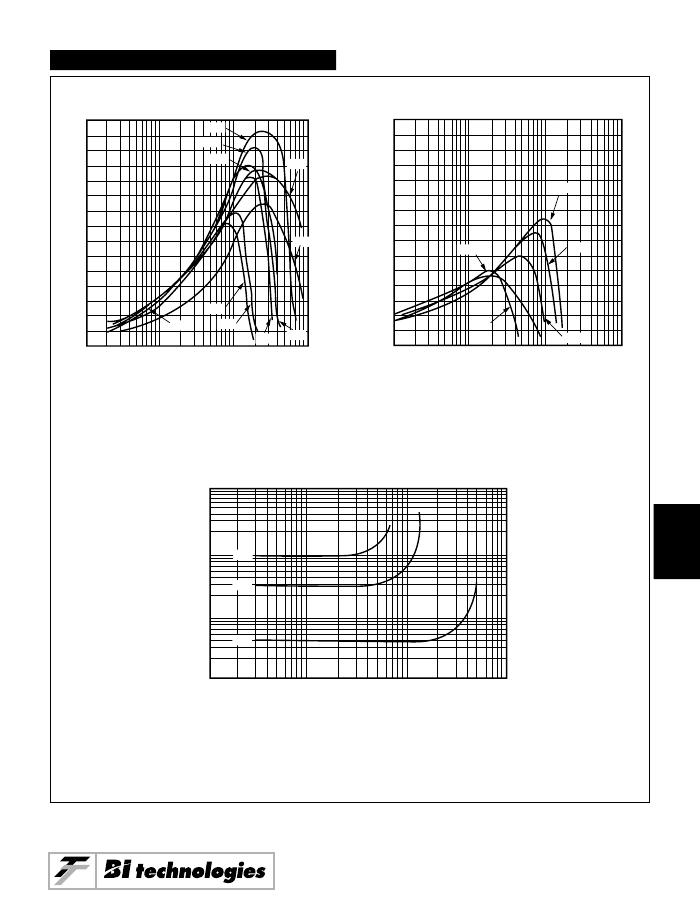

Q (Typical)
@ 100/800MHz
10/40
10/45
10/48
10/36
10/56
10/54
10/50
10/53
10/51
10/53
10/45
10/48
10/48
15/43
15/47
15/38
15/35
15/40
15/33
15/–
15/–
15/–
15/–
15/–
15/–
15/–
Self-Resonant
Frequency
Min./Typ.
MHz
4000/6000
4000/6000
3800/6000
3600/6000
3400/6000
3200/5400
3000/4500
2800/4000
2600/3650
2200/3000
1800/2500
1650/2450
1350/2000
1350/1750
1100/1700
1100/1550
1000/1350
900/1300
850/1200
750/1150
700/1000
600/850
500/730
450/650
400/550
350/500
DCR
Max.
Ω
0.10
0.10
0.10
0.10
0.13
0.15
0.20
0.23
0.25
0.28
0.30
0.35
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.80
0.90
1.00
1.30
1.50
1.80
Rated
Current
mA
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
6
ORDERING INFORMATION
BMC
Model Series
Body Dimensions:
Length (A) x Width (B)
High Frequency
0805
HF
2N7
K
Inductance Tolerance:
J =
±5%
K =
±10%
S =
±0.3nH
Inductance Code:
First two digits are significant.
In values <10nH, "N" denotes
the decimal point.
6-33
Model BMC Series
