SMT inductors
SIMID series, SIMID 1210-T
Series/Type:
Date:
B82422T
June 2008
7f
fÁRspp
©
EPCOS AG 2008. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SMT inductors, SIMID series
SIMID 1210-T
Size 1210 (EIA) or 3225 (IEC)
Rated inductance 0.010
N
H to 100
N
H
Rated current 60 mA to 450 mA
Construction
■
Ceramic or ferrite core
■
Laser-welded winding
■
Flame-retardant molding
B82422T
Features
High Q factor
High resonance frequency
High L value
Suitable for lead-free reflow soldering
as referenced in JEDEC J-STD 020C
■
RoHS-compatible
■
■
■
■
Applications
■
■
■
■
■
■
Filtering of supply voltages, coupling, decoupling
Antenna systems
Automotive electronics
Telecommunications
Consumer and data processing equipment
Industrial electronics
Terminals
■
Base material CuSn6
■
Layer composition Cu, Ag, Sn (lead-free)
1)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer and letter “T”, L value (in
μH),
tolerance of L value (coded), date of manufacture (YWWD)
■
Minimum data on reel:
Manufacturer, ordering code, L value, quantity, date of packing
Delivery mode and packing units
■
8-mm blister tape, wound on 180-mm or 330-mm
∅
reel
■
Packing units:
180-mm reel: 2000 pcs./reel
330-mm reel: 8000 pcs./reel
1) Ni-barrier-plated terminals (NiSn) on request (B82422T*50).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/08
SMT inductors, SIMID series
SIMID 1210-T

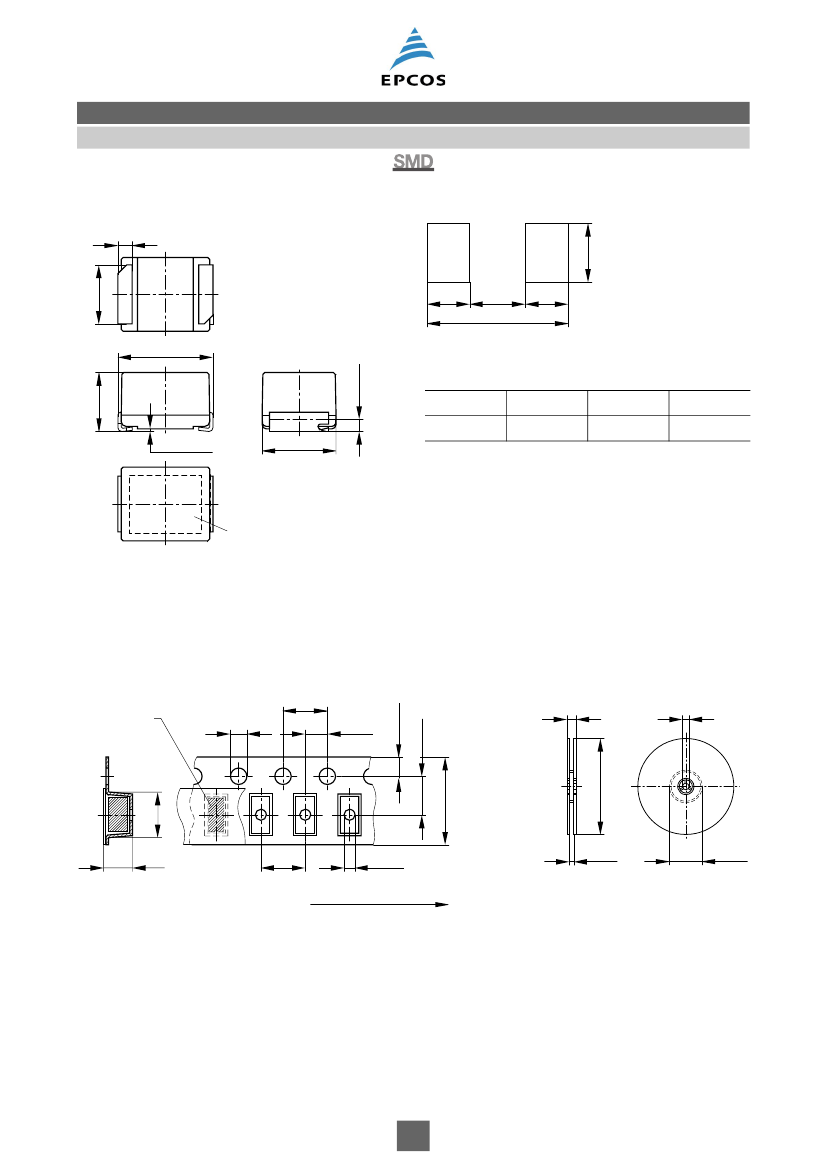

Dimensional drawing and layout recommendation
0.5±0.2
1)
B82422T
2±0.1
1)
B
C
D
B
IND0053-6
3.2+0.3
2±0.1
1)
0.4 min.
A
2.7
B
1.15
A
C
2.1
D
4.4
0.15 max.
2.5+0.3
Marking
1) Soldering area
IND0073-6-E
Dimensions in mm
Taping and packing
Blister tape
1.75±0.1
4±0.1
Component
1.5+0.1
2±0.05
Reel
14.4 max.
_
0
12.75
+0.15
3.5±0.05
_
2
180
+0
_
< 4.2
8±0.3
_
< 2.6
4±0.1
1.0+0.2
Direction of unreeling
IND0559-Z-E
_
0
8.4
+1.5
_
2
330
+0
62±1.5
IND0592-V
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
06/08
SMT inductors, SIMID series
SIMID 1210-T
Technical data and measuring conditions
Rated inductance L
R
Q factor Q
min
Rated temperature T
R
Rated current I
R
B82422T
Measured with impedance analyzer Agilent 4294A
at frequency f
L
, 0.1 V, 20 °C
Measured with impedance analyzer Agilent 4294A
at frequency f
Q
, 20 °C
85
°C
Maximum permissible DC with inductance decrease
ΔL/L
0
≤
10% and temperature increase
of
≤
30 K at rated temperature
Measured with network analyzer Agilent 8753D, 20 °C
Measured at 20
°C
Sn95.5Ag3.8Cu0.7: (245
±5)
°C, (5
±0.3)
s
Wetting of soldering area
≥
90%
(based on IEC 60068-2-58)
260
°C,
40 s (as referenced in JEDEC J-STD 020C)
55/125/56 (to IEC 60068-1)
Mounted: –55 °C … +125 °C
Packaged: –25 °C … +40 °C,
≤
75% RH
Approx. 50 mg
Self-resonance frequency f
res,min
DC resistance R
max
Solderability (lead-free)
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
06/08
SMT inductors, SIMID series
SIMID 1210-T
Characteristics and ordering codes
L
R
μH
Core material: ceramic
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
Core material: ferrite
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
±5%
^
B82422T
Tolerance
Q
min
f
L
; f
Q
MHz
I
R
mA
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
400
390
R
max
Ω
0.10
0.11
0.13
0.14
0.16
0.17
0.18
0.19
0.20
0.21
0.23
0.26
0.31
0.15
0.18
0.19
0.20
0.21
0.23
0.25
0.30
0.31
0.34
0.38
0.6
0.7
f
res,min
MHz
4000
3500
3000
2000
2000
1700
1700
1300
1300
1100
1000
1000
900
900
700
500
500
500
500
400
400
300
300
300
300
250
Ordering code
1)2)
(∅ 180-mm reel)
±5%
^
J
^
15
K
17
19
21
23
23
25
25
26
26
27
27
28
100
100
100
100
100
100
100
100
100
100
100
100
100
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
B82422T3100+000
B82422T3120+000
B82422T3150+000
B82422T3180+000
B82422T3220+000
B82422T3270+000
B82422T3330+000
B82422T3390+000
B82422T3470+000
B82422T3560+000
B82422T3680+000
B82422T3820+000
B82422T3101+000
B82422T1121+000
B82422T1151+000
B82422T1181+000
B82422T1221+000
B82422T1271+000
B82422T1331+000
B82422T1391+000
B82422T1471+000
B82422T1561+000
B82422T1681+000
B82422T1821+000
B82422T1102+000
B82422T1122+000
±10%
J
^
30
K
30
30
30
30
30
30
30
30
30
30
30
30
±10%
Closer tolerances and special versions on request.
Higher currents possible at temperatures <T
R
on request.
Sample kit available. Ordering code: B82422X001
For more information refer to chapter “Sample kits”.
1) Replace the + by the code letter for the required inductance tolerance.
For reel size
∅
330 mm the last digit has to be an »8«. Example: B82422T3100K008
2) For Ni-barrier-plated terminals replace the last two digits “00” by “50” (reel 180 mm) or “58” (reel 330 mm).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
06/08
