Part Number

Search

AM54LS242DM

Description
Bus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP14, HERMETIC SEALED, DIP-14
Categorylogic    logic
File Size163KB,5 Pages
ManufacturerAMD
Websitehttp://www.amd.com
Download Datasheet Parametric View All

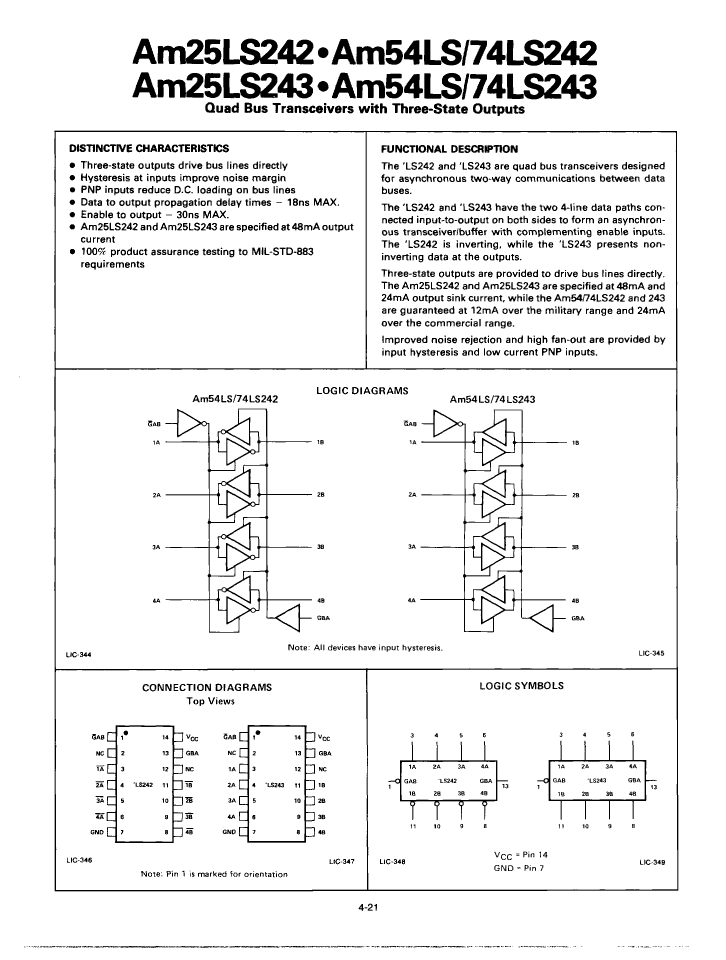

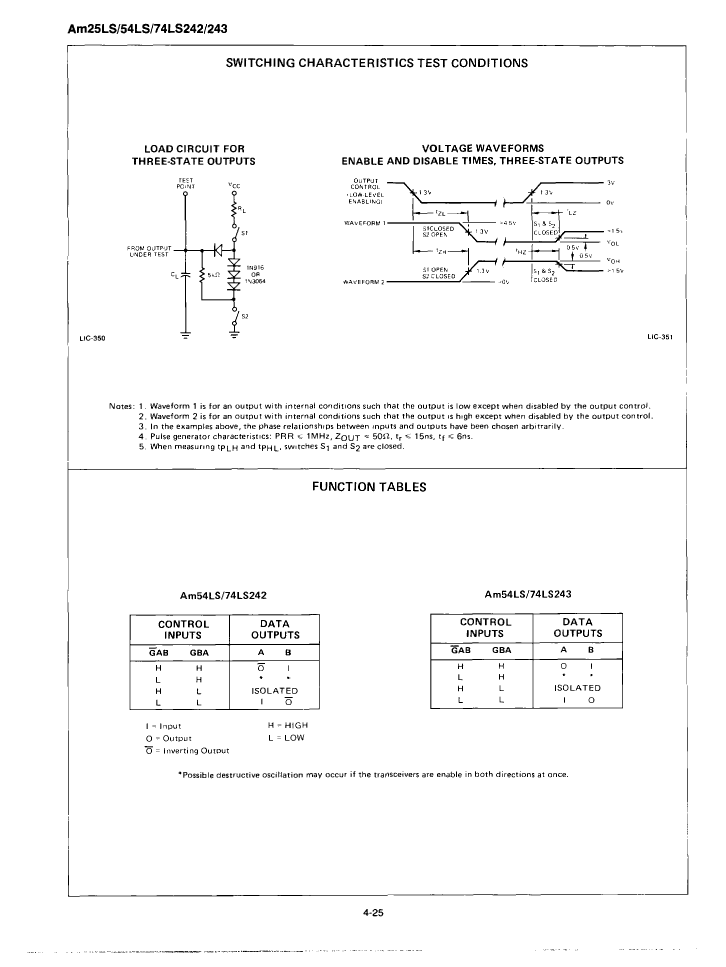

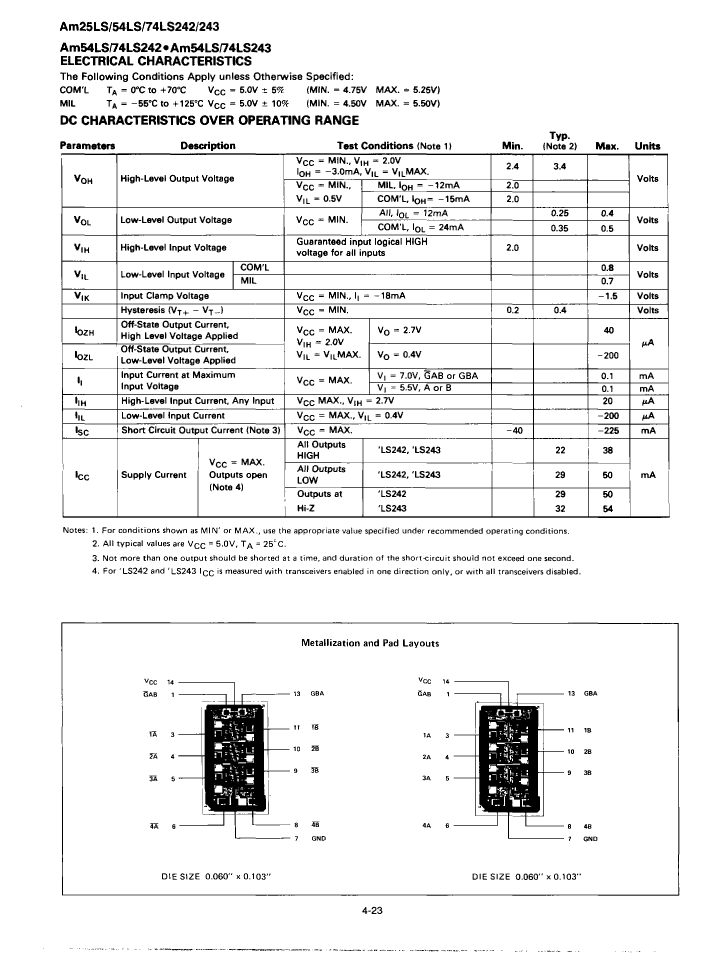

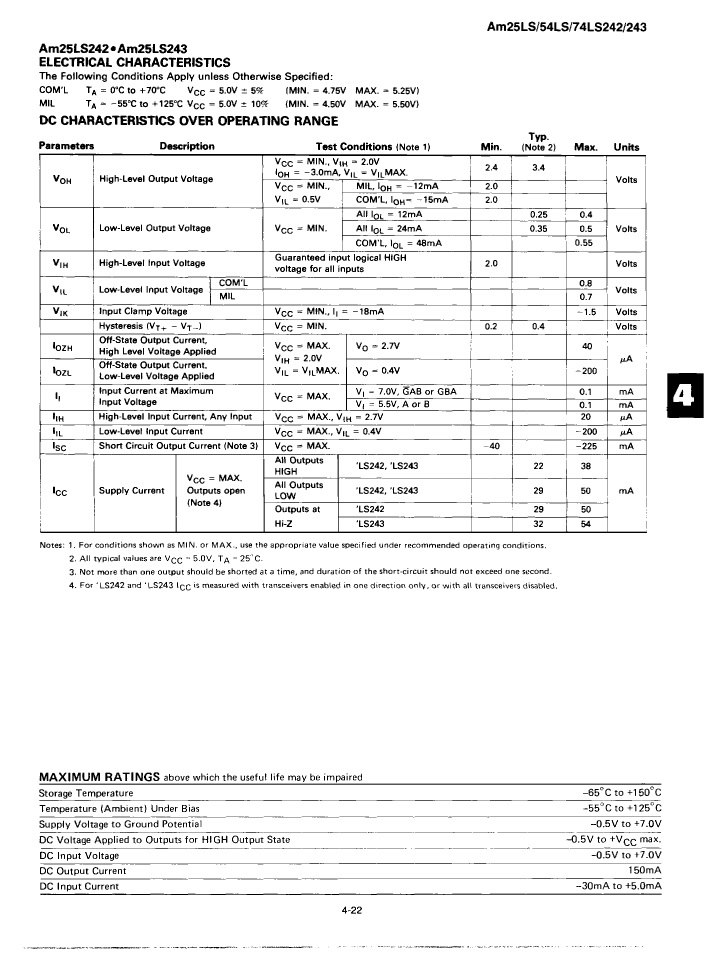

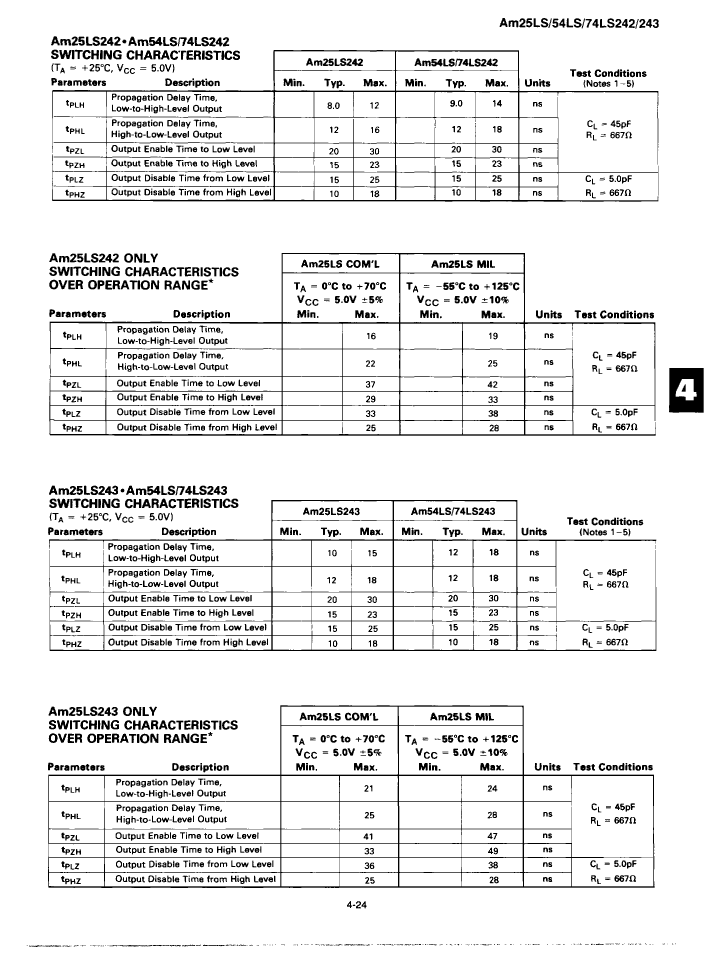

AM54LS242DM Overview

Bus Transceiver, LS Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP14, HERMETIC SEALED, DIP-14

AM54LS242DM Parametric

Parameter NameAttribute value
MakerAMD
Parts packaging codeDIP
package instructionDIP,
Contacts14
Reach Compliance Codeunknown
Other featuresWITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
seriesLS
JESD-30 codeR-CDIP-T14
length19.431 mm
Load capacitance (CL)45 pF
Logic integrated circuit typeBUS TRANSCEIVER
Number of digits4
Number of functions1
Number of ports2
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Maximum supply current (ICC)50 mA
propagation delay (tpd)18 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width7.62 mm
