NCP694 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> NCP694

NCP694: Description1 V FIXED POSITIVE LDO REGULATOR, 0.47 V DROPOUT, PDSO5; Categorysemiconductor Power management; File Size457KB，17 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

NCP694 Overview

1 V FIXED POSITIVE LDO REGULATOR, 0.47 V DROPOUT, PDSO5

NCP694 Parametric

Parameter Name	Attribute value
Minimum input voltage	1.4 V
Maximum input voltage	6 V
Number of functions	1
Number of terminals	5
Processing package description	LEAD FREE, SOT-89, 5 PIN
each_compli	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	Active
Adjustment type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Adjustable	FIXED
dropout_voltage1_nom	0.6400 V
Maximum voltage difference 1	0.4700 V
input_voltage_absolute_max	6.5 V
jesd_30_code	R-PDSO-G5
jesd_609_code	e3
line_regulation_max	0.0080 V
load_regulation_max	0.0150 V
moisture_sensitivity_level	NOT SPECIFIED
Number of outputs	1
erating_temperature,_tj_mi	-40 Cel
erating_temperature,_tj_max	85 Cel
Maximum output current 1	0.3000 A
Rated output voltage 1	1 V
Minimum output voltage 1	0.9700 V
Maximum output voltage 1	1.03 V
Packaging Materials	PLASTIC/EPOXY
ckage_code	LSOF
ckage_equivalence_code	FL6,.1,60
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
cking_method	TAPE AND REEL
eak_reflow_temperature__cel_	NOT SPECIFIED
qualification_status	COMMERCIAL
seated_height_max	1.6 mm
sub_category	Other Regulators
surface mount	YES
Craftsmanship	CMOS
terminal coating	MATTE TIN
Terminal form	GULL WING
Terminal spacing	1.5 mm
Terminal location	DUAL
ime_peak_reflow_temperature_max__s_	NOT SPECIFIED
voltage_tolerance_max	3 %
length	4.5 mm
width	2.5 mm

Preview

Download Datasheet

View All

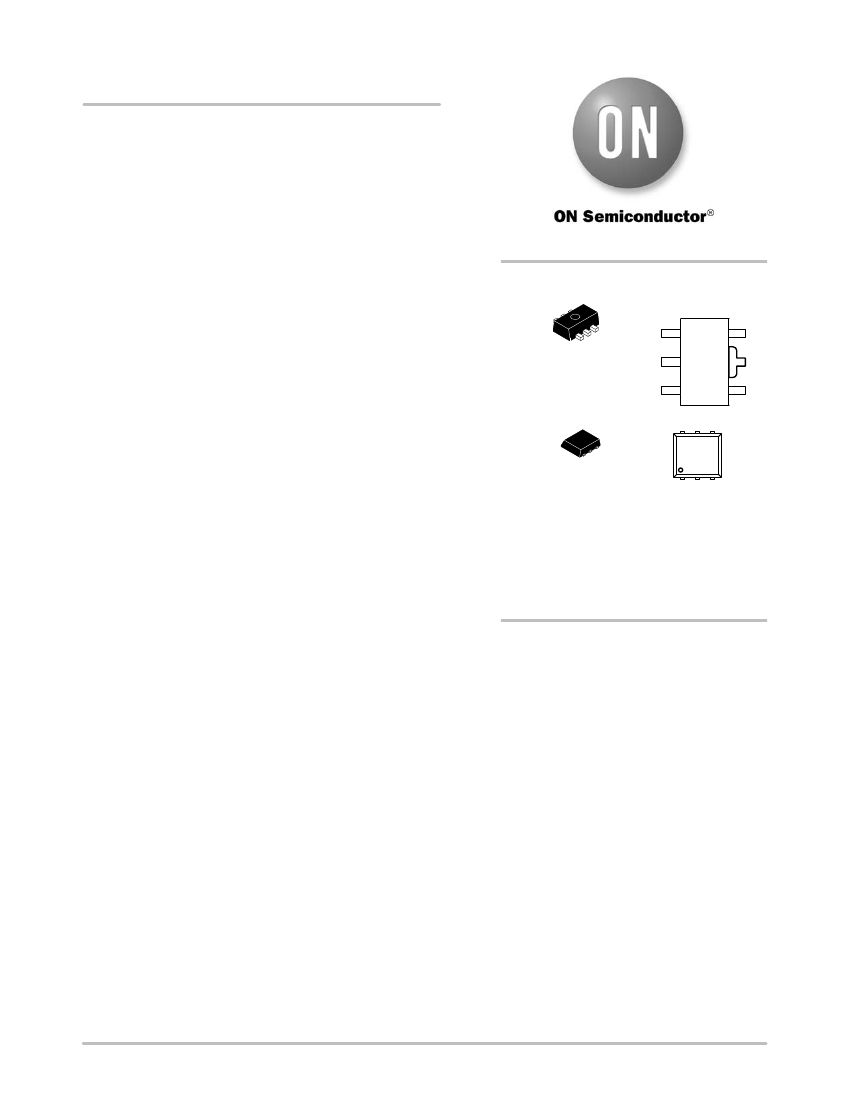

NCP694

1A CMOS Low-Dropout

Voltage Regulator

The NCP694 series of fixed output super low dropout linear

regulators are designed for portable battery powered applications with

high output current requirement up to 1 A and

−3

mV typical load

regulation at 1 A. Each device contains a voltage reference unit, an

error amplifier, a PMOS power transistor, resistors for setting output

voltage, a current limit circuits for overcurrent and thermal−shutdown.

A standby mode with ultra low supply current can be realized with the

chip enable function.

The device is housed in the SOT−89−5 and HSON−6 packages.

Standard voltage versions are 0.8 V, 1.0 V, 1.2 V, 2.5 V, 3.3 V for fixed

version and adjustable output voltage down to 1.0 V.

Features

http://onsemi.com

MARKING

DIAGRAMS

SOT−89−5

CASE 528AB

XXX

XMM

HSON−6

CASE 506AE

XXX

XYYG

•

Maximum Operating Voltage of 6.0 V

•

Minimum Output Voltage Down to 0.8 V for Fix Version and 1.0 V

•

for Adjustable Version

Load Regulation

−3

mV at 1 A Output Current

Low Dropout

Build−in Auto Discharge Function for D Version

Standby Mode With Low Consumption

These are Pb−Free Devices

Battery Powered Instruments

Hand−Held Instruments

Camcorders and Cameras

Portable communication equipments

Typical Applications

XXXX

= Specific Device Code

MM, YY = Lot Number

G or

= Pb−Free Package

For actual marking Pb−Free indicator, “G” or micro-

dot “G” may or may not be provided.

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 15 of this data sheet.

Semiconductor Components Industries, LLC, 2011

June, 2011

−

Rev. 2

Publication Order Number:

NCP694/D
