HI1-0509A-8: Description4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, FRIT SEALED, CERDIP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size1MB，20 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Related ProductsFound12parts with similar functions to HI1-0509A-8

Download Datasheet Parametric View All

HI1-0509A-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HI1-0509A-8	-	-	View	Buy Now

HI1-0509A-8 Overview

4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, FRIT SEALED, CERDIP-16

HI1-0509A-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	19 weeks
Other features	OVERVOLTAGE PROTECTION
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	1500 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum signal current	0.02 A
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	500 ns
Maximum connection time	500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

DATASHEET

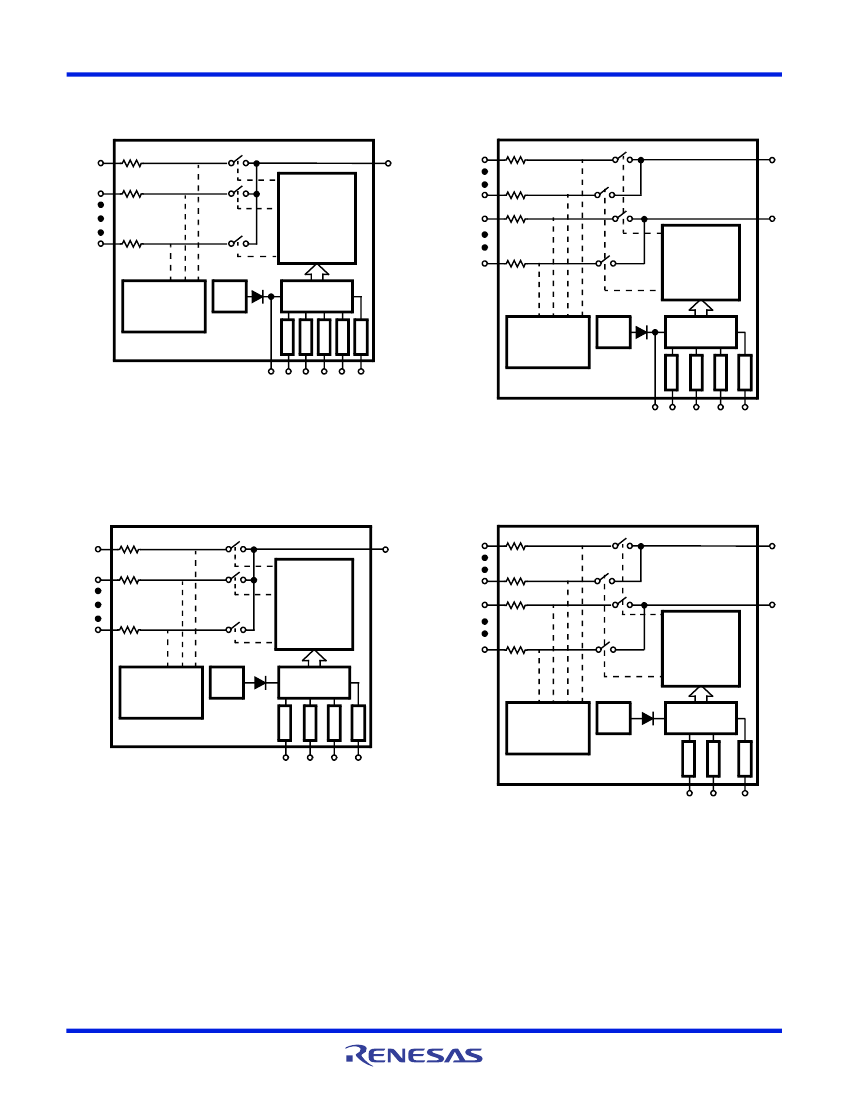

HI-506A, HI-507A, HI-508A, HI-509A

16-Channel, 8-Channel, Differential 8-Channel and Differential 4-Channel,

CMOS Analog MUXs with Active Overvoltage Protection

The HI-506A, HI-507A, HI-508A and HI-509A are analog

multiplexers with active overvoltage protection. Analog input

levels may greatly exceed either power supply without

damaging the device or disturbing the signal path of other

channels. Active protection circuitry assures that signal

fidelity is maintained even under fault conditions that would

destroy other multiplexers. Analog inputs can withstand

constant 70V

P-P

levels with

15V

supplies. Digital inputs will

also sustain continuous faults up to 4V greater than either

supply. In addition, signal sources are protected from short

circuiting should multiplexer supply loss occur. Each input

presents 1k of resistance under this condition. These

features make the HI-506A, HI-507A, HI-508A and HI-509A

ideal for use in systems where the analog inputs originate

from external equipment, or separately powered circuitry. All

devices are fabricated with 44V dielectrically isolated CMOS

technology. The HI-506A is a single 16-channel multiplexer,

the HI-507A is an 8-channel differential multiplexer, the

HI-508A is a single 8-channel multiplexer and the HI-509A is

a differential 4-channel multiplexer. If input overvoltage

protection is not needed the HI-506/507/508/509

multiplexers are recommended. For further information see

Application Note AN520.

FN3143

Rev.6.00

October 30, 2007

Features

• Analog Overvoltage . . . . . . . . . . . . . . . . . . . . . . . . 70V

P-P

• No Channel Interaction During Overvoltage

• Maximum Power Supply . . . . . . . . . . . . . . . . . . . . . . 44V

• Fail Safe with Power Loss (No Latch-Up)

• Break-Before-Make Switching

• Analog Signal Range . . . . . . . . . . . . . . . . . . . . . . . .

15V

• Access Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500ns

• Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . 7.5mW

• Pb-Free Available (RoHS Compliant)

Applications

• Data Acquisition Systems

• Industrial Controls

• Telemetry

FN3143 Rev.6.00

October 30, 2007

Page 1 of 20
