PANEL HOLE SIZE
PART NO.
"H"
HEAD
HEIGHT
"C"
RMS-262
RMS-67
RMS-262
PANEL
THICKNESS
"P"
OUTSIDE BODY PLUG
DIAMETER THICKNESS MATERIAL
"OD"
"T"
BP-16230 10±0.1[.394±.004]
BP-16231 12±0.2[.472±.008]
BP-16232 14±0.2[.551±.008]
BP-16233 16±0.2[.630±.008] 0.8-2 [.032-.079]
BP-16234 18±0.2[.709±.008]
BP-16236 22±0.2[.866±.008]
BP-16238 30±0.2[1.181±.008]
5 [.20]
4.5 [.18]
4.25 [.17]
19.3 [.76]
21 [.83]
23 [.91]
25 [.98]
27 [1.06]
31.2 [1.23]
39.4 [1.55]
10.9 [.43]
11.4 [.45]
11.4 [.45]
12 [.47]
11.4 [.45]
10.9 [.43]
10.7 [.42]
A
"C"
"OD"
A
"T"

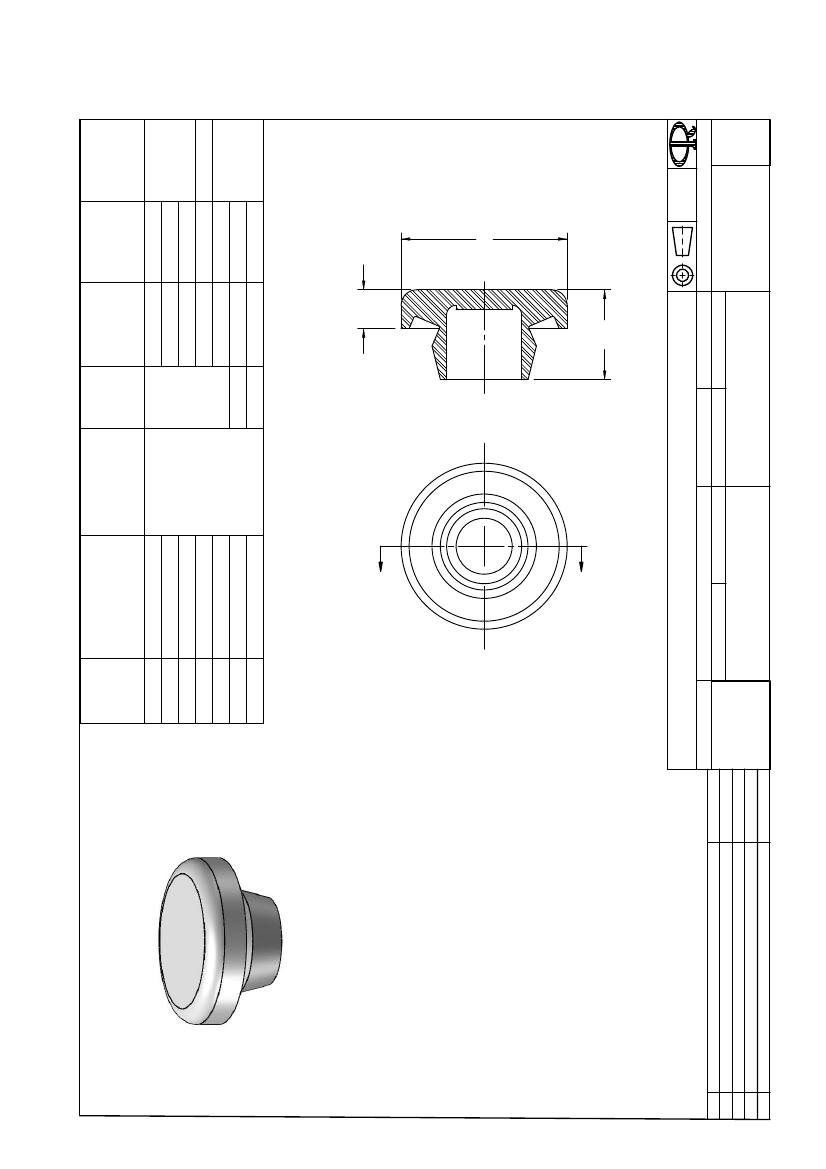

SECTION A-A
NOTES:
1. MATERIAL: THERMOPLASTIC ELASTOMER UL 94 HB.
2. COLOR: BLACK.
3. AT NOMINAL PANEL HOLE SIZE AND MAXIMUM
PANEL THICKNESS PARTS CONFORM TO IP67
4. ALTERNATE UNITS FOR REFERENCE ONLY
TITLE:
CREATED USING
SOLIDWORKS
BODY PLUG
FILE #: BP
SHEET: 1 OF 1
RE:
SHEET SIZE: A
DWN: SK
DT: 06/11/07
TOLERANCES
UNLESS NOTED
±0.5
ANG.=±1°
D
C
B
A
REV.
SEE CO 200420 FOR CHANGES
SEE CO 200041 FOR CHANGES
SEE ECN #1332 FOR CHANGES
CHANGED FILE NO. AND TABLE HEADING
DESCRIPTION
SK
08/21/09
SK
09/28/07
SK
06/12/07
SM
01.02.02
ENGR. DATE
RICHCO, INC.
--
RICHCO, INC.
APP: RT
CHKD: DZ
ENG@RICHCO-INC.COM
PART #
DWG IN
mm [IN]
FINAL
PRINT
TYPE
(773) 539-4060
SEE TABLE
CA
