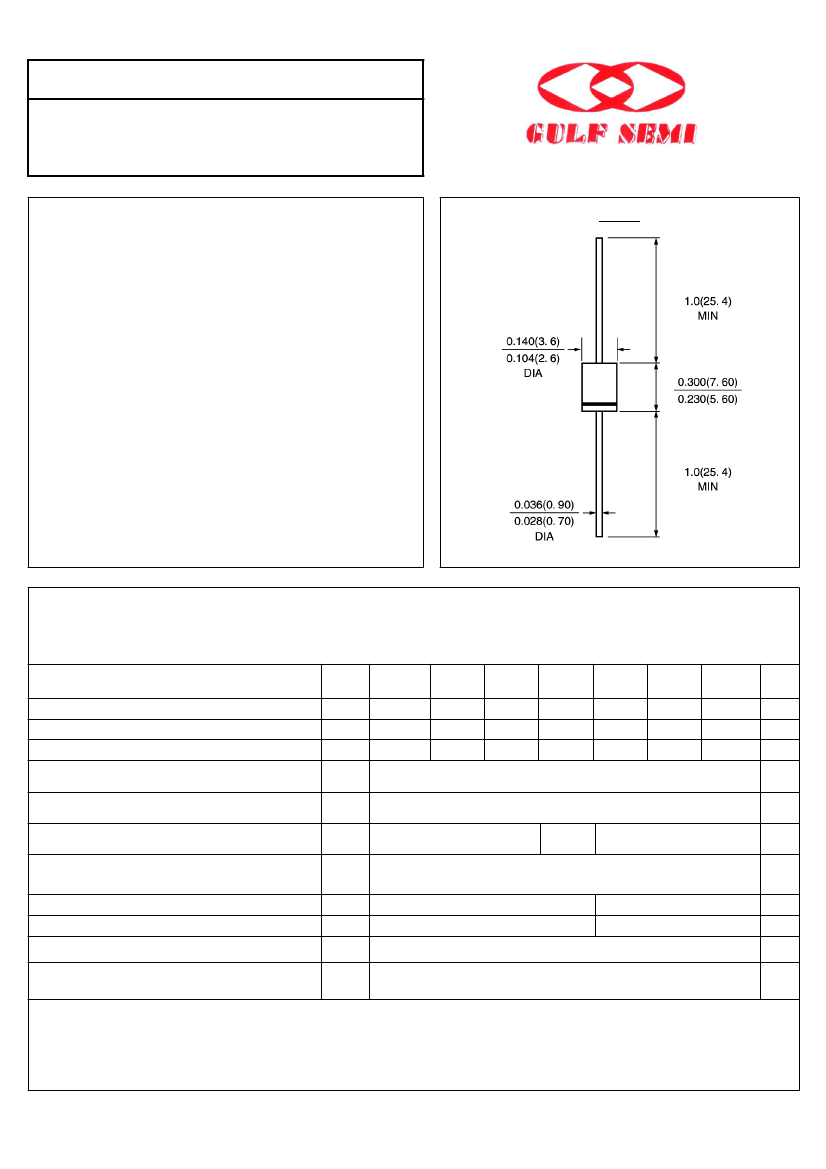

SUF1500 THRU SUF1508

HIGH EFFICIENT

PLASTIC SILICON RECTIFIER

VOLTAGE:50 TO 1000V

CURRENT: 1.5A

FEATURE

Low power loss

High surge capability

Ultrafast recovery time for high efficiency

High temperature soldering guaranteed

250°C/10sec/0.375”lead length at 5 lbs tension

DO-15

MECHANICAL DATA

Terminal:Plated axial leads solderable per

MIL-STD 202E, method 208C

Case:Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity:color band denotes cathode

Mounting position:any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYM

BOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8’lead length at Ta =55°C

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at Forward

current 2.0A Peak

Maximum DC Reverse Current T =25°C

at rated DC blocking voltage

Ta =100°C

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance

(Note 2)

Typical Thermal Resistance (Note 3)

Storage and Operating Junction Temperature

Vrrm

Vrms

Vdc

If(av)

Ifsm

SUF

1500

SUF

1501

100

SUF

1502

200

140

200

SUF

1504

400

280

400

1.5

50.0

SUF

1506

600

420

600

SUF

1507

800

560

800

SUF

1508

1000

700

1000

units

1.0

1.4

10.0

100.0

20.0

-55 to +150

1.7

µA

Trr

R(ja)

Tstg,

°C/

°C

Note:

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted

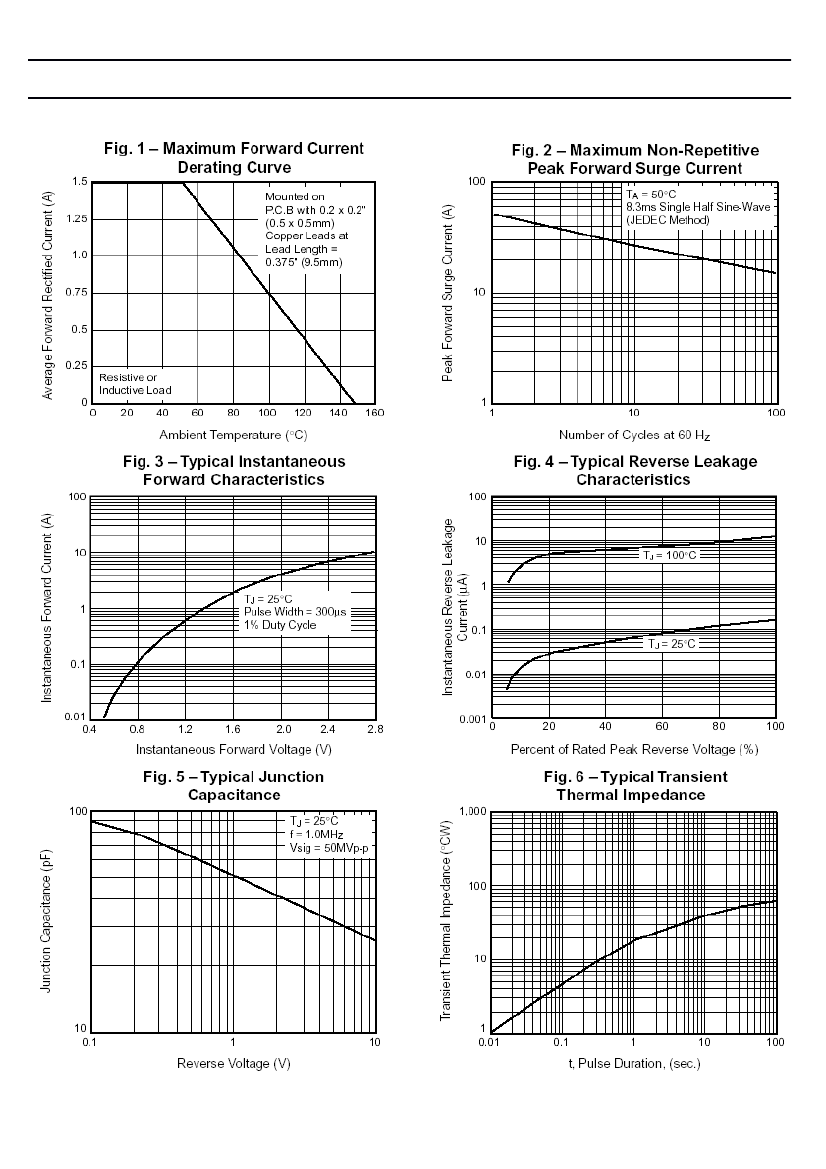

Rev.A1

www.gulfsemi.com
