Introducing
SlimSeal SSL Connector
The SlimSeal SSL connectors are low profile, single row connectors developed for indoor and
outdoor LED lighting applications. These connectors provide low power, sealed solutions for
free hanging, wire-to-wire interconnects and for robust, stable electrical and mechanical
wire-to-board connections used in solid state lighting.
KEY FEATURES
•
Available in 2, 3 & 4 positions
•
SMT and thru hole
•
Wire-to-wire and wire-to-board
•
•
•
•
•
•
(vertical and right angle)
18 – 24 AWG stranded wire
Positive integral latching
Polarized connectors
Pre-assembled seals & wire guides
IP67 rating
UV resistance (wire-to-wire)
APPLICATIONS
•
•
•
•
•
•
•
•
Billboards
Live events lighting
Wall wash lighting
Spot lighting
Street lighting
Tunnel lighting
Flood lights
LED strip lighting
SlimSeal
SSL Connector
LIGHTING
APPLICATIONS
electricAl
Operating Current : 5 AMPS (18-20 AWG) & 3.5 AMPS (22-24 AWG)
Maximum Operating Voltage : 250 VAC/250 VDC
Dielectric Withstanding Voltage : 1500 VAC
mecHAnicAl
channel/sign
emergency
Number of positions : 2, 3 and 4
Operating Temperature : -40°C to 105°C
Seal Rating : IP67
Durability : 30 mating cycles
mAteriAls
digital signage
Architectural
Housings : UL 94 V0 rated high temperature resistant thermoplastic
Receptacle Contacts : Tin Plated Copper Alloy
Tab Contacts : Tin Plated Brass
Integral Seals : Silicone Rubber
street & stadium
Indoor
stAndArds And specificAtions
UL 1977, CSA C22.2 No. 182.3
TE Application Specification : 114-13261
TE Product Specification : 108-2391
Exposure : UL 746C F1 (suitable for outdoor use, wire-to-wire only)
Office
commercial
refrigeration
ApplicAtion toolinG
18-20 AWG Tab and Receptacle Terminals
PART NUMBER
2063957-1
1530177-2
1530177-1
DESCRIPTION
Hand Tool
HDI Applicator-Bench Terminator
HDI Applicator-Leadmaker
22-24 AWG Tab and Receptacle Terminals
PART NUMBER
2063956-1
1530178-2
1530178-1
DESCRIPTION
Hand Tool
HDI Applicator-Bench Terminator
HDI Applicator-Leadmaker
Tyco Electronics |
SlimSeal SSL Connector

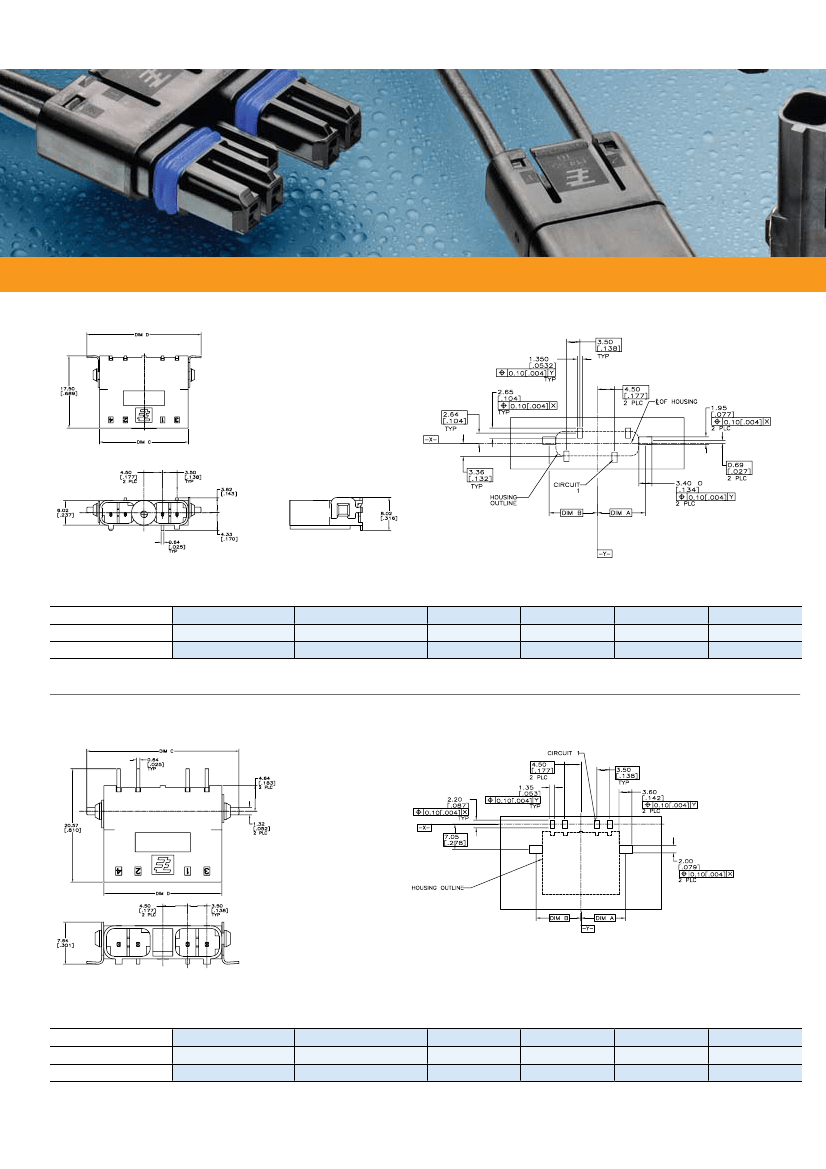

product dimensions
Vertical SMT Header
Recommended PCB Layout
PART NUMBER
2106053-2
2106053-4
2106053-6
POSITION SIZE
2
3
4
DESCRIPTION
SMT Vertical Header
SMT Vertical Header
SMT Vertical Header
DIM “A”
8.96 [.353]
12.46 [.491]
12.46 [.491]
DIM “B”
8.96 [.353]
8.96 [.353]
12.46 [.491]
DIM “C”
14.40 [.567]
17.90 [.705]
21.40 [.843]
DIM “D”
20.65 [.813]
24.15 [.951]
27.65 [1.089]
Right Angle SMT Header
Recommended PCB Layout
PART NUMBER
2106056-2
2106056-5
2106056-8
POSITION SIZE
2
3
4
DESCRIPTION
SMT Right Angle Header
SMT Right Angle Header
SMT Right Angle Header
DIM “A”
8.96 [.353]
12.46 [.491]
12.46 [.491]
DIM “B”
8.96 [.353]
8.96 [.353]
12.46 [.491]
DIM “C”
20.61 [.811]
24.11 [.949]
27.61 [1.087]
DIM “D”
14.40 [.567]
17.90 [.705]
21.40 [.843]
Tyco Electronics
I Low Power Sealed
Lighting Connector
SlimSeal SSL Connector

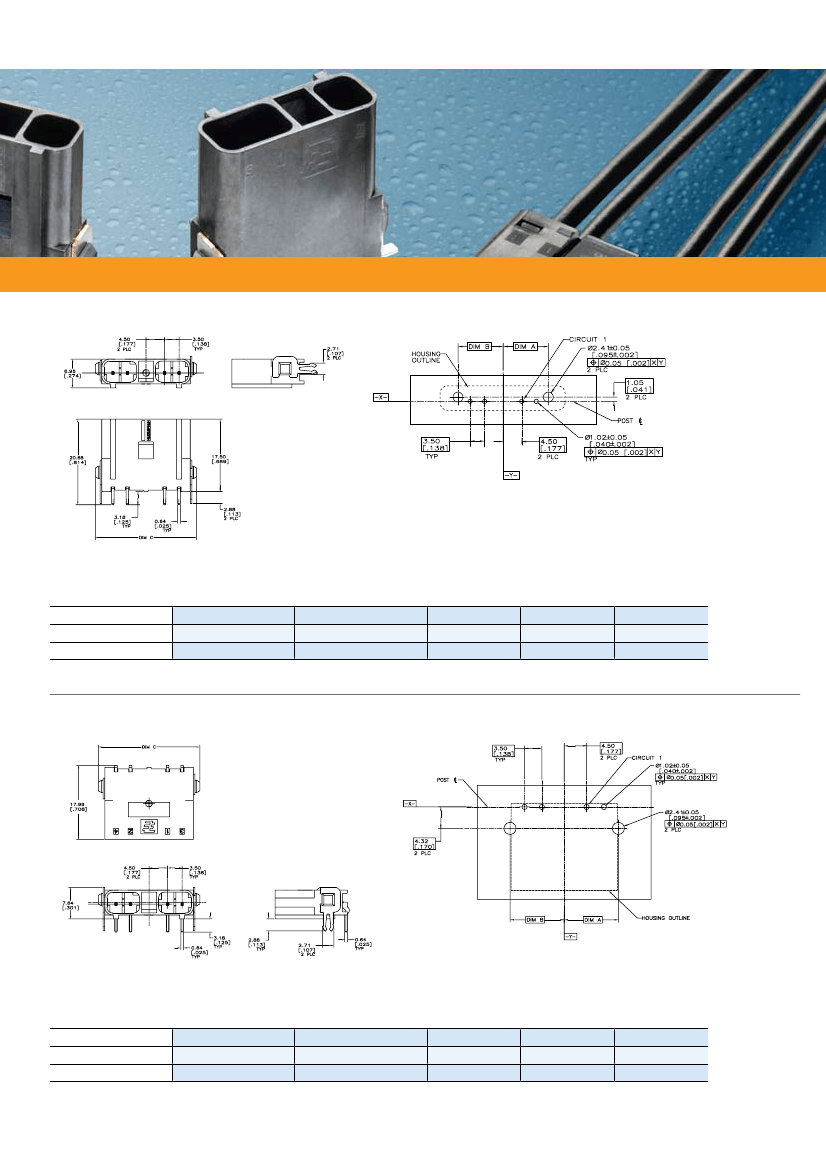

product dimensions cont.
Vertical Thru Hole Header
Recommended PCB Layout
PART NUMBER
2106112-2
2106112-4
2106112-6
POSITION SIZE
2
3
4
DESCRIPTION
TH Vertical Header
TH Vertical Header
TH Vertical Header
DIM “A”
7.42 [.292]
10.92 [.430]
10.92 [.430]
DIM “B”
7.42 [.292]
7.42 [.292]
10.92 [.430]
DIM “C”
17.54 [.691]
21.04 [.828]
24.54 [.966]
Right Angle Thru Hole Header
Recommended PCB Layout
PART NUMBER
2106111-2
2106111-4
2106111-6
POSITION SIZE
2
3
4
DESCRIPTION
TH Right Angle Header
TH Right Angle Header
TH Right Angle Header
DIM “A”
7.42 [.292]
10.92 [.430]
10.92 [.430]
DIM “B”
7.42 [.292]
7.42 [.292]
10.92 [.430]
DIM “C”
17.54 [.691]
21.04 [.828]
24.54 [.966]
SlimSeal SSL Connector I
Tyco Electronics
SlimSeal SSL Connector

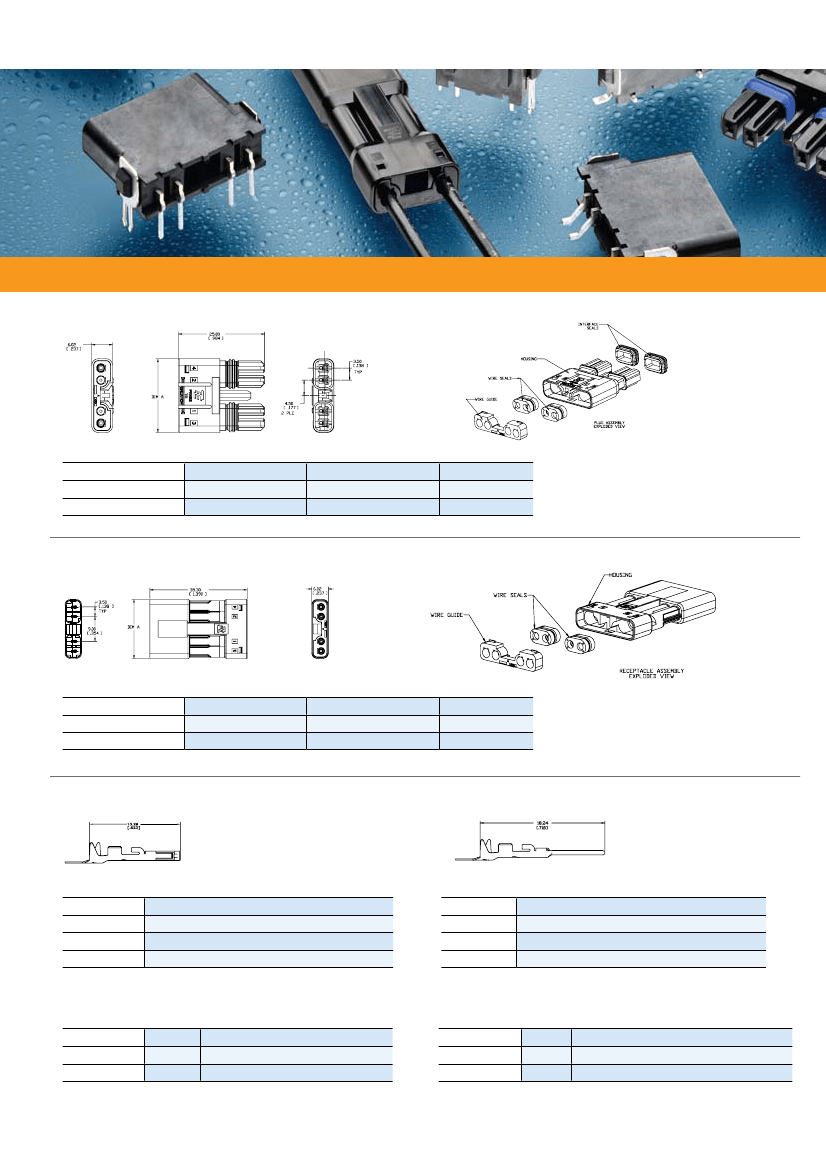

product dimensions cont.
Free Hanging Plug Assembly
Exploded View
PART NUMBER
2106135-2
2106135-3
2106135-4
POSITION SIZE
2
3
4
DESCRIPTION
Plug Assembly
Plug Assembly
Plug Assembly
DIM “A”
14.40 [.567]
17.90 [.705]
21.40 [.843]
Free Hanging Receptacle Assembly
Exploded View
PART NUMBER
2106136-2
2106136-3
2106136-4
POSITION SIZE
2
3
4
DESCRIPTION
Receptacle Assembly
Receptacle Assembly
Receptacle Assembly
DIM “A”
14.40 [.567]
17.90 [.705]
21.40 [.843]
Free Hanging Receptacle Contact
Tab Contact
PART NUMBER
2106123-1
2106123-2
1-2106123-1
1-2106123-2
POSITION SIZE
18-20 AWG Receptacle Terminal
18-20 AWG Receptacle Terminal (Loose Piece)
22-24 AWG Receptacle Terminal
22-24 AWG Receptacle Terminal (Loose Piece)
PART NUMBER
2106124-2
2106124-9
2-2106124-2
2-2106124-7
POSITION SIZE
18-20 AWG Tab Terminal
18-20 AWG Tab Terminal (Loose Piece)
22-24 AWG Tab Terminal
22-24 AWG Tab Terminal (Loose Piece)
Cable Assemblies
PART NUMBER
2106378-2
2106378-3
2106378-4
POSITION
2
3
4
DESCRIPTION
101.60 [4.000] Plug Cable Assembly
101.60 [4.000] Plug Cable Assembly
101.60 [4.000] Plug Cable Assembly
PART NUMBER POSITION
2106391-2
2106391-3
2106391-4
2
3
4
DESCRIPTION
101.60 [4.000] Receptacle Cable Assembly
101.60 [4.000] Receptacle Cable Assembly
101.60 [4.000] Receptacle Cable Assembly
SlimSeal SSL Connector I
Tyco Electronics
