Features
n
IEEE 802.3 Ethernet compatible
n
Discrete transformers and common mode chokes for flexible PCB layout
n
Pair with common mode choke SRF2012A-801Y for EMI reduction
n
Expanded temperature range: -40 to +85 °C
n
RoHS compliant*
SM453229-381N7Y - 10/100/1000 Base-T Chip LAN Transformer
Electrical Specifications at 25 °C
Inductance
@ 100 kHz, 0.1 V, 0 mADC
(Pin 1-2 & 6-7 / short 3-4)
........................................ 380 µH min.
Inductance – DC Bias
@ 100 kHz, 0.1 V, 8 mA DC
(Pin 1-2 & 6-7 / short 3-4)
........................................ 350 µH min.
Turns Ratio (± 3 %)
(Pin 1-2 : 6-7 / short 3-4) ..............1 : 1
Insertion Loss (1-100 MHz)
........................................-1.5 dB max.
Capacitance
(Pin 5-3 / short 3-4) .............35 pF typ.
Hi-Pot (Pin 1 to 6, short 3-4)
.............................. 1500 VAC, 60 sec.
Pulse Voltage............. 2400 V, 1.2/50 µS
Operating Temperature......-40 to +85 °C
Storage Temperature .........-40 to +85 °C

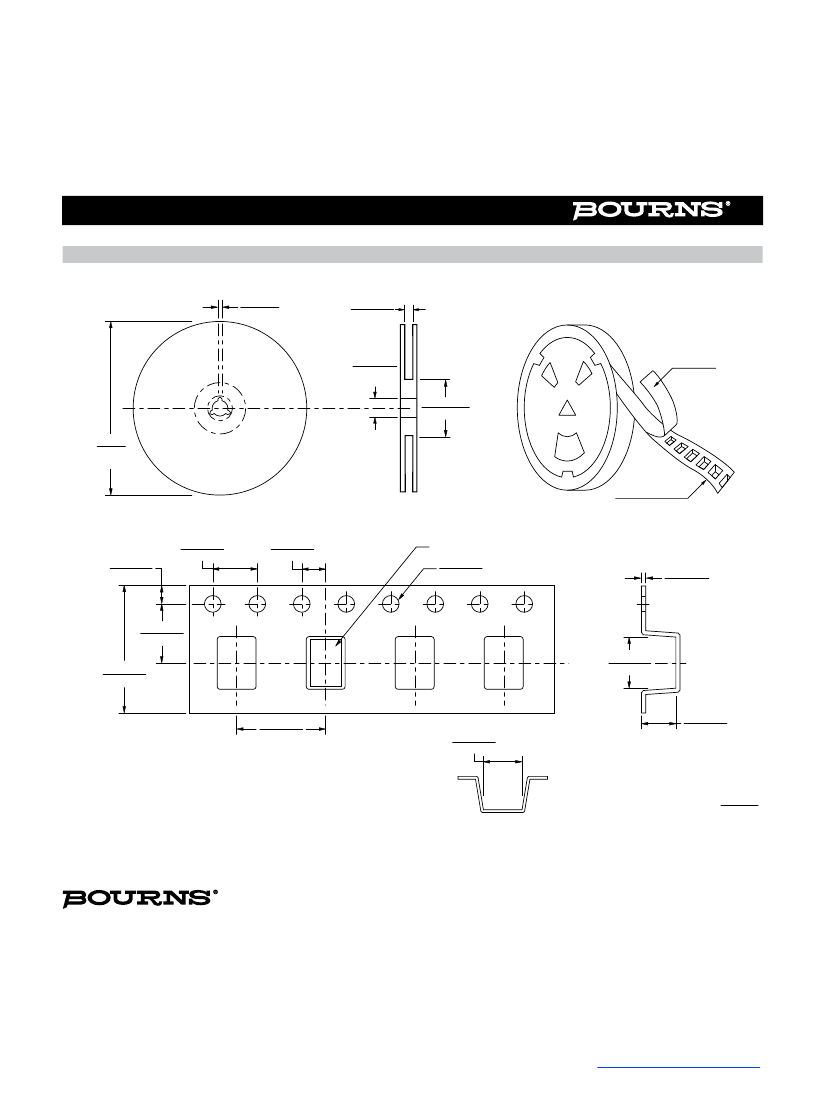

Packaging ...................... 2000 pcs. / reel

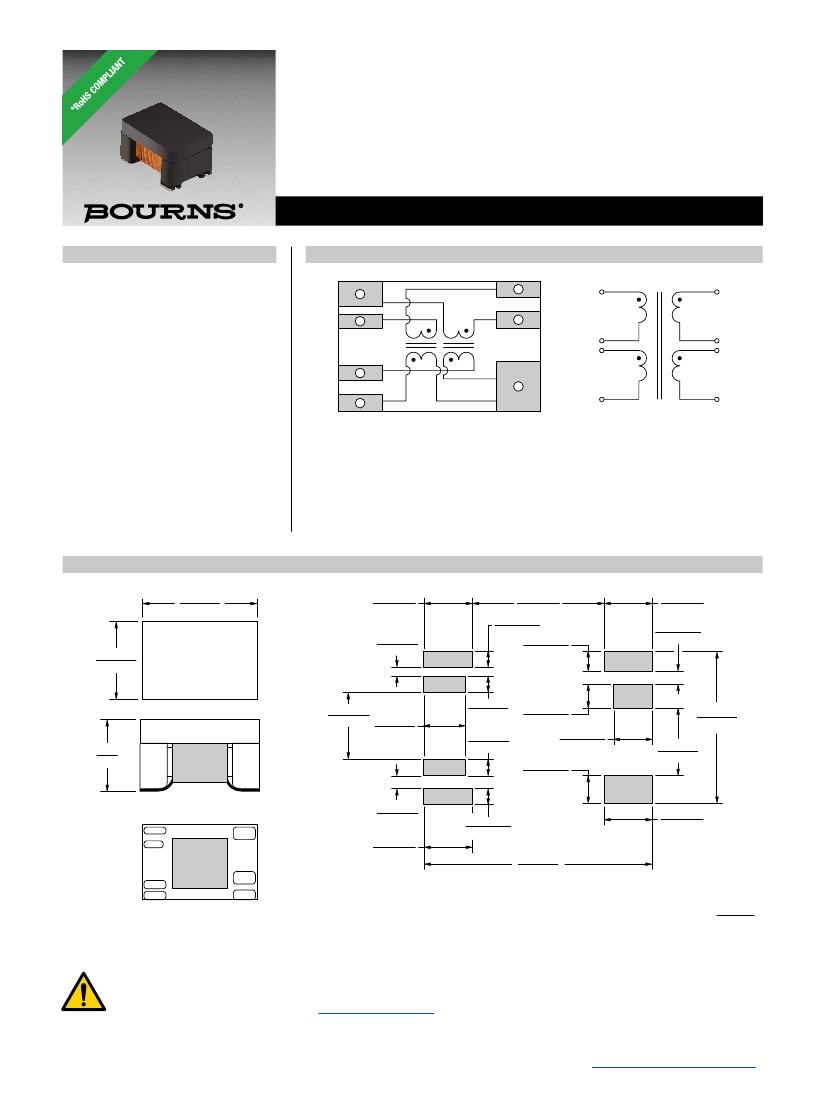

Product Dimensions
4.70 ± .20
(.185 ± .008)
1.00 ± 0.20
(.039 ± .008)
2.70 ± 0.20
(.106 ± .008)
0.32 ± 0.06
(.013 ± .002)
0.40 ± 0.08
(.016 ± .003)
1.00 ± 0.20
(.039 ± .008)
0.28 ± 0.05
(.011 ± .002)
Electrical Schematic
4
3
7
6
5
2
5
1
TOP VIEW
2
7
4
3
1
6
3.22 ± .20
(.127 ± .008)
0.18 ± 0.05
(.007 ± .002)
1.42 ± 0.20
(.056 ± .008)
0.85 ± 0.16
(.033 ± .006)
2.90
MAX.
(.114)
0.36 ± 0.06
(.014 ± .002)
0.38 ± 0.06
(.015 ± .002)
0.52 ± 0.10
(.020 ± .004)
0.80 ± 0.16
(.031 ± .006)
0.60 ± 0.10
(.024 ± .004)
3.22 ± 0.20
(.127 ± .008)
1.42 ± 0.20
(.056 ± .008)
0.24 ± 0.04
(.009 ± .002)
1.00 ± 0.20
(.039 ± .008)
0.32 ± 0.06
(.013 ± .002)
1.00 ± 0.20
(.039 ± .008)
4.70 ± .20
(.185 ± .008)
TOP VIEW
DIMENSIONS:
MM
(INCHES)
